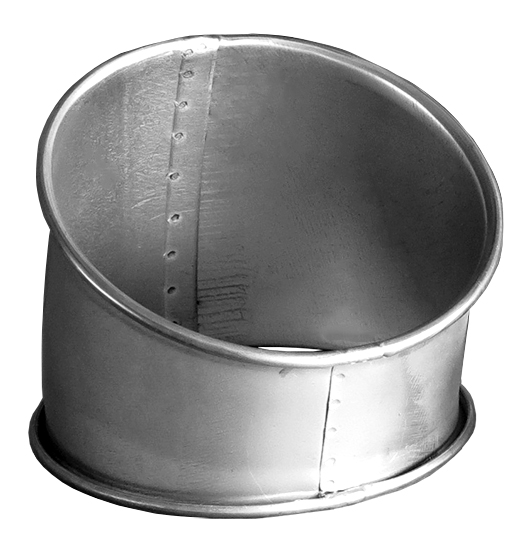

Duct Bends allow airflow direction change in a run of a duct. Standard Quick-Fit (QF) Pressed Bends are available in 90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends.
Quick-Fit ducting is used in a wide variety of dust collection, fume extraction, and process ventilation applications. Quick-Fit modular clip-together ducting system with rolled edges saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations - providing one of the lowest life cycle costs of any ducting product.
| ø A (mm) | Angle degree | Center line radius | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 80 | 30 | 1 | Galv | 0,5 | 0,2 | 8210000140 |
| 100 | 30 | 1 | Galv | 0,5 | 0,2 | 8210000145 |
| 125 | 30 | 1 | Galv | 0,5 | 0,3 | 8210000150 |
| 140 | 30 | 1 | Galv | 0,5 | 0,4 | 8210000155 |
| 150 | 30 | 1 | Galv | 0,7 | 0,4 | 8210000160 |
| 160 | 30 | 1 | Galv | 0,6 | 0,5 | 8210000165 |
| 180 | 30 | 1 | Galv | 0,7 | 0,6 | 8210000170 |
