Dust Collection Ductwork

Dust Collection Cleans Workplace Environments for Worker Safety and Machinery Efficiency

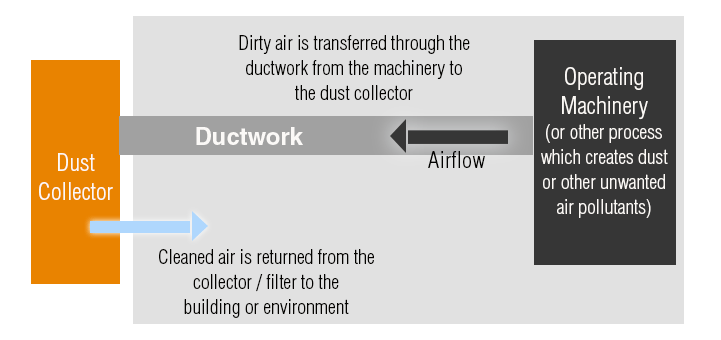

Industrial ventilation, sometimes known as Local Exhaust Ventilation (LEV), is the process of moving clean air into a work environment and exhausting contaminated air out. In its simplest form, an industrial ventilation or dust collection system can be described as similar to a vacuum cleaner. The dust collection ductwork is the hose and wand that draws the dust away from the machine creating pollutants. And the dust collector is the vacuum cleaner filtering dust and returning clean air either to the building or outside.

• Enhances worker safety, providing a cleaner, healthier work environment
• Helps eliminate the risk of fires and possibly explosions, created by the buildup of “combustible dust”
• May be required to comply with occupational exposure regulations / guidelines (ex. OSHA, ACGIH, NFPA)
• Promotes greater machinery efficiency due to a cleaner environment

Flexible Hose is a rubber or plastic hose with a metal grounding helix that MUST be grounded at each end to keep static electricity from building up and generating dangerous sparks. Hose is only appropriate for short runs, such as machine connections. That is because its rough interior and “floppy” nature cause significant static pressure loss, which requires higher energy use and can result in poor system performance.

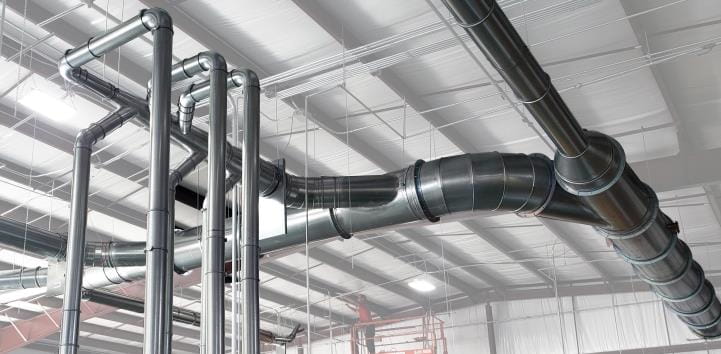

Hard, Fixed Dust Collection Ductwork is most often constructed out of either plastic or metal (galvanized or stainless steel, depending on the application). All-metal construction is used on virtually all industrial and commercial applications as it reduces the chance of dangerous static electricity buildup. The smooth rigid interior of metal duct reduces static pressure loss, even over long runs. Metal duct construction types could include spiral wound or seamed.

Flanged Ducting

Flanged ducting is joined using metal flanges or angle rings. In this method, flanges are fitted over each end of the duct collar and the edge of the duct is “vanstoned” (turned up to keep the flange in place) or the flange can be welded to the duct. Then the flanges on the ends of two pieces of duct are simply bolted together to join pieces.

Clamp-Together Ducting and Its Benefits

Clamp-Together ductwork systems, such as Nordfab offers, in which each section of duct has a rolled edge that is joined quickly with a simple tool-free clamp, offer many advantages, including:

• Installation times of less than half that of standard flanged duct systems.
• Nordfab clamp-together duct systems align perfectly, so long runs are even and have minimal static pressure loss.
• Clamp-together ducting systems can be taken apart and reconfigured quickly and easily. This allows easy cleanout of the duct. Also, there is no need to throw any parts away during shop floor reconfiguration, resulting in a long product life cycle.

Nordfab is the originator and world's largest manufacturer of clamp-together ductwork.
