Straight duct, clips, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. Comes with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections.  When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generoursly dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined.

Our standard sizes ranges from 80 mm to 710 mm in diameter and our ductwork is available in galvanised and stainless steel construction.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit ducting is used in a wide variety of dust collection, fume extraction, and process ventilation applications. Quick-Fit modular clip-together ducting system with rolled edges saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations - providing one of the lowest life cycle costs of any ducting product.

Ductwork is available in galvanised and stainless steel construction. Can't find what you're looking for? Contact us, and we'll be happy to help!

Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends, branches, reducers, and other products with joints or collars are epoxy caulked. When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generoursly dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined. For added security, a locking pin may be inserted.

QFS modular clip-together components are designed with rolled edges, which saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations - providing one of the lowest life cycle costs of any ducting product.

Can't find what you're looking for? Contact us and we'll be happy to help!

Nordfab's Quick-Fit Sealed (QFS) bends, pressed or segmented, allow airflow direction change in a run of a duct. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends are epoxy caulked. QFS Bends are available in galvanised and stainless steel construction,  90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends. R = 1,5 x Ø.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's Flanged bends allow airflow direction change in a run of a duct. They come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Straight duct, including telescopic duct, clamps, and gaskets to be used in process ventilation, dust collection, and fume extraction systems. Our standard sizes ranges from 80 mm to 710 mm in diameter and our ductwork is available in galvanised and stainless steel construction. Can't find what you're looking for?

Contact us, and we'll be happy to help!

Nordfab Flanged branches are used to port to machine outlets or other duct lines. They come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit Sealed (QFS) branches are used to port to machine outlets or other duct lines. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All branches are epoxy caulked.

Can't find what you're looking for? Contact us, and we'll be happy to help!

The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends which can be connected by a clip. Clip connections allow fast assembly and for cleanouts, quick disassembly. Ductwork is available in galvanised and stainless steel constructions.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab High Vacuum (HV) Duct Systems are used in applications in which the high vacuum and low airflow are being used to catch, transport, and filter fumes, dust, and other particles. Connections are made using couplings which seal securely. Ductwork is available in galvanised and stainless steel construction (304SS & 316L).

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Flanged adapters allow connections to machinery as well as ductwork with other connection types. They come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit Sealed (QFS) adapters allow connections to machinery as well as ductwork with other connection types. They are designed for machining and any other operations which create oil mists, as they significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All joints are epoxy caulked and when clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab's Quick-Fit (QF) bends, pressed or segmented, allow airflow direction change in a run of a duct. They are being used in process ventilation, dust collection, and fume extraction systems. Quick-Fit (QF) Bends are available in galvanised and stainless steel construction,  90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends. R = 1,5 x Ø.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) branches are used to port to machine outlets or other duct lines. They are being used in process ventilation, dust collection, and fume extraction systems. Quick-Fit (QF) branches are available in galvanised and stainless steel construction.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Mild Steel ducting systems feature a 2 mm or 3 mm thick wall that can tolerate abrasive materials and are designed for challenging dust collection / ventilation applications. The Mild Steel ducting components are available with painted surface or with stainless steel construction, which is well suited for extraction in commercial kitchens.

Can't find what  you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various of accessories for our Flanged ducting system. All components come with pre-drilled, loose FLI / FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential. Nordfab Flanged Ducting features an industry standard flange on the ends (FLI or FLN) and is available in galvanized or stainless steel.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) adapters allow connections to machinery as well as ductwork with other connection types. They are being used in process ventilation, dust collection, and fume extraction systems. Quick-Fit (QF) adapters are available in galvanised and stainless steel construction.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) dampers, manual or automatic, allow regulation of the volume of airflow through a section of ductwork. They are being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab Quick-Fit (QF) suction hood is an adaptor which allows the attachment of multiple hose attachments. They are being used in process ventilation, dust collection, and fume extraction systems.

Nordfab FB suction hood is an adaptor which allows the attachment of multiple hose attachments. They are being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers flexible ducting / hose and hose clamps for use in  process ventilation, dust collection, and fume extraction systems.

Nordfab offers various diverter valves which are being used in process ventilation, dust collection, and fume extraction systems where airflow redirection is required. They either have automatical or manual valves.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offer various installation products for ducting systems being used in process ventilation, dust collection, and fume extraction systems.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Nordfab offers various of accessories for our Quick-Fit (QF) ducting system being used in process ventilation, dust collection, and fume extraction systems. Some of the more popular accessories include jet cowls, back pressure flap valves, silencers, spark traps, and other ductwork for special applications.

Can't find what you're looking for? Contact us, and we'll be happy to help!

Cyclone Type C.V	A mm	B mm	C mm	D mm	E mm	F m³/hr	G mm	H mm	I mm	J mm	K mm	S mm
CV400	285	125	250	400	200	1600	1100	1790	1020	710	400	2
CV500	350	160	250	500	200	2500	1200	1790	1020	710	400	2
CV700	445	200	400	700	300	5000	1400	2500	1405	995	419	2
CV1000	560	300	550	1000	400	8000	1700	3725	2050	1500	615	2
CV1300	750	400	700	1300	450	15000	2000	5090	2820	2000	780	3
CV1600	1100	500	800	1600	550	25000	2300	5420	3150	2000	1050	3
CV1800	1500	500	1000	1800	650	35000	2500	6250	3450	2500	1150	3

Nordfab Ducting for Process Ventilation & Dust Collection

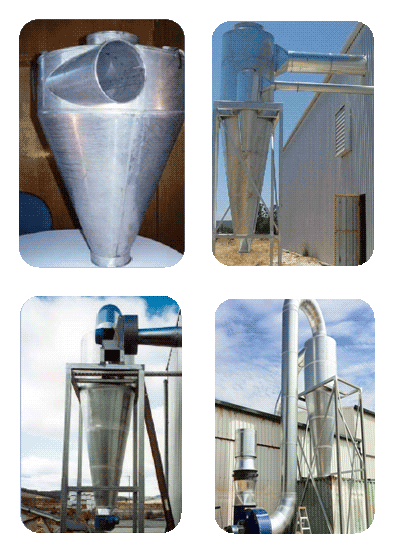

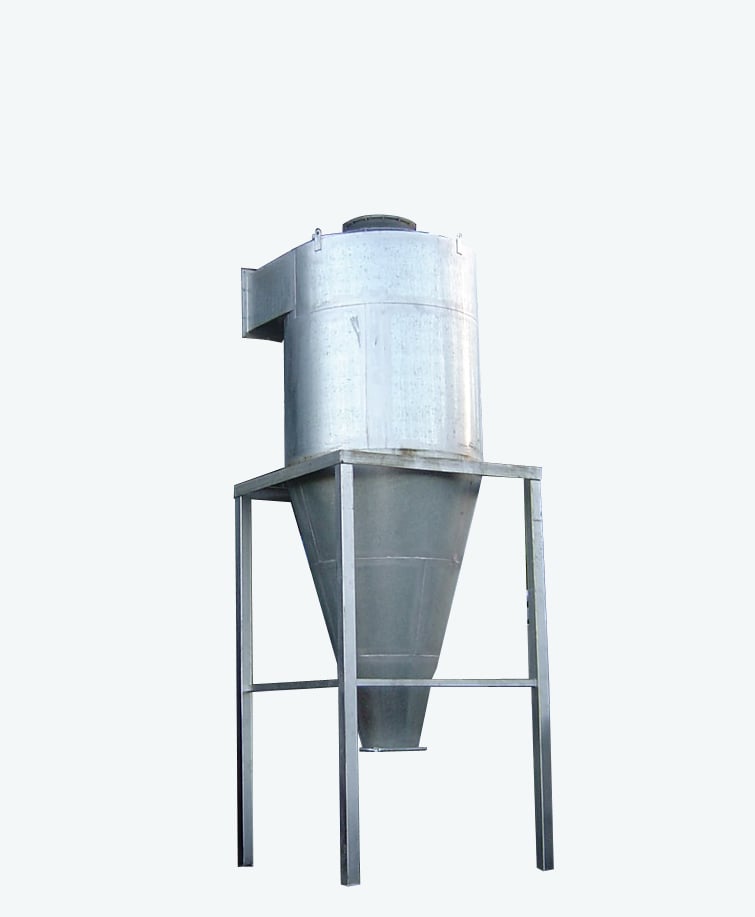

Cyclones
