Clamps
Nordfab manufactures a large range of ducting clamps, flanges, flexible hose clamps, and hanger. They are available in both galvanized and stainless steels. Using our clamps make the installation of Nordfab modular ducting very smooth and easy.
| Diameter Clamp |
Slim Clamp |
Wide Clamp | Lever Clamp | Heavy Clamp | Hanging Bracket | Flanges | Hose Clamp |
| 30 | - | - | - | - | - | - | Y |
| 50 | - | - | - | - | - | - | Y |
| 80 | Y | - | Y | - | Y | Y | Y |
| 100 | Y | - | Y | Y | Y | Y | Y |
| 120 | Available upon request | ||||||
| 125 | Y | - | Y | Y | Y | Y | Y |
| 140 | Y | - | Y | Y | Y | Y | Y |
| 150 | Y | - | Y | Y | Y | Y | Y |
| 160 | Y | - | Y | Y | Y | Y | Y |
| 180 | Y | - | Y | Y | Y | Y | Y |
| 200 | Y | Y | Y | Y | Y | Y | Y |
| 220 | Available upon request | ||||||
| 225 | Y | Y | Y | Y | Y | Y | Y |
| 250 | Y | Y | Y | Y | Y | Y | Y |
| 275 | Y | Y | Y | Y | Y | Y | Y |
| 300 | Y | Y | Y | Y | Y | Y | Y |
| 350 | Y | Y | Y | Y | Y | Y | Y |
| 400 | - | Y | Y | Y | Y | Y | Y |
| 450 | - | Y | Y | Y | Y | Y | - |
| 500 | - | Y | Y | Y | Y | Y | - |
| 550 | - | Y | Y | Y | Y | ||
| 600 | - | Y | Y | Y | Y | ||
| 650 | - | Y | Y | Y | Y | ||
| 700 | - | Y | Y | Y | Y | ||
| 700 and above | Available upon request | ||||||

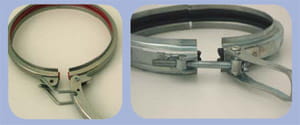

Lever Clamp
Lever clamp is designed for ultra quick installation and removal. Lever has adjustable tension and high quality rubber insert. Also available with adjustable latch.

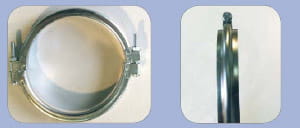

Slim Clamp
Slim clamp is our biggest selling clamp. Comes in 2 x ½ sections with pozi-drive nuts and bolts.

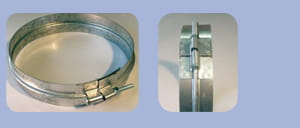

Wide Clamp
Wide clamp is ideal for larger diameter ducting. Comes in 1 section with 1 x 8 mm bolt.

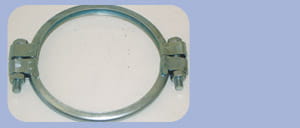

Heavy Clamp
Heavy clamp is designed for 2 mm wall ducting. Comes in 2 x ½ sections with 2 x 8 mm bolts.

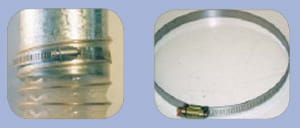

Flexible Hose Clamp
Flexible hose clamps are made from high quality stainless steel for strength and ease of installation. They can be pulled down and reused.

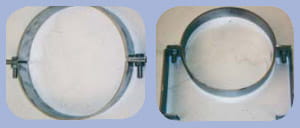

Hanging Brackets
Hanging brackets are manufactured from a minimum of 3 mm galvanized steel. They come in 2 x ½ sections and are supplied with 8 mm nuts and bolts. Wal brackets or specials are made on request.

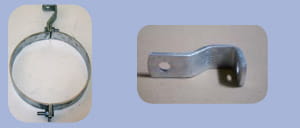

Hanging Brackets Clevis
Hanging brackets clevis are used when using brooker rod to hang the duct. Wall mounts to suit hanging brackets.

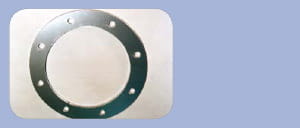

Flanges
Flanges – we manufacture flat bar and angle, drilled or bland flanges to your specification.
