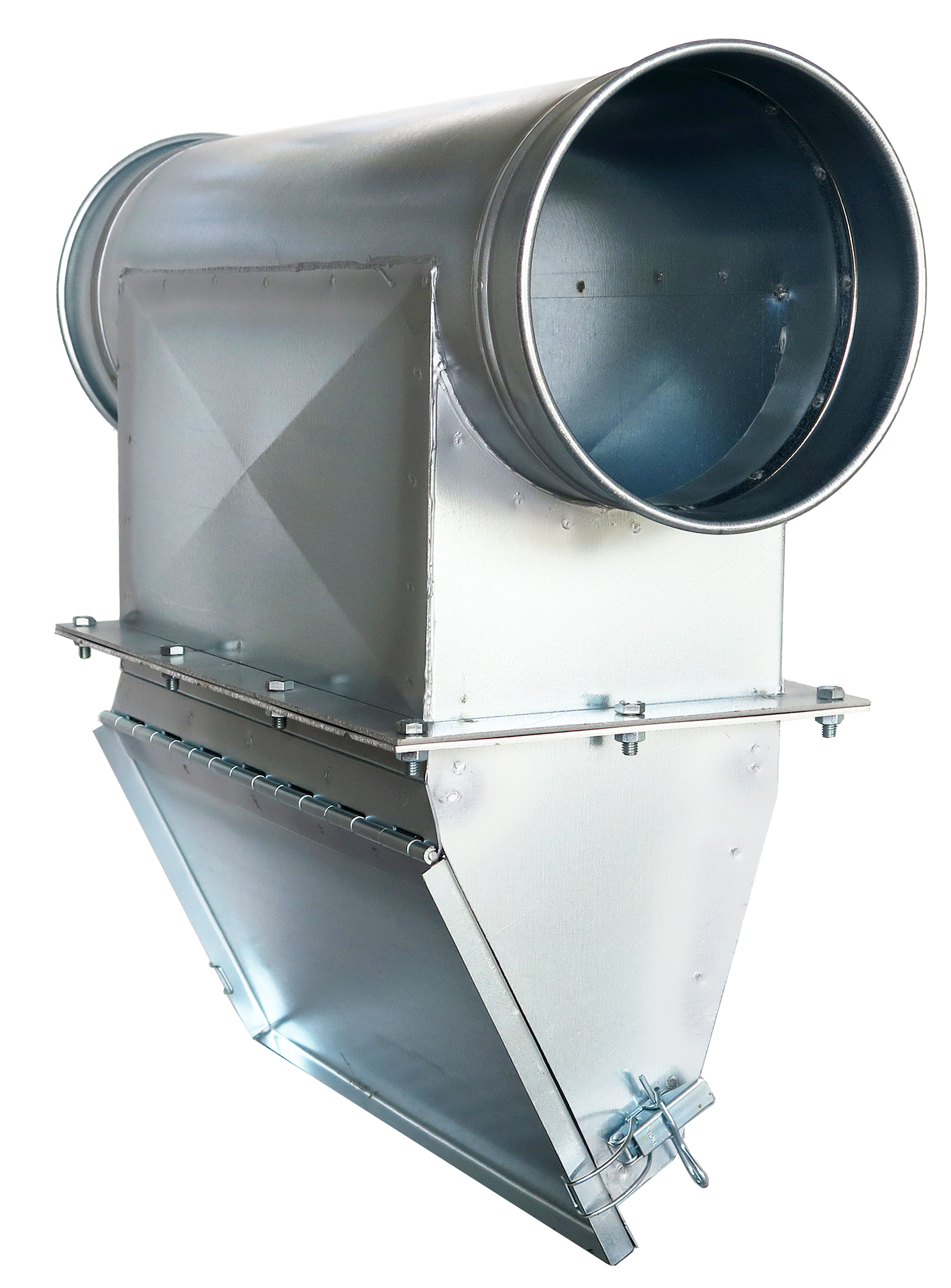

The FB Dropout Box is easily connected to other duct components using FB Clips which can be secured around the flat edge on each end. The Dropout Box stops large wood chips in the airstream. Inside the duct, deflectors knock chips downward into the built-in hopper.
Galvanised steel construction
Available in sizes Ø 160-550 mm in diameter
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.

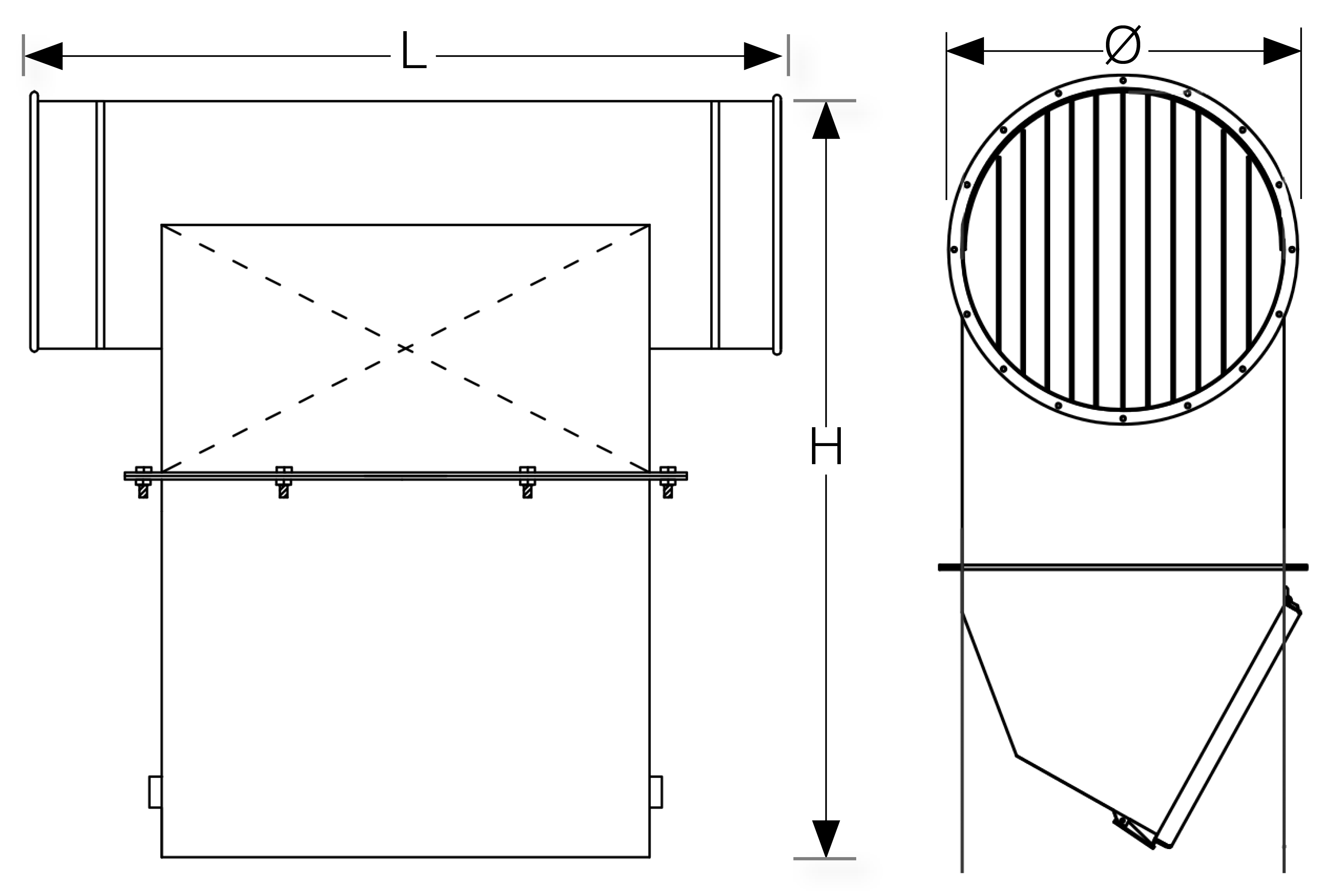

| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 160 | Galv | 480 | 11,3 | 8210001924 | |
| 200 | Galv | 600 | 16 | 8210001925 | |
| 250 | Galv | 750 | 23,1 | 8210001926 | |
| 315 | Galv | 945 | 34,2 | 8210001927 | |
| 400 | Galv | 1200 | 66,5 | 8210001928 | |
| 500 | Galv | 1500 | 96,6 | 8210001929 | |
| 550 | Galv | 1500 | 114,3 | 8210001930 |
