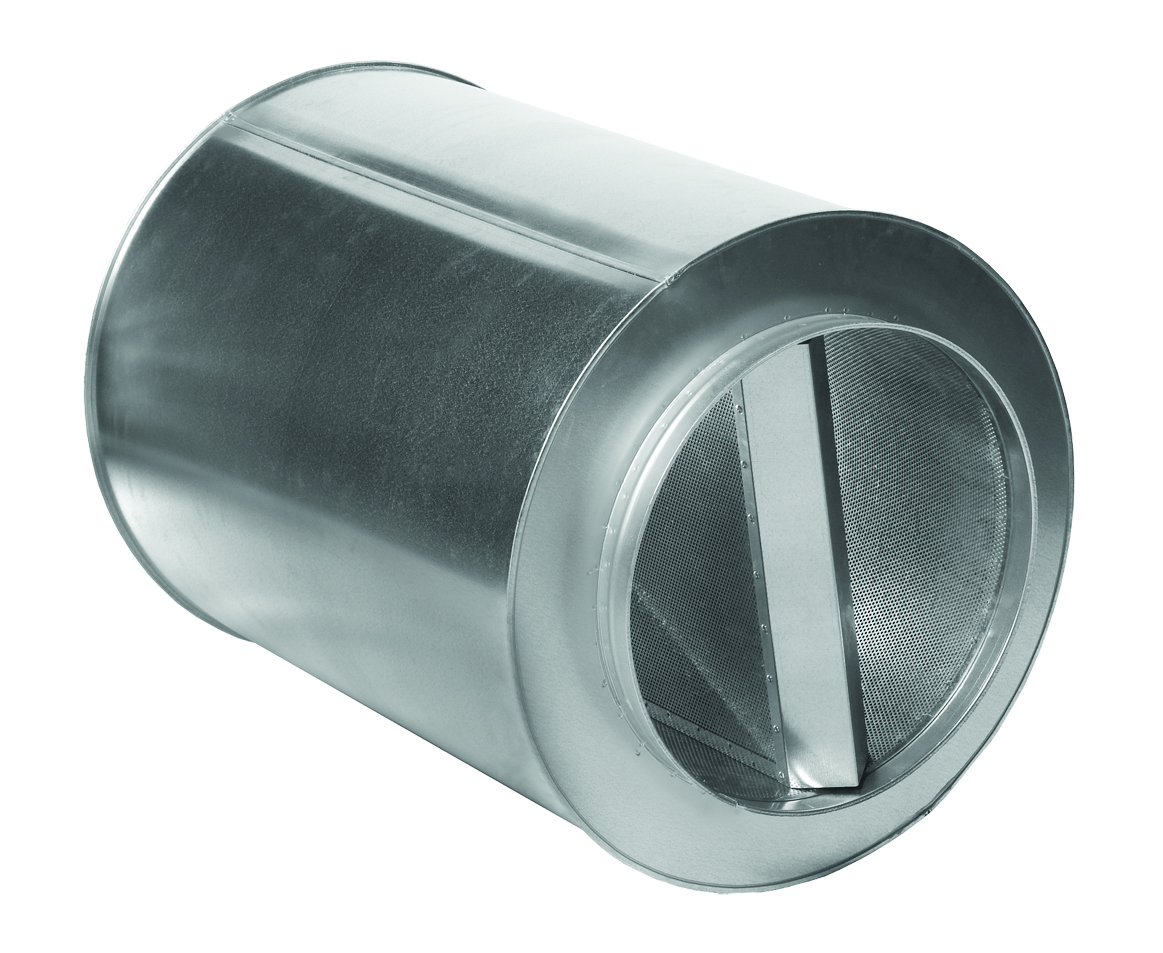

FB Silencers are easily connected to other duct components using FB Clips which can be secured around the flat edge on each end.
Galvanised steel construction
Available in sizes Ø 300-1000 mm in diameter
See length options in article number table below
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 300 | Galv | 500 | 15 | 8210001424 | |
| 315 | Galv | 500 | 11,68 | 8210001425 | |
| 350 | Galv | 500 | 12,43 | 8210001426 | |
| 400 | Galv | 500 | 14,05 | 8210001427 | |
| 450 | Galv | 500 | 15,65 | 8210001428 | |
| 500 | Galv | 500 | 17 | 8210001429 | |
| 550 | Galv | 500 | 18,5 | 8210001430 | |
| 600 | Galv | 500 | 20,05 | 8210001431 | |
| 630 | Galv | 500 | 20,9 | 8210001432 | |
| 650 | Galv | 500 | 22 | 8210001433 | |
| 700 | Galv | 500 | 24,17 | 8210001434 | |
| 700 | Galv | 1000 | 48,35 | 8210001435 | |
| 700 | Galv | 2000 | 88,7 | 8210001436 | |
| 800 | Galv | 1000 | 50,35 | 8210001438 | |
| 800 | Galv | 500 | 25,18 | 8210001437 | |
| 800 | Galv | 2000 | 100,7 | 8210001439 | |
| 900 | Galv | 1000 | 56,2 | 8210001441 | |
| 900 | Galv | 500 | 28,18 | 8210001440 | |
| 900 | Galv | 2000 | 112,7 | 8210001442 | |
| 1000 | Galv | 500 | 31,18 | 8210001443 | |
| 1000 | Galv | 1000 | 62,35 | 8210001444 | |
| 1000 | Galv | 2000 | 124,7 | 8210001445 |
