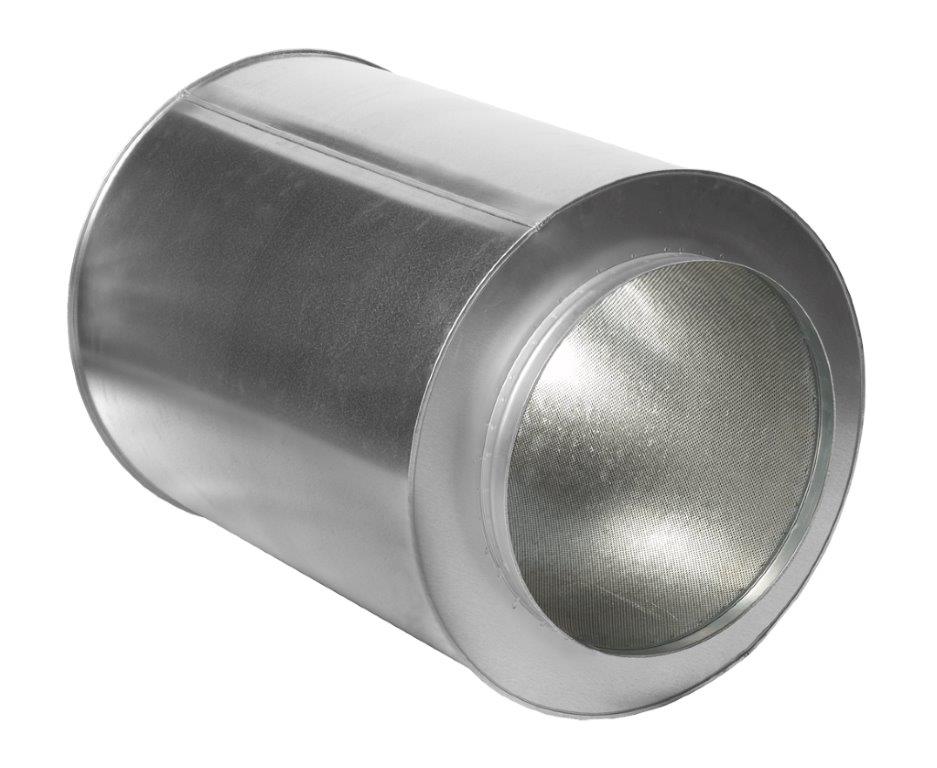

FB Silencers are easily connected to other duct components using FB Clips which can be secured around the flat edge on each end.
Galvanised steel construction
Available in sizes Ø 100-1000 mm in diameter
See length options in article number table below
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 100 | Galv | 500 | 5,5 | 8210001464 | |
| 120 | Galv | 500 | 5,55 | 8210001466 | |
| 125 | Galv | 1000 | 11,5 | 8210001468 | |
| 140 | Galv | 1000 | 11,8 | 8210001471 | |
| 140 | Galv | 500 | 5,9 | 8210001470 | |
| 150 | Galv | 1000 | 12,8 | 8210001474 | |
| 150 | Galv | 2000 | 25,6 | 8210001475 | |
| 150 | Galv | 500 | 6,4 | 8210001473 | |
| 160 | Galv | 2000 | 26,88 | 8210001476 | |
| 180 | Galv | 500 | 7,5 | 8210001477 | |
| 180 | Galv | 1000 | 14,9 | 8210001478 | |
| 180 | Galv | 2000 | 29,9 | 8210001479 | |
| 200 | Galv | 2000 | 30,7 | 8210001480 | |
| 225 | Galv | 2000 | 33,76 | 8210001482 | |
| 225 | Galv | 500 | 8,44 | 8210001481 | |
| 250 | Galv | 500 | 8,99 | 8210001483 | |
| 300 | Galv | 1000 | 20,26 | 8210003698 | |
| 300 | Galv | 500 | 10,13 | 8210001485 | |
| 315 | Galv | 500 | 10,63 | 8210001486 | |
| 350 | Galv | 500 | 11,32 | 8210001487 | |
| 400 | Galv | 500 | 12,76 | 8210001488 | |
| 450 | Galv | 500 | 14,26 | 8210001489 | |
| 500 | Galv | 500 | 15,26 | 8210001490 | |
| 600 | Galv | 500 | 18,25 | 8210001491 | |
| 630 | Galv | 500 | 19,15 | 8210001492 | |
| 650 | Galv | 500 | 19,69 | 8210001493 | |
| 700 | Galv | 1000 | 42,26 | 8210001495 | |
| 700 | Galv | 2000 | 84,52 | 8210001496 | |
| 700 | Galv | 500 | 21,13 | 8210001494 | |
| 800 | Galv | 1000 | 49,26 | 8210001498 | |
| 800 | Galv | 500 | 24,63 | 8210001497 | |
| 800 | Galv | 2000 | 98,52 | 8210001499 | |
| 850 | Galv | 2000 | 102 | 8210001501 | |
| 850 | Galv | 500 | 25,5 | 8210001500 | |
| 900 | Galv | 1000 | 57 | 8210001503 | |
| 900 | Galv | 2000 | 114 | 8210001504 | |
| 900 | Galv | 500 | 28,5 | 8210001502 | |
| 1000 | Galv | 500 | 30,25 | 8210001505 | |
| 1000 | Galv | 1000 | 60,5 | 8210001506 | |
| 1000 | Galv | 2000 | 121 | 8210001507 |
