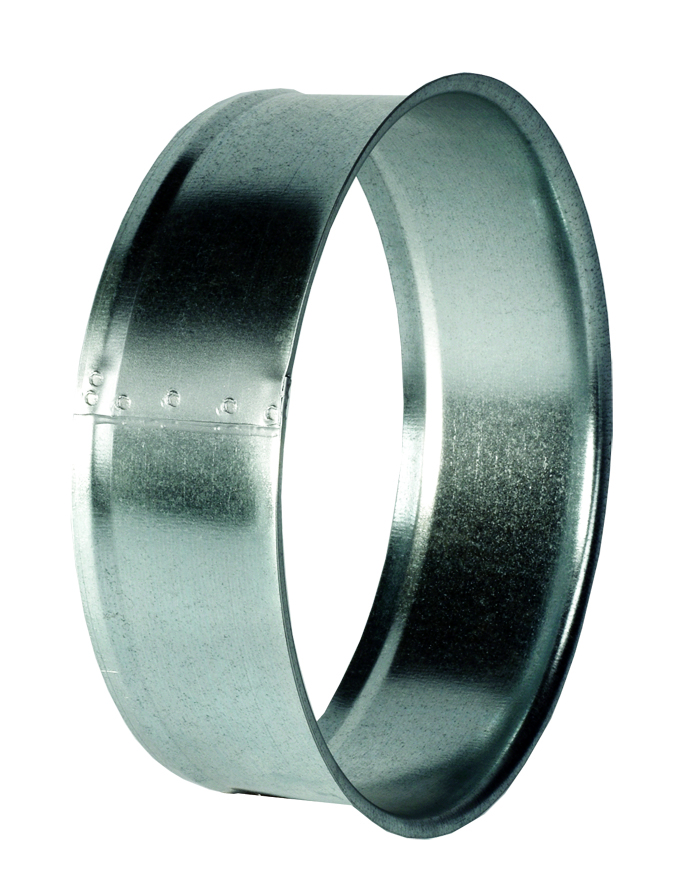

The FB Nipple for Hose is easily connected to other duct components using FB Clips which can be secured around the flat edge, and features a hose end on the other. Available in galvanised steel construction, ranging from 80 mm to 300 mm in diameter.
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 0,7mm | 0,1 | 8210003822 | |
| 100 | Galv | 0,7mm | 0,13 | 8210003823 | |
| 120 | Galv | 0,7mm | 0,16 | 8210003824 | |
| 125 | Galv | 0,7mm | 0,16 | 8210003825 | |
| 140 | Galv | 0,7mm | 0,18 | 8210003826 | |
| 150 | Galv | 0,7mm | 0,19 | 8210003827 | |
| 160 | Galv | 0,7mm | 0,21 | 8210003828 | |
| 180 | Galv | 0,7mm | 0,23 | 8210003829 | |
| 200 | Galv | 0,7mm | 0,26 | 8210003830 | |
| 225 | Galv | 0,7mm | 0,29 | 8210003831 | |
| 250 | Galv | 0,7mm | 0,32 | 8210003832 | |
| 275 | Galv | 0,7mm | 0,36 | 8210003833 | |
| 300 | Galv | 0,7mm | 0,39 | 8210003834 | |
| 315 | Galv | 0,9mm | 0,41 | 8210003835 |
