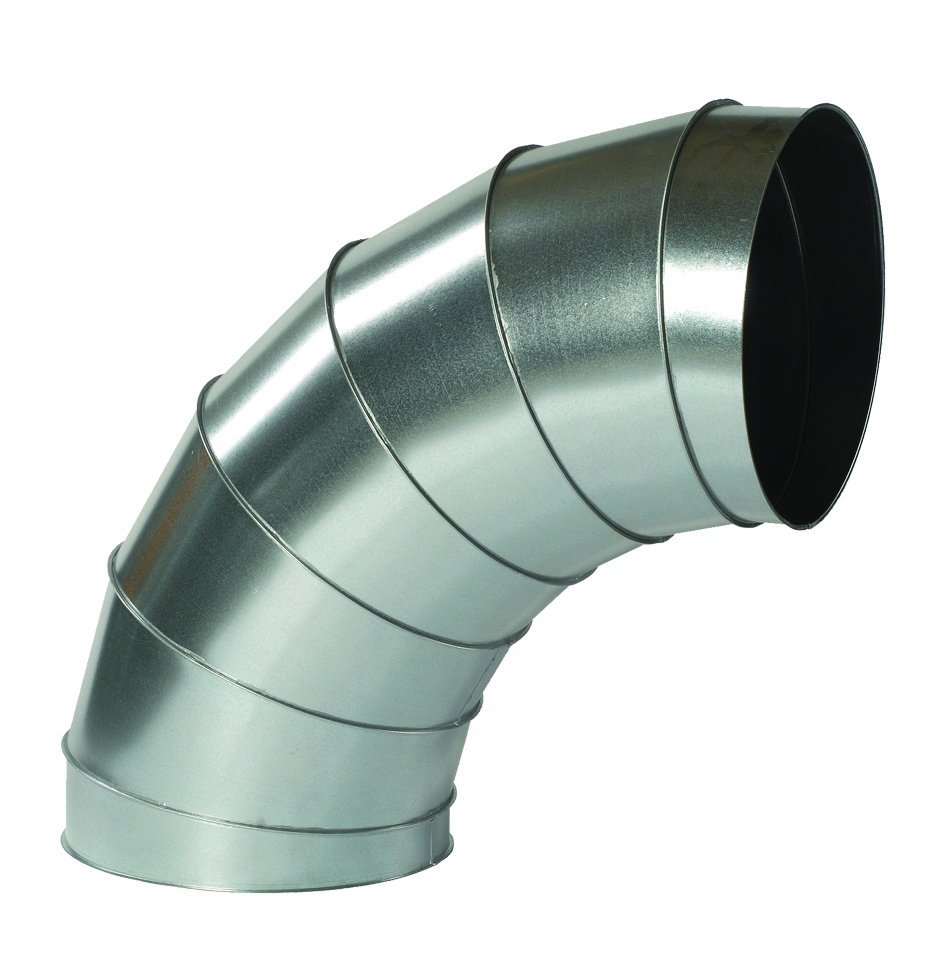

Nordfab's FB Segmented Bends (90°) allow airflow direction change in a run of a duct and is easily connected to other duct components using FB Clips, which can be secured around the 6 mm flat edge on each end.
FB Segmented Bends are also available in 60°, 45°, 30°, and 15° angles.
- Galvanised steel construction with steel thickness 0,9 mm
- Radius = 1.5 x D
- Available in sizes Ø 350 - 1000 mm, see item numbers below
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.
| ø A (mm) | Angle degree | Center line radius | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 350 | 90 | 1.5 | Galv | 0,9mm | 6,89 | 8210002967 |
| 400 | 90 | 1.5 | Galv | 0,9mm | 8,47 | 8210002972 |
| 450 | 90 | 1.5 | Galv | 0,9mm | 11,47 | 8210002977 |
| 500 | 90 | 1.5 | Galv | 0,9mm | 14,21 | 8210002982 |
| 550 | 90 | 1.5 | Galv | 0,9mm | 18,46 | 8210002987 |
| 600 | 90 | 1.5 | Galv | 0,9mm | 20,5 | 8210002992 |
| 630 | 90 | 1.5 | Galv | 0,9mm | 20,7 | 8210002997 |
| 650 | 90 | 1.5 | Galv | 0,9mm | 20,9 | 8210003002 |
| 700 | 90 | 1.5 | Galv | 0,9mm | 23,31 | 8210003007 |
| 750 | 90 | 1.5 | Galv | 0,9mm | 23,61 | 8210003012 |
| 800 | 90 | 1.5 | Galv | 0,9mm | 26,45 | 8210003017 |
| 850 | 90 | 1.5 | Galv | 0,9mm | 28,09 | 8210003022 |
| 900 | 90 | 1.5 | Galv | 0,9mm | 29,72 | 8210003027 |
| 950 | 90 | 1.5 | Galv | 0,9mm | 31,39 | 8210003032 |
| 1000 | 90 | 1.5 | Galv | 0,9mm | 33,01 | 8210003037 |
