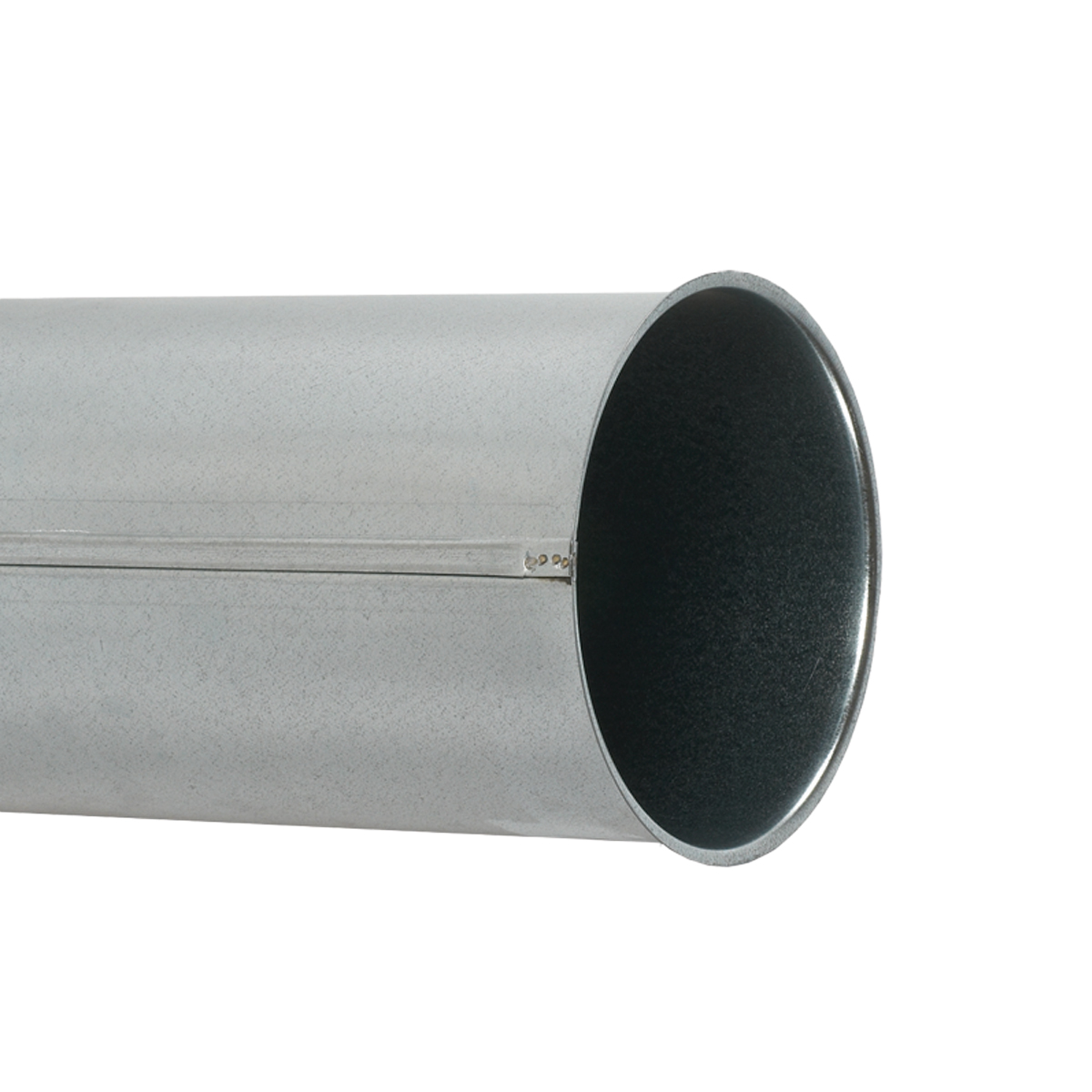

This FB laser welded duct features a 6 mm flat edge on the connecting ends. Connections are made using FB Clips. Available in galvanised steel or 304SS construction, ranging from 80 mm to 1000 mm in diameter.
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 0,7mm | 2000 | 2,77 | 8240020591 |
| 100 | Galv | 0,7mm | 2000 | 3,46 | 8240020595 |
| 120 | Galv | 0,7mm | 2000 | 4,15 | 8240020599 |
| 125 | Galv | 0,7mm | 2000 | 4,32 | 8240020603 |
| 140 | Galv | 0,7mm | 2000 | 4,84 | 8240020607 |
| 150 | Galv | 0,7mm | 2000 | 5,19 | 8240020611 |
| 160 | Galv | 0,7mm | 2000 | 5,53 | 8240020615 |
| 180 | Galv | 0,7mm | 2000 | 6,23 | 8240020619 |
| 200 | Galv | 0,7mm | 2000 | 6,92 | 8240020623 |
| 220 | Galv | 0,7mm | 2000 | 7,61 | 8240020627 |
| 225 | Galv | 0,7mm | 2000 | 7,78 | 8240020631 |
| 250 | Galv | 0,7mm | 2000 | 8,65 | 8240020635 |
| 300 | Galv | 0,7mm | 2000 | 10,38 | 8240020639 |
| 315 | Galv | 0,7mm | 2000 | 10,9 | 8240020643 |
| 350 | Galv | 0,7mm | 2000 | 12,11 | 8240020647 |
| 400 | Galv | 0,9mm | 2000 | 17,77 | 8240020651 |
| 450 | Galv | 0,9mm | 2000 | 19,99 | 8240020654 |
| 500 | Galv | 0,9mm | 2000 | 22,22 | 8240020657 |
| 550 | Galv | 0,9mm | 2000 | 24,44 | 8240020660 |
| 600 | Galv | 0,9mm | 2000 | 26,66 | 8240020663 |
| 630 | Galv | 0,9mm | 2000 | 28 | 8240020666 |
| 650 | Galv | 0,9mm | 2000 | 28,89 | 8240020669 |
| 700 | Galv | 0,9mm | 2000 | 31,11 | 8240020672 |
| 750 | Galv | 0,9mm | 2000 | 33,33 | 8240020675 |
| 800 | Galv | 0,9mm | 2000 | 35,55 | 8240020678 |
| 850 | Galv | 0,9mm | 2000 | 39,47 | 8240020681 |
| 900 | Galv | 0,9mm | 2000 | 41,9 | 8240020684 |
| 950 | Galv | 0,9mm | 2000 | 44,35 | 8240020687 |
| 1000 | Galv | 0,9mm | 2000 | 36,94 | 8240020690 |
| 160 | 304SS | 2mm | 2000 | 15,96 | 8240020778 |
| 180 | 304SS | 2mm | 2000 | 17,98 | 8240020781 |
| 200 | 304SS | 2mm | 2000 | 20,01 | 8240020784 |
| 225 | 304SS | 2mm | 2000 | 22,56 | 8240020787 |
| 250 | 304SS | 2mm | 2000 | 25,1 | 8240020790 |
| 300 | 304SS | 2mm | 2000 | 30,19 | 8240020793 |
| 315 | 304SS | 2mm | 2000 | 31,73 | 8240020796 |
| 350 | 304SS | 2mm | 2000 | 35,3 | 8240020799 |
| 400 | 304SS | 2mm | 2000 | 40,42 | 8240020802 |
| 450 | 304SS | 2mm | 2000 | 45,56 | 8240020805 |
| 500 | 304SS | 2mm | 2000 | 50,7 | 8240020808 |
| 550 | 304SS | 2mm | 2000 | 55,86 | 8240020811 |
| 600 | 304SS | 2mm | 2000 | 61,03 | 8240020814 |
| 630 | 304SS | 2mm | 2000 | 64,13 | 8240020817 |
| 650 | 304SS | 2mm | 2000 | 66,21 | 8240020820 |
| 700 | 304SS | 2mm | 2000 | 71,4 | 8240020823 |
| 750 | 304SS | 2mm | 2000 | 76,61 | 8240020826 |
| 800 | 304SS | 2mm | 2000 | 81,82 | 8240020829 |
| 850 | 304SS | 2mm | 2000 | 87,05 | 8240020832 |
| 900 | 304SS | 2mm | 2000 | 92,29 | 8240020835 |
| 950 | 304SS | 2mm | 2000 | 97,54 | 8240020838 |
| 1000 | 304SS | 2mm | 2000 | 102,81 | 8240020841 |
