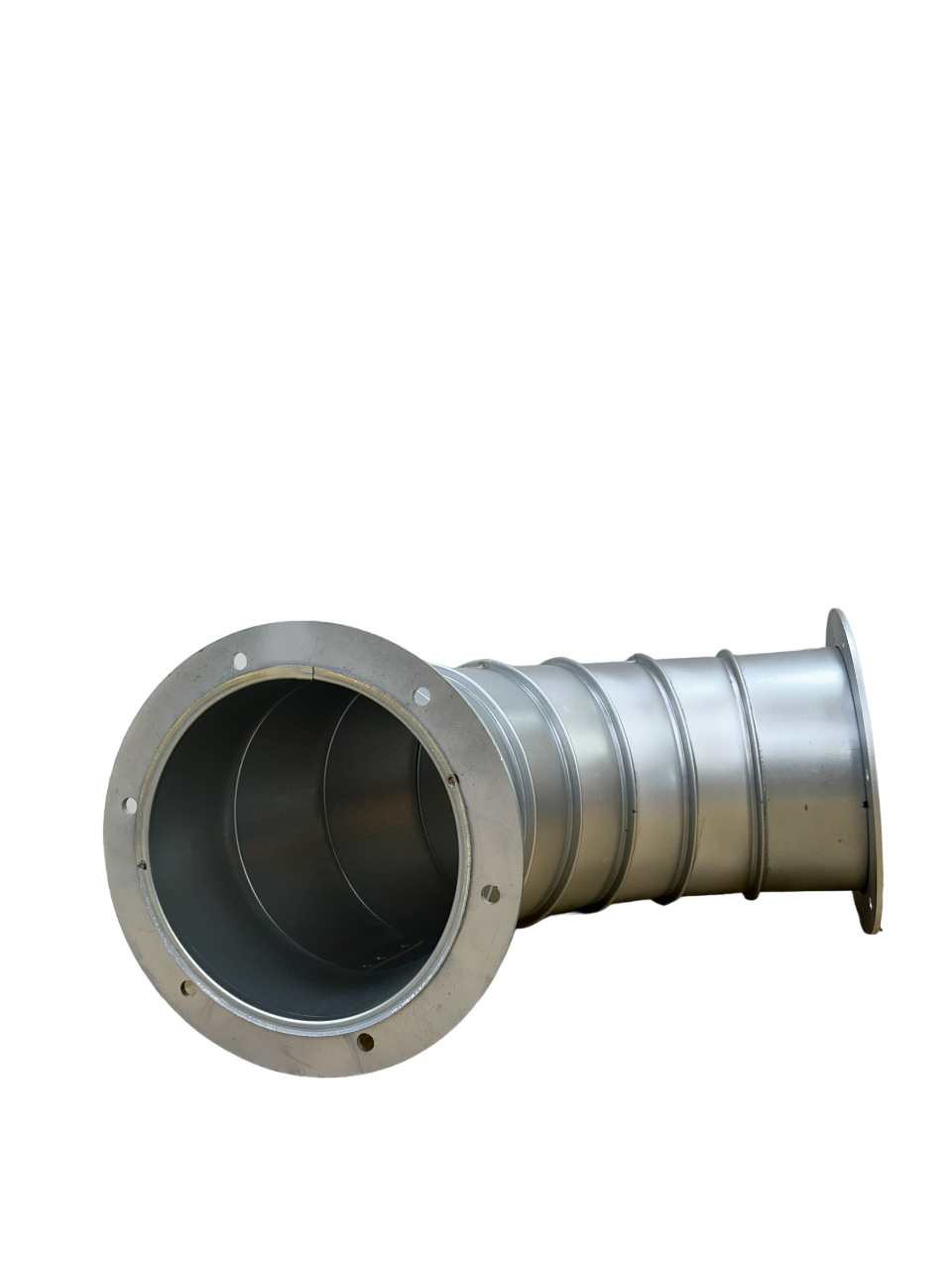

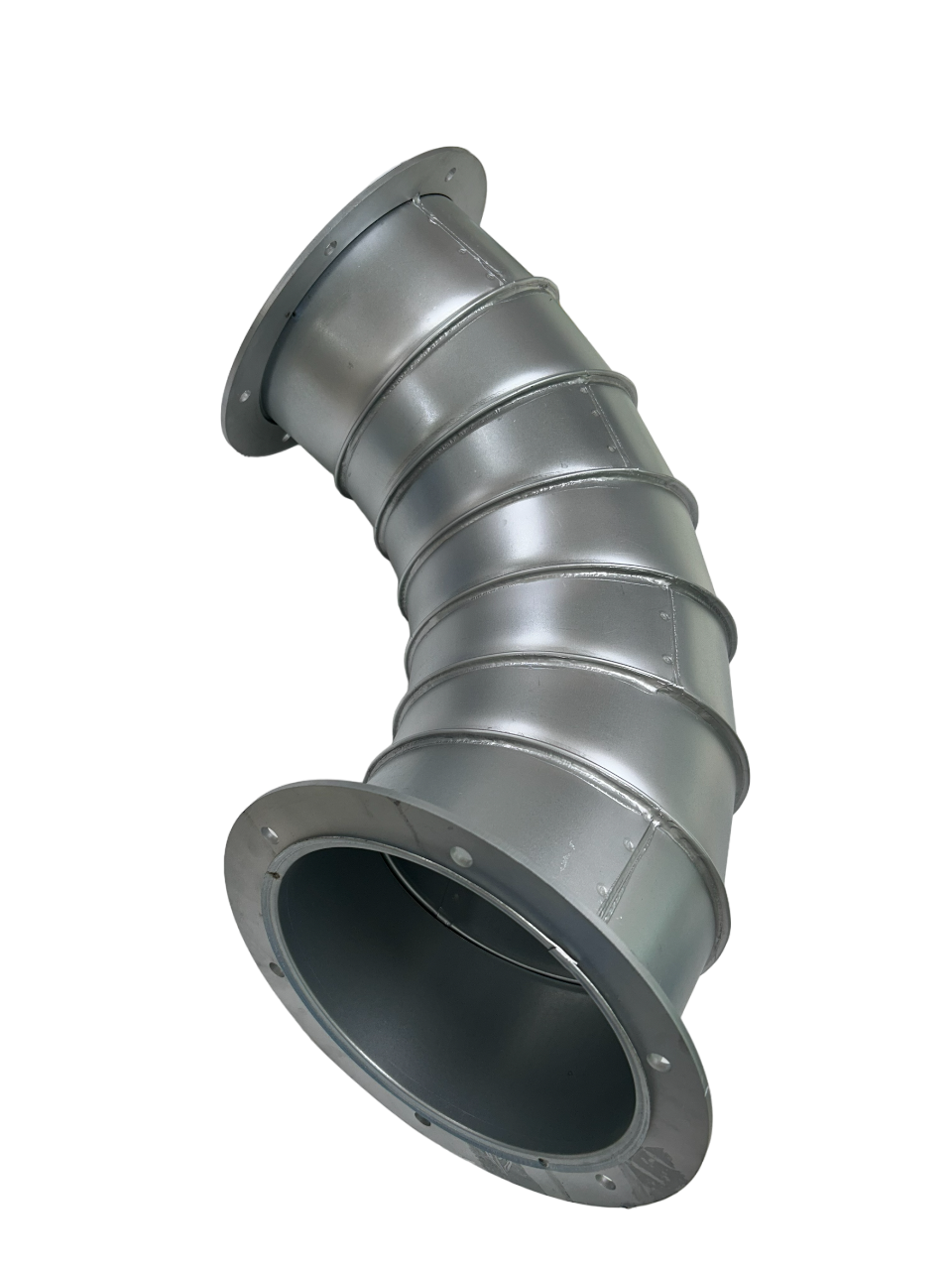

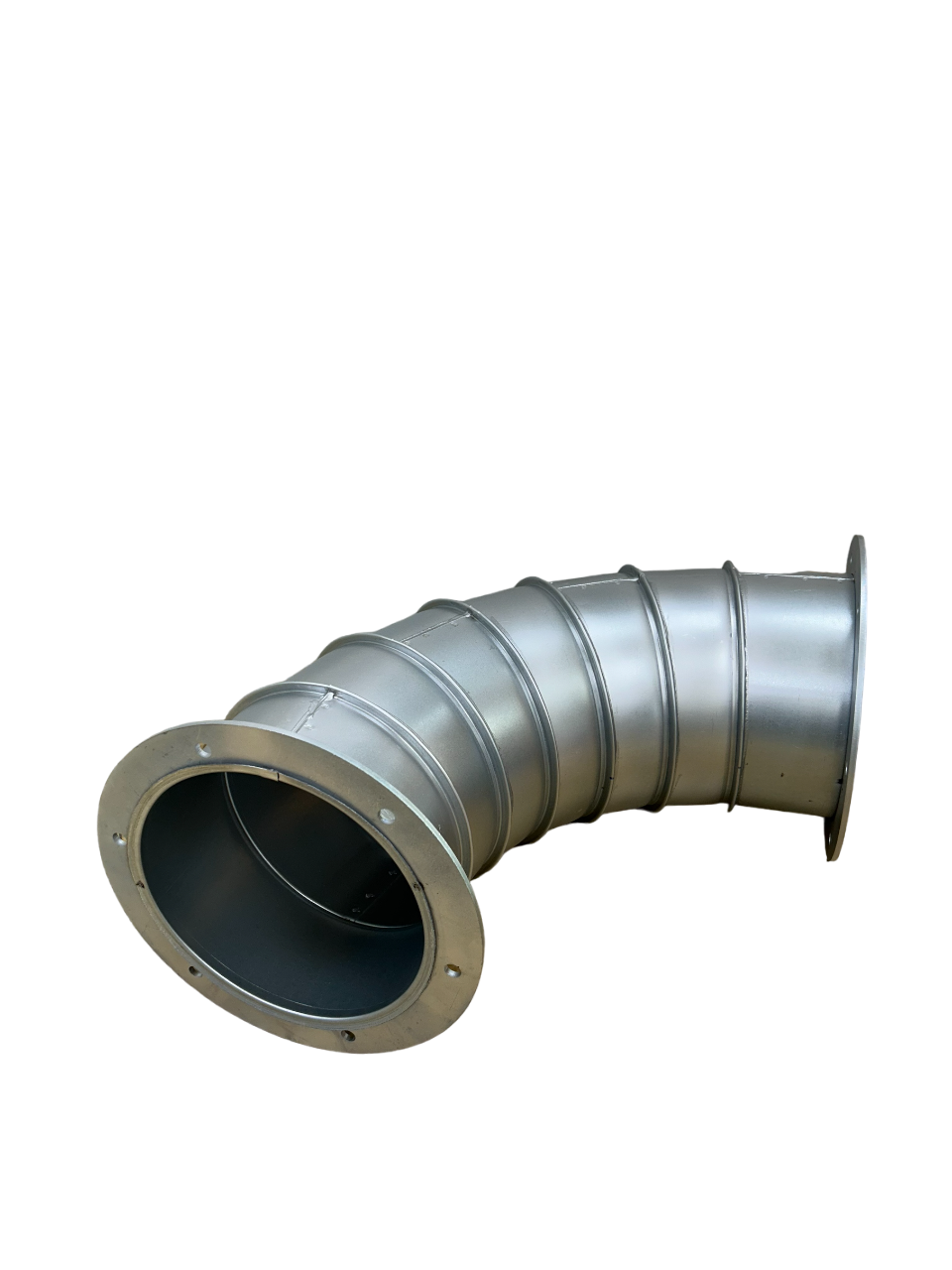

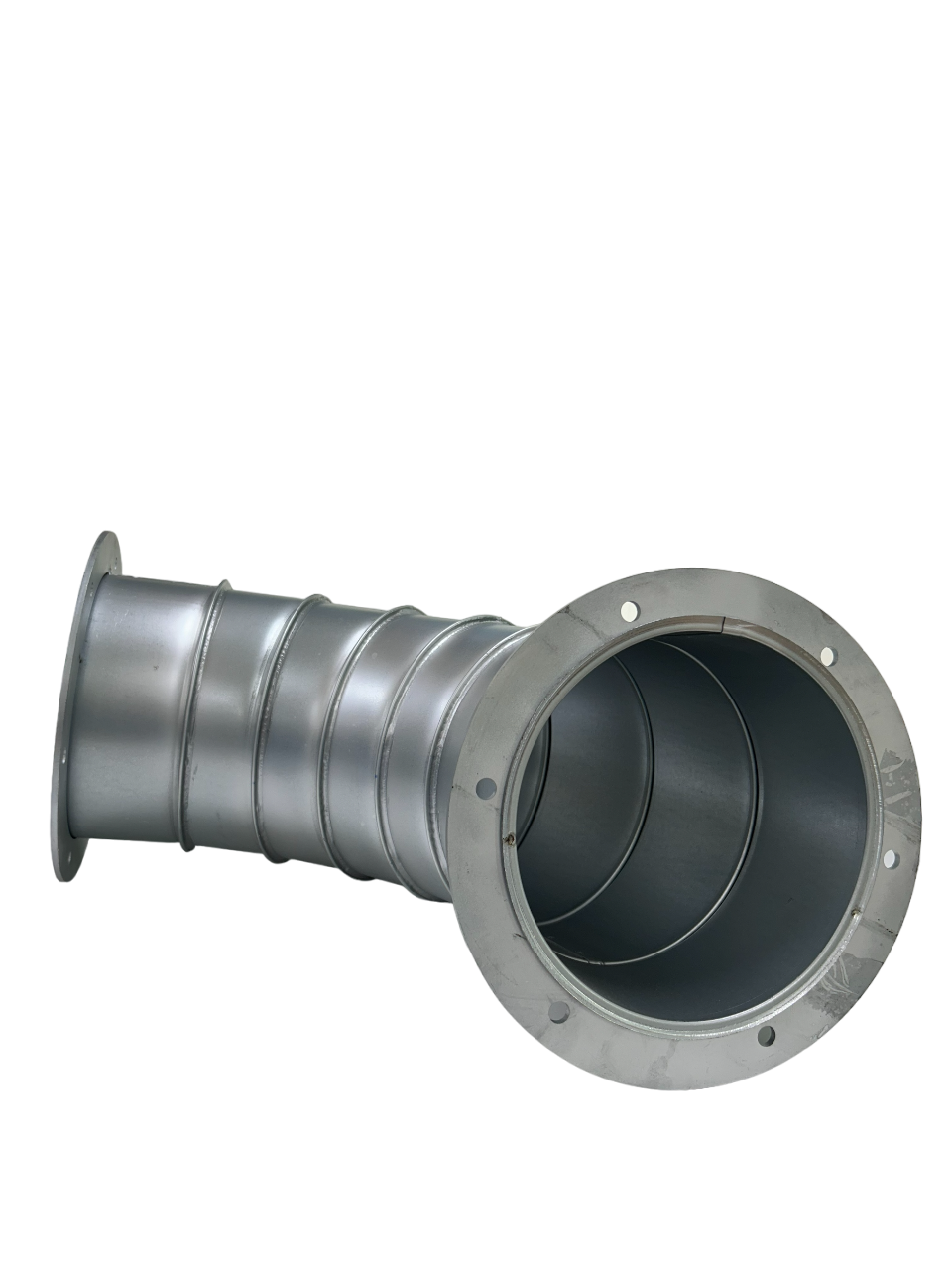

Nordfab FLN Flanged Segmented Bend (15°) comes with pre-drilled, loose FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab's FLN Flanged Segmented Bends allow airflow direction change in a run of a duct and are being used in process ventilation, dust collection, and fume extraction systems. Available in galvanised steel construction, ranging from 600 mm to 900 mm in diameter.
- Also available in 90°, 60°, 45°, and 30° angles.
- Radius = 1.5 x D
- Available in sizes Ø 350 mm - 1000 mm, see item numbers below
Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 350 | Galv | 0,9mm | 5,83 | 8210000537 | |
| 400 | Galv | 0,9mm | 5,82 | 8210000542 | |
| 450 | Galv | 0,9mm | 6,74 | 8210000547 | |
| 500 | Galv | 0,9mm | 11,21 | 8210000552 | |
| 560 | Galv | 0,9mm | 12,26 | 8210000557 | |
| 630 | Galv | 0,9mm | 14,65 | 8210000562 | |
| 710 | Galv | 0,9mm | 15,9 | 8210000567 | |
| 800 | Galv | 0,9mm | 19,72 | 8210000572 | |
| 900 | Galv | 0,9mm | 22,18 | 8210000577 | |
| 900 | Galv | 0,9mm | 60,49 | 8210000581 |
