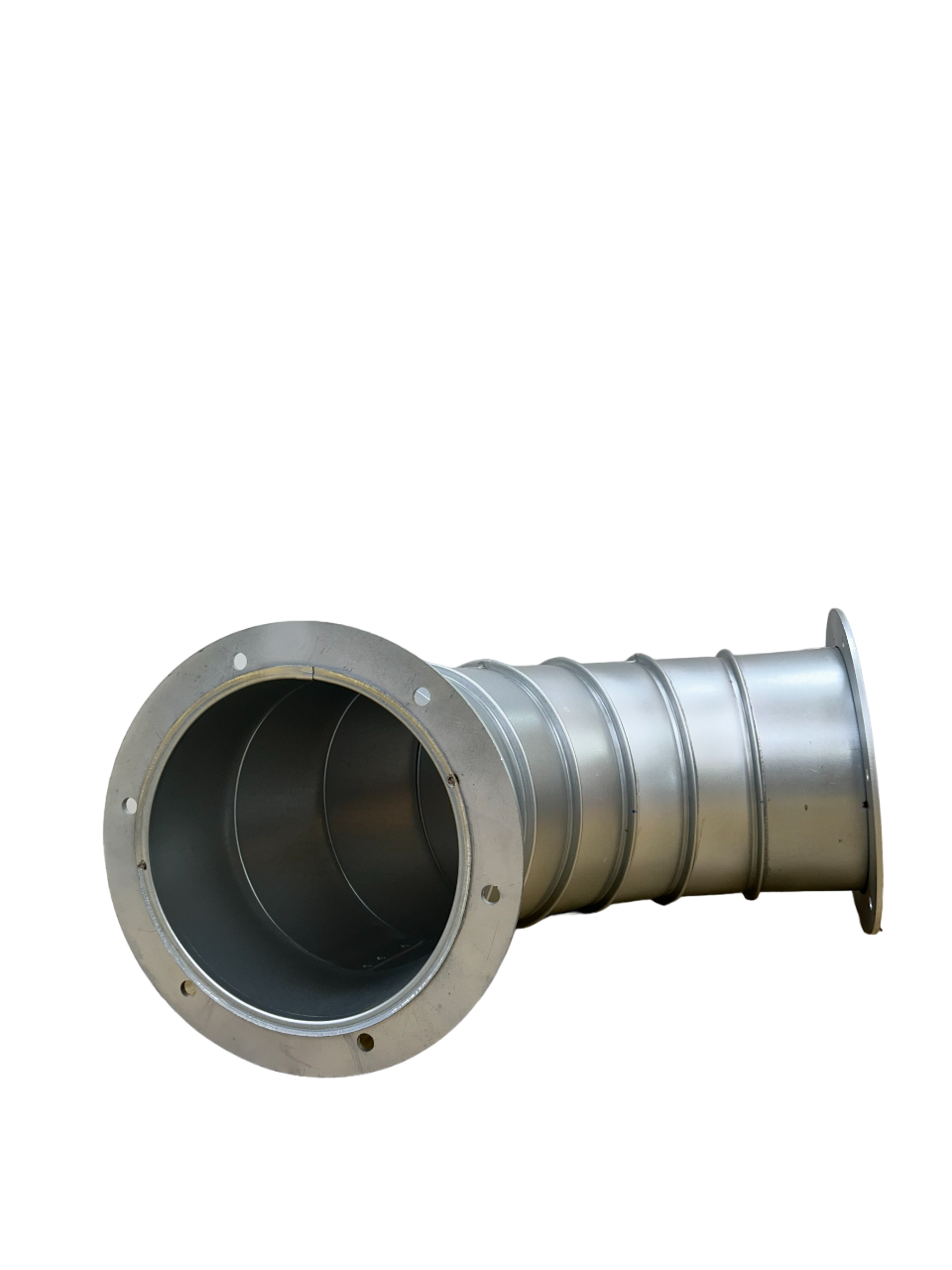

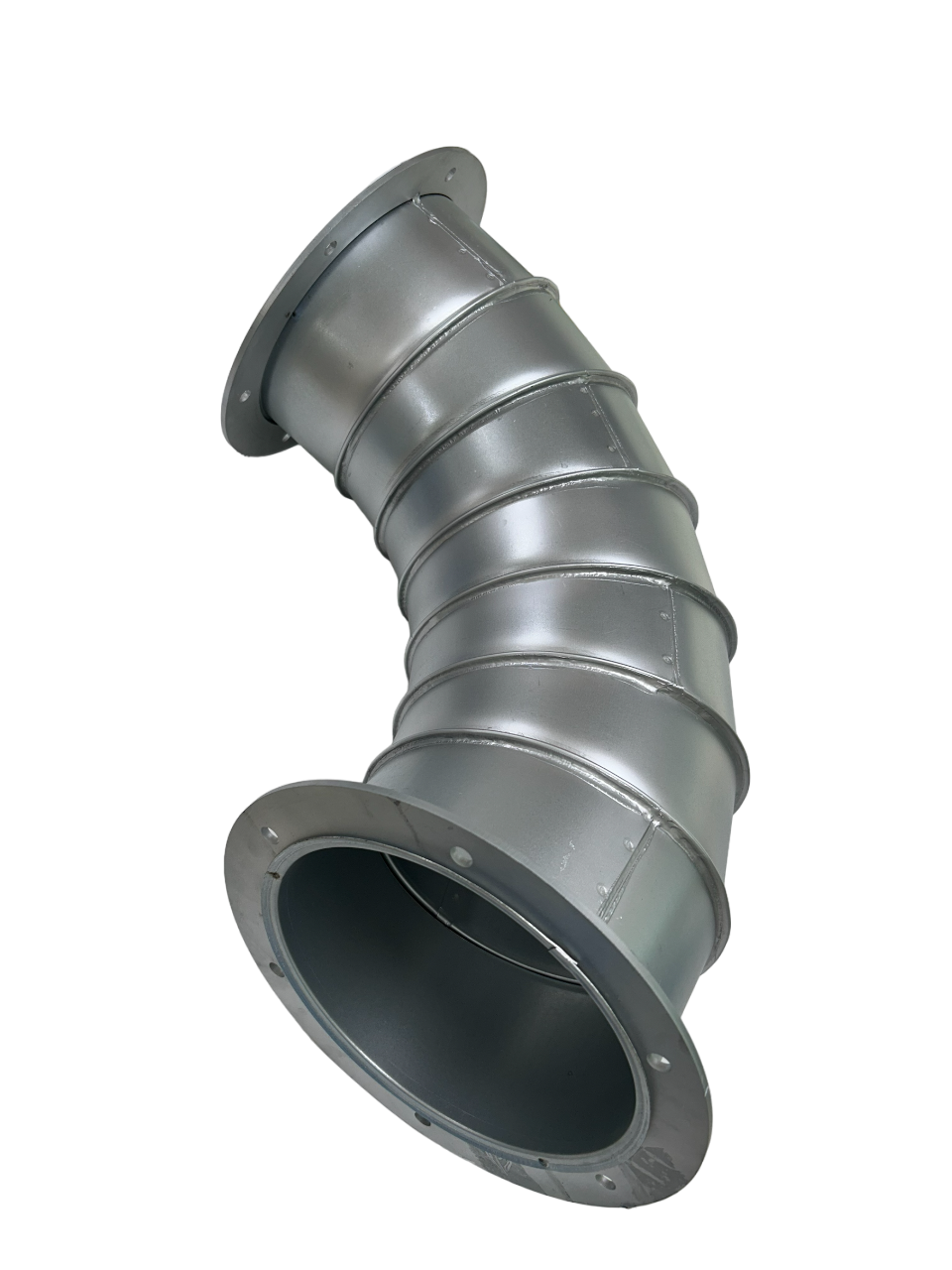

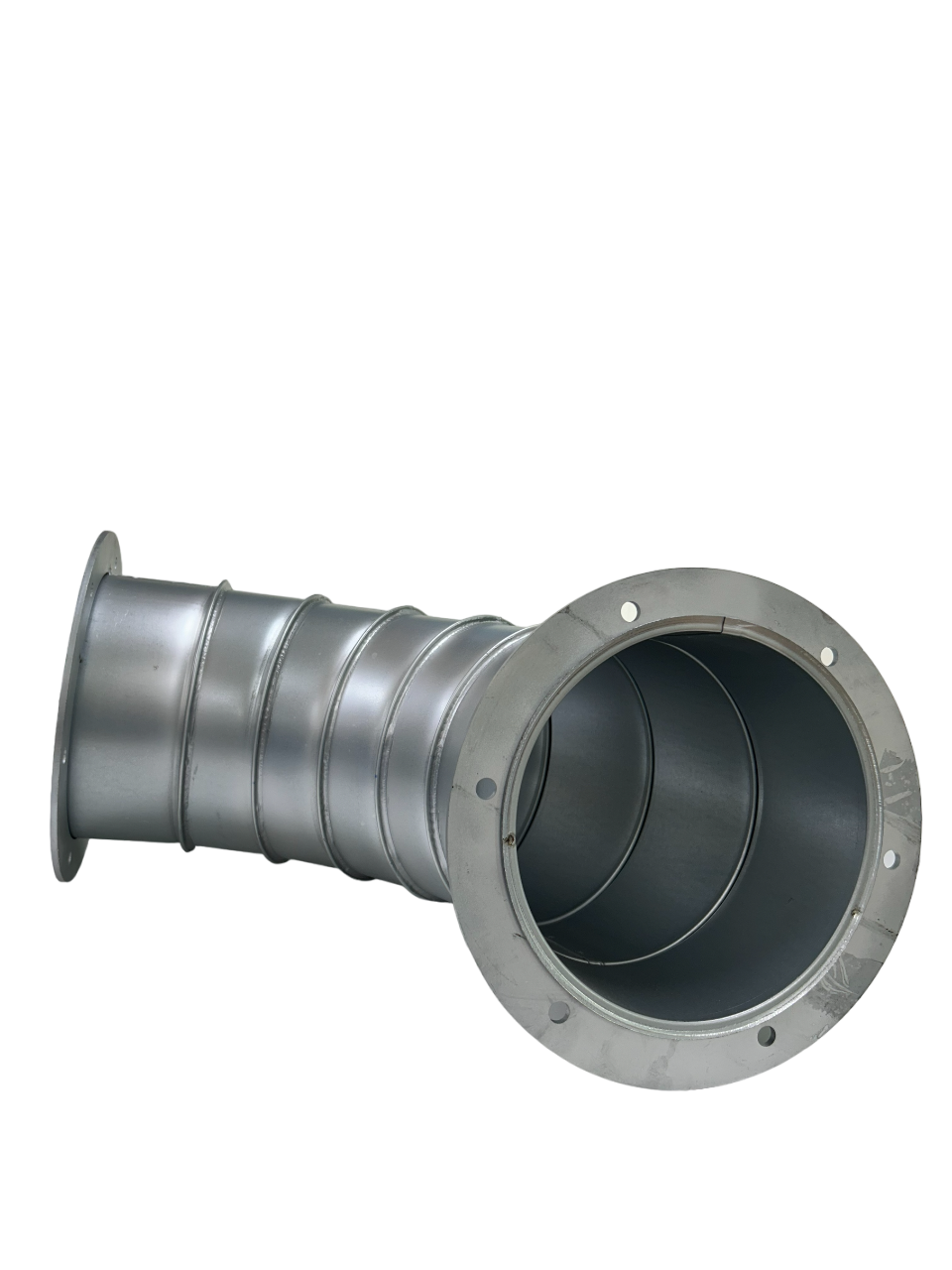

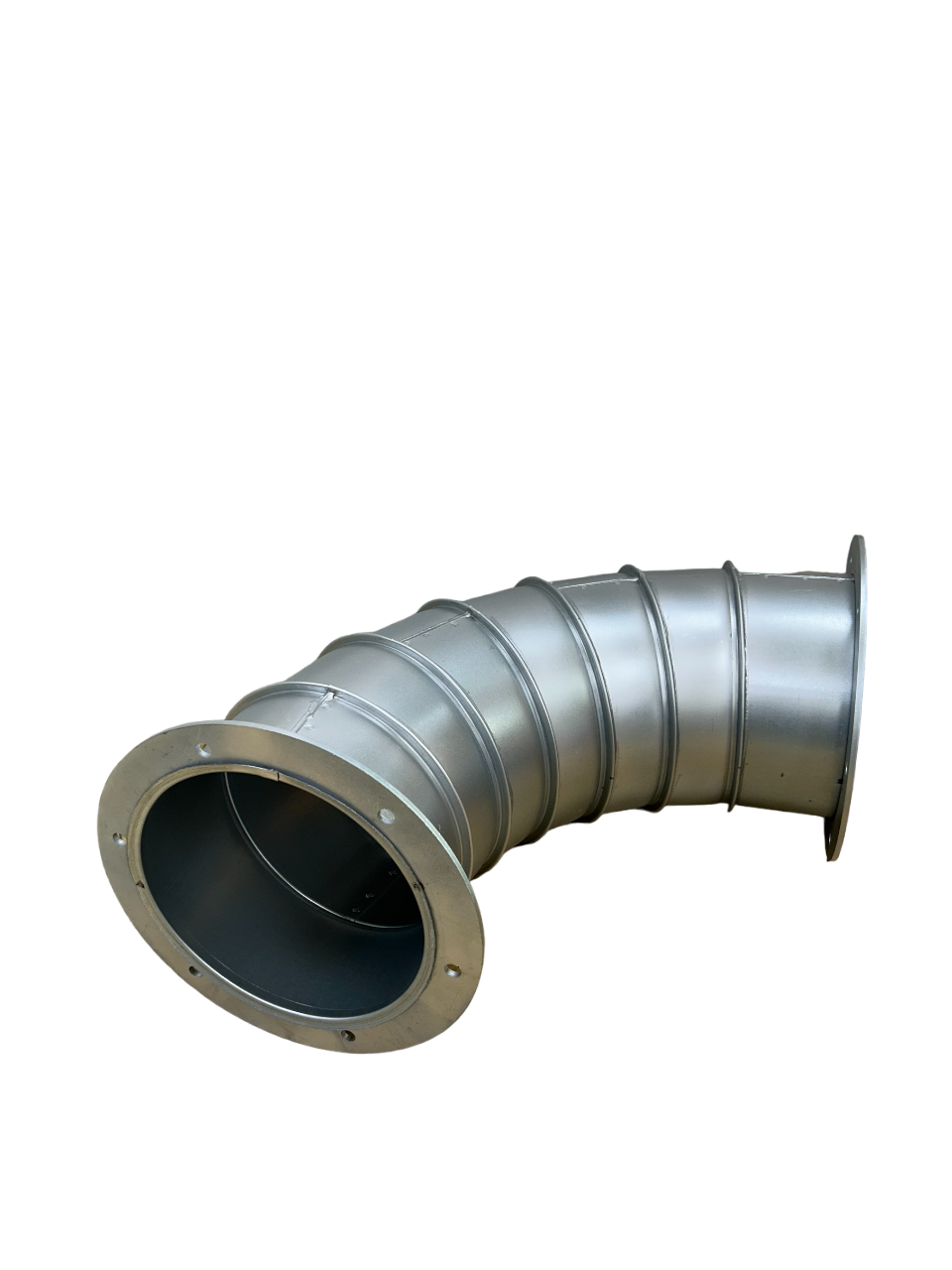

Nordfab FLN Flanged Segmented Bend (30°) comes with pre-drilled, loose FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab's FLN Flanged Segmented Bends allow airflow direction change in a run of a duct and are being used in process ventilation, dust collection, and fume extraction systems. Available in galvanised steel construction, ranging from 350 mm to 1000 mm in diameter.
- Also available in 90°, 60°, 45°, and 15° angles.
- Radius = 1.5 x D
- Available in sizes Ø 350 mm - 1000 mm, see item numbers below
Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 350 | Galv | 0,9mm | 7,36 | 8210000538 | |
| 400 | Galv | 0,9mm | 8,8 | 8210000543 | |
| 450 | Galv | 0,9mm | 11,08 | 8210000548 | |
| 500 | Galv | 0,9mm | 13,21 | 8210000553 | |
| 560 | Galv | 0,9mm | 16 | 8210000558 | |
| 600 | Galv | 0,9 | 12,5 | 8210001725 | |
| 630 | Galv | 0,9mm | 18,16 | 8210000563 | |
| 710 | Galv | 0,9mm | 20,33 | 8210000568 | |
| 800 | Galv | 0,9mm | 21,81 | 8210000573 | |
| 900 | Galv | 0,9mm | 27,55 | 8210000578 | |
| 1000 | Galv | 0,9mm | 33,6 | 8210000583 |
