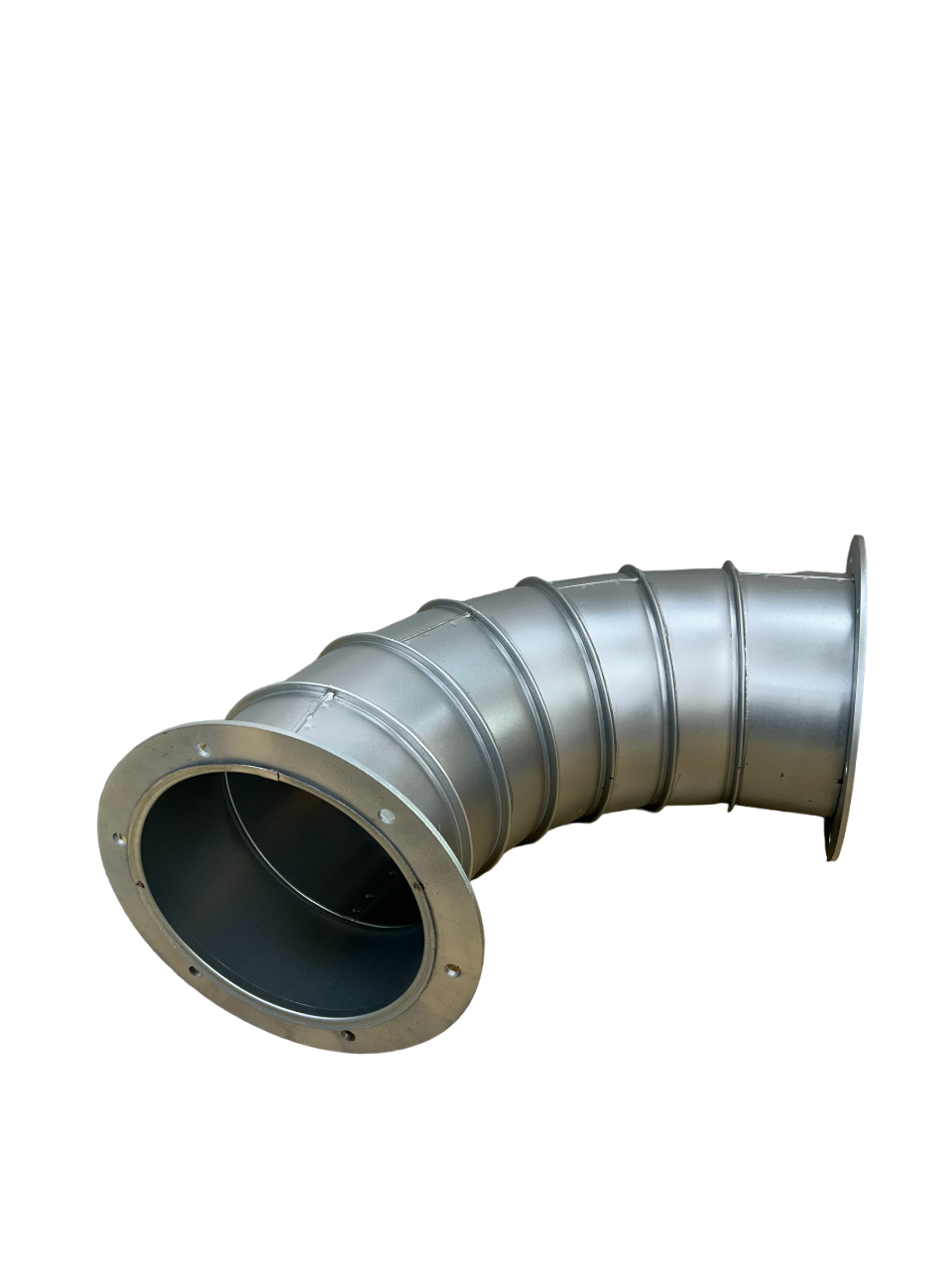

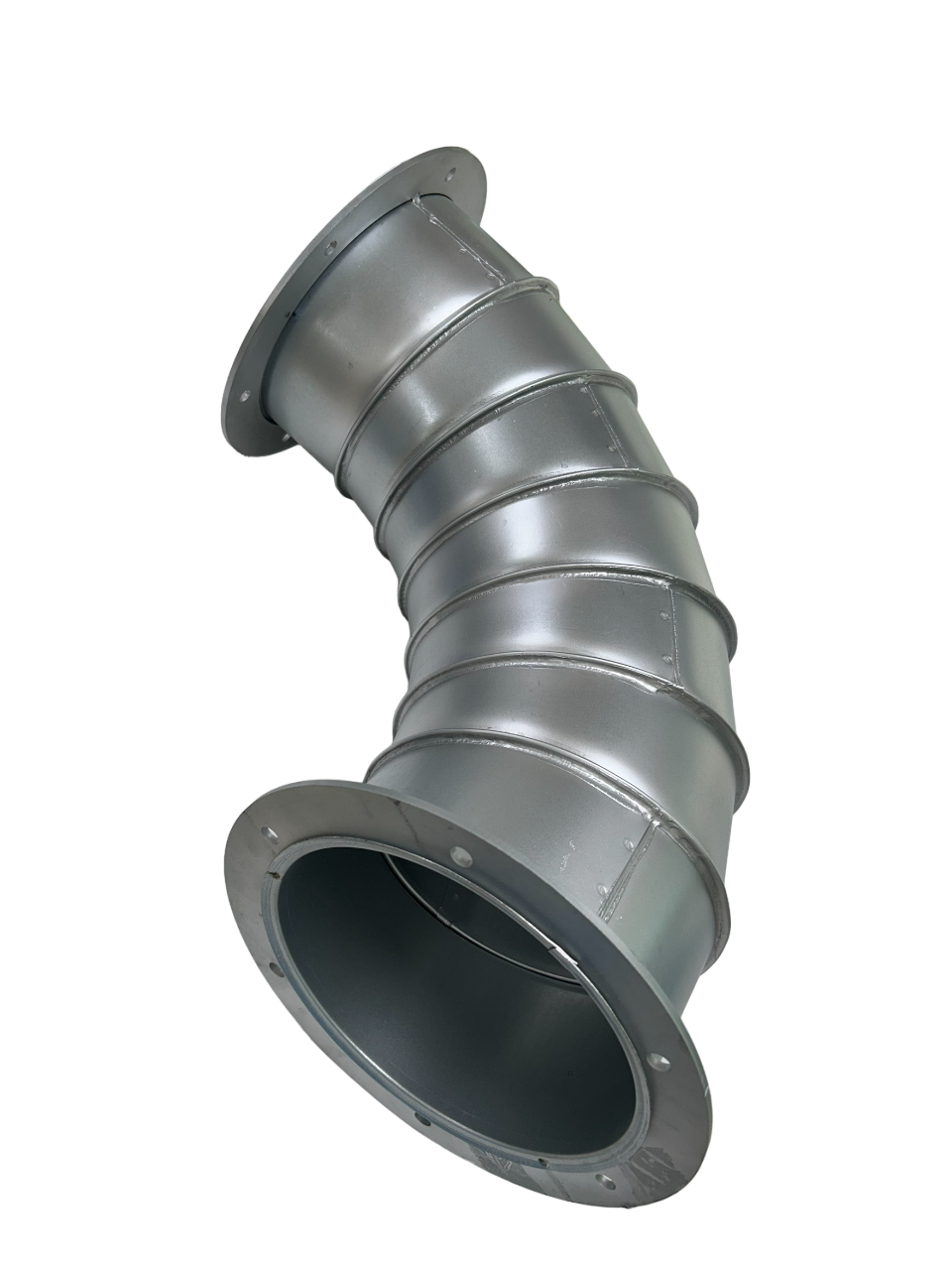

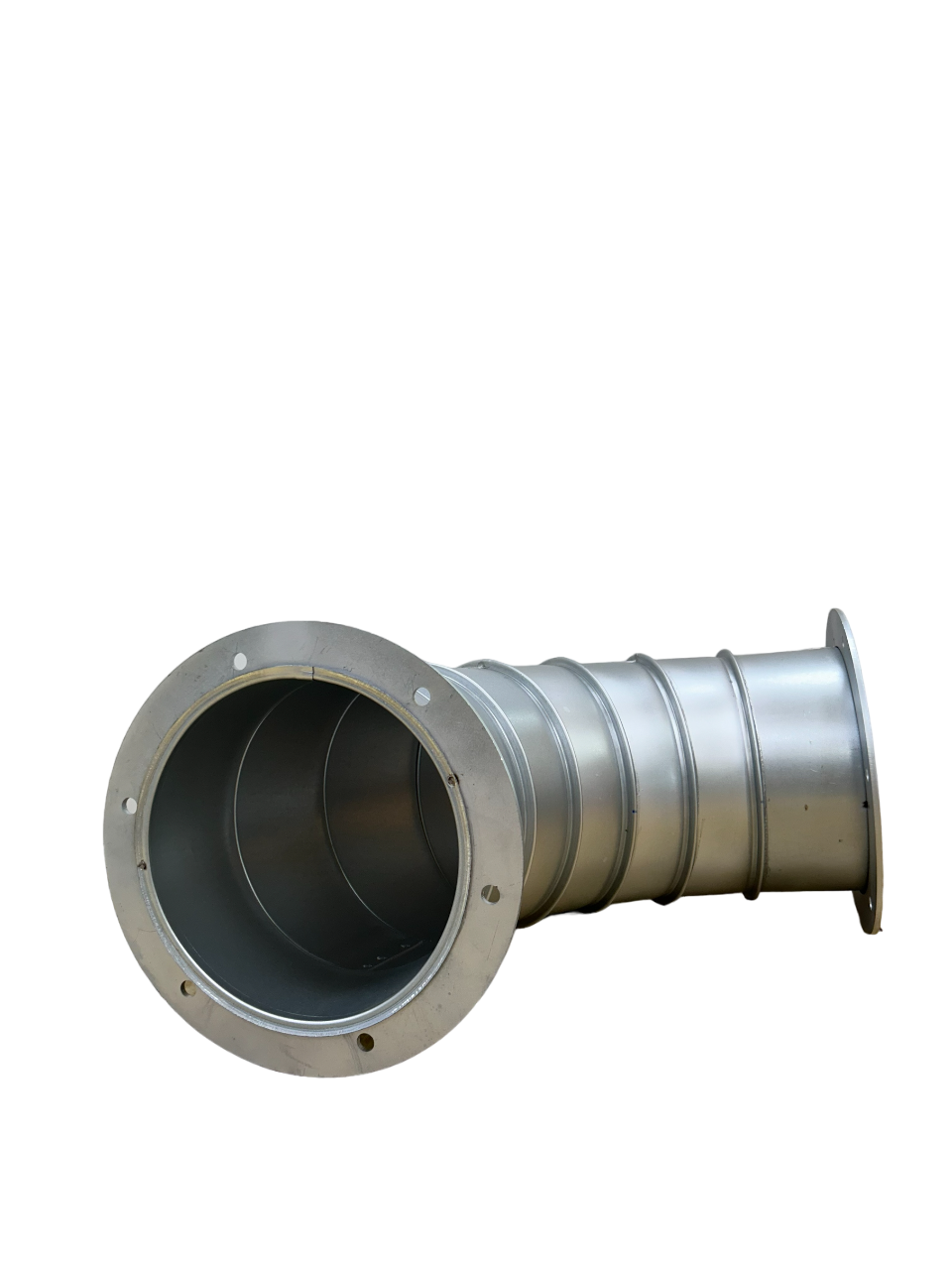

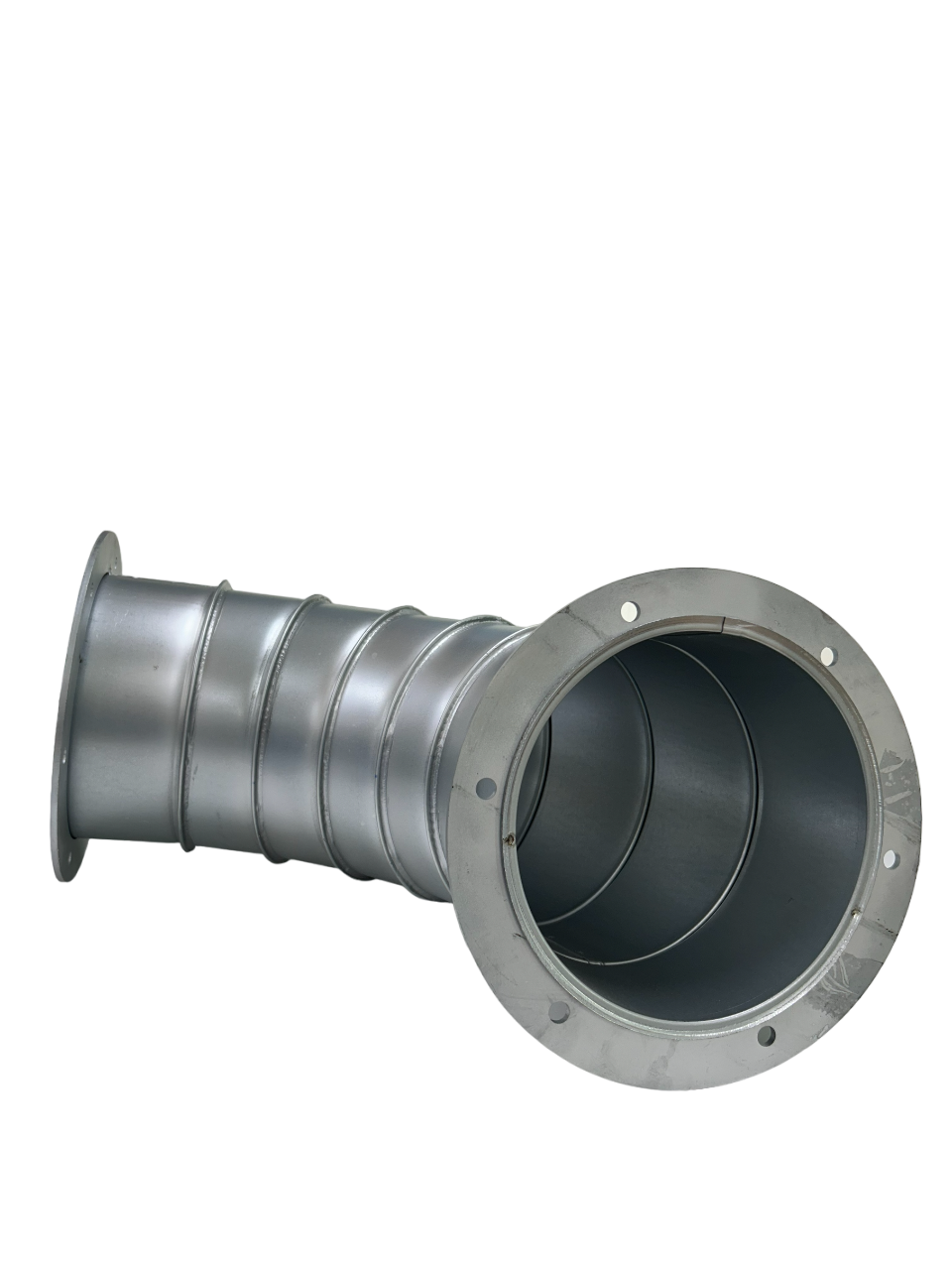

Nordfab FLN Flanged Segmented Bend (60°) comes with pre-drilled, loose FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab's FLN Flanged Segmented Bends allow airflow direction change in a run of a duct and are being used in process ventilation, dust collection, and fume extraction systems. Available in galvanised steel construction, ranging from 350 mm to 1000 mm in diameter.
- Also available in 90°, 45°, 30°, and 15° angles.
- Radius = 1.5 x D
- Available in sizes Ø 350 mm - 1000 mm, see item numbers below
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 350 | Galv | 0,9mm | 11,17 | 8210000540 | |
| 400 | Galv | 0,9mm | 13,51 | 8210000545 | |
| 450 | Galv | 0,9mm | 17,43 | 8210000550 | |
| 500 | Galv | 0,9mm | 21,05 | 8210000555 | |
| 560 | Galv | 0,9mm | 26,17 | 8210000560 | |
| 630 | Galv | 0,9mm | 29,6 | 8210000565 | |
| 710 | Galv | 0,9mm | 33,22 | 8210000570 | |
| 800 | Galv | 0,9mm | 35,19 | 8210000575 | |
| 900 | Galv | 0,9mm | 44,14 | 8210000580 | |
| 1000 | Galv | 0,9mm | 52,04 | 8210000585 |
