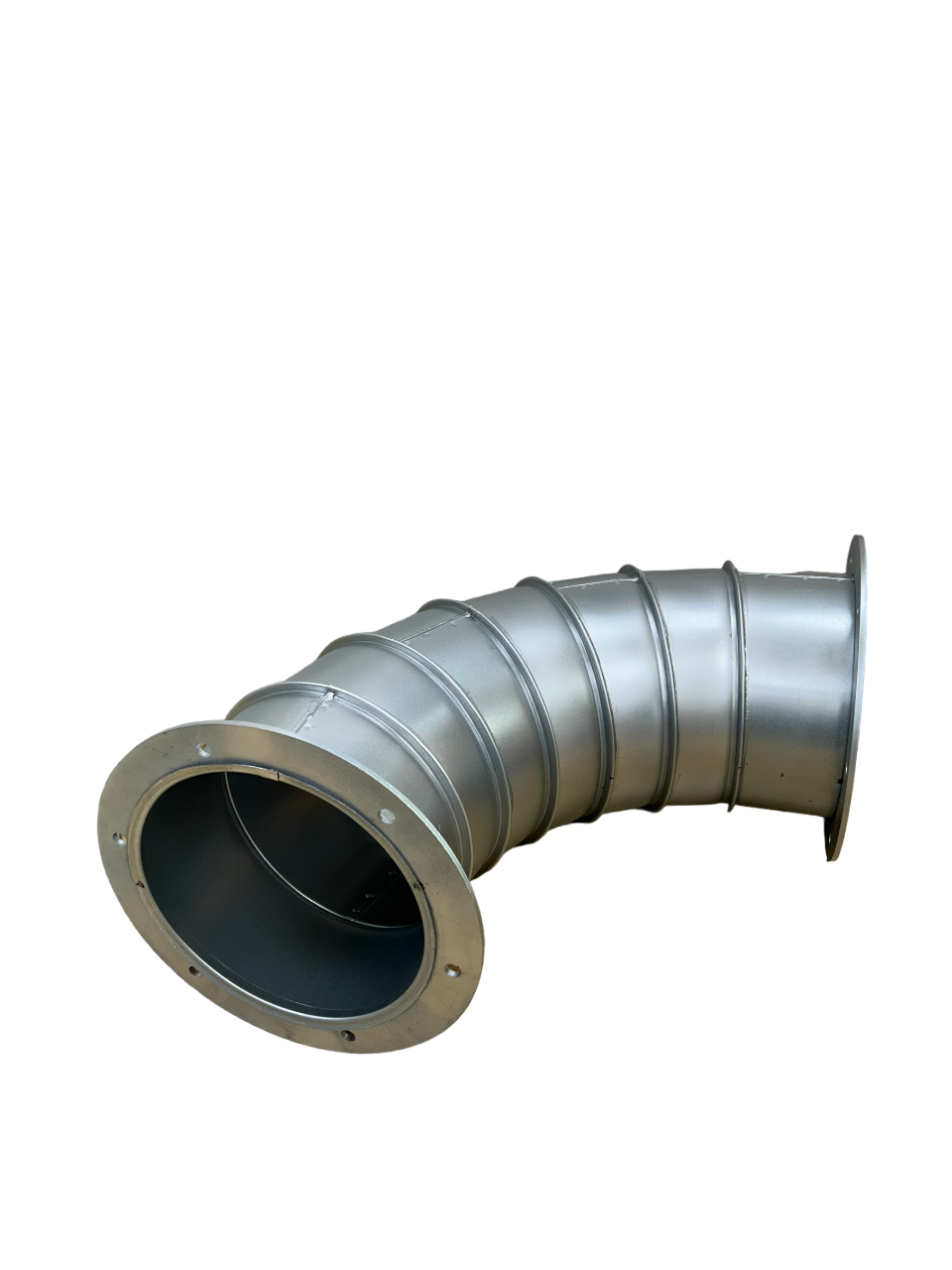

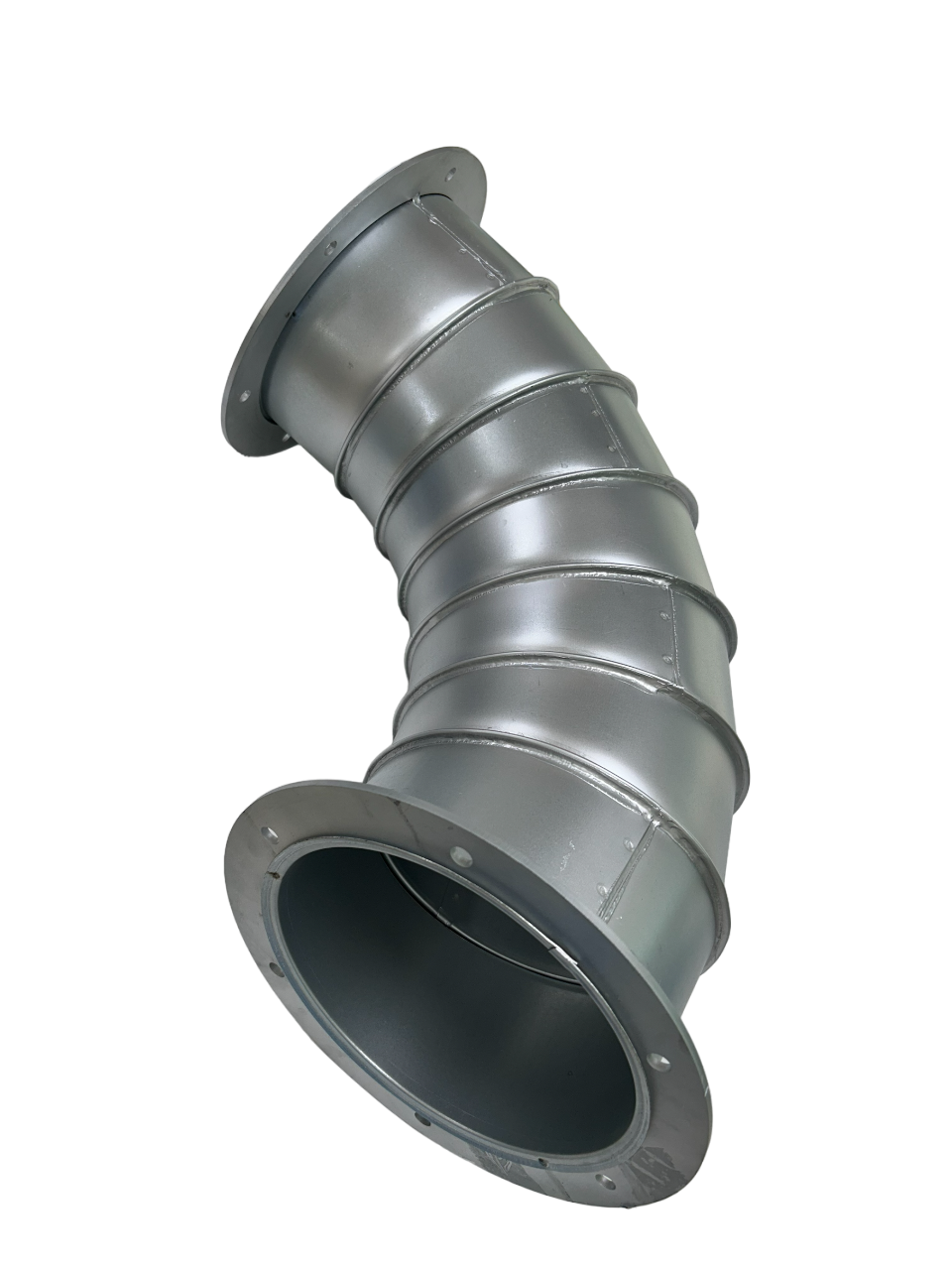

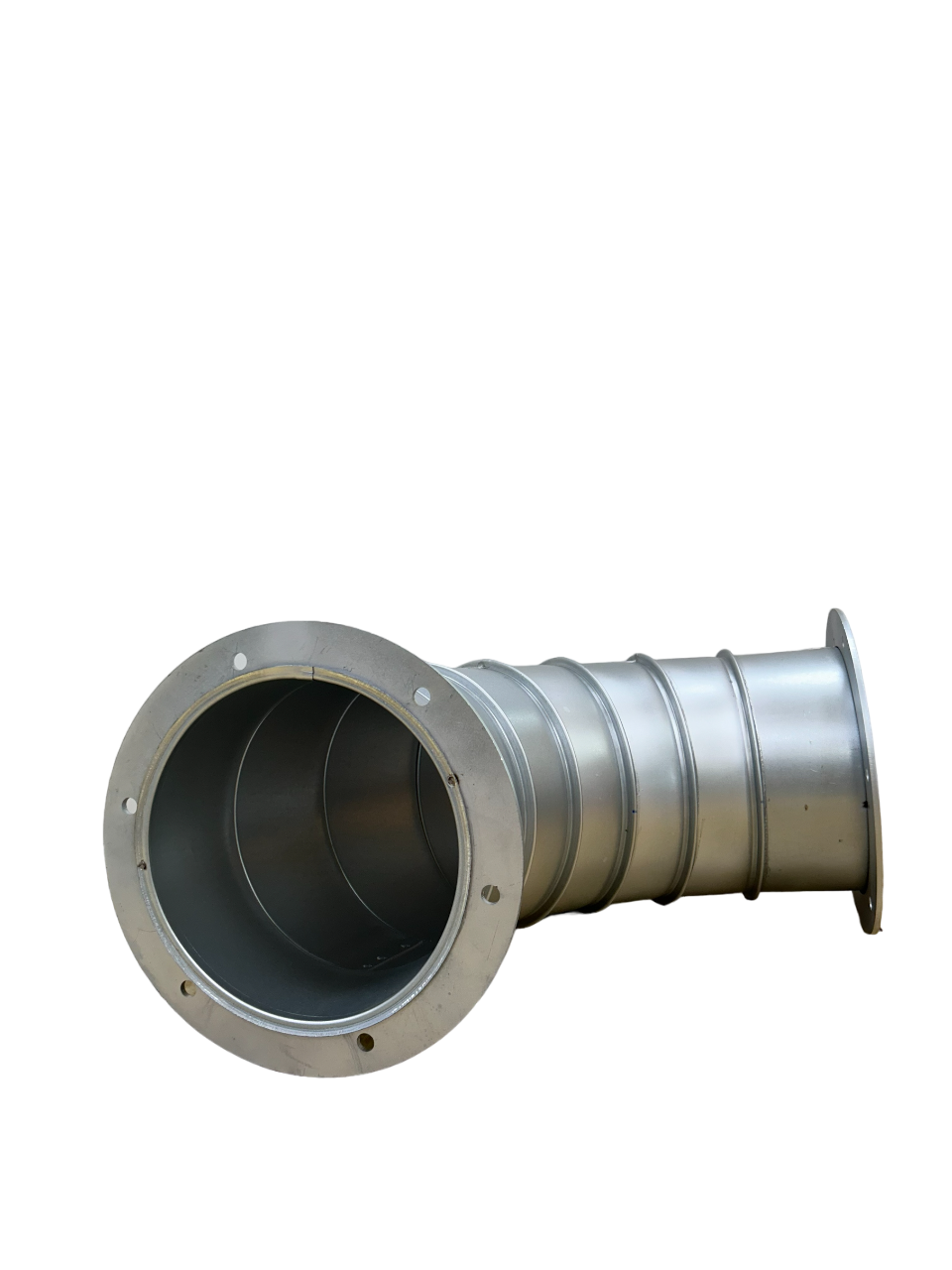

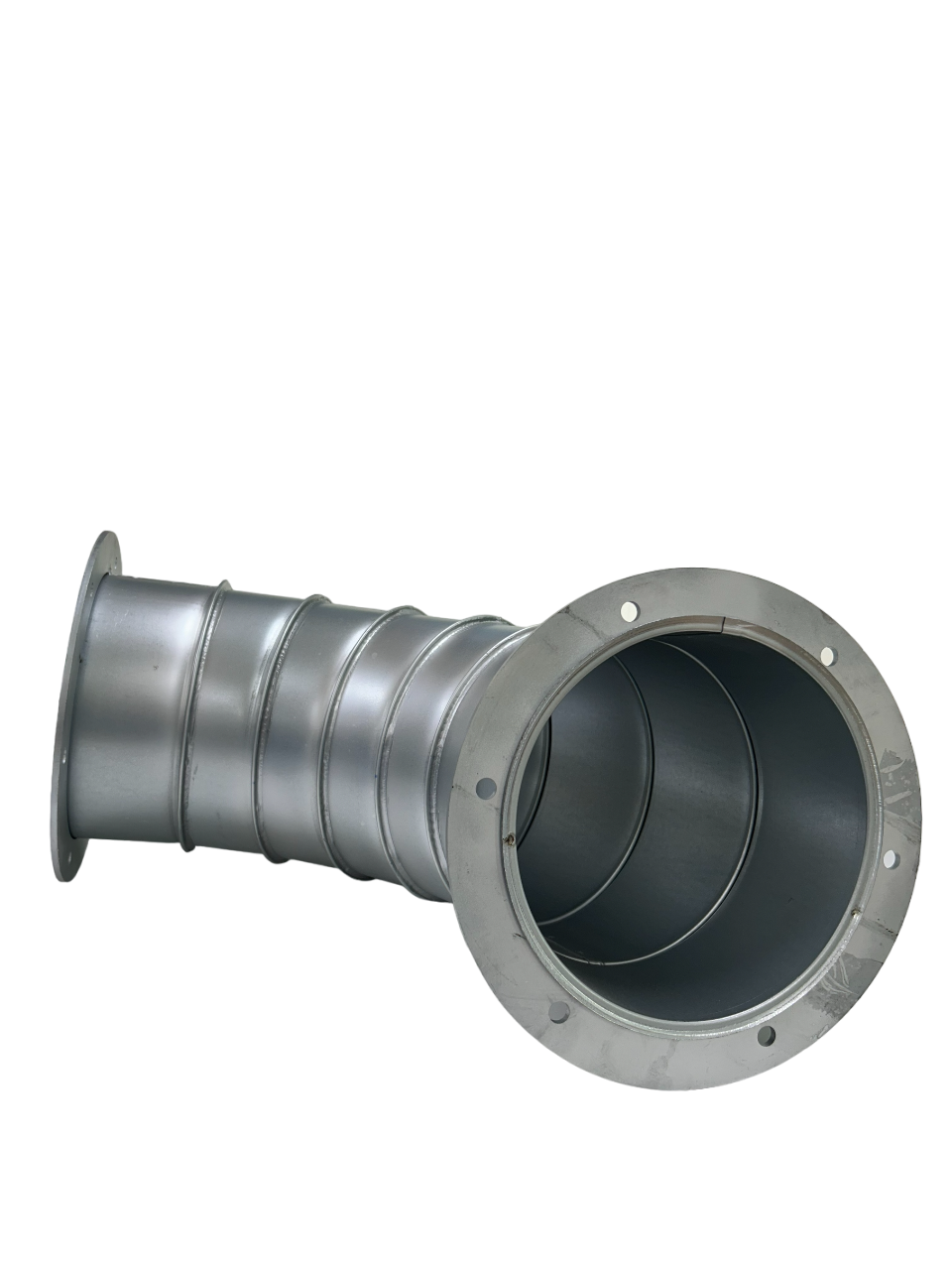

Nordfab FLN Flanged Segmented Bend (90°) comes with pre-drilled, loose FLN flanges at each end for ease of alignment and connection to other ducting components during installation. Nordfab's FLN Flanged Segmented Bends allow airflow direction change in a run of a duct and are being used in process ventilation, dust collection, and fume extraction systems. Available in galvanised steel construction, ranging from 350 mm to 1000 mm in diameter.
- Also available in 60°, 45°, 30°, and 15° angles.
- Radius = 1.5 x D
- Available in sizes Ø 350 mm - 1000 mm, see item numbers below
Nordfab flanged ductwork is typically used for larger diameters and used in high-pressure industrial ventilation systems where airtight connections are essential.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 350 | Galv | 0,9mm | 15 | 8210000541 | |
| 400 | Galv | 0,9mm | 18,21 | 8210000546 | |
| 450 | Galv | 0,9mm | 23,8 | 8210000551 | |
| 500 | Galv | 0,9mm | 28,9 | 8210000556 | |
| 560 | Galv | 0,9mm | 36,35 | 8210000561 | |
| 630 | Galv | 0,9mm | 41,05 | 8210000566 | |
| 710 | Galv | 0,9mm | 46,12 | 8210000571 | |
| 800 | Galv | 0,9mm | 48,56 | 8210000576 | |
| 900 | Galv | 0,9mm | 60,49 | 8210000581 | |
| 1000 | Galv | 0,9mm | 70,21 | 8210000586 |
