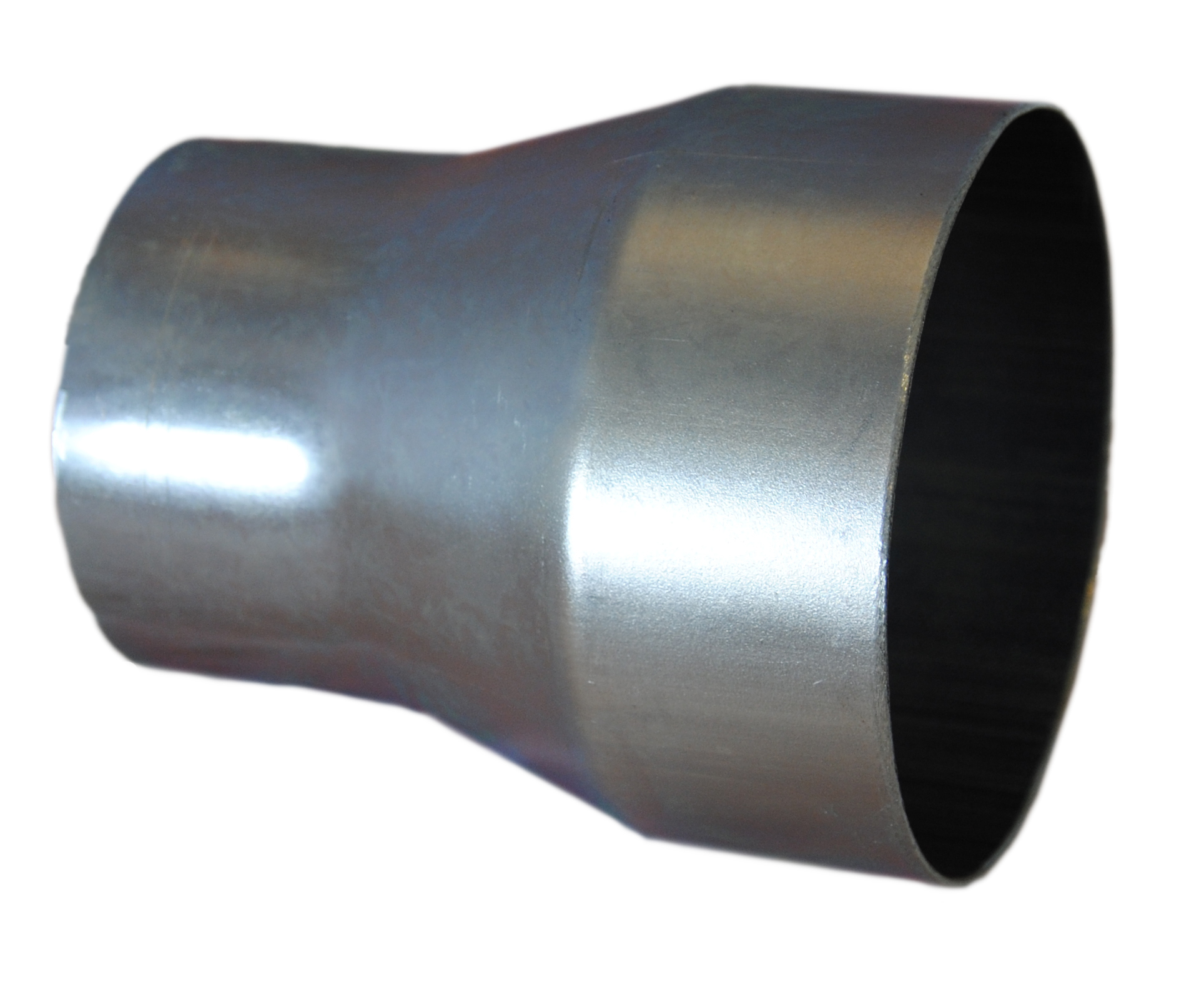

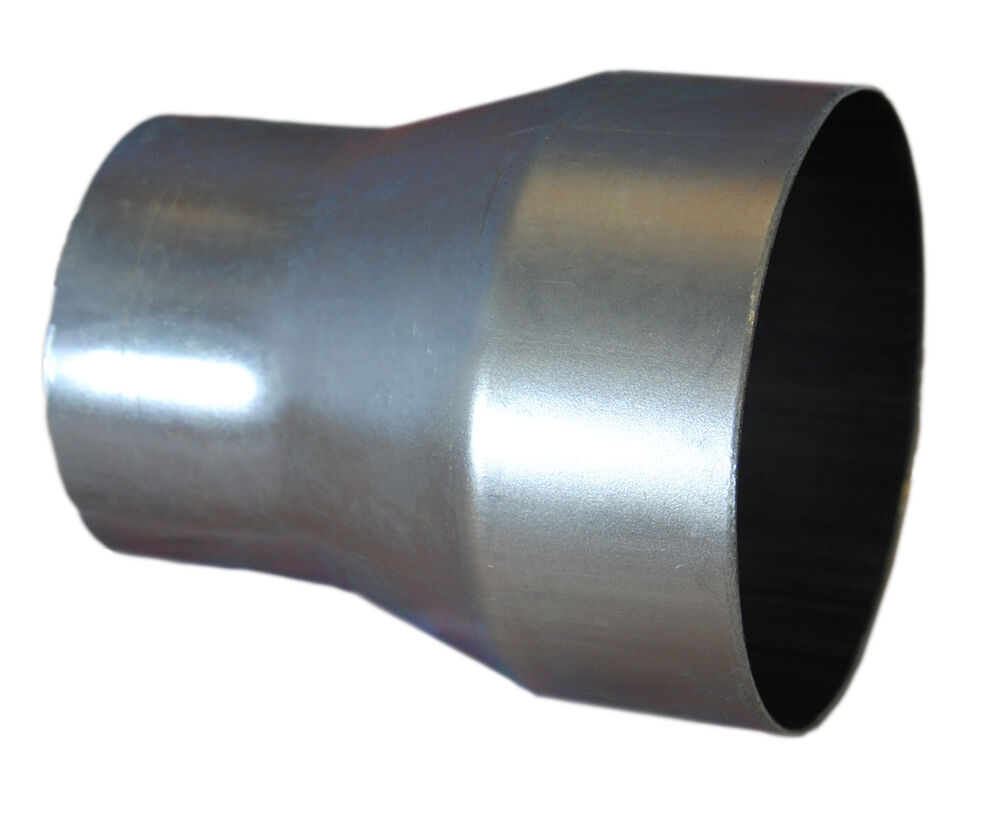

HV Reducer

HV Reducers are used in the Nordfab High Vacuum Pipe System. Ø50 - 203 mm, galvanised steel, 304SS, or 316 L construction.

Galvanised

The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Our solutions include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive

Find Your Revit Model

ø A (mm)	ø B (mm)	Material	T mm	L mm	Weight(kg)	Item No.
63	50	304SS	1,5mm	67	0,2	8210005138‍
76	50	304SS	1,5mm	70	0,2	8210005139‍
76	63	304SS	1,5mm	75	0,2	8210005140‍
102	76	304SS	2mm	120	1,4	8210005141‍
108	102	304SS	2mm	120	0,5	8210005142‍
127	76	304SS	2mm	120	0,6	8210005144‍
127	102	304SS	2mm	120	0,7	8210005143‍
63	50	316SS	1,5mm	67	0,1	8210005039‍
63	50		1,5mm	67	0,1	40130730‍
76	50	316SS	1,5mm	70	0,2	8210005040‍
76	50		1,5mm	180	0,2	40135750‍
76	63	316SS	1,5mm	75	0,2	8210005041‍
76	63		1,5mm	94	0,2	40135740‍
80	76			95	0,19	8210002182‍
102	63			150	0,42	40136064‍
102	76	316SS	2mm	120	0,3	8210005042‍
102	76		2mm	120	0,3	40135830‍
108	63			150	0,47	40136070‍
108	76			140	0,47	40136071‍
108	102		2mm	120	0,61	40135840‍
127	76		2mm	115	0,4	40135820‍
127	102		2mm	120	0,6	40135810‍
129	76	316SS	2mm	115	0,4	8210005043‍
129	102	316SS	2mm	120	0,4	8210005044‍
152	102			165	1,08	40136065‍
152	127		2mm	120	0,75	40135800‍
154	129	316SS	2mm	120	0,6	8210005045‍
203	127			150	1,6	40136068‍
203	152		2mm	150	1,34	40130020‍
