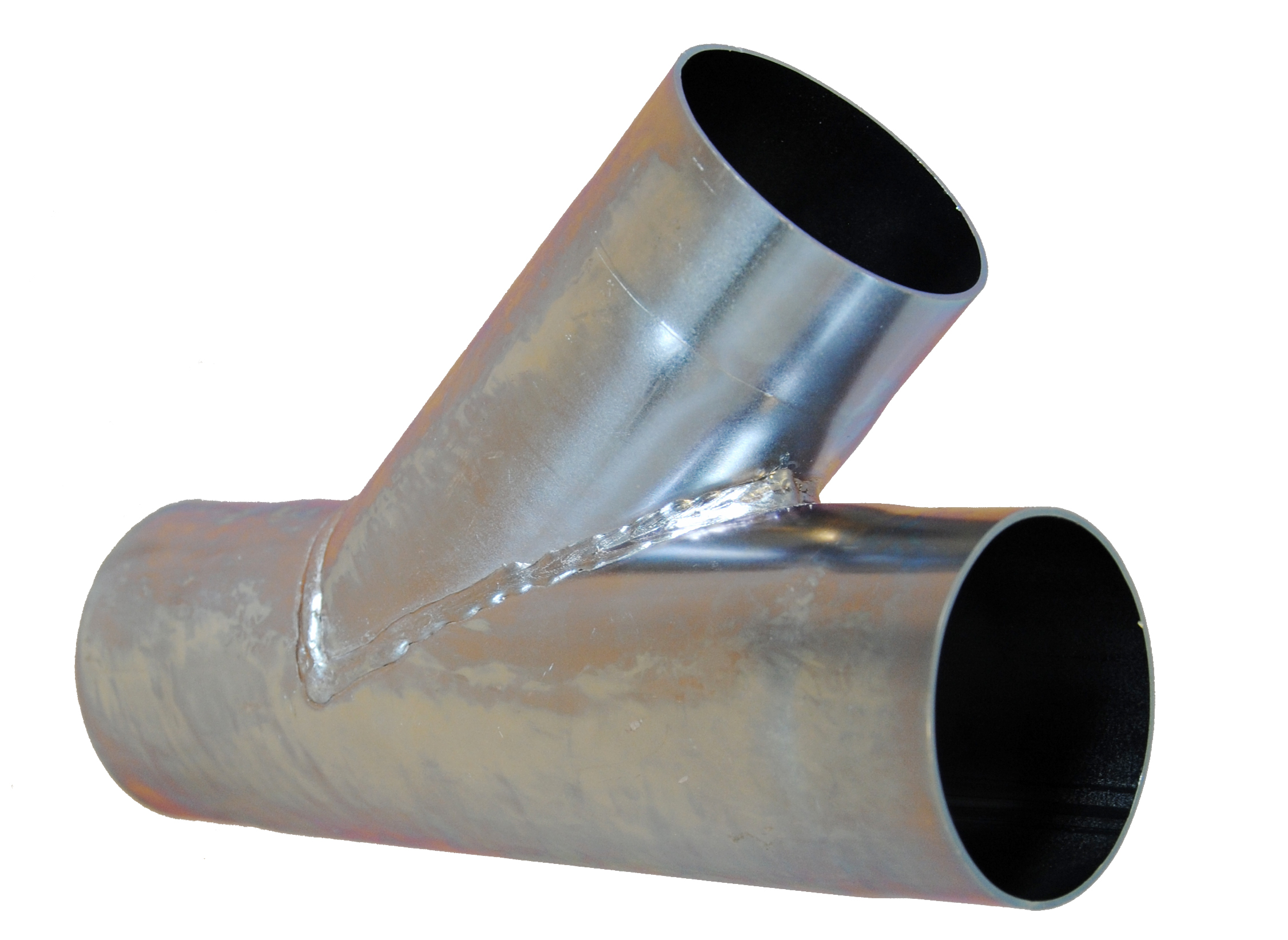

HV Branch Pipes

HV Branch Pipes are used to join vacuum pipes or connect a suction pipe. Ø50 - 152 mm, 45°, galvanised steel, 304SS or 316L construction.

Branch pipes are used to join HV vacuum pipes together or connect a suction pipe. 45° branch.

Galvanised steel, 304SS, or 316L construction

The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Our solutions include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive

ø A (mm) ø B (mm) ø C (mm) Material T mm Weight(kg) Item No.
50 50 50 304SS 1,5mm 0,4 8210005118‍
63 63 63 304SS 1,5mm 0,6 8210005119‍
76 76 50 304SS 1,5mm 1 8210005126‍
76 76 63 304SS 1,5mm 1 8210005120‍
76 76 76 304SS 1,5mm 1 8210005121‍
102 102 76 304SS 2mm 1,8 8210005123‍
102 102 102 304SS 2mm 1,4 8210005122‍
127 127 102 304SS 2mm 2,8 8210005124‍
50 50 50 316SS 1,2mm 0,4 8210005024‍
50 50 50 1,5mm 0,5 40130650‍
63 63 50 1,5mm 5,8 40136039‍
63 63 63 0,6 8210005025‍
63 63 63 1,5mm 0,6 40130660‍
76 76 50 316SS 1,6mm 1 8210005026‍
76 76 50 1,5mm 0,99 40135660‍
76 76 63 316SS 1,6mm 1 8210005027‍
76 76 63 1,5mm 1,3 40135650‍
76 76 76 316SS 1,6mm 1 8210005028‍
76 76 76 1,5mm 1,3 40135640‍
102 102 50 2,35 40136063‍
102 102 63 2mm 1,5 40130600‍
102 102 76 316SS 2mm 1,8 8210005029‍
102 102 76 2mm 1,8 40135630‍
102 102 102 316SS 2mm 1,8 8210005030‍
102 102 102 2mm 5,8 40136038‍
127 127 50 2,7 40136060‍
127 127 63 2,8 40136061‍
127 127 76 2mm 2,2 40135620‍
127 127 102 2mm 2,7 40135610‍
129 129 102 316SS 2mm 2,7 8210005031‍
152 152 63 4,1 40136059‍
152 152 76 4,2 40136058‍
152 152 102 2mm 5,8 40136037‍
152 152 152 2mm 5,15 40134150‍
154 154 129 316SS 2mm 5,8 8210005032‍
203 203 63 6,8 40136055‍
203 203 76 6,8 40136054‍
203 203 102 2mm 2,13 40131050‍
203 203 127 7,65 40136057‍
203 203 203 8,2 40136056‍
