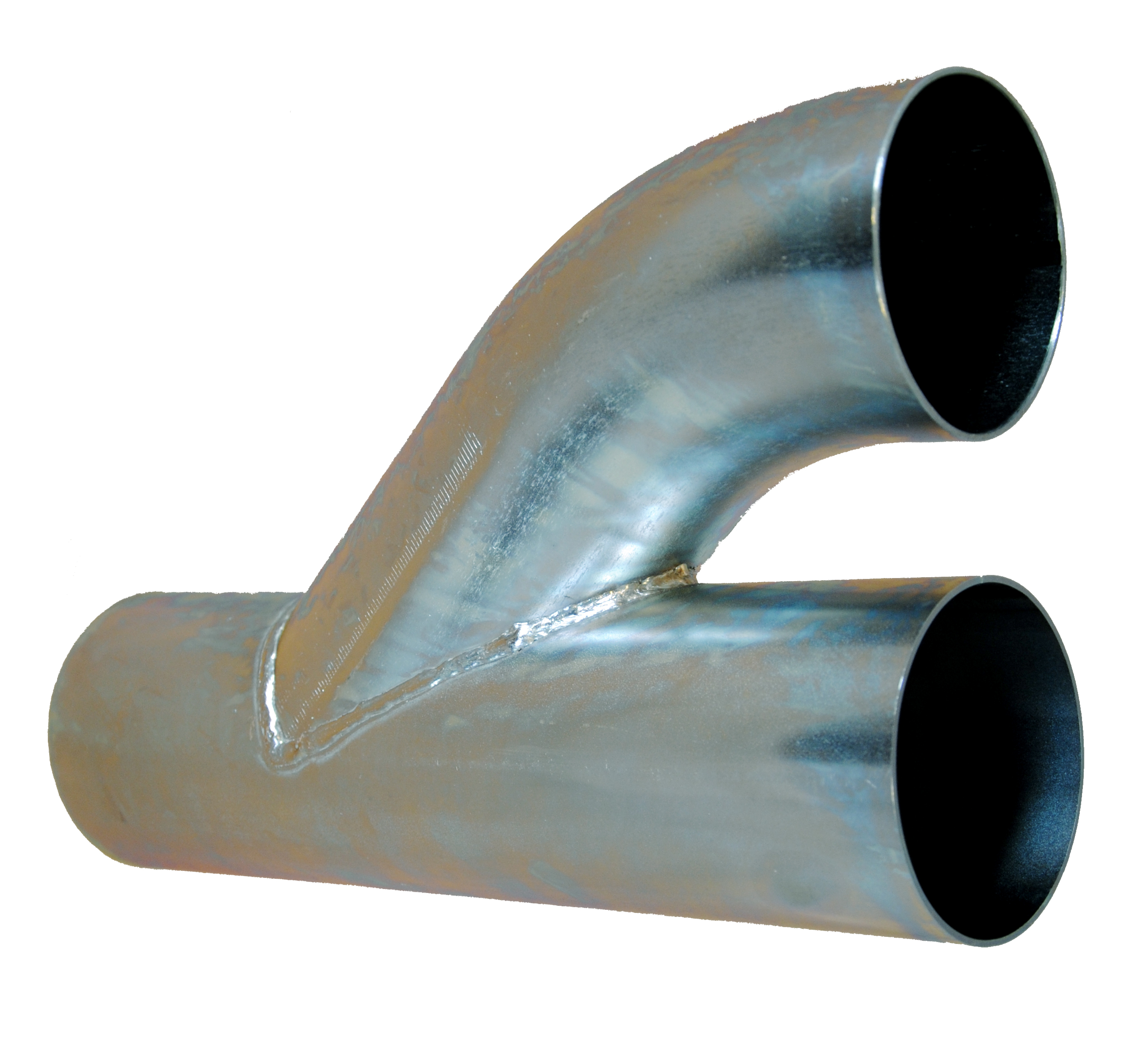

HV Branch Pipes Parallel

HV Parallel Branch Pipes are used to join vacuum pipes. Ø102 and 152 mm, 45°, galvanised steel or 304SS construction.

Branch pipes used to join vacuum pipes together. Parallel branch.

The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Our solution include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive

ø A (mm) ø B (mm) ø C (mm) Material T mm Weight(kg) Item No.
102 102 102 304SS 2mm 2,7 8210005127‍
102 102 102 2mm 2,55 40130630‍
152 152 102 2mm 2,75 40130640‍
