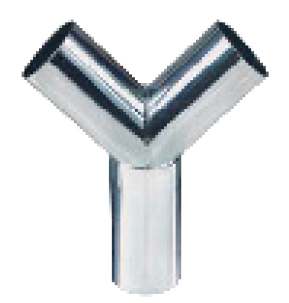

HV Y-Branch

HV Y-Branch Pipes are used to join vacuum pipes. Ø50 - 203 mm, 45°, galvanised steel, 304SS or 316L construction.

45° High Vacuum branch pipes.

Galvanised steel, 304SS, or 316L construction

The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Applications include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive

ø A (mm) ø B (mm) ø C (mm) Material T mm Weight(kg) Item No.
50 50 50 304SS 1,5mm 0,4 8210005145‍
63 63 63 304SS 1,5mm 0,6 8210005146‍
76 76 76 304SS 1,5mm 1 8210005147‍
102 102 102 304SS 2mm 1,8 8210005148‍
127 127 127 304SS 2mm 2,8 8210005149‍
50 50 50 1,5mm 0,4 40136030‍
50 50 50 316SS 1,6mm 0,4 8210005033‍
63 63 63 1,5mm 0,9 40136031‍
63 63 63 316SS 1,6mm 0,6 8210005034‍
76 76 76 1,5mm 1 40136032‍
76 76 76 316SS 1,6mm 1 8210005035‍
102 102 102 2mm 1,8 40136033‍
102 102 102 316SS 2mm 1,8 8210005036‍
127 127 127 2mm 2,8 40136034‍
129 129 129 316SS 2mm 2,8 8210005037‍
152 152 152 2mm 3 40136035‍
154 154 154 316SS 2mm 2,8 8210005038‍
203 203 203 2mm 3,27 40136036‍
