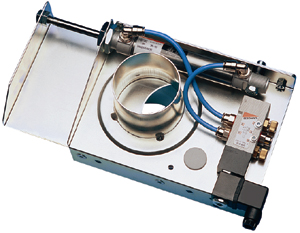

The SBBB is a circular compressed air powered automatic slide damper for rapid and tight closure. Since the damper is opened and closed automatically, extraction is always focused on the connections, extraction points, or machines currently in operation. This maximizes extraction power, with lower energy consumption as a bonus.
• The damper should be connected to clean and dry compressed air
• Working pressure 5-8 bar
• Maximum temperature 80° C
• Voltage: 230V AC (Coils for 24-48-110V AC & DC optional)
The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.
Our solutions include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive
ø A (mm) | Material | Control | Weight(kg) | Item No. |
---|---|---|---|---|
50 | Galv | 120 VAC | 1,9 | 8210004684 |
50 | Galv | 230 VAC | 1,9 | 8210004688 |
50 | Galv | 24 VAC | 1,9 | 8210004692 |
50 | Galv | 24 VDC | 1,9 | 8210004696 |
50 | Galv | 24 VDC Ex | 1,9 | 8210004700 |
63 | Galv | 120 VAC | 2,1 | 8210004685 |
63 | Galv | 230 VAC | 2,65 | 8210004689 |
63 | Galv | 24 VAC | 2,1 | 8210004693 |
63 | Galv | 24 VDC | 2,1 | 8210004697 |
63 | Galv | 24 VDC Ex | 2,1 | 8210004701 |
76 | Galv | 120 VAC | 3,05 | 8210004686 |
76 | Galv | 230 VAC | 3,05 | 8210004690 |
76 | Galv | 24 VAC | 3,05 | 8210004694 |
76 | Galv | 24 VDC | 3,05 | 8210004698 |
76 | Galv | 24 VDC Ex | 3,05 | 8210004702 |
102 | Galv | 120 VAC | 3,9 | 8210004687 |
102 | Galv | 230 VAC | 3,9 | 8210004691 |
102 | Galv | 24 VAC | 3,9 | 8210004695 |
102 | Galv | 24 VDC | 3,9 | 8210004699 |
102 | Galv | 24 VDC Ex | 3,9 | 8210004703 |
