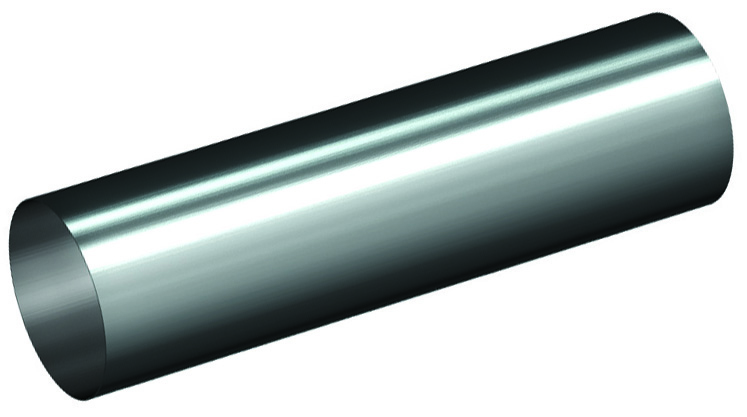

HV Pipe

HV Pipe is used for air contaminant collection where high vacuum and low airflow are required. Ø50 - 203 mm. Galvanised steel, 304SS, or 316L construction.

Used as main pipes in Nordfab High Vacuum Pipe System.

The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.

Our solutions include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive

Galvanised steel, 304SS, or 316L construction.

ø A (mm) L mm Material T mm Weight(kg) Item No.
50 3000 Galv 1,2mm 5,5 40130440‍
50 6000 Galv 1,2mm 8,66 40130450‍
63 3000 Galv 1,2mm 5,7 40130420‍
63 6000 Galv 1,2mm 11,3 40130430‍
76 3000 Galv 1,2mm 5,55 40130400‍
76 6000 Galv 1,2mm 11,1 40130410‍
102 3000 Galv 1,2mm 8,8 40130380‍
102 6000 Galv 1,2mm 17,7 40130390‍
127 3000 Galv 1,5mm 14 40130360‍
127 6000 Galv 1,5mm 27,96 40130361‍
152 3000 Galv 1,5mm 16,5 40130340‍
152 6000 Galv 1,5mm 32,96 40130350‍
203 3000 Galv 1,5mm 22 40130320‍
203 6000 Galv 1,5mm 44,06 40130330‍
50 3000 304SS 1,2mm 5,5 8210005128‍
50 6000 304SS 1,2mm 10,9 8210005129‍
63 3000 304SS 1,2mm 5,5 8210005130‍
63 6000 304SS 1,2mm 11 8210005131‍
76 3000 304SS 1,2mm 5,6 8210005132‍
76 6000 304SS 1,2mm 11,1 8210005133‍
102 3000 304SS 1,5mm 8,8 8210005134‍
102 6000 304SS 1,5mm 17,5 8210005135‍
127 3000 304SS 1,5mm 9,3 8210005136‍
127 6000 304SS 1,5mm 18,6 8210005137‍
50 3000 316SS 1,2mm 5,5 8210005000‍
50 6000 316SS 1,2mm 10,9 8210005001‍
63 3000 316SS 1,6mm 7,45 8210005002‍
63 6000 316SS 1,6mm 14,91 8210005003‍
76 3000 316SS 1,6mm 8,99 8210005004‍
76 6000 316SS 1,6mm 17,98 8210005005‍
102 3000 316SS 2mm 14,79 8210005006‍
102 6000 316SS 2mm 29,58 8210005007‍
129 3000 316SS 2mm 19,23 8210005008‍
129 6000 316SS 2mm 38,45 8210005009‍
154 3000 316SS 2mm 22,78 8210005010‍
154 6000 316SS 2mm 45,56 8210005011‍
