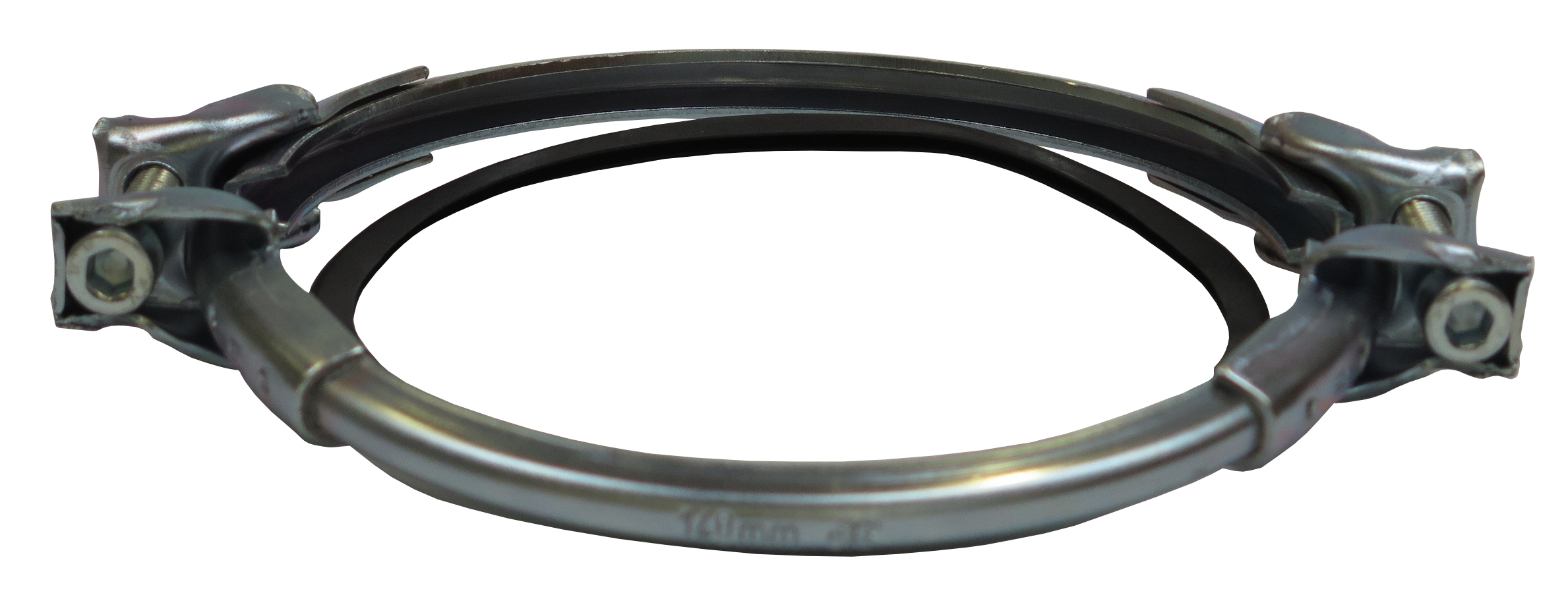

2 halves incl. bolt and nut. Loose rubber ring RSRS included. Dimensions of Ø 315 mm are supplied FSDB with adhesive for increased density.
Mild Steel Ducting for industrial ventilation, vacuum and pneumatic conveying.
We supply mild, corten and stainless steel ducting in thicknesses t = 2-5 mm as standard.
Construction
• Mild steel 2-3 mm.
• Connections: flanged, clipped edge, straight edge.
• Cold rolled steel sheet in 1312.
• The maximum recommended operating temperature +80°C.
Optional
• Corten steel.
• Stainless steel.
• Other thicknesses.
Finish
• Painted in RAL 7032.
• Priming 50 μ, zinc content 70%.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 100 | Galv | 0,23 | 8210003151 | ||
| 120 | Galv | 0,25 | 8210003152 | ||
| 125 | Galv | 0,26 | 8210003153 | ||
| 140 | Galv | 0,27 | 8210003154 | ||
| 150 | Galv | 0,28 | 8210003155 | ||
| 160 | Galv | 0,3 | 8210003156 | ||
| 180 | Galv | 0,32 | 8210003157 | ||
| 200 | Galv | 0,34 | 8210003158 | ||
| 225 | Galv | 0,36 | 8210003159 | ||
| 250 | Galv | 0,39 | 8210003160 | ||
| 300 | Galv | 0,44 | 8210003161 | ||
| 315 | Galv | 0,46 | 8210003162 | ||
| 350 | Galv | 0,5 | 8210003163 | ||
| 400 | Galv | 0,55 | 8210003164 | ||
| 450 | Galv | 0,6 | 8210003165 | ||
| 500 | Galv | 0,66 | 8210003166 | ||
| 550 | Galv | 0,71 | 8210003167 | ||
| 600 | Galv | 0,76 | 8210003168 |
