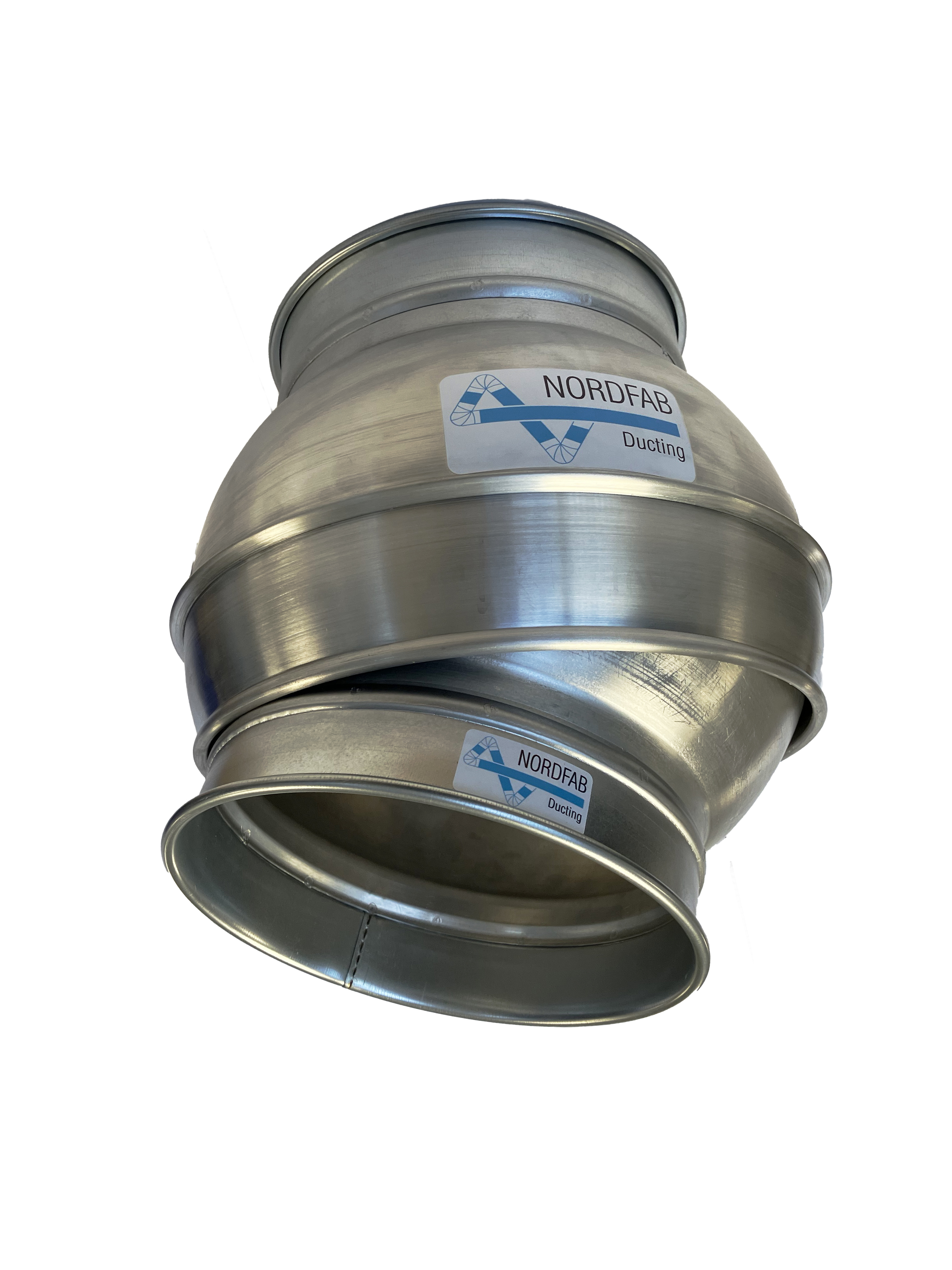

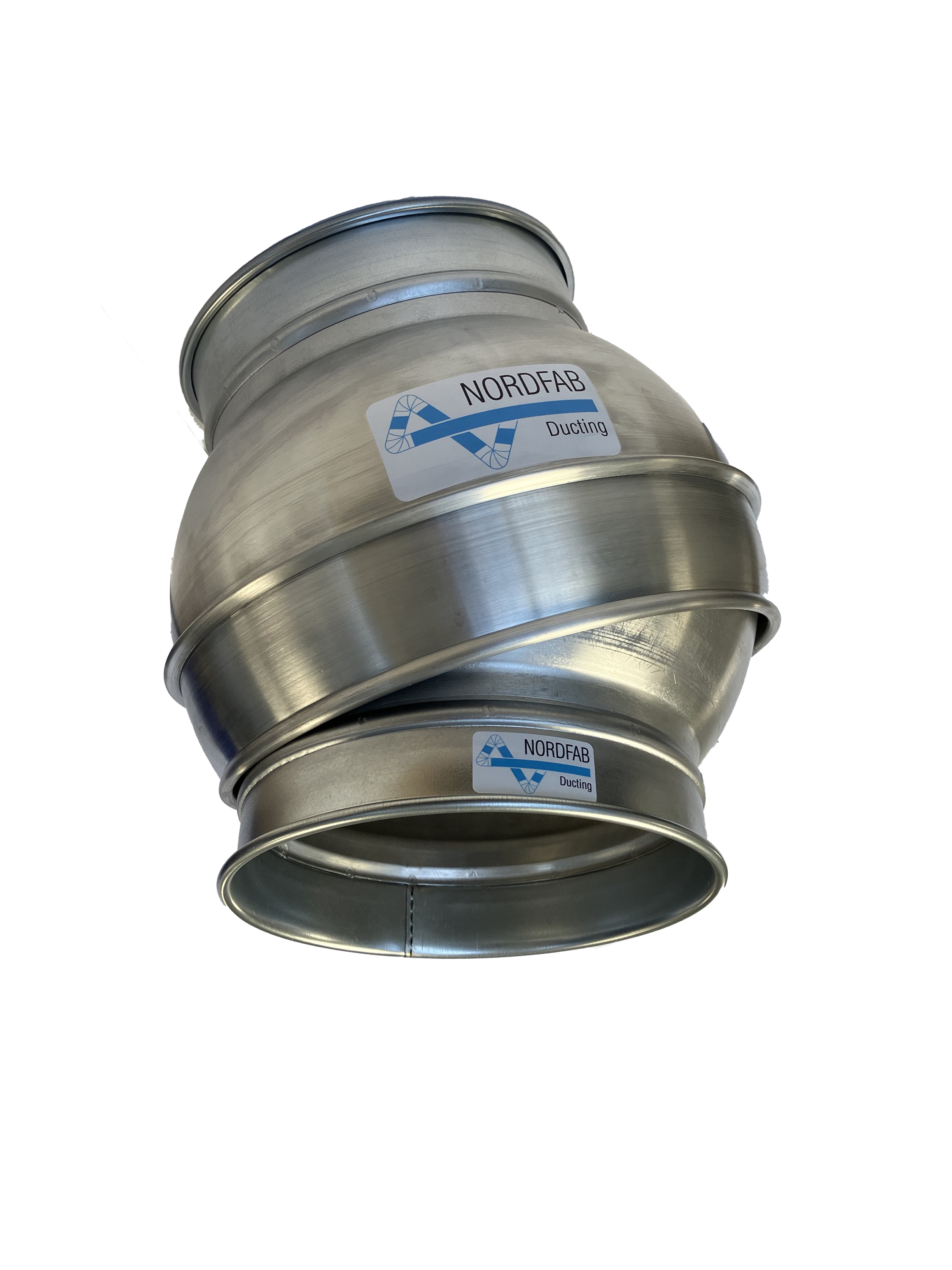

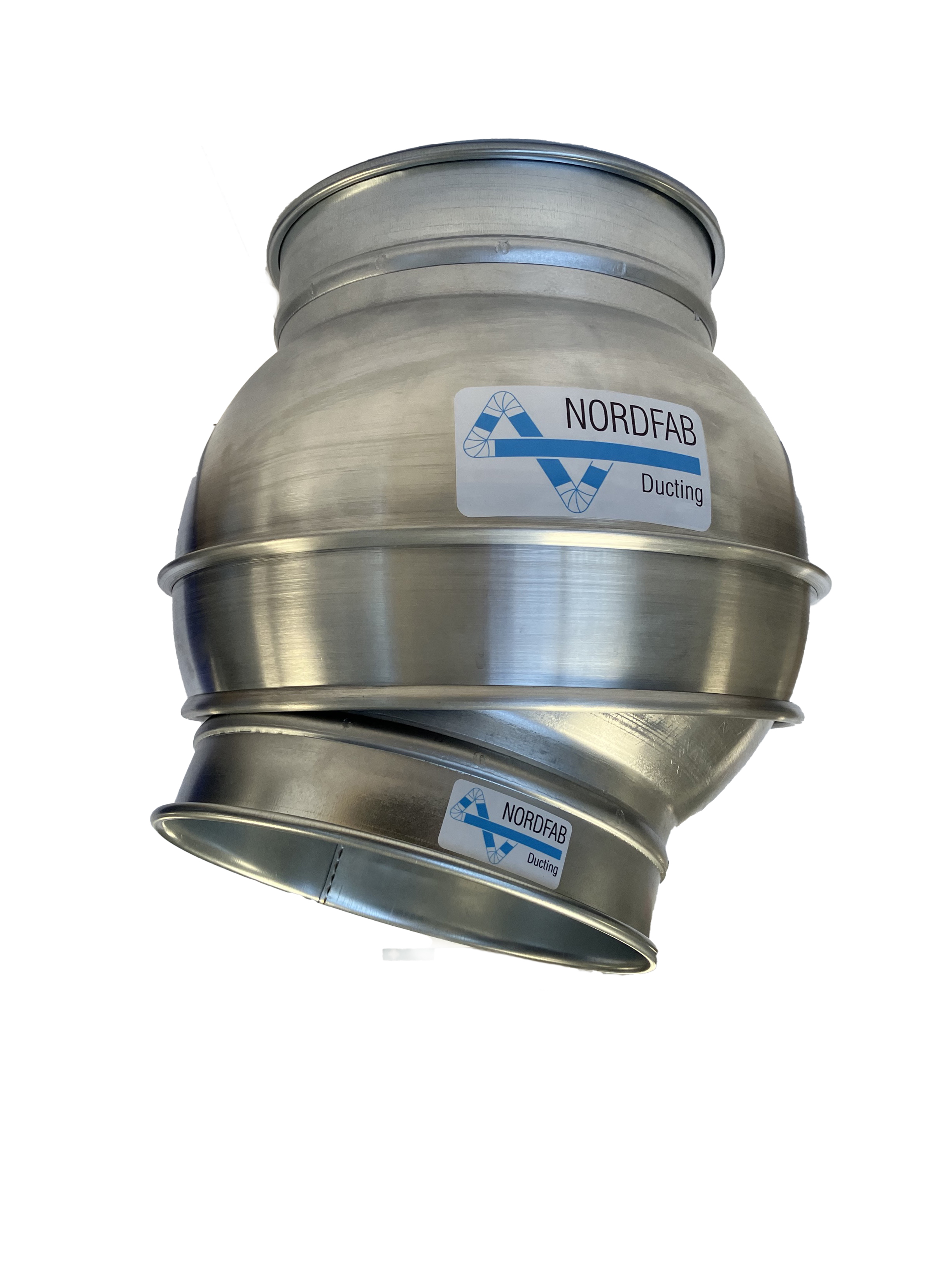

Installed in ductwork as part of a dust collection system, the Nordfab Quick-Fit (QF) Ball Joint allows up to 22° of movement off-center. The movement allows flexibility in the duct, allowing it to rotate in all directions. The ball joint's use a similar to that of a QF Bend but a bend has a set angle and direction whereas a balljoint has 360° directional capability and an angle from 0° - 22°, depending on the applications. It is available in galvanised steel, ranging from 100 - 300 mm in diameter.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
Click on the video to view a demonstration of the swivel movement that allows flexibility in the duct, allowing it to rotate in all directions.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 100 | Galv | 1,0 | 280 | 2,1 | 8210002216 |
| 125 | Galv | 1,0 | 295 | 3,85 | 8210002217 |
| 150 | Galv | 1,0 | 315 | 3,85 | 8210002218 |
| 200 | Galv | 1,0 | 360 | 5 | 8210002220 |
| 250 | Galv | 1,0 | 350 | 8,95 | 8210002222 |
| 300 | Galv | 1,0 | 420 | 9,25 | 8210002223 |
