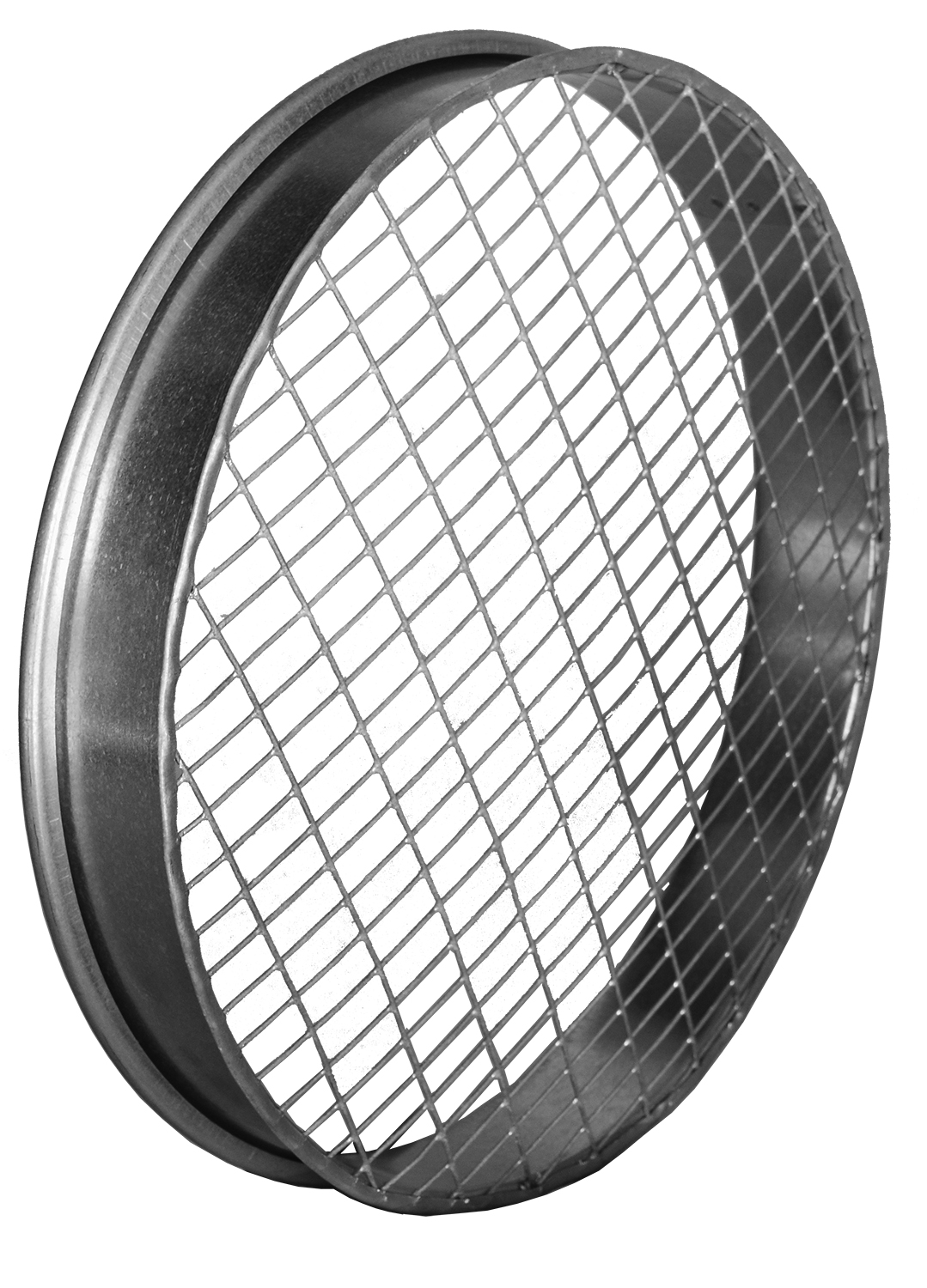

Quick-Fit (QF) End Cap with Mesh

QF clip-together duct End Caps with Mesh help prevent foreign objects from entering ventilation systems. Ø80-710 mm, galvanised steel construction.

The Quick-Fit (QF) End Cap with Mesh is designed to prevent foreign objects from entering the ventilation system. It is available in galvanised steel construction and ranges from 80 mm to 710 mm in diameter.

The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.

Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.

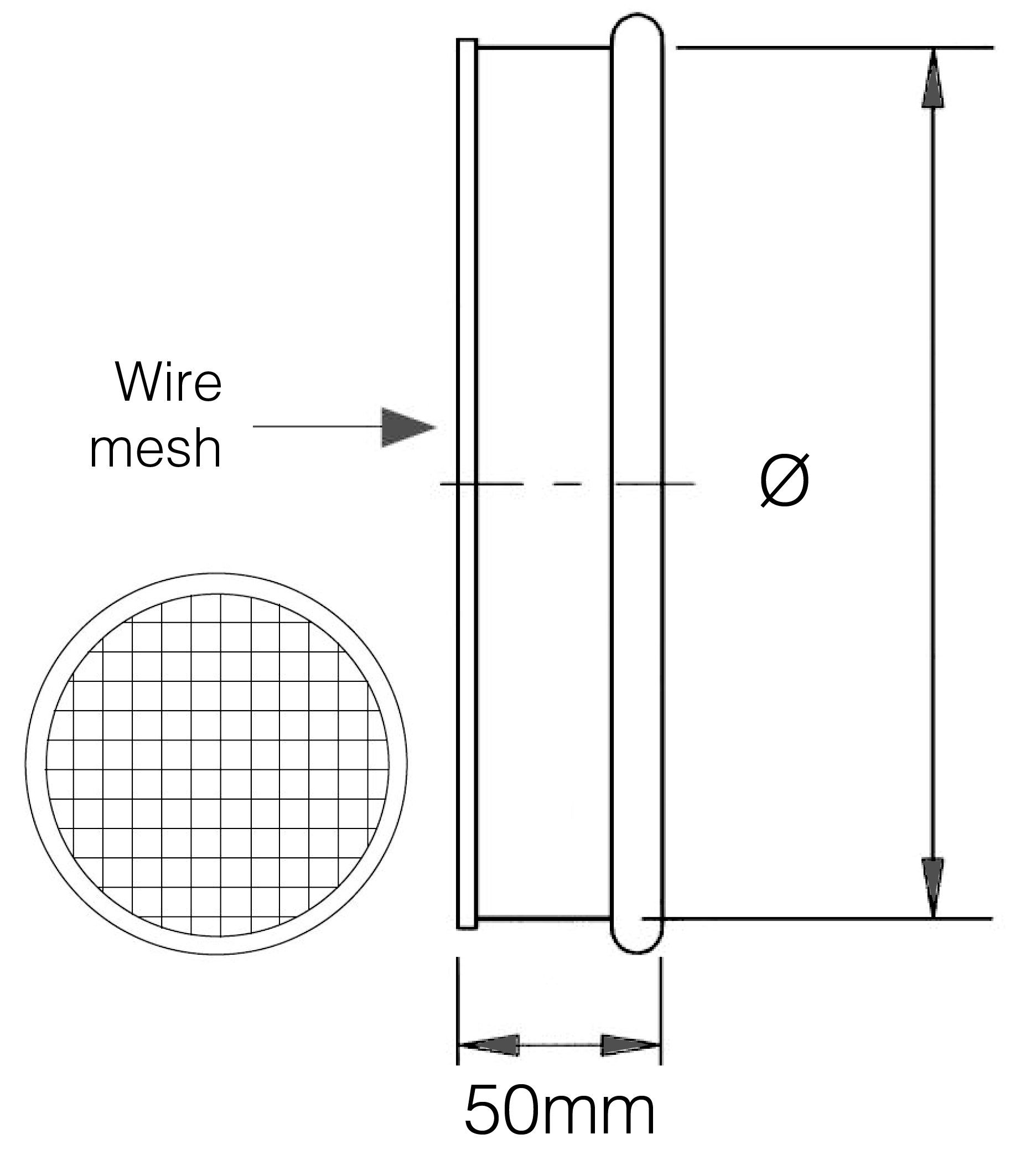

ø A (mm) Material T mm L mm Weight(kg) Item No.
80 Galv 0,7mm 50 0,39 8210001031‍
100 Galv 0,7mm 50 0,39 8210001032‍
125 Galv 0,7mm 50 0,39 8210001033‍
140 Galv 0,7mm 50 0,39 8210001034‍
150 Galv 0,7mm 50 0,3 8210001035‍
160 Galv 0,7mm 50 0,3 8210001036‍
180 Galv 0,7mm 50 0,35 8210001037‍
200 Galv 0,7mm 50 0,35 8210001038‍
224 Galv 0,7mm 50 0,4 8210001039‍
250 Galv 0,7mm 50 0,4 8210001040‍
300 Galv 0,7mm 50 0,52 8210001041‍
315 Galv 0,7mm 50 0,52 8210001042‍
350 Galv 0,7mm 50 0,56 8210001043‍
400 Galv 0,9mm 50 0,65 8210001044‍
450 Galv 0,9mm 50 0,7 8210001045‍
500 Galv 0,9mm 50 0,74 8210001046‍
560 Galv 0,9mm 50 0,74 8210001047‍
630 Galv 0,9mm 50 0,74 8210001048‍
710 Galv 0,9mm 50 0,74 8210001049‍
