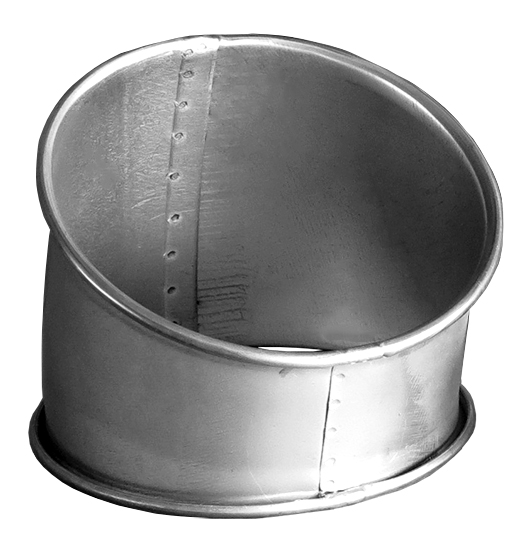

Nordfab's Quick-Fit (QF) bends allow airflow direction change in a run of a duct. Standard Quick-Fit (QF) Pressed Bends are available in 90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
| ø A (mm) | Angle degree | Center line radius | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 80 | 30 | 1.5 | Galv | 0,9mm | 0,2 | 8210000175 |
| 100 | 30 | 1.5 | Galv | 0,9mm | 0,3 | 8210000180 |
| 125 | 30 | 1.5 | Galv | 0,9mm | 0,3 | 8210000185 |
| 140 | 30 | 1.5 | Galv | 0,9mm | 0,5 | 8210000190 |
| 150 | 30 | 1.5 | Galv | 0,9mm | 0,5 | 8210000195 |
| 160 | 30 | 1.5 | Galv | 0,9mm | 0,5 | 8210000200 |
| 180 | 30 | 1.5 | Galv | 0,9mm | 0,7 | 8210000205 |
| 200 | 30 | 1.5 | Galv | 0,9mm | 0,9 | 8210000210 |
| 224 | 30 | 1.5 | Galv | 0,9mm | 1,3 | 8210000215 |
| 250 | 30 | 1.5 | Galv | 0,9mm | 1,5 | 8210000220 |
