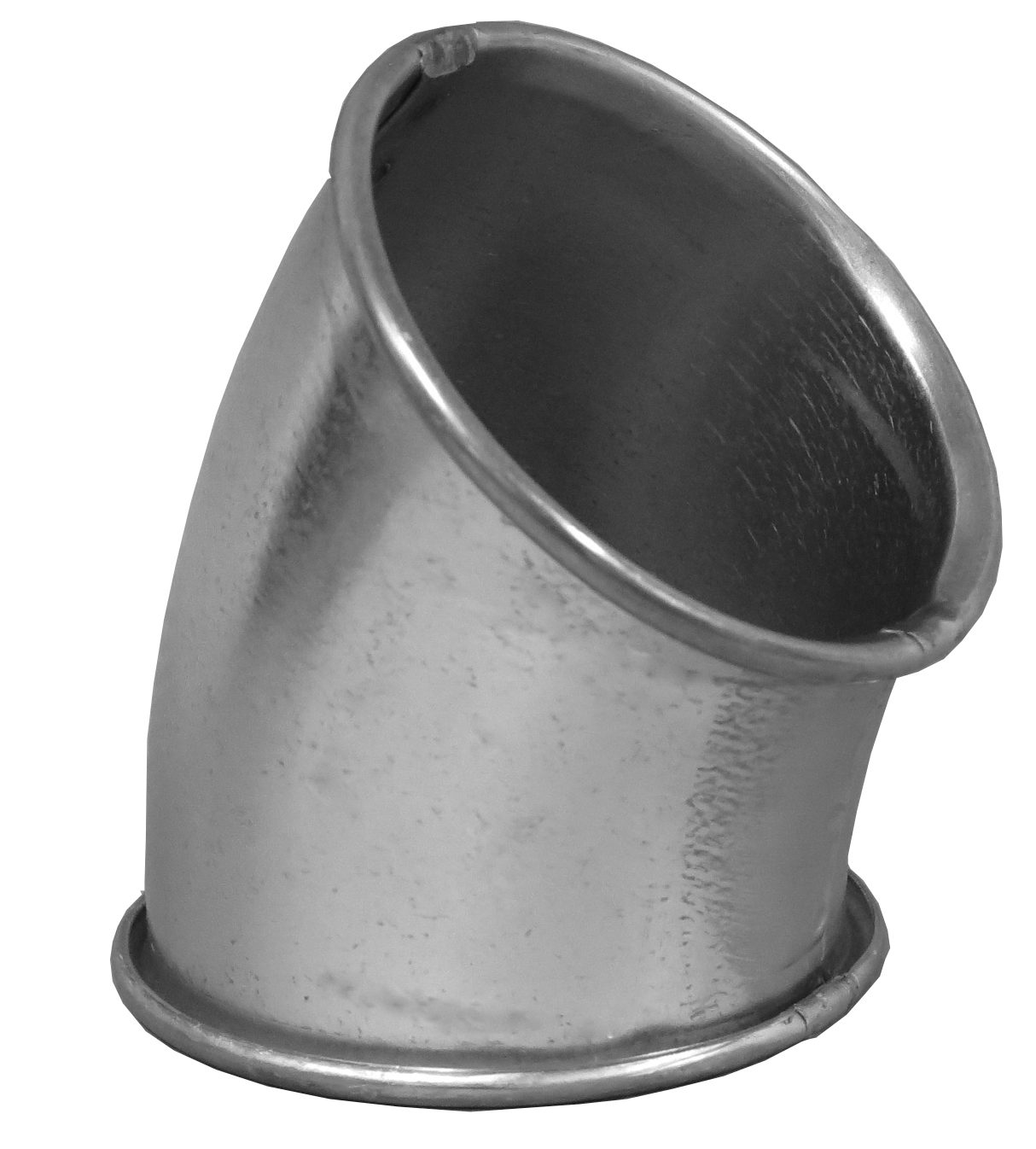

Nordfab's Quick-Fit (QF) bends allow airflow direction change in a run of a duct. Standard Quick-Fit (QF) Pressed Bends are available in 90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
Visit our Catalogues section to download our QF & QFS Ducting catalogue or product technical data sheets.
| ø A (mm) | Angle degree | Center line radius | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 80 | 45 | 1 | Galv | 0,5mm | 0,2 | 8210000141 |
| 100 | 45 | 1.5 | Galv | 0,9mm | 0,3 | 8210000181 |
| 125 | 45 | 1.5 | Galv | 0,9mm | 0,4 | 8210000186 |
| 140 | 45 | 1.5 | Galv | 0,9mm | 0,5 | 8210000191 |
| 150 | 45 | 1.5 | Galv | 0,9mm | 0,5 | 8210000196 |
| 160 | 45 | 1.5 | Galv | 0,9mm | 0,6 | 8210000201 |
| 180 | 45 | 1.5 | Galv | 0,9mm | 0,9 | 8210000206 |
| 200 | 45 | 1.5 | Galv | 0,9mm | 1 | 8210000211 |
| 224 | 45 | 1.5 | Galv | 0,9mm | 1,6 | 8210000216 |
| 250 | 45 | 1.5 | Galv | 0,9mm | 1,6 | 8210000221 |
| 300 | 45 | 1.5 | Galv | 0,9mm | 2,3 | 8210000226 |
| 315 | 45 | 1.5 | Galv | 0,9mm | 2,4 | 8210000231 |
