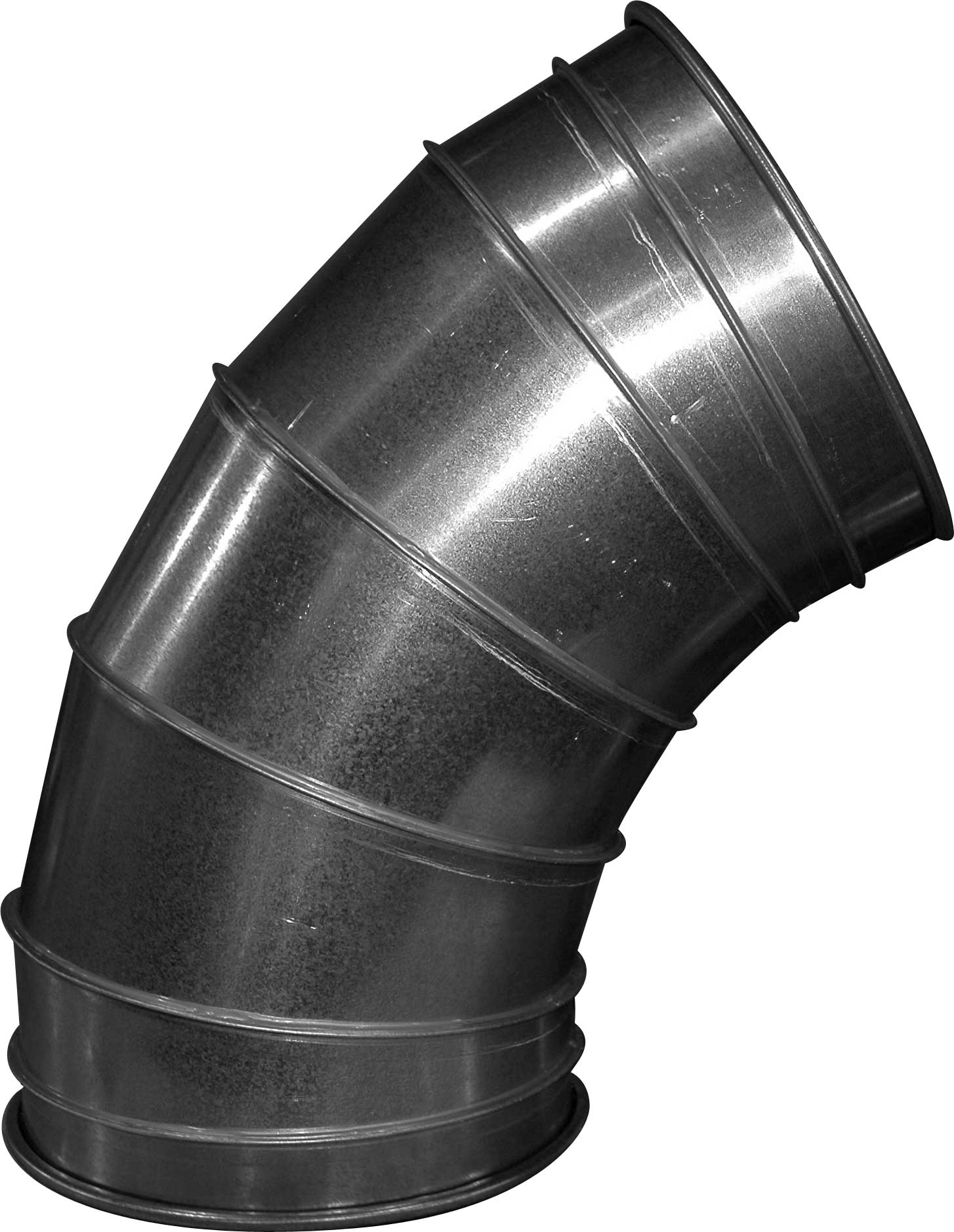

Nordfab's Quick-Fit (QF) bends allow airflow direction change in a run of a duct. Standard Quick-Fit (QF) Segmented Bends are available in 90°, 60°, 45°, 30°, and 15° with Quick-Fit rolled ends.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
| ø A (mm) | Angle degree | Center line radius | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 250 | 60 | 1.5 | Galv | 0,7mm | 2,5 | 8210000418 |
| 300 | 60 | 1.5 | Galv | 0,9mm | 2,7 | 8210000423 |
| 315 | 60 | 1.5 | Galv | 0,9mm | 3,9 | 8210000428 |
| 350 | 60 | 1.5 | Galv | 0,9mm | 8,37 | 8210000433 |
| 400 | 60 | 1.5 | Galv | 0,9mm | 10 | 8210000438 |
| 450 | 60 | 1.5 | Galv | 0,9mm | 13,93 | 8210000443 |
| 500 | 60 | 1.5 | Galv | 0,9mm | 17,05 | 8210000448 |
| 560 | 60 | 1.5 | Galv | 0,9mm | 21,87 | 8210000453 |
| 630 | 60 | 1.5 | Galv | 0,9mm | 20 | 8210000458 |
| 710 | 60 | 1.5 | Galv | 0,9mm | 27,72 | 8210000463 |
| 80 | 60 | 1.5 | 304SS | 0,7mm | 0,3 | 8210000296 |
| 100 | 60 | 1.5 | 304SS | 0,7mm | 0,4 | 8210000300 |
| 125 | 60 | 1.5 | 304SS | 0,7mm | 0,6 | 8210000304 |
| 140 | 60 | 1.5 | 304SS | 0,7mm | 0,7 | 8210000308 |
| 150 | 60 | 1.5 | 304SS | 0,7mm | 0,7 | 8210000312 |
| 160 | 60 | 1.5 | 304SS | 0,7mm | 0,8 | 8210000316 |
| 180 | 60 | 1.5 | 304SS | 0,7mm | 1,2 | 8210000320 |
| 200 | 60 | 1.5 | 304SS | 0,7mm | 1,3 | 8210000324 |
| 224 | 60 | 1.5 | 304SS | 0,7mm | 1,7 | 8210000328 |
| 250 | 60 | 1.5 | 304SS | 0,7mm | 1,3 | 8210000332 |
| 300 | 60 | 1.5 | 304SS | 0,7mm | 2,4 | 8210000336 |
| 315 | 60 | 1.5 | 304SS | 0,7mm | 2,5 | 8210000340 |
| 350 | 60 | 1.5 | 304SS | 0,7mm | 8,37 | 8210000344 |
| 400 | 60 | 1.5 | 304SS | 0,7mm | 10,51 | 8210000348 |
| 450 | 60 | 1.5 | 304SS | 0,7mm | 13,93 | 8210000352 |
| 500 | 60 | 1.5 | 304SS | 0,7mm | 17,05 | 8210000356 |
| 560 | 60 | 1.5 | 304SS | 0,7mm | 21,87 | 8210000360 |
| 630 | 60 | 1.5 | 304SS | 0,7mm | 20 | 8210000364 |
| 710 | 60 | 1.5 | 304SS | 0,7mm | 27,72 | 8210000368 |
| 280 | 60 | 1.5 | 8210008075 |
