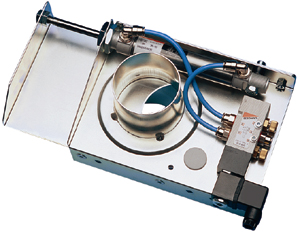

The SBBB is a circular compressed air powered automatic slide damper for rapid and tight closure. Since the damper is opened and closed automatically, extraction is always focused on the connections, extraction points, or machines currently in operation. This maximizes extraction power, with lower energy consumption as a bonus. It is available in galvanised steel or 304SS construction, ranging from 80 mm to 400 mm in diamater.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
| ø A (mm) | Material | Control | Weight(kg) | Item No. |
|---|---|---|---|---|
| 80 | Galv | 120 VAC | 3,05 | 8210004614 |
| 80 | Galv | 24 VDC | 3,05 | 8210004656 |
| 80 | Galv | 230 VAC | 3,05 | 8210004628 |
| 80 | Galv | 24 VAC | 3,05 | 8210004642 |
| 80 | Galv | 24 VDC Ex | 3,05 | 8210004670 |
| 100 | Galv | 24 VAC | 3,9 | 8210004643 |
| 100 | Galv | 24 VDC | 3,9 | 8210004657 |
| 100 | Galv | 24 VDC Ex | 3,9 | 8210004671 |
| 100 | Galv | 120 VAC | 3,9 | 8210004615 |
| 100 | Galv | 230 VAC | 3,9 | 8210004629 |
| 125 | Galv | 120 VAC | 4,7 | 8210004616 |
| 125 | Galv | 24 VAC | 4,7 | 8210004644 |
| 125 | Galv | 230 VAC | 4,7 | 8210004630 |
| 125 | Galv | 24 VDC Ex | 4,7 | 8210004672 |
| 125 | Galv | 24 VDC | 4,7 | 8210004658 |
| 140 | Galv | 24 VDC | 5,04 | 8210004659 |
| 140 | Galv | 24 VAC | 5,04 | 8210004645 |
| 140 | Galv | 120 VAC | 5,04 | 8210004617 |
| 140 | Galv | 24 VDC Ex | 5,04 | 8210004673 |
| 140 | Galv | 230 VAC | 5,04 | 8210004631 |
| 150 | Galv | 24 VDC Ex | 5,7 | 8210004674 |
| 150 | Galv | 230 VAC | 5,7 | 8210004632 |
| 150 | Galv | 120 VAC | 5,7 | 8210004618 |
| 150 | Galv | 24 VDC | 5,7 | 8210004660 |
| 150 | Galv | 24 VAC | 5,7 | 8210004646 |
| 160 | Galv | 24 VDC | 6,02 | 8210004661 |
| 160 | Galv | 24 VDC Ex | 6,02 | 8210004675 |
| 160 | Galv | 230 VAC | 6,02 | 8210004633 |
| 160 | Galv | 120 VAC | 6,02 | 8210004619 |
| 160 | Galv | 24 VAC | 6,02 | 8210004647 |
| 180 | Galv | 24 VDC | 7 | 8210004662 |
| 180 | Galv | 24 VAC | 7 | 8210004648 |
| 180 | Galv | 24 VDC Ex | 7 | 8210004676 |
| 180 | Galv | 230 VAC | 7 | 8210004634 |
| 180 | Galv | 120 VAC | 7 | 8210004620 |
| 200 | Galv | 24 VDC | 8,3 | 8210004663 |
| 200 | Galv | 24 VAC | 8,3 | 8210004649 |
| 200 | Galv | 24 VDC Ex | 8,3 | 8210004677 |
| 200 | Galv | 230 VAC | 8,3 | 8210004635 |
| 200 | Galv | 120 VAC | 8,3 | 8210004621 |
| 225 | Galv | 24 VAC | 9,22 | 8210004650 |
| 225 | Galv | 230 VAC | 9,22 | 8210004636 |
| 225 | Galv | 120 VAC | 9,22 | 8210004622 |
| 225 | Galv | 24 VDC Ex | 9,22 | 8210004678 |
| 225 | Galv | 24 VDC | 9,22 | 8210004664 |
| 250 | Galv | 120 VAC | 10,45 | 8210004623 |
| 250 | Galv | 24 VAC | 10,45 | 8210004651 |
| 250 | Galv | 230 VAC | 10,45 | 8210004637 |
| 250 | Galv | 24 VDC Ex | 10,45 | 8210004679 |
| 250 | Galv | 24 VDC | 10,45 | 8210004665 |
| 300 | Galv | 24 VAC | 12,9 | 8210004652 |
| 300 | Galv | 230 VAC | 12,9 | 8210004638 |
| 300 | Galv | 120 VAC | 12,9 | 8210004624 |
| 300 | Galv | 24 VDC | 12,9 | 8210004666 |
| 300 | Galv | 24 VDC Ex | 12,9 | 8210004680 |
| 315 | Galv | 24 VDC | 13,36 | 8210004667 |
| 315 | Galv | 120 VAC | 12,9 | 8210004625 |
| 315 | Galv | 24 VDC Ex | 13,36 | 8210004681 |
| 315 | Galv | 24 VAC | 13,36 | 8210004653 |
| 315 | Galv | 230 VAC | 13,36 | 8210004639 |
| 350 | Galv | 24 VAC | 15,34 | 8210004654 |
| 350 | Galv | 230 VAC | 15,34 | 8210004640 |
| 350 | Galv | 24 VDC Ex | 15,34 | 8210004682 |
| 350 | Galv | 24 VDC | 15,34 | 8210004668 |
| 350 | Galv | 120 VAC | 13,35 | 8210004626 |
| 400 | Galv | 120 VAC | 17,8 | 8210004627 |
| 400 | Galv | 24 VDC Ex | 17,8 | 8210004683 |
| 400 | Galv | 230 VAC | 17,8 | 8210004641 |
| 400 | Galv | 24 VAC | 17,8 | 8210004655 |
| 400 | Galv | 24 VDC | 17,8 | 8210004669 |
| 80 | 304SS | 230 VAC | 3,05 | 8210003613 |
| 100 | 304SS | 230 VAC | 3,9 | 8210003614 |
| 125 | 304SS | 230 VAC | 4,7 | 8210003615 |
| 140 | 304SS | 230 VAC | 5,04 | 8210003616 |
| 150 | 304SS | 230 VAC | 5,7 | 8210003617 |
| 160 | 304SS | 230 VAC | 6,02 | 8210003618 |
| 180 | 304SS | 230 VAC | 7 | 8210003619 |
| 200 | 304SS | 230 VAC | 8,3 | 8210003620 |
| 225 | 304SS | 230 VAC | 9,22 | 8210003621 |
| 250 | 304SS | 230 VAC | 10,45 | 8210003622 |
| 300 | 304SS | 230 VAC | 12,9 | 8210003623 |
| 315 | 304SS | 230 VAC | 13,36 | 8210003624 |
| 350 | 304SS | 230 VAC | 15,34 | 8210003625 |
| 400 | 304SS | 230 VAC | 27 | 8210003626 |
