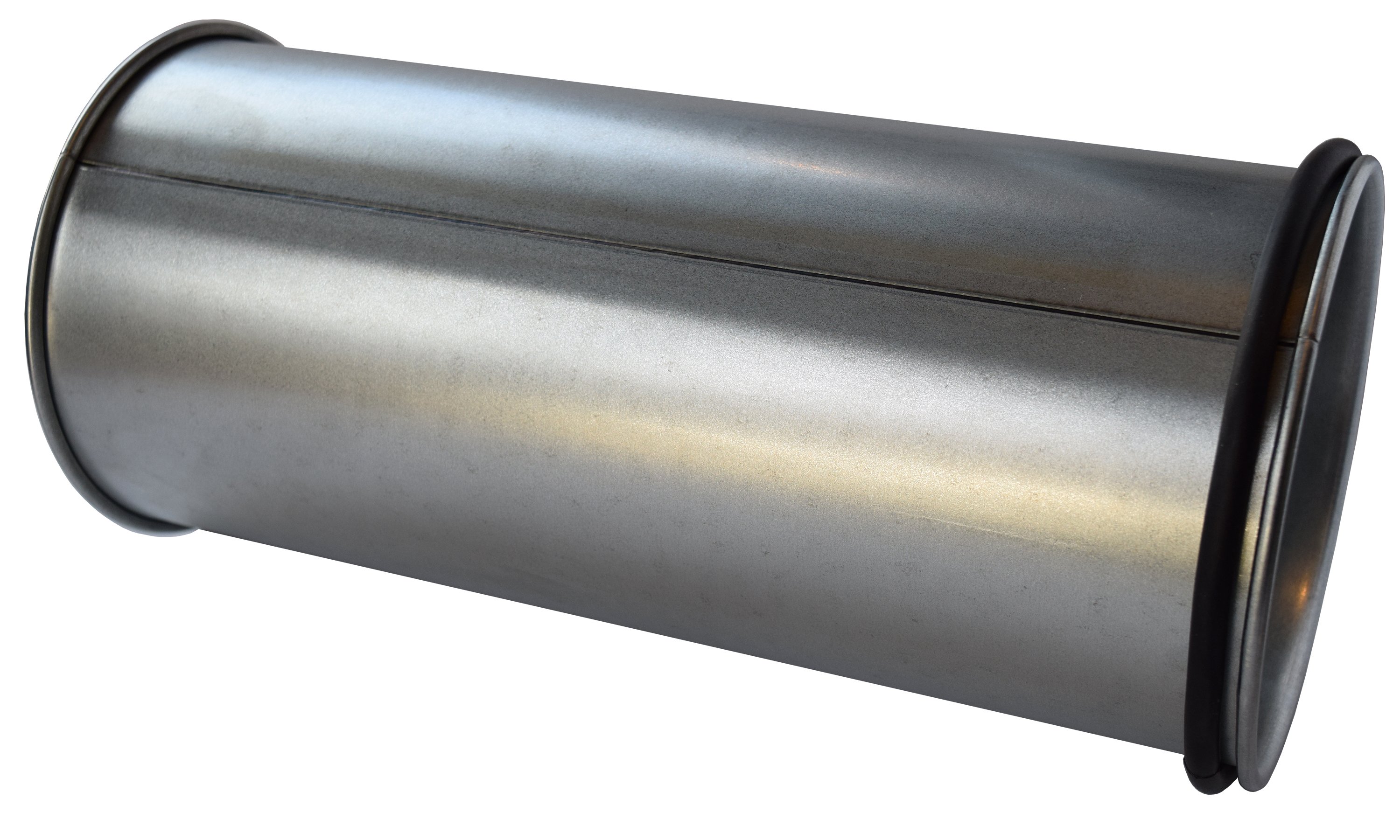

Quick-Fit Slip Duct, without Clip and O-ring

The Quick-Fit (QF) Slip Duct is sometimes referred to as slip joint, telescopic piece, telescope, or make up piece. It is being used to provide variable length adjustment of a Quick-Fit system by eliminating precise measurements. Available in diameters ranging from 80 mm - 710 mm in galvanised steel.

This Quick-Fit (QF) Slip Duct comes without clip and O-ring.

The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.

Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.

ø A (mm)	Material	T mm	L mm	Weight(kg)	Item No.
80	Galv	0,7mm	300	0,3	8210001219‍
100	Galv	0,7mm	300	0,53	8210001220‍
125	Galv	0,7mm	300	0,64	8210001221‍
140	Galv	0,7mm	300	0,7	8210001222‍
150	Galv	0,7mm	300	0,87	8210001223‍
160	Galv	0,7mm	300	0,98	8210001224‍
180	Galv	0,7mm	300	1,11	8210001225‍
200	Galv	0,7mm	300	1,26	8210001226‍
224	Galv	0,7mm	300	1,34	8210001227‍
250	Galv	0,7mm	300	1,53	8210001228‍
300	Galv	0,7mm	300	1,85	8210001229‍
315	Galv	0,7mm	300	1,93	8210001230‍
350	Galv	0,7mm	300	2,16	8210001231‍
400	Galv	0,9mm	300	2,36	8210001232‍
450	Galv	0,9mm	300	2,68	8210001233‍
500	Galv	0,9mm	300	3,02	8210001234‍
560	Galv	0,9mm	300	4,22	8210001235‍
630	Galv	0,9mm	300	4,74	8210001236‍
710	Galv	0,9mm	300	5,34	8210001237‍
80	304SS	0,7mm		0,35	8210001200‍
100	304SS	0,7mm		0,44	8210001201‍
125	304SS	0,7mm		0,55	8210001202‍
140	304SS	0,7mm		0,62	8210001203‍
150	304SS	0,7mm		0,67	8210001204‍
160	304SS	0,7mm		0,75	8210001205‍
180	304SS	0,7mm		0,8	8210001206‍
200	304SS	0,7mm		0,89	8210001207‍
224	304SS	0,7mm		0,99	8210001208‍
250	304SS	0,7mm		1,11	8210001209‍
300	304SS	0,7mm		1,33	8210001210‍
315	304SS	0,7mm		1,39	8210001211‍
350	304SS	0,7mm		1,55	8210001212‍
400	304SS	0,9mm		1,77	8210001213‍
450	304SS	0,9mm		2,32	8210001214‍
500	304SS	0,9mm		2,32	8210001215‍
560	304SS	0,9mm		3,31	8210001216‍
630	304SS	0,9mm		3,73	8210001217‍
710	304SS	0,9mm		4,2	8210001218‍

Quick-Fit Slip Duct, without Clip and O-ring
