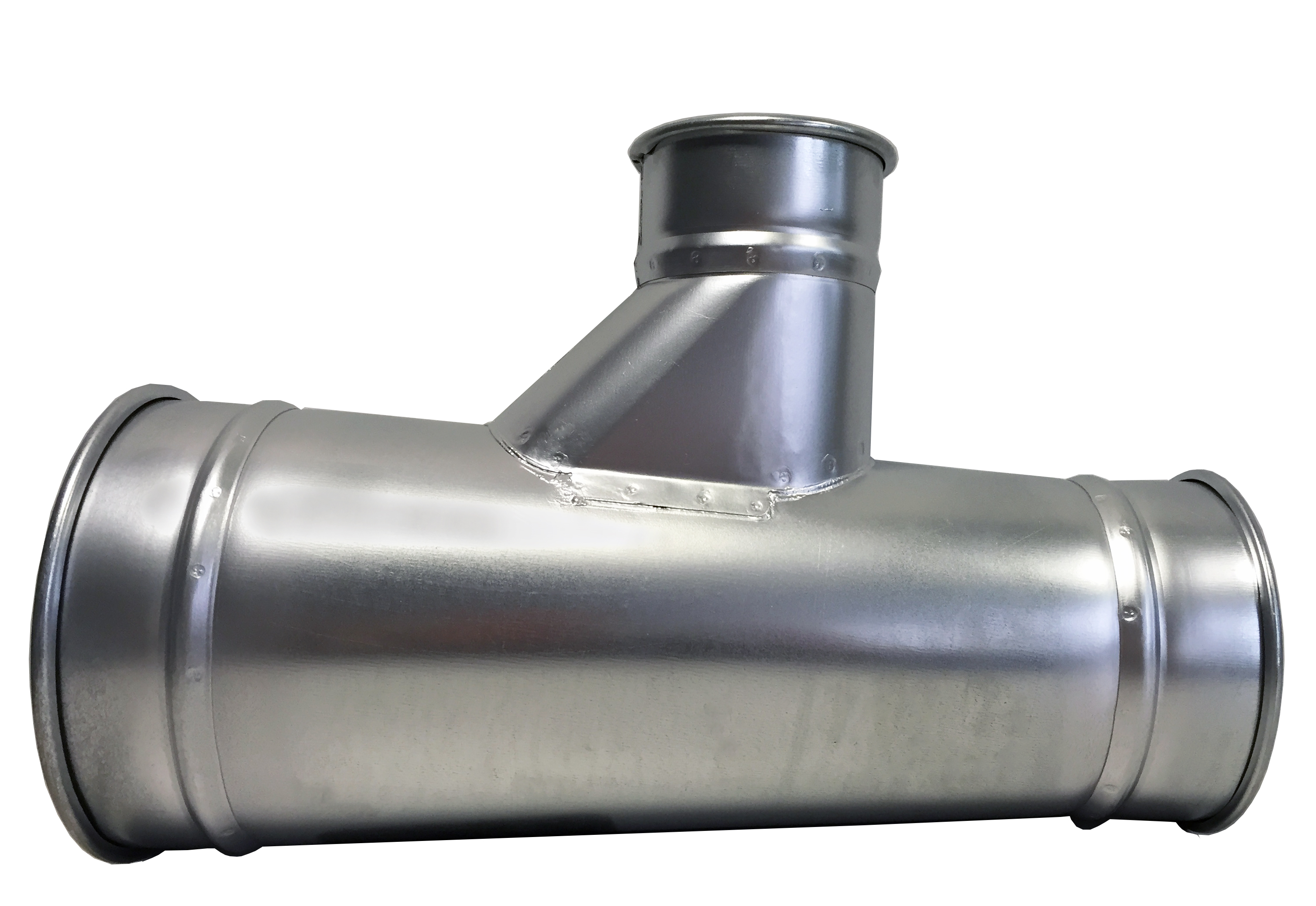

Quick-Fit Sealed (QFS) Branch Boot Shoe

A QF clip-together duct component with caulked seems to provide protection against leakage where sealed systems are needed. Available in Ø80-710 mm in diameter, galvanised steel construction.

Quick-Fit Sealed (QFS) Boot Shoes are used to branch into main duct lines. The Boot Shoe is similar to our branches, but the transition to the branch piece is smoother. We can also offer this as a cut-in (this modifies an existing piece of duct and adds a branch to it). Sometimes referred to as a saddle. Available in galvanised steel.

When ordering, please specify ØA, ØB, ØC.
L = (ØB x 2) + 236
L1 = (ØB / 2) + ((ØC / 2) + 58)
Boot Cut is always placed in centre.

Quick-Fit Sealed (QFS) Ducting
Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends, branches, reducers, and other products with joints or collars are epoxy caulked. When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generously dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined. For added security, a locking pin may be inserted.

The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit Sealed (QFS) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.

Easy to install
Quick-Fit Sealed is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Sealed Clip when installing, extending, or taking apart runs of duct.

ø A (mm) Material T mm L mm Weight(kg) Item No.
8240020330‍
8240020327‍
8240020375‍
8240020373‍
8240020372‍
8240020350‍
8240020326‍
8240020376‍
8240020312‍
8240020329‍
8240020347‍
8240020358‍
8240020308‍
8240020337‍
8240020332‍
8240020311‍
8240020367‍
8240020356‍
8240020355‍
8240020353‍
8240020348‍
8240020338‍
8240020333‍
8240020331‍
8240020319‍
8240020362‍
8240020359‍
8240020344‍
8240020316‍
8240020303‍
8240020370‍
8240020352‍
8240020361‍
8240020336‍
8240020325‍
8240020318‍
8240020313‍
8240020377‍
8240020371‍
8240020304‍
8240020334‍
8240020360‍
8240020345‍
8240020341‍
8240020335‍
8240020322‍
8240020364‍
8240020346‍
8240020342‍
8240020340‍
8240020328‍
8240020307‍
8240020306‍
8240020343‍
8240020374‍
8240020351‍
8240020314‍
8240020366‍
8240020349‍
8240020339‍
8240020315‍
8240020305‍
8240020357‍
8240020309‍
8240020324‍
8240020317‍
8240020321‍
8240020368‍
8240020323‍
8240020320‍
8240020363‍
8240020354‍
8240020369‍
8240020365‍
8240020378‍
