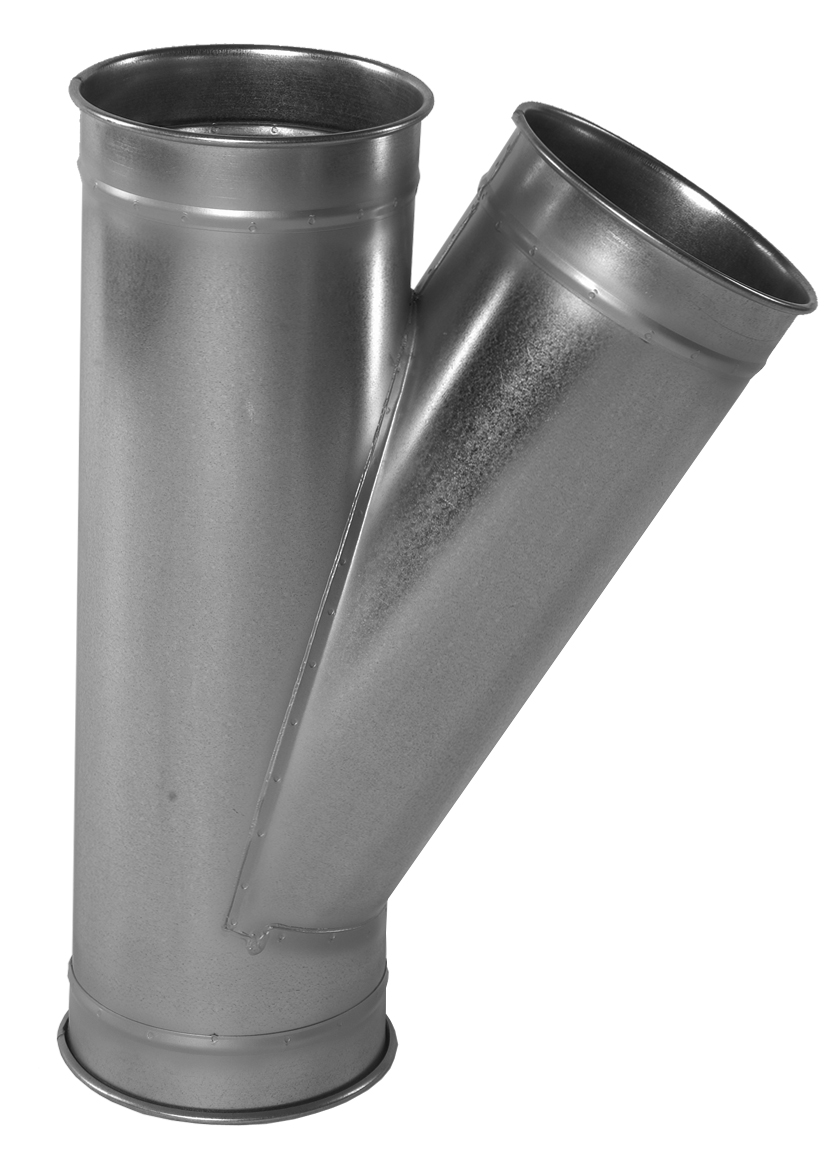

Quick-Fit Sealed (QFS) Branch Standard

A QF clip-together duct component with caulked seams to provide protection against leakage where sealed systems are needed. Ø80 - 710 mm, galvanised steel construction.

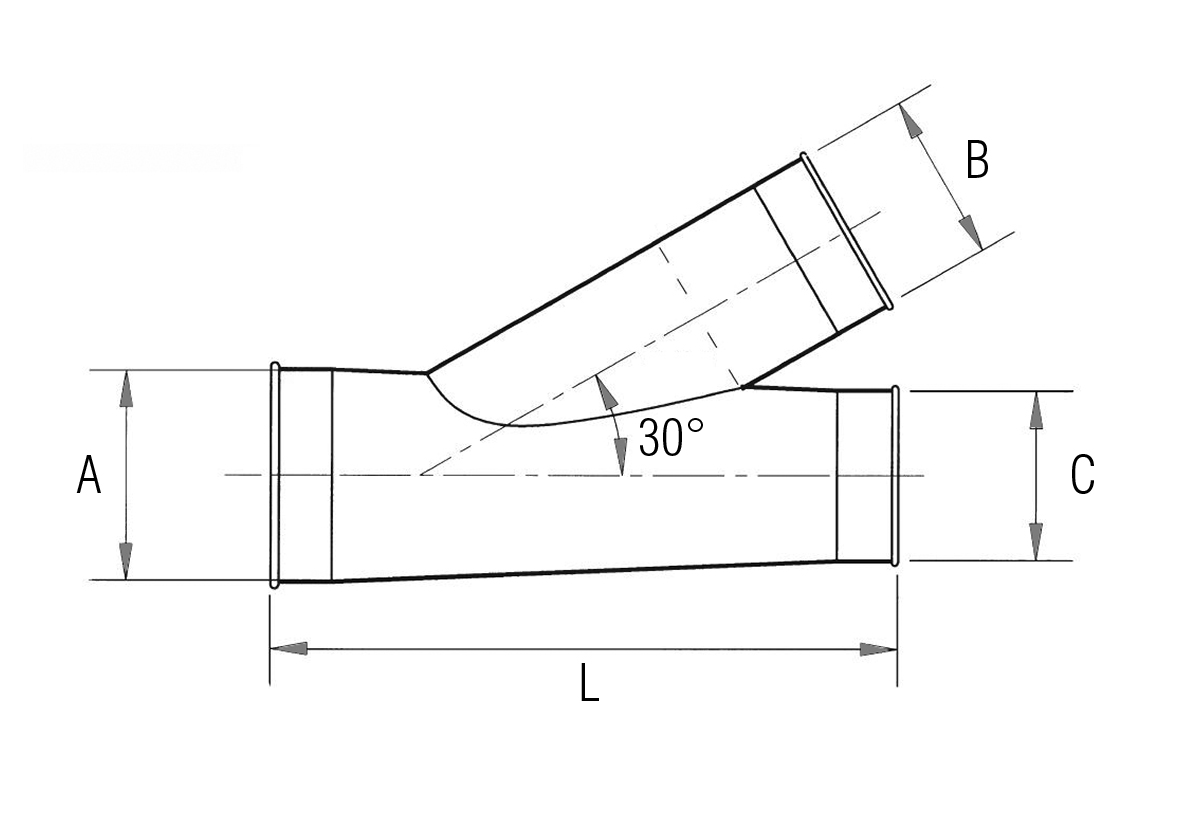

L = ( ØB x 2 ) + 236
ØC must be smaller than or equal to ØA
ØB must be smaller than or equal to ØC
Use formulas above to determine if a reducer is needed at ØC.

Quick-Fit Sealed (QFS) Standard Branches are used to port to machine outlets or other duct lines. They are designed as our standard QF Branches, with Quick-Fit rolled ends, but have added caulked seams to provide protection against leakage. QFS Standard Branches are 30°, optional 45° available upon request. Available in galvanised steel, ranging from 80 mm to 710 mm in diameter.

When ordering, please specify ØA,ØB, ØC.
L = (ØBx2) + 206
ØC must be smaller than or equal to ØA.
ØB must be smaller than or equal to ØC.
Use formulas above to determine if a reducer is needed at ØC.

Quick-Fit Sealed (QFS) Ducting
Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends, branches, reducers, and other products with joints or collars are epoxy caulked. When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generously dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined. For added security, a locking pin may be inserted.

The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit Sealed (QFS) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.

Easy to install
Quick-Fit Sealed is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Sealed Clip when installing, extending, or taking apart runs of duct.

Find Your Revit Model
ø A (mm) ø B (mm) ø C (mm) Material T mm Weight(kg) Item No.
80 80 80 QFS Galv 0,7mm 0,8 8240003177‍
100 80 80 QFS Galv 0,7mm 0,87 8240003178‍
100 80 100 QFS Galv 0,7mm 0,93 8240003179‍
100 100 100 QFS Galv 0,7mm 1,09 8240003180‍
125 80 80 QFS Galv 0,7mm 0,97 8240003181‍
125 80 100 QFS Galv 0,7mm 1,02 8240003182‍
125 80 125 QFS Galv 0,7mm 1,09 8240003183‍
125 100 100 QFS Galv 0,7mm 1,19 8240003184‍
125 100 125 QFS Galv 0,7mm 1,26 8240003185‍
125 125 125 QFS Galv 0,7mm 1,5 8240003186‍
140 80 80 QFS Galv 0,7mm 1,02 8240003187‍
140 80 100 QFS Galv 0,7mm 1,08 8240003188‍
140 80 125 QFS Galv 0,7mm 1,15 8240003189‍
140 80 140 QFS Galv 0,7mm 1,19 8240003190‍
140 100 100 QFS Galv 0,7mm 1,25 8240003191‍
140 100 125 QFS Galv 0,7mm 1,33 8240003192‍
140 100 140 QFS Galv 0,7mm 1,37 8240003193‍
140 125 125 QFS Galv 0,7mm 1,57 8240003194‍
140 125 140 QFS Galv 0,7mm 1,62 8240003195‍
140 140 140 QFS Galv 0,7mm 1,77 8240003196‍
150 80 80 QFS Galv 0,7mm 1,06 8240003197‍
150 80 100 QFS Galv 0,7mm 1,12 8240003198‍
150 80 125 QFS Galv 0,7mm 1,19 8240003199‍
150 80 140 QFS Galv 0,7mm 1,23 8240003200‍
150 80 150 QFS Galv 0,7mm 1,25 8240003201‍
150 100 100 QFS Galv 0,7mm 1,3 8240003202‍
150 100 125 QFS Galv 0,7mm 1,37 8240003203‍
150 100 140 QFS Galv 0,7mm 1,41 8240003204‍
150 100 150 QFS Galv 0,7mm 1,44 8240003205‍
150 125 125 QFS Galv 0,7mm 1,62 8240003206‍
150 125 140 QFS Galv 0,7mm 1,66 8240003207‍
150 125 150 QFS Galv 0,7mm 1,69 8240003208‍
150 140 140 QFS Galv 0,7mm 1,82 8240003209‍
150 140 150 QFS Galv 0,7mm 1,85 8240003210‍
150 150 150 QFS Galv 0,7mm 1,97 8240003211‍
160 80 80 QFS Galv 0,7mm 1,1 8240003212‍
160 80 100 QFS Galv 0,7mm 1,15 8240003213‍
160 80 125 QFS Galv 0,7mm 1,22 8240003214‍
160 80 140 QFS Galv 0,7mm 1,27 8240003215‍
160 80 150 QFS Galv 0,7mm 1,29 8240003216‍
160 80 160 QFS Galv 0,7mm 1,32 8240003217‍
160 100 100 QFS Galv 0,7mm 1,34 8240003218‍
160 100 125 QFS Galv 0,7mm 1,41 8240003219‍
160 100 140 QFS Galv 0,7mm 1,46 8240003220‍
160 100 150 QFS Galv 0,7mm 1,49 8240003221‍
160 100 160 QFS Galv 0,7mm 1,52 8240003222‍
160 125 125 QFS Galv 0,7mm 1,67 8240003223‍
160 125 140 QFS Galv 0,7mm 1,71 8240003224‍
160 125 150 QFS Galv 0,7mm 1,74 8240003225‍
160 125 160 QFS Galv 0,7mm 1,77 8240003226‍
160 140 140 QFS Galv 0,7mm 1,88 8240003227‍
160 140 150 QFS Galv 0,7mm 1,91 8240003228‍
160 140 160 QFS Galv 0,7mm 1,94 8240003229‍
160 150 150 QFS Galv 0,7mm 2 8240003230‍
160 150 160 QFS Galv 0,7mm 2,05 8240003231‍
160 160 160 QFS Galv 0,7mm 2,17 8240003232‍
180 80 80 QFS Galv 0,7mm 1,19 8240003233‍
180 80 100 QFS Galv 0,7mm 1,25 8240003234‍
180 80 125 QFS Galv 0,7mm 1,32 8240003235‍
180 80 140 QFS Galv 0,7mm 1,36 8240003236‍
180 80 150 QFS Galv 0,7mm 1,39 8240003237‍
180 80 160 QFS Galv 0,7mm 1,41 8240003238‍
180 80 180 QFS Galv 0,7mm 1,48 8240003239‍
180 100 100 QFS Galv 0,7mm 1,44 8240003240‍
180 100 125 QFS Galv 0,7mm 1,51 8240003241‍
180 100 140 QFS Galv 0,7mm 1,56 8240003242‍
180 100 150 QFS Galv 0,7mm 1,59 8240003243‍
180 100 160 QFS Galv 0,7mm 1,62 8240003244‍
180 100 180 QFS Galv 0,7mm 1,69 8240003245‍
180 125 125 QFS Galv 0,7mm 1,78 8240003246‍
180 125 140 QFS Galv 0,7mm 1,82 8240003247‍
180 125 150 QFS Galv 0,7mm 1,86 8240003248‍
180 125 160 QFS Galv 0,7mm 1,89 8240003249‍
180 125 180 QFS Galv 0,7mm 1,96 8240003250‍
180 140 140 QFS Galv 0,7mm 1,99 8240003251‍
180 140 150 QFS Galv 0,7mm 2,03 8240003252‍
180 140 160 QFS Galv 0,7mm 2,06 8240003253‍
180 140 180 QFS Galv 0,7mm 2,13 8240003254‍
180 150 150 QFS Galv 0,7mm 2,14 8240003255‍
180 150 160 QFS Galv 0,7mm 2,17 8240003256‍
180 150 180 QFS Galv 0,7mm 2,25 8240003257‍
180 160 160 QFS Galv 0,7mm 2,3 8240003258‍
180 160 180 QFS Galv 0,7mm 2,37 8240003259‍
180 180 180 QFS Galv 0,7mm 2,66 8240003260‍
200 80 80 QFS Galv 0,7mm 1,27 8240003261‍
200 80 100 QFS Galv 0,7mm 1,32 8240003262‍
200 80 125 QFS Galv 0,7mm 1,4 8240003263‍
200 80 140 QFS Galv 0,7mm 1,44 8240003264‍
200 80 150 QFS Galv 0,7mm 1,46 8240003265‍
200 80 160 QFS Galv 0,7mm 1,49 8240003266‍
200 80 180 QFS Galv 0,7mm 1,56 8240003267‍
200 80 200 QFS Galv 0,7mm 1,62 8240003268‍
200 100 100 QFS Galv 0,7mm 1,53 8240003269‍
200 100 125 QFS Galv 0,7mm 1,6 8240003270‍
200 100 140 QFS Galv 0,7mm 1,65 8240003271‍
200 100 150 QFS Galv 0,7mm 1,68 8240003272‍
200 100 160 QFS Galv 0,7mm 1,71 8240003273‍
200 100 180 QFS Galv 0,7mm 1,78 8240003274‍
200 100 200 QFS Galv 0,7mm 1,84 8240003275‍
200 125 125 QFS Galv 0,7mm 1,88 8240003276‍
200 125 140 QFS Galv 0,7mm 1,91 8240003277‍
200 125 150 QFS Galv 0,7mm 1,96 8240003278‍
200 125 160 QFS Galv 0,7mm 1,99 8240003279‍
200 125 180 QFS Galv 0,7mm 2,06 8240003280‍
200 125 200 QFS Galv 0,7mm 2,13 8240003281‍
200 140 140 QFS Galv 0,7mm 2,1 8240003282‍
200 140 150 QFS Galv 0,7mm 2,13 8240003283‍
200 140 160 QFS Galv 0,7mm 2,16 8240003284‍
200 140 180 QFS Galv 0,7mm 2,24 8240003285‍
200 140 200 QFS Galv 0,7mm 2,31 8240003286‍
200 150 150 QFS Galv 0,7mm 2,25 8240003287‍
200 150 160 QFS Galv 0,7mm 2,29 8240003288‍
200 150 180 QFS Galv 0,7mm 2,37 8240003289‍
200 150 200 QFS Galv 0,7mm 2,43 8240003290‍
200 160 160 QFS Galv 0,7mm 2,41 8240003291‍
200 160 180 QFS Galv 0,7mm 2,49 8240003292‍
200 160 200 QFS Galv 0,7mm 2,56 8240003293‍
200 180 180 QFS Galv 0,7mm 2,78 8240003294‍
200 180 200 QFS Galv 0,7mm 2,85 8240003295‍
200 200 200 QFS Galv 0,7mm 3,13 8240003296‍
224 80 80 QFS Galv 0,7mm 1,37 8240003297‍
224 80 100 QFS Galv 0,7mm 1,42 8240003298‍
224 80 125 QFS Galv 0,7mm 1,49 8240003299‍
224 80 140 QFS Galv 0,7mm 1,53 8240003300‍
224 80 150 QFS Galv 0,7mm 1,56 8240003301‍
224 80 160 QFS Galv 0,7mm 1,59 8240003302‍
224 80 180 QFS Galv 0,7mm 1,66 8240003303‍
224 80 200 QFS Galv 0,7mm 1,71 8240003304‍
224 80 224 QFS Galv 0,7mm 1,78 8240003305‍
224 100 100 QFS Galv 0,7mm 1,63 8240003306‍
224 100 125 QFS Galv 0,7mm 1,71 8240003307‍
224 100 140 QFS Galv 0,7mm 1,75 8240003308‍
224 100 150 QFS Galv 0,7mm 1,78 8240003309‍
224 100 160 QFS Galv 0,7mm 1,81 8240003310‍
224 100 180 QFS Galv 0,7mm 1,89 8240003311‍
224 100 200 QFS Galv 0,7mm 1,95 8240003312‍
224 100 224 QFS Galv 0,7mm 2,02 8240003313‍
224 125 125 QFS Galv 0,7mm 1,99 8240003314‍
224 125 140 QFS Galv 0,7mm 2,04 8240003315‍
224 125 150 QFS Galv 0,7mm 2,08 8240003316‍
224 125 160 QFS Galv 0,7mm 2,11 8240003317‍
224 125 180 QFS Galv 0,7mm 2,18 8240003318‍
224 125 200 QFS Galv 0,7mm 2,25 8240003319‍
224 125 224 QFS Galv 0,7mm 2,32 8240003320‍
224 140 140 QFS Galv 0,7mm 2,23 8240003321‍
224 140 150 QFS Galv 0,7mm 2,26 8240003322‍
224 140 160 QFS Galv 0,7mm 2,29 8240003323‍
224 140 180 QFS Galv 0,7mm 2,37 8240003324‍
224 140 200 QFS Galv 0,7mm 2,44 8240003325‍
224 140 224 QFS Galv 0,7mm 2,51 8240003326‍
224 150 150 QFS Galv 0,7mm 2,39 8240003327‍
224 150 160 QFS Galv 0,7mm 2,42 8240003328‍
224 150 180 QFS Galv 0,7mm 2,5 8240003329‍
224 150 200 QFS Galv 0,7mm 2,57 8240003330‍
224 150 224 QFS Galv 0,7mm 2,65 8240003331‍
224 160 160 QFS Galv 0,7mm 2,55 8240003332‍
224 160 180 QFS Galv 0,7mm 2,63 8240003333‍
224 160 200 QFS Galv 0,7mm 2,7 8240003334‍
224 160 224 QFS Galv 0,7mm 2,78 8240003335‍
224 180 180 QFS Galv 0,7mm 2,93 8240003336‍
224 180 200 QFS Galv 0,7mm 3 8240003337‍
224 180 224 QFS Galv 0,7mm 3,08 8240003338‍
224 200 200 QFS Galv 0,7mm 3,29 8240003339‍
224 200 224 QFS Galv 0,7mm 3,37 8240003340‍
224 224 224 QFS Galv 0,7mm 3,74 8240003341‍
250 80 80 QFS Galv 0,7mm 1,47 8240003342‍
250 80 100 QFS Galv 0,7mm 1,53 8240003343‍
250 80 125 QFS Galv 0,7mm 1,6 8240003344‍
250 80 140 QFS Galv 0,7mm 1,64 8240003345‍
250 80 150 QFS Galv 0,7mm 1,66 8240003346‍
250 80 160 QFS Galv 0,7mm 1,69 8240003347‍
250 80 180 QFS Galv 0,7mm 1,76 8240003348‍
250 80 200 QFS Galv 0,7mm 1,82 8240003349‍
250 80 224 QFS Galv 0,7mm 1,89 8240003350‍
250 80 250 QFS Galv 0,7mm 1,96 8240003351‍
250 100 100 QFS Galv 0,7mm 1,75 8240003352‍
250 100 125 QFS Galv 0,7mm 1,82 8240003353‍
250 100 140 QFS Galv 0,7mm 1,87 8240003354‍
250 100 150 QFS Galv 0,7mm 1,9 8240003355‍
250 100 160 QFS Galv 0,7mm 1,93 8240003356‍
250 100 180 QFS Galv 0,7mm 2 8240003357‍
250 100 200 QFS Galv 0,7mm 2,06 8240003358‍
250 100 224 QFS Galv 0,7mm 2,13 8240003359‍
250 100 250 QFS Galv 0,7mm 2,21 8240003360‍
250 125 125 QFS Galv 0,7mm 2,13 8240003361‍
250 125 140 QFS Galv 0,7mm 2,17 8240003362‍
250 125 150 QFS Galv 0,7mm 2,21 8240003363‍
250 125 160 QFS Galv 0,7mm 2,24 8240003364‍
250 125 180 QFS Galv 0,7mm 2,32 8240003365‍
250 125 200 QFS Galv 0,7mm 2,38 8240003366‍
250 125 224 QFS Galv 0,7mm 2,46 8240003367‍
250 125 250 QFS Galv 0,7mm 2,54 8240003368‍
250 140 140 QFS Galv 0,7mm 2,36 8240003369‍
250 140 150 QFS Galv 0,7mm 2,4 8240003370‍
250 140 160 QFS Galv 0,7mm 2,43 8240003371‍
250 140 180 QFS Galv 0,7mm 2,51 8240003372‍
250 140 200 QFS Galv 0,7mm 2,58 8240003373‍
250 140 224 QFS Galv 0,7mm 2,66 8240003374‍
250 140 250 QFS Galv 0,7mm 2,74 8240003375‍
250 150 150 QFS Galv 0,7mm 2,53 8240003376‍
250 150 160 QFS Galv 0,7mm 2,56 8240003377‍
250 150 180 QFS Galv 0,7mm 2,65 8240003378‍
250 150 200 QFS Galv 0,7mm 2,72 8240003379‍
250 150 224 QFS Galv 0,7mm 2,8 8240003380‍
250 150 250 QFS Galv 0,7mm 2,88 8240003381‍
250 160 160 QFS Galv 0,7mm 2,7 8240003382‍
250 160 180 QFS Galv 0,7mm 2,78 8240003383‍
250 160 200 QFS Galv 0,7mm 2,85 8240003384‍
250 160 224 QFS Galv 0,7mm 2,94 8240003385‍
250 160 250 QFS Galv 0,7mm 3,02 8240003386‍
250 180 180 QFS Galv 0,7mm 3,09 8240003387‍
250 180 200 QFS Galv 0,7mm 3,17 8240003388‍
250 180 224 QFS Galv 0,7mm 3,25 8240003389‍
250 180 250 QFS Galv 0,7mm 3,34 8240003390‍
250 200 200 QFS Galv 0,7mm 3,47 8240003391‍
250 200 224 QFS Galv 0,7mm 3,55 8240003392‍
250 200 250 QFS Galv 0,7mm 3,65 8240003393‍
250 224 224 QFS Galv 0,7mm 3,94 8240003394‍
250 224 250 QFS Galv 0,7mm 4,03 8240003395‍
250 250 250 QFS Galv 0,7mm 4,47 8240003396‍
300 100 100 QFS Galv 0,7mm 1,98 8240003397‍
300 100 125 QFS Galv 0,7mm 2,05 8240003398‍
300 100 140 QFS Galv 0,7mm 2,1 8240003399‍
300 100 150 QFS Galv 0,7mm 2,13 8240003400‍
300 100 160 QFS Galv 0,7mm 2,16 8240003401‍
300 100 180 QFS Galv 0,7mm 2,23 8240003402‍
300 100 200 QFS Galv 0,7mm 2,29 8240003403‍
300 100 224 QFS Galv 0,7mm 2,36 8240003404‍
300 100 250 QFS Galv 0,7mm 2,44 8240003405‍
300 100 300 QFS Galv 0,7mm 2,58 8240003406‍
300 125 125 QFS Galv 0,7mm 2,38 8240003407‍
300 125 140 QFS Galv 0,7mm 2,43 8240003408‍
300 125 150 QFS Galv 0,7mm 2,46 8240003409‍
300 125 160 QFS Galv 0,7mm 2,49 8240003410‍
300 125 180 QFS Galv 0,7mm 2,57 8240003411‍
300 125 200 QFS Galv 0,7mm 2,64 8240003412‍
300 125 224 QFS Galv 0,7mm 2,71 8240003413‍
300 125 250 QFS Galv 0,7mm 2,8 8240003414‍
300 125 300 QFS Galv 0,7mm 2,95 8240003415‍
300 140 140 QFS Galv 0,7mm 2,63 8240003416‍
300 140 150 QFS Galv 0,7mm 2,66 8240003417‍
300 140 160 QFS Galv 0,7mm 2,7 8240003418‍
300 140 180 QFS Galv 0,7mm 2,78 8240003419‍
300 140 200 QFS Galv 0,7mm 2,85 8240003420‍
300 140 224 QFS Galv 0,7mm 2,93 8240003421‍
300 140 250 QFS Galv 0,7mm 3,02 8240003422‍
300 140 300 QFS Galv 0,7mm 3,18 8240003423‍
300 150 150 QFS Galv 0,7mm 2,81 8240003424‍
300 150 160 QFS Galv 0,7mm 2,85 8240003425‍
300 150 180 QFS Galv 0,7mm 2,93 8240003426‍
300 150 200 QFS Galv 0,7mm 3 8240003427‍
300 150 224 QFS Galv 0,7mm 3,08 8240003428‍
300 150 250 QFS Galv 0,7mm 3,17 8240003429‍
300 150 300 QFS Galv 0,7mm 3,34 8240003430‍
300 160 160 QFS Galv 0,7mm 2,99 8240003431‍
300 160 180 QFS Galv 0,7mm 3,08 8240003432‍
300 160 200 QFS Galv 0,7mm 3,15 8240003433‍
300 160 224 QFS Galv 0,7mm 3,23 8240003434‍
300 160 250 QFS Galv 0,7mm 3,32 8240003435‍
300 160 300 QFS Galv 0,7mm 3,49 8240003436‍
300 180 180 QFS Galv 0,7mm 3,41 8240003437‍
300 180 200 QFS Galv 0,7mm 3,49 8240003438‍
300 180 224 QFS Galv 0,7mm 3,57 8240003439‍
300 180 250 QFS Galv 0,7mm 3,67 8240003440‍
300 180 300 QFS Galv 0,7mm 3,84 8240003441‍
300 200 200 QFS Galv 0,7mm 3,8 8240003442‍
300 200 224 QFS Galv 0,7mm 3,9 8240003443‍
300 200 250 QFS Galv 0,7mm 3,99 8240003444‍
300 200 300 QFS Galv 0,7mm 4,17 8240003445‍
300 224 224 QFS Galv 0,7mm 4,3 8240003446‍
300 224 250 QFS Galv 0,7mm 4,41 8240003447‍
300 224 300 QFS Galv 0,7mm 4,59 8240003448‍
300 250 250 QFS Galv 0,7mm 4,87 8240003449‍
300 250 300 QFS Galv 0,7mm 5,06 8240003450‍
300 300 300 QFS Galv 0,7mm 6,03 8240003451‍
315 100 100 QFS Galv 0,7mm 2,08 8240003452‍
315 100 125 QFS Galv 0,7mm 2,15 8240003453‍
315 100 140 QFS Galv 0,7mm 2,19 8240003454‍
315 100 150 QFS Galv 0,7mm 2,22 8240003455‍
315 100 160 QFS Galv 0,7mm 2,25 8240003456‍
315 100 180 QFS Galv 0,7mm 2,32 8240003457‍
315 100 200 QFS Galv 0,7mm 2,38 8240003458‍
315 100 224 QFS Galv 0,7mm 2,45 8240003459‍
315 100 250 QFS Galv 0,7mm 2,53 8240003460‍
315 100 300 QFS Galv 0,7mm 2,68 8240003461‍
315 100 315 QFS Galv 0,7mm 2,75 8240003462‍
315 125 125 QFS Galv 0,7mm 2,48 8240003463‍
315 125 140 QFS Galv 0,7mm 2,53 8240003464‍
315 125 150 QFS Galv 0,7mm 2,56 8240003465‍
315 125 160 QFS Galv 0,7mm 2,59 8240003466‍
315 125 180 QFS Galv 0,7mm 2,67 8240003467‍
315 125 200 QFS Galv 0,7mm 2,74 8240003468‍
315 125 224 QFS Galv 0,7mm 2,81 8240003469‍
315 125 250 QFS Galv 0,7mm 2,9 8240003470‍
315 125 300 QFS Galv 0,7mm 3,06 8240003471‍
315 125 315 QFS Galv 0,7mm 3,13 8240003472‍
315 140 140 QFS Galv 0,7mm 2,74 8240003473‍
315 140 150 QFS Galv 0,7mm 2,77 8240003474‍
315 140 160 QFS Galv 0,7mm 2,81 8240003475‍
315 140 180 QFS Galv 0,7mm 2,89 8240003476‍
315 140 200 QFS Galv 0,7mm 2,96 8240003477‍
315 140 224 QFS Galv 0,7mm 3,04 8240003478‍
315 140 250 QFS Galv 0,7mm 3,13 8240003479‍
315 140 300 QFS Galv 0,7mm 3,29 8240003480‍
315 140 315 QFS Galv 0,7mm 3,36 8240003481‍
315 150 150 QFS Galv 0,7mm 2,92 8240003482‍
315 150 160 QFS Galv 0,7mm 2,95 8240003483‍
315 150 180 QFS Galv 0,7mm 3,04 8240003484‍
315 150 200 QFS Galv 0,7mm 3,11 8240003485‍
315 150 224 QFS Galv 0,7mm 3,19 8240003486‍
315 150 250 QFS Galv 0,7mm 3,28 8240003487‍
315 150 300 QFS Galv 0,7mm 3,45 8240003488‍
315 150 315 QFS Galv 0,7mm 3,52 8240003489‍
315 160 160 QFS Galv 0,7mm 3,1 8240003490‍
315 160 180 QFS Galv 0,7mm 3,19 8240003491‍
315 160 200 QFS Galv 0,7mm 3,26 8240003492‍
315 160 224 QFS Galv 0,7mm 3,35 8240003493‍
315 160 250 QFS Galv 0,7mm 3,44 8240003494‍
315 160 300 QFS Galv 0,7mm 3,61 8240003495‍
315 160 315 QFS Galv 0,7mm 3,68 8240003496‍
315 180 180 QFS Galv 0,7mm 3,53 8240003497‍
315 180 200 QFS Galv 0,7mm 3,6 8240003498‍
315 180 224 QFS Galv 0,7mm 3,69 8240003499‍
315 180 250 QFS Galv 0,7mm 3,79 8240003500‍
315 180 300 QFS Galv 0,7mm 3,96 8240003501‍
315 180 315 QFS Galv 0,7mm 4,04 8240003502‍
315 200 200 QFS Galv 0,7mm 3,93 8240003503‍
315 200 224 QFS Galv 0,7mm 4,02 8240003504‍
315 200 250 QFS Galv 0,7mm 4,12 8240003505‍
315 200 300 QFS Galv 0,7mm 4,31 8240003506‍
315 200 315 QFS Galv 0,7mm 4,38 8240003507‍
315 224 224 QFS Galv 0,7mm 4,44 8240003508‍
315 224 250 QFS Galv 0,7mm 4,54 8240003509‍
315 224 300 QFS Galv 0,7mm 4,73 8240003510‍
315 224 315 QFS Galv 0,7mm 4,81 8240003511‍
315 250 250 QFS Galv 0,7mm 5,01 8240003512‍
315 250 300 QFS Galv 0,7mm 5,21 8240003513‍
315 250 315 QFS Galv 0,7mm 5,29 8240003514‍
315 300 300 QFS Galv 0,7mm 6,2 8240003515‍
315 300 315 QFS Galv 0,7mm 6,28 8240003516‍
315 315 315 QFS Galv 0,7mm 6,66 8240003517‍
350 125 125 QFS Galv 0,7mm 2,67 8240003518‍
350 125 140 QFS Galv 0,7mm 2,72 8240003519‍
350 125 150 QFS Galv 0,7mm 2,75 8240003520‍
350 125 160 QFS Galv 0,7mm 2,78 8240003521‍
350 125 180 QFS Galv 0,7mm 2,86 8240003522‍
350 125 200 QFS Galv 0,7mm 2,92 8240003523‍
350 125 224 QFS Galv 0,7mm 3 8240003524‍
350 125 250 QFS Galv 0,7mm 3,08 8240003525‍
350 125 300 QFS Galv 0,7mm 3,24 8240003526‍
350 125 315 QFS Galv 0,7mm 3,31 8240003527‍
350 125 350 QFS Galv 0,7mm 3,42 8240003528‍
350 140 140 QFS Galv 0,7mm 2,94 8240003529‍
350 140 150 QFS Galv 0,7mm 2,97 8240003530‍
350 140 160 QFS Galv 0,7mm 3 8240003531‍
350 140 180 QFS Galv 0,7mm 3,09 8240003532‍
350 140 200 QFS Galv 0,7mm 3,15 8240003533‍
350 140 224 QFS Galv 0,7mm 3,24 8240003534‍
350 140 250 QFS Galv 0,7mm 3,32 8240003535‍
350 140 300 QFS Galv 0,7mm 3,49 8240003536‍
350 140 315 QFS Galv 0,7mm 3,56 8240003537‍
350 140 350 QFS Galv 0,7mm 3,68 8240003538‍
350 150 150 QFS Galv 0,7mm 3,12 8240003539‍
350 150 160 QFS Galv 0,7mm 3,16 8240003540‍
350 150 180 QFS Galv 0,7mm 3,24 8240003541‍
350 150 200 QFS Galv 0,7mm 3,31 8240003542‍
350 150 224 QFS Galv 0,7mm 3,4 8240003543‍
350 150 250 QFS Galv 0,7mm 3,49 8240003544‍
350 150 300 QFS Galv 0,7mm 3,65 8240003545‍
350 150 315 QFS Galv 0,7mm 3,73 8240003546‍
350 150 350 QFS Galv 0,7mm 3,85 8240003547‍
350 160 160 QFS Galv 0,7mm 3,31 8240003548‍
350 160 180 QFS Galv 0,7mm 3,4 8240003549‍
350 160 200 QFS Galv 0,7mm 3,47 8240003550‍
350 160 224 QFS Galv 0,7mm 3,56 8240003551‍
350 160 250 QFS Galv 0,7mm 3,65 8240003552‍
350 160 300 QFS Galv 0,7mm 3,82 8240003553‍
350 160 315 QFS Galv 0,7mm 3,9 8240003554‍
350 160 350 QFS Galv 0,7mm 4,02 8240003555‍
350 180 180 QFS Galv 0,7mm 3,75 8240003556‍
350 180 200 QFS Galv 0,7mm 3,83 8240003557‍
350 180 224 QFS Galv 0,7mm 3,92 8240003558‍
350 180 250 QFS Galv 0,7mm 4,01 8240003559‍
350 180 300 QFS Galv 0,7mm 4,2 8240003560‍
350 180 315 QFS Galv 0,7mm 4,27 8240003561‍
350 180 350 QFS Galv 0,7mm 4,4 8240003562‍
350 200 200 QFS Galv 0,7mm 4,17 8240003563‍
350 200 224 QFS Galv 0,7mm 4,27 8240003564‍
350 200 250 QFS Galv 0,7mm 4,37 8240003565‍
350 200 300 QFS Galv 0,7mm 4,56 8240003566‍
350 200 315 QFS Galv 0,7mm 4,63 8240003567‍
350 200 350 QFS Galv 0,7mm 4,76 8240003568‍
350 224 224 QFS Galv 0,7mm 4,7 8240003569‍
350 224 250 QFS Galv 0,7mm 4,81 8240003570‍
350 224 300 QFS Galv 0,7mm 5 8240003571‍
350 224 315 QFS Galv 0,7mm 5,08 8240003572‍
350 224 350 QFS Galv 0,7mm 5,22 8240003573‍
350 250 250 QFS Galv 0,7mm 5,3 8240003574‍
350 250 300 QFS Galv 0,7mm 5,5 8240003575‍
350 250 315 QFS Galv 0,7mm 5,59 8240003576‍
350 250 350 QFS Galv 0,7mm 5,72 8240003577‍
350 300 300 QFS Galv 0,7mm 6,52 8240003578‍
350 300 315 QFS Galv 0,7mm 6,61 8240003579‍
350 300 350 QFS Galv 0,7mm 6,76 8240003580‍
350 315 315 QFS Galv 0,7mm 7 8240003581‍
350 315 350 QFS Galv 0,7mm 7,14 8240003582‍
350 350 350 QFS Galv 0,7mm 7,94 8240003583‍
400 125 125 QFS Galv 0,9mm 3,76 8240003584‍
400 125 140 QFS Galv 0,9mm 3,82 8240003585‍
400 125 150 QFS Galv 0,9mm 3,86 8240003586‍
400 125 160 QFS Galv 0,9mm 3,9 8240003587‍
400 125 180 QFS Galv 0,9mm 3,99 8240003588‍
400 125 200 QFS Galv 0,9mm 4,07 8240003589‍
400 125 224 QFS Galv 0,9mm 4,17 8240003590‍
400 125 250 QFS Galv 0,9mm 4,27 8240003591‍
400 125 300 QFS Galv 0,9mm 4,46 8240003592‍
400 125 315 QFS Galv 0,9mm 4,55 8240003593‍
400 125 350 QFS Galv 0,9mm 4,68 8240003594‍
400 125 400 QFS Galv 0,9mm 4,88 8240003595‍
400 140 140 QFS Galv 0,9mm 4,12 8240003596‍
400 140 150 QFS Galv 0,9mm 4,16 8240003597‍
400 140 160 QFS Galv 0,9mm 4,2 8240003598‍
400 140 180 QFS Galv 0,9mm 4,3 8240003599‍
400 140 200 QFS Galv 0,9mm 4,39 8240003600‍
400 140 224 QFS Galv 0,9mm 4,49 8240003601‍
400 140 250 QFS Galv 0,9mm 4,6 8240003602‍
400 140 300 QFS Galv 0,9mm 4,8 8240003603‍
400 140 315 QFS Galv 0,9mm 4,89 8240003604‍
400 140 350 QFS Galv 0,9mm 5,03 8240003605‍
400 140 400 QFS Galv 0,9mm 5,24 8240003606‍
400 150 150 QFS Galv 0,9mm 4,37 8240003607‍
400 150 160 QFS Galv 0,9mm 4,41 8240003608‍
400 150 180 QFS Galv 0,9mm 4,51 8240003609‍
400 150 200 QFS Galv 0,9mm 4,6 8240003610‍
400 150 224 QFS Galv 0,9mm 4,71 8240003611‍
400 150 250 QFS Galv 0,9mm 4,82 8240003612‍
400 150 300 QFS Galv 0,9mm 5,03 8240003613‍
400 150 315 QFS Galv 0,9mm 5,12 8240003614‍
400 150 350 QFS Galv 0,9mm 5,27 8240003615‍
400 150 400 QFS Galv 0,9mm 5,48 8240003616‍
400 160 160 QFS Galv 0,9mm 4,62 8240003617‍
400 160 180 QFS Galv 0,9mm 4,73 8240003618‍
400 160 200 QFS Galv 0,9mm 4,82 8240003619‍
400 160 224 QFS Galv 0,9mm 4,93 8240003620‍
400 160 250 QFS Galv 0,9mm 5,04 8240003621‍
400 160 300 QFS Galv 0,9mm 5,27 8240003622‍
400 160 315 QFS Galv 0,9mm 5,35 8240003623‍
400 160 350 QFS Galv 0,9mm 5,51 8240003624‍
400 160 400 QFS Galv 0,9mm 5,72 8240003625‍
400 180 180 QFS Galv 0,9mm 5,2 8240003626‍
400 180 200 QFS Galv 0,9mm 5,29 8240003627‍
400 180 224 QFS Galv 0,9mm 5,41 8240003628‍
400 180 250 QFS Galv 0,9mm 5,53 8240003629‍
400 180 300 QFS Galv 0,9mm 5,76 8240003630‍
400 180 315 QFS Galv 0,9mm 5,86 8240003631‍
400 180 350 QFS Galv 0,9mm 6,02 8240003632‍
400 180 400 QFS Galv 0,9mm 6,24 8240003633‍
400 200 200 QFS Galv 0,9mm 5,76 8240003634‍
400 200 224 QFS Galv 0,9mm 5,88 8240003635‍
400 200 250 QFS Galv 0,9mm 6,01 8240003636‍
400 200 300 QFS Galv 0,9mm 6,25 8240003637‍
400 200 315 QFS Galv 0,9mm 6,35 8240003638‍
400 200 350 QFS Galv 0,9mm 6,52 8240003639‍
400 200 400 QFS Galv 0,9mm 6,75 8240003640‍
400 224 224 QFS Galv 0,9mm 6,47 8240003641‍
400 224 250 QFS Galv 0,9mm 6,6 8240003642‍
400 224 300 QFS Galv 0,9mm 6,86 8240003643‍
400 224 315 QFS Galv 0,9mm 6,96 8240003644‍
400 224 350 QFS Galv 0,9mm 7,13 8240003645‍
400 224 400 QFS Galv 0,9mm 7,37 8240003646‍
400 250 250 QFS Galv 0,9mm 7,29 8240003647‍
400 250 300 QFS Galv 0,9mm 7,57 8240003648‍
400 250 315 QFS Galv 0,9mm 7,68 8240003649‍
400 250 350 QFS Galv 0,9mm 7,86 8240003650‍
400 250 400 QFS Galv 0,9mm 8,12 8240003651‍
400 300 300 QFS Galv 0,9mm 8,94 8240003652‍
400 300 315 QFS Galv 0,9mm 9,07 8240003653‍
400 300 350 QFS Galv 0,9mm 9,26 8240003654‍
400 300 400 QFS Galv 0,9mm 9,53 8240003655‍
400 315 315 QFS Galv 0,9mm 9,55 8240003656‍
400 315 350 QFS Galv 0,9mm 9,71 8240003657‍
400 315 400 QFS Galv 0,9mm 9,99 8240003658‍
400 350 350 QFS Galv 0,9mm 10,78 8240003659‍
400 350 400 QFS Galv 0,9mm 11,06 8240003660‍
400 400 400 QFS Galv 0,9mm 12,7 8240003661‍

Get in touch

+44 (0) 1132 739 400 - [email protected]
Contact Nordfab UK

It looks like you're coming from United States.

Would you like to go to the United States site?
