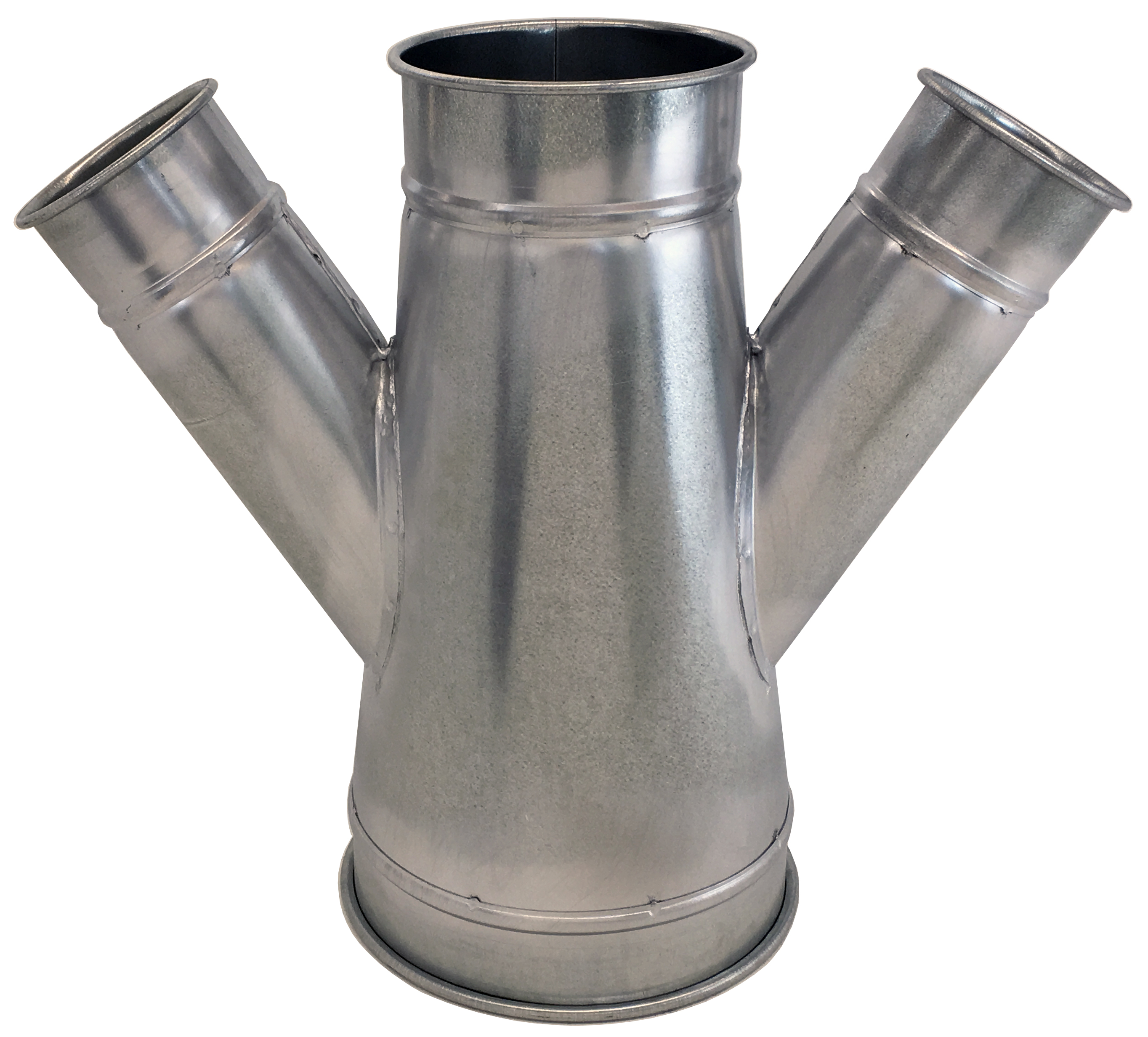

Quick-Fit Sealed (QFS) Double Branch

A QF clip-together duct component with caulked seams to provide protection against leakage where sealed systems are needed. Ø80 - 400 mm, galvanised steel construction.

Quick-Fit Sealed (QFS) Double Branches are used to port to machine outlets or other duct lines. They are designed as our QF Double Branches, with Quick-Fit rolled ends, but have added caulked seams to provide protection against leakage. QFS Double Branches are 30°, optional 45° available upon request. Available in galvanised steel, ranging from 80 mm to 400 mm in diameter.

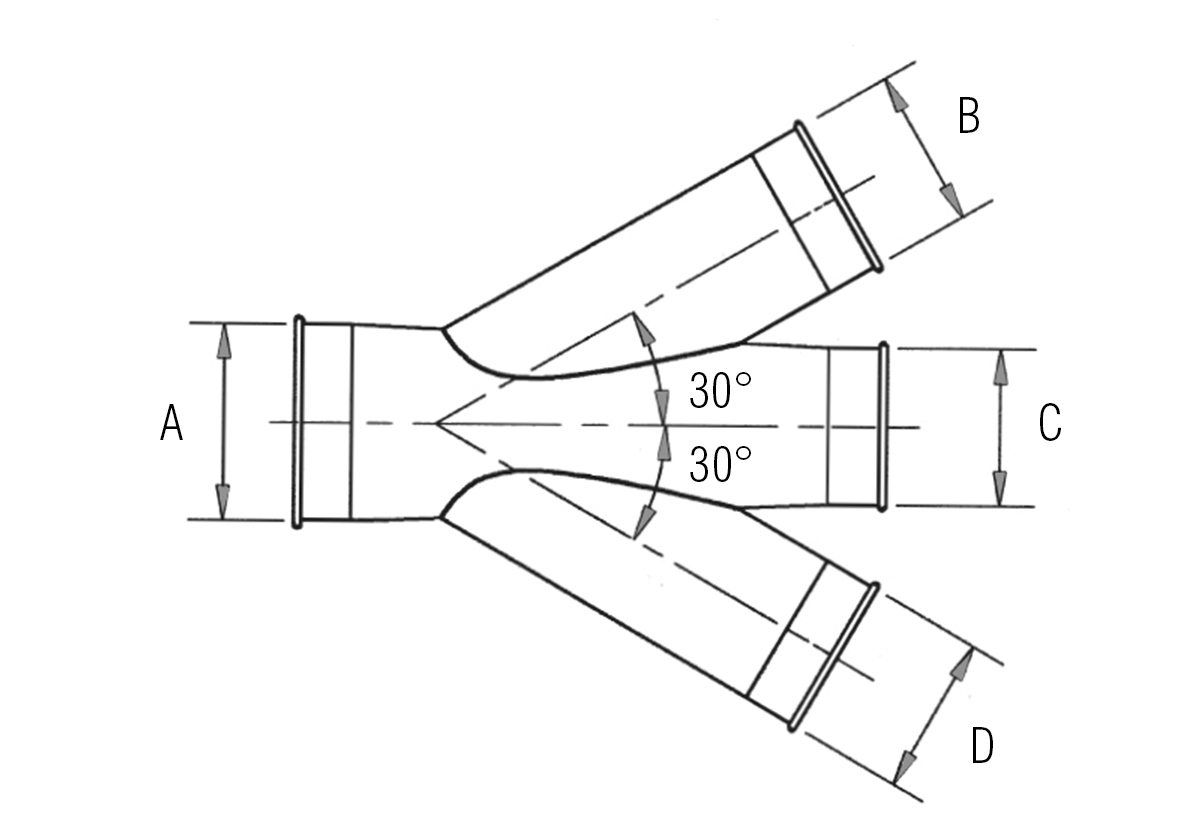

When ordering, please specify ØA,ØB, ØC, ØD.
L = (ØBx2) + 206
ØC must be smaller than or equal to ØA.
ØB and ØD must be smaller than or equal to ØC.
ØB must be smaller than or equal to ØD.
Use formulas above to determine if a reducers are needed at ØB or ØD.

Quick-Fit Sealed (QFS) Ducting
Designed for machining and any other operations which create oil mists, Nordfab Quick-Fit Sealed (QFS) Ducting can significantly reduce risks of leakage from ducting. QFS features laser welded and caulked duct (solid seams eliminate leakage) and double sealing at duct connections. All bends, branches, reducers, and other products with joints or collars are epoxy caulked. When clipping the ductwork together, an additional nitrile gasket is placed between the parts to avoid leakage. The Quick-Fit Clip features a generously dimensioned sealing gasket held firmly in place by positive over-centre clamping action over the rolled collars at the duct ends to be joined. For added security, a locking pin may be inserted.

The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit Sealed (QFS) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.

Easy to install
Quick-Fit Sealed is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Sealed Clip when installing, extending, or taking apart runs of duct.

Find Your Revit Model
ø A (mm) ø B (mm) ø C (mm) ø D (mm) Material T mm Weight(kg) Item No.
80 80 80 80 QFS Galv 0,7mm 1,1 8240004245‍
100 80 80 80 QFS Galv 0,7mm 1,17 8240004246‍
100 80 100 80 QFS Galv 0,7mm 1,22 8240004247‍
100 100 100 100 QFS Galv 0,7mm 1,48 8240004248‍
125 80 80 80 QFS Galv 0,7mm 1,28 8240004249‍
125 80 100 80 QFS Galv 0,7mm 1,32 8240004250‍
125 80 125 80 QFS Galv 0,7mm 1,38 8240004251‍
125 100 100 100 QFS Galv 0,7mm 1,59 8240004252‍
125 100 125 100 QFS Galv 0,7mm 1,64 8240004253‍
125 125 125 125 QFS Galv 0,7mm 2,01 8240004254‍
140 80 80 80 QFS Galv 0,7mm 1,34 8240004255‍
140 80 100 80 QFS Galv 0,7mm 1,38 8240004256‍
140 80 125 80 QFS Galv 0,7mm 1,44 8240004257‍
140 80 140 80 QFS Galv 0,7mm 1,47 8240004258‍
140 100 100 100 QFS Galv 0,7mm 1,66 8240004259‍
140 100 125 100 QFS Galv 0,7mm 1,71 8240004260‍
140 100 140 100 QFS Galv 0,7mm 1,74 8240004261‍
140 125 125 125 QFS Galv 0,7mm 2,08 8240004262‍
140 125 140 125 QFS Galv 0,7mm 2,11 8240004263‍
140 140 140 140 QFS Galv 0,7mm 2,36 8240004264‍
150 80 80 80 QFS Galv 0,7mm 1,38 8240004265‍
150 80 100 80 QFS Galv 0,7mm 1,43 8240004266‍
150 80 125 80 QFS Galv 0,7mm 1,48 8240004267‍
150 80 140 80 QFS Galv 0,7mm 1,52 8240004268‍
150 80 150 80 QFS Galv 0,7mm 1,54 8240004269‍
150 100 100 100 QFS Galv 0,7mm 1,7 8240004270‍
150 100 125 100 QFS Galv 0,7mm 1,76 8240004271‍
150 100 140 100 QFS Galv 0,7mm 1,79 8240004272‍
150 100 150 100 QFS Galv 0,7mm 1,81 8240004273‍
150 125 125 125 QFS Galv 0,7mm 2,14 8240004274‍
150 125 140 125 QFS Galv 0,7mm 2,17 8240004275‍
150 125 150 125 QFS Galv 0,7mm 2,19 8240004276‍
150 140 140 140 QFS Galv 0,7mm 2,42 8240004277‍
150 140 150 140 QFS Galv 0,7mm 2,43 8240004278‍
150 150 150 150 QFS Galv 0,7mm 2,61 8240004279‍
160 80 80 80 QFS Galv 0,7mm 1,42 8240004280‍
160 80 100 80 QFS Galv 0,7mm 1,47 8240004281‍
160 80 125 80 QFS Galv 0,7mm 1,53 8240004282‍
160 80 140 80 QFS Galv 0,7mm 1,56 8240004283‍
160 80 150 80 QFS Galv 0,7mm 1,58 8240004284‍
160 80 160 80 QFS Galv 0,7mm 1,6 8240004285‍
160 100 100 100 QFS Galv 0,7mm 1,75 8240004286‍
160 100 125 100 QFS Galv 0,7mm 1,81 8240004287‍
160 100 140 100 QFS Galv 0,7mm 1,84 8240004288‍
160 100 150 100 QFS Galv 0,7mm 1,86 8240004289‍
160 100 160 100 QFS Galv 0,7mm 1,88 8240004290‍
160 125 125 125 QFS Galv 0,7mm 2,19 8240004291‍
160 125 140 125 QFS Galv 0,7mm 2,22 8240004292‍
160 125 150 125 QFS Galv 0,7mm 2,24 8240004293‍
160 125 160 125 QFS Galv 0,7mm 2,26 8240004294‍
160 140 140 140 QFS Galv 0,7mm 2,47 8240004295‍
160 140 150 140 QFS Galv 0,7mm 2,49 8240004296‍
160 140 160 140 QFS Galv 0,7mm 2,51 8240004297‍
160 150 150 150 QFS Galv 0,7mm 2,65 8240004298‍
160 150 160 150 QFS Galv 0,7mm 2,68 8240004299‍
160 160 160 160 QFS Galv 0,7mm 2,87 8240004300‍
180 80 80 80 QFS Galv 0,7mm 1,52 8240004301‍
180 80 100 80 QFS Galv 0,7mm 1,57 8240004302‍
180 80 125 80 QFS Galv 0,7mm 1,63 8240004303‍
180 80 140 80 QFS Galv 0,7mm 1,66 8240004304‍
180 80 150 80 QFS Galv 0,7mm 1,68 8240004305‍
180 80 160 80 QFS Galv 0,7mm 1,71 8240004306‍
180 80 180 80 QFS Galv 0,7mm 1,76 8240004307‍
180 100 100 100 QFS Galv 0,7mm 1,86 8240004308‍
180 100 125 100 QFS Galv 0,7mm 1,92 8240004309‍
180 100 140 100 QFS Galv 0,7mm 1,95 8240004310‍
180 100 150 100 QFS Galv 0,7mm 1,98 8240004311‍
180 100 160 100 QFS Galv 0,7mm 2 8240004312‍
180 100 180 100 QFS Galv 0,7mm 2,05 8240004313‍
180 125 125 125 QFS Galv 0,7mm 2,32 8240004314‍
180 125 140 125 QFS Galv 0,7mm 2,35 8240004315‍
180 125 150 125 QFS Galv 0,7mm 2,37 8240004316‍
180 125 160 125 QFS Galv 0,7mm 2,39 8240004317‍
180 125 180 125 QFS Galv 0,7mm 2,45 8240004318‍
180 140 140 140 QFS Galv 0,7mm 2,61 8240004319‍
180 140 150 140 QFS Galv 0,7mm 2,63 8240004320‍
180 140 160 140 QFS Galv 0,7mm 2,65 8240004321‍
180 140 180 140 QFS Galv 0,7mm 2,7 8240004322‍
180 150 150 150 QFS Galv 0,7mm 2,81 8240004323‍
180 150 160 150 QFS Galv 0,7mm 2,83 8240004324‍
180 150 180 150 QFS Galv 0,7mm 2,88 8240004325‍
180 160 160 160 QFS Galv 0,7mm 3,01 8240004326‍
180 160 180 160 QFS Galv 0,7mm 3,05 8240004327‍
180 180 180 180 QFS Galv 0,7mm 3,48 8240004328‍
200 80 80 80 QFS Galv 0,7mm 1,6 8240004329‍
200 80 100 80 QFS Galv 0,7mm 1,65 8240004330‍
200 80 125 80 QFS Galv 0,7mm 1,71 8240004331‍
200 80 140 80 QFS Galv 0,7mm 1,75 8240004332‍
200 80 150 80 QFS Galv 0,7mm 1,77 8240004333‍
200 80 160 80 QFS Galv 0,7mm 1,79 8240004334‍
200 80 180 80 QFS Galv 0,7mm 1,85 8240004335‍
200 80 200 80 QFS Galv 0,7mm 1,9 8240004336‍
200 100 100 100 QFS Galv 0,7mm 1,95 8240004337‍
200 100 125 100 QFS Galv 0,7mm 2,02 8240004338‍
200 100 140 100 QFS Galv 0,7mm 2,05 8240004339‍
200 100 150 100 QFS Galv 0,7mm 2,08 8240004340‍
200 100 160 100 QFS Galv 0,7mm 2,1 8240004341‍
200 100 180 100 QFS Galv 0,7mm 2,16 8240004342‍
200 100 200 100 QFS Galv 0,7mm 2,2 8240004343‍
200 125 125 125 QFS Galv 0,7mm 2,43 8240004344‍
200 125 140 125 QFS Galv 0,7mm 2,46 8240004345‍
200 125 150 125 QFS Galv 0,7mm 2,49 8240004346‍
200 125 160 125 QFS Galv 0,7mm 2,51 8240004347‍
200 125 180 125 QFS Galv 0,7mm 2,57 8240004348‍
200 125 200 125 QFS Galv 0,7mm 2,61 8240004349‍
200 140 140 140 QFS Galv 0,7mm 2,73 8240004350‍
200 140 150 140 QFS Galv 0,7mm 2,75 8240004351‍
200 140 160 140 QFS Galv 0,7mm 2,77 8240004352‍
200 140 180 140 QFS Galv 0,7mm 2,83 8240004353‍
200 140 200 140 QFS Galv 0,7mm 2,87 8240004354‍
200 150 150 150 QFS Galv 0,7mm 2,93 8240004355‍
200 150 160 150 QFS Galv 0,7mm 2,95 8240004356‍
200 150 180 150 QFS Galv 0,7mm 3,01 8240004357‍
200 150 200 150 QFS Galv 0,7mm 3,05 8240004358‍
200 160 160 160 QFS Galv 0,7mm 3,14 8240004359‍
200 160 180 160 QFS Galv 0,7mm 3,2 8240004360‍
200 160 200 160 QFS Galv 0,7mm 3,23 8240004361‍
200 180 180 180 QFS Galv 0,7mm 3,62 8240004362‍
200 180 200 180 QFS Galv 0,7mm 3,65 8240004363‍
200 200 200 200 QFS Galv 0,7mm 4,1 8240004364‍
224 80 80 80 QFS Galv 0,7mm 1,7 8240004365‍
224 80 100 80 QFS Galv 0,7mm 1,75 8240004366‍
224 80 125 80 QFS Galv 0,7mm 1,82 8240004367‍
224 80 140 80 QFS Galv 0,7mm 1,85 8240004368‍
224 80 150 80 QFS Galv 0,7mm 1,88 8240004369‍
224 80 160 80 QFS Galv 0,7mm 1,9 8240004370‍
224 80 180 80 QFS Galv 0,7mm 1,96 8240004371‍
224 80 200 80 QFS Galv 0,7mm 2,01 8240004372‍
224 80 224 80 QFS Galv 0,7mm 2,06 8240004373‍
224 100 100 100 QFS Galv 0,7mm 2,07 8240004374‍
224 100 125 100 QFS Galv 0,7mm 2,13 8240004375‍
224 100 140 100 QFS Galv 0,7mm 2,17 8240004376‍
224 100 150 100 QFS Galv 0,7mm 2,19 8240004377‍
224 100 160 100 QFS Galv 0,7mm 2,22 8240004378‍
224 100 180 100 QFS Galv 0,7mm 2,28 8240004379‍
224 100 200 100 QFS Galv 0,7mm 2,33 8240004380‍
224 100 224 100 QFS Galv 0,7mm 2,38 8240004381‍
224 125 125 125 QFS Galv 0,7mm 2,56 8240004382‍
224 125 140 125 QFS Galv 0,7mm 2,59 8240004383‍
224 125 150 125 QFS Galv 0,7mm 2,62 8240004384‍
224 125 160 125 QFS Galv 0,7mm 2,65 8240004385‍
224 125 180 125 QFS Galv 0,7mm 2,71 8240004386‍
224 125 200 125 QFS Galv 0,7mm 2,75 8240004387‍
224 125 224 125 QFS Galv 0,7mm 2,8 8240004388‍
224 140 140 140 QFS Galv 0,7mm 2,87 8240004389‍
224 140 150 140 QFS Galv 0,7mm 2,9 8240004390‍
224 140 160 140 QFS Galv 0,7mm 2,92 8240004391‍
224 140 180 140 QFS Galv 0,7mm 2,98 8240004392‍
224 140 200 140 QFS Galv 0,7mm 3,02 8240004393‍
224 140 224 140 QFS Galv 0,7mm 3,07 8240004394‍
224 150 150 150 QFS Galv 0,7mm 3,08 8240004395‍
224 150 160 150 QFS Galv 0,7mm 3,11 8240004396‍
224 150 180 150 QFS Galv 0,7mm 3,17 8240004397‍
224 150 200 150 QFS Galv 0,7mm 3,21 8240004398‍
224 150 224 150 QFS Galv 0,7mm 3,26 8240004399‍
224 160 160 160 QFS Galv 0,7mm 3,3 8240004400‍
224 160 180 160 QFS Galv 0,7mm 3,36 8240004401‍
224 160 200 160 QFS Galv 0,7mm 3,4 8240004402‍
224 160 224 160 QFS Galv 0,7mm 3,45 8240004403‍
224 180 180 180 QFS Galv 0,7mm 3,79 8240004404‍
224 180 200 180 QFS Galv 0,7mm 3,83 8240004405‍
224 180 224 180 QFS Galv 0,7mm 3,87 8240004406‍
224 200 200 200 QFS Galv 0,7mm 4,28 8240004407‍
224 200 224 200 QFS Galv 0,7mm 4,32 8240004408‍
224 224 224 224 QFS Galv 0,7mm 4,88 8240004409‍
250 80 80 80 QFS Galv 0,7mm 1,81 8240004410‍
250 80 100 80 QFS Galv 0,7mm 1,87 8240004411‍
250 80 125 80 QFS Galv 0,7mm 1,93 8240004412‍
250 80 140 80 QFS Galv 0,7mm 1,96 8240004413‍
250 80 150 80 QFS Galv 0,7mm 1,99 8240004414‍
250 80 160 80 QFS Galv 0,7mm 2,01 8240004415‍
250 80 180 80 QFS Galv 0,7mm 2,07 8240004416‍
250 80 200 80 QFS Galv 0,7mm 2,12 8240004417‍
250 80 224 80 QFS Galv 0,7mm 2,18 8240004418‍
250 80 250 80 QFS Galv 0,7mm 2,24 8240004419‍
250 100 100 100 QFS Galv 0,7mm 2,19 8240004420‍
250 100 125 100 QFS Galv 0,7mm 2,26 8240004421‍
250 100 140 100 QFS Galv 0,7mm 2,3 8240004422‍
250 100 150 100 QFS Galv 0,7mm 2,32 8240004423‍
250 100 160 100 QFS Galv 0,7mm 2,35 8240004424‍
250 100 180 100 QFS Galv 0,7mm 2,41 8240004425‍
250 100 200 100 QFS Galv 0,7mm 2,46 8240004426‍
250 100 224 100 QFS Galv 0,7mm 2,51 8240004427‍
250 100 250 100 QFS Galv 0,7mm 2,57 8240004428‍
250 125 125 125 QFS Galv 0,7mm 2,7 8240004429‍
250 125 140 125 QFS Galv 0,7mm 2,74 8240004430‍
250 125 150 125 QFS Galv 0,7mm 2,77 8240004431‍
250 125 160 125 QFS Galv 0,7mm 2,79 8240004432‍
250 125 180 125 QFS Galv 0,7mm 2,85 8240004433‍
250 125 200 125 QFS Galv 0,7mm 2,9 8240004434‍
250 125 224 125 QFS Galv 0,7mm 2,96 8240004435‍
250 125 250 125 QFS Galv 0,7mm 3,01 8240004436‍
250 140 140 140 QFS Galv 0,7mm 3,02 8240004437‍
250 140 150 140 QFS Galv 0,7mm 3,05 8240004438‍
250 140 160 140 QFS Galv 0,7mm 3,08 8240004439‍
250 140 180 140 QFS Galv 0,7mm 3,14 8240004440‍
250 140 200 140 QFS Galv 0,7mm 3,19 8240004441‍
250 140 224 140 QFS Galv 0,7mm 3,24 8240004442‍
250 140 250 140 QFS Galv 0,7mm 3,29 8240004443‍
250 150 150 150 QFS Galv 0,7mm 3,25 8240004444‍
250 150 160 150 QFS Galv 0,7mm 3,27 8240004445‍
250 150 180 150 QFS Galv 0,7mm 3,33 8240004446‍
250 150 200 150 QFS Galv 0,7mm 3,38 8240004447‍
250 150 224 150 QFS Galv 0,7mm 3,43 8240004448‍
250 150 250 150 QFS Galv 0,7mm 3,48 8240004449‍
250 160 160 160 QFS Galv 0,7mm 3,47 8240004450‍
250 160 180 160 QFS Galv 0,7mm 3,54 8240004451‍
250 160 200 160 QFS Galv 0,7mm 3,58 8240004452‍
250 160 224 160 QFS Galv 0,7mm 3,63 8240004453‍
250 160 250 160 QFS Galv 0,7mm 3,68 8240004454‍
250 180 180 180 QFS Galv 0,7mm 3,98 8240004455‍
250 180 200 180 QFS Galv 0,7mm 4,02 8240004456‍
250 180 224 180 QFS Galv 0,7mm 4,07 8240004457‍
250 180 250 180 QFS Galv 0,7mm 4,12 8240004458‍
250 200 200 200 QFS Galv 0,7mm 4,49 8240004459‍
250 200 224 200 QFS Galv 0,7mm 4,53 8240004460‍
250 200 250 200 QFS Galv 0,7mm 4,58 8240004461‍
250 224 224 224 QFS Galv 0,7mm 5,1 8240004462‍
250 224 250 224 QFS Galv 0,7mm 5,14 8240004463‍
250 250 250 250 QFS Galv 0,7mm 5,79 8240004464‍
300 100 100 100 QFS Galv 0,7mm 2,44 8240004465‍
300 100 125 100 QFS Galv 0,7mm 2,5 8240004466‍
300 100 140 100 QFS Galv 0,7mm 2,54 8240004467‍
300 100 150 100 QFS Galv 0,7mm 2,57 8240004468‍
300 100 160 100 QFS Galv 0,7mm 2,59 8240004469‍
300 100 180 100 QFS Galv 0,7mm 2,66 8240004470‍
300 100 200 100 QFS Galv 0,7mm 2,71 8240004471‍
300 100 224 100 QFS Galv 0,7mm 2,77 8240004472‍
300 100 250 100 QFS Galv 0,7mm 2,83 8240004473‍
300 100 300 100 QFS Galv 0,7mm 2,94 8240004474‍
300 125 125 125 QFS Galv 0,7mm 2,98 8240004475‍
300 125 140 125 QFS Galv 0,7mm 3,02 8240004476‍
300 125 150 125 QFS Galv 0,7mm 3,05 8240004477‍
300 125 160 125 QFS Galv 0,7mm 3,07 8240004478‍
300 125 180 125 QFS Galv 0,7mm 3,14 8240004479‍
300 125 200 125 QFS Galv 0,7mm 3,19 8240004480‍
300 125 224 125 QFS Galv 0,7mm 3,25 8240004481‍
300 125 250 125 QFS Galv 0,7mm 3,31 8240004482‍
300 125 300 125 QFS Galv 0,7mm 3,42 8240004483‍
300 140 140 140 QFS Galv 0,7mm 3,32 8240004484‍
300 140 150 140 QFS Galv 0,7mm 3,35 8240004485‍
300 140 160 140 QFS Galv 0,7mm 3,38 8240004486‍
300 140 180 140 QFS Galv 0,7mm 3,44 8240004487‍
300 140 200 140 QFS Galv 0,7mm 3,5 8240004488‍
300 140 224 140 QFS Galv 0,7mm 3,56 8240004489‍
300 140 250 140 QFS Galv 0,7mm 3,62 8240004490‍
300 140 300 140 QFS Galv 0,7mm 3,72 8240004491‍
300 150 150 150 QFS Galv 0,7mm 3,55 8240004492‍
300 150 160 150 QFS Galv 0,7mm 3,59 8240004493‍
300 150 180 150 QFS Galv 0,7mm 3,65 8240004494‍
300 150 200 150 QFS Galv 0,7mm 3,71 8240004495‍
300 150 224 150 QFS Galv 0,7mm 3,77 8240004496‍
300 150 250 150 QFS Galv 0,7mm 3,83 8240004497‍
300 150 300 150 QFS Galv 0,7mm 3,93 8240004498‍
300 160 160 160 QFS Galv 0,7mm 3,8 8240004499‍
300 160 180 160 QFS Galv 0,7mm 3,87 8240004500‍
300 160 200 160 QFS Galv 0,7mm 3,92 8240004501‍
300 160 224 160 QFS Galv 0,7mm 3,98 8240004502‍
300 160 250 160 QFS Galv 0,7mm 4,04 8240004503‍
300 160 300 160 QFS Galv 0,7mm 4,14 8240004504‍
300 180 180 180 QFS Galv 0,7mm 4,34 8240004505‍
300 180 200 180 QFS Galv 0,7mm 4,39 8240004506‍
300 180 224 180 QFS Galv 0,7mm 4,45 8240004507‍
300 180 250 180 QFS Galv 0,7mm 4,51 8240004508‍
300 180 300 180 QFS Galv 0,7mm 4,6 8240004509‍
300 200 200 200 QFS Galv 0,7mm 4,88 8240004510‍
300 200 224 200 QFS Galv 0,7mm 4,94 8240004511‍
300 200 250 200 QFS Galv 0,7mm 4,99 8240004512‍
300 200 300 200 QFS Galv 0,7mm 5,08 8240004513‍
300 224 224 224 QFS Galv 0,7mm 5,53 8240004514‍
300 224 250 224 QFS Galv 0,7mm 5,59 8240004515‍
300 224 300 224 QFS Galv 0,7mm 5,67 8240004516‍
300 250 250 250 QFS Galv 0,7mm 6,27 8240004517‍
300 250 300 250 QFS Galv 0,7mm 7,35 8240004518‍
300 300 300 300 QFS Galv 0,7mm 7,8 8240004519‍
315 100 100 100 QFS Galv 0,7mm 2,54 8240004520‍
315 100 125 100 QFS Galv 0,7mm 2,6 8240004521‍
315 100 140 100 QFS Galv 0,7mm 2,64 8240004522‍
315 100 150 100 QFS Galv 0,7mm 2,67 8240004523‍
315 100 160 100 QFS Galv 0,7mm 2,69 8240004524‍
315 100 180 100 QFS Galv 0,7mm 2,76 8240004525‍
315 100 200 100 QFS Galv 0,7mm 2,81 8240004526‍
315 100 224 100 QFS Galv 0,7mm 2,87 8240004527‍
315 100 250 100 QFS Galv 0,7mm 2,93 8240004528‍
315 100 300 100 QFS Galv 0,7mm 3,05 8240004529‍
315 100 315 100 QFS Galv 0,7mm 3,1 8240004530‍
315 125 125 125 QFS Galv 0,7mm 3,09 8240004531‍
315 125 140 125 QFS Galv 0,7mm 3,13 8240004532‍
315 125 150 125 QFS Galv 0,7mm 3,15 8240004533‍
315 125 160 125 QFS Galv 0,7mm 3,18 8240004534‍
315 125 180 125 QFS Galv 0,7mm 3,25 8240004535‍
315 125 200 125 QFS Galv 0,7mm 3,3 8240004536‍
315 125 224 125 QFS Galv 0,7mm 3,36 8240004537‍
315 125 250 125 QFS Galv 0,7mm 3,43 8240004538‍
315 125 300 125 QFS Galv 0,7mm 3,54 8240004539‍
315 125 315 125 QFS Galv 0,7mm 3,6 8240004540‍
315 140 140 140 QFS Galv 0,7mm 3,44 8240004541‍
315 140 150 140 QFS Galv 0,7mm 3,47 8240004542‍
315 140 160 140 QFS Galv 0,7mm 3,49 8240004543‍
315 140 180 140 QFS Galv 0,7mm 3,56 8240004544‍
315 140 200 140 QFS Galv 0,7mm 3,61 8240004545‍
315 140 224 140 QFS Galv 0,7mm 3,68 8240004546‍
315 140 250 140 QFS Galv 0,7mm 3,74 8240004547‍
315 140 300 140 QFS Galv 0,7mm 3,85 8240004548‍
315 140 315 140 QFS Galv 0,7mm 3,9 8240004549‍
315 150 150 150 QFS Galv 0,7mm 3,68 8240004550‍
315 150 160 150 QFS Galv 0,7mm 3,7 8240004551‍
315 150 180 150 QFS Galv 0,7mm 3,77 8240004552‍
315 150 200 150 QFS Galv 0,7mm 3,83 8240004553‍
315 150 224 150 QFS Galv 0,7mm 3,89 8240004554‍
315 150 250 150 QFS Galv 0,7mm 3,95 8240004555‍
315 150 300 150 QFS Galv 0,7mm 4,06 8240004556‍
315 150 315 150 QFS Galv 0,7mm 4,12 8240004557‍
315 160 160 160 QFS Galv 0,7mm 3,92 8240004558‍
315 160 180 160 QFS Galv 0,7mm 3,99 8240004559‍
315 160 200 160 QFS Galv 0,7mm 4,05 8240004560‍
315 160 224 160 QFS Galv 0,7mm 4,11 8240004561‍
315 160 250 160 QFS Galv 0,7mm 4,17 8240004562‍
315 160 300 160 QFS Galv 0,7mm 4,28 8240004563‍
315 160 315 160 QFS Galv 0,7mm 4,33 8240004564‍
315 180 180 180 QFS Galv 0,7mm 4,47 8240004565‍
315 180 200 180 QFS Galv 0,7mm 4,52 8240004566‍
315 180 224 180 QFS Galv 0,7mm 4,59 8240004567‍
315 180 250 180 QFS Galv 0,7mm 4,65 8240004568‍
315 180 300 180 QFS Galv 0,7mm 4,75 8240004569‍
315 180 315 180 QFS Galv 0,7mm 4,8 8240004570‍
315 200 200 200 QFS Galv 0,7mm 5,02 8240004571‍
315 200 224 200 QFS Galv 0,7mm 5,08 8240004572‍
315 200 250 200 QFS Galv 0,7mm 5,14 8240004573‍
315 200 300 200 QFS Galv 0,7mm 5,24 8240004574‍
315 200 315 200 QFS Galv 0,7mm 5,29 8240004575‍
315 224 224 224 QFS Galv 0,7mm 5,69 8240004576‍
315 224 250 224 QFS Galv 0,7mm 5,74 8240004577‍
315 224 300 224 QFS Galv 0,7mm 5,83 8240004578‍
315 224 315 224 QFS Galv 0,7mm 5,88 8240004579‍
315 250 250 250 QFS Galv 0,7mm 6,44 8240004580‍
315 250 300 250 QFS Galv 0,7mm 6,52 8240004581‍
315 250 315 250 QFS Galv 0,7mm 6,56 8240004582‍
315 300 300 300 QFS Galv 0,7mm 7,99 8240004583‍
315 300 315 300 QFS Galv 0,7mm 8,02 8240004584‍
315 315 315 315 QFS Galv 0,7mm 8,53 8240004585‍
350 125 125 125 QFS Galv 0,7mm 3,29 8240004586‍
350 125 140 125 QFS Galv 0,7mm 3,33 8240004587‍
350 125 150 125 QFS Galv 0,7mm 3,36 8240004588‍
350 125 160 125 QFS Galv 0,7mm 3,38 8240004589‍
350 125 180 125 QFS Galv 0,7mm 3,45 8240004590‍
350 125 200 125 QFS Galv 0,7mm 3,5 8240004591‍
350 125 224 125 QFS Galv 0,7mm 3,57 8240004592‍
350 125 250 125 QFS Galv 0,7mm 3,64 8240004593‍
350 125 300 125 QFS Galv 0,7mm 3,76 8240004594‍
350 125 315 125 QFS Galv 0,7mm 3,81 8240004595‍
350 125 350 125 QFS Galv 0,7mm 3,89 8240004596‍
350 140 140 140 QFS Galv 0,7mm 3,65 8240004597‍
350 140 150 140 QFS Galv 0,7mm 3,68 8240004598‍
350 140 160 140 QFS Galv 0,7mm 3,7 8240004599‍
350 140 180 140 QFS Galv 0,7mm 3,77 8240004600‍
350 140 200 140 QFS Galv 0,7mm 3,83 8240004601‍
350 140 224 140 QFS Galv 0,7mm 3,89 8240004602‍
350 140 250 140 QFS Galv 0,7mm 3,96 8240004603‍
350 140 300 140 QFS Galv 0,7mm 4,08 8240004604‍
350 140 315 140 QFS Galv 0,7mm 4,14 8240004605‍
350 140 350 140 QFS Galv 0,7mm 4,21 8240004606‍
350 150 150 150 QFS Galv 0,7mm 3,9 8240004607‍
350 150 160 150 QFS Galv 0,7mm 3,93 8240004608‍
350 150 180 150 QFS Galv 0,7mm 4 8240004609‍
350 150 200 150 QFS Galv 0,7mm 4,05 8240004610‍
350 150 224 150 QFS Galv 0,7mm 4,12 8240004611‍
350 150 250 150 QFS Galv 0,7mm 4,19 8240004612‍
350 150 300 150 QFS Galv 0,7mm 4,31 8240004613‍
350 150 315 150 QFS Galv 0,7mm 4,36 8240004614‍
350 150 350 150 QFS Galv 0,7mm 4,44 8240004615‍
350 160 160 160 QFS Galv 0,7mm 4,15 8240004616‍
350 160 180 160 QFS Galv 0,7mm 4,23 8240004617‍
350 160 200 160 QFS Galv 0,7mm 4,28 8240004618‍
350 160 224 160 QFS Galv 0,7mm 4,35 8240004619‍
350 160 250 160 QFS Galv 0,7mm 4,42 8240004620‍
350 160 300 160 QFS Galv 0,7mm 4,54 8240004621‍
350 160 315 160 QFS Galv 0,7mm 4,59 8240004622‍
350 160 350 160 QFS Galv 0,7mm 4,66 8240004623‍
350 180 180 180 QFS Galv 0,7mm 4,72 8240004624‍
350 180 200 180 QFS Galv 0,7mm 4,78 8240004625‍
350 180 224 180 QFS Galv 0,7mm 4,85 8240004626‍
350 180 250 180 QFS Galv 0,7mm 4,91 8240004627‍
350 180 300 180 QFS Galv 0,7mm 5,03 8240004628‍
350 180 315 180 QFS Galv 0,7mm 5,09 8240004629‍
350 180 350 180 QFS Galv 0,7mm 5,15 8240004630‍
350 200 200 200 QFS Galv 0,7mm 5,3 8240004631‍
350 200 224 200 QFS Galv 0,7mm 5,36 8240004632‍
350 200 250 200 QFS Galv 0,7mm 5,43 8240004633‍
350 200 300 200 QFS Galv 0,7mm 5,54 8240004634‍
350 200 315 200 QFS Galv 0,7mm 5,6 8240004635‍
350 200 350 200 QFS Galv 0,7mm 5,66 8240004636‍
350 224 224 224 QFS Galv 0,7mm 5,99 8240004637‍
350 224 250 224 QFS Galv 0,7mm 6,05 8240004638‍
350 224 300 224 QFS Galv 0,7mm 6,16 8240004639‍
350 224 315 224 QFS Galv 0,7mm 6,21 8240004640‍
350 224 350 224 QFS Galv 0,7mm 6,27 8240004641‍
350 250 250 250 QFS Galv 0,7mm 6,77 8240004642‍
350 250 300 250 QFS Galv 0,7mm 6,87 8240004643‍
350 250 315 250 QFS Galv 0,7mm 6,92 8240004644‍
350 250 350 250 QFS Galv 0,7mm 7,02 8240004645‍
350 300 300 300 QFS Galv 0,7mm 8,38 8240004646‍
350 300 315 300 QFS Galv 0,7mm 8,43 8240004647‍
350 300 350 300 QFS Galv 0,7mm 8,46 8240004648‍
350 315 315 315 QFS Galv 0,7mm 8,95 8240004649‍
350 315 350 315 QFS Galv 0,7mm 8,97 8240004650‍
350 350 350 350 QFS Galv 0,7mm 10,14 8240004651‍
400 125 125 125 QFS Galv 0,9mm 4,57 8240004652‍
400 125 140 125 QFS Galv 0,9mm 4,63 8240004653‍
400 125 150 125 QFS Galv 0,9mm 4,66 8240004654‍
400 125 160 125 QFS Galv 0,9mm 4,7 8240004655‍
400 125 180 125 QFS Galv 0,9mm 4,78 8240004656‍
400 125 200 125 QFS Galv 0,9mm 4,85 8240004657‍
400 125 224 125 QFS Galv 0,9mm 4,93 8240004658‍
400 125 250 125 QFS Galv 0,9mm 5,01 8240004659‍
400 125 300 125 QFS Galv 0,9mm 5,17 8240004660‍
400 125 315 125 QFS Galv 0,9mm 5,24 8240004661‍
400 125 350 125 QFS Galv 0,9mm 5,34 8240004662‍
400 125 400 125 QFS Galv 0,9mm 5,48 8240004663‍
400 140 140 140 QFS Galv 0,9mm 5,06 8240004664‍
400 140 150 140 QFS Galv 0,9mm 5,1 8240004665‍
400 140 160 140 QFS Galv 0,9mm 5,13 8240004666‍
400 140 180 140 QFS Galv 0,9mm 5,22 8240004667‍
400 140 200 140 QFS Galv 0,9mm 5,29 8240004668‍
400 140 224 140 QFS Galv 0,9mm 5,37 8240004669‍
400 140 250 140 QFS Galv 0,9mm 5,46 8240004670‍
400 140 300 140 QFS Galv 0,9mm 5,62 8240004671‍
400 140 315 140 QFS Galv 0,9mm 5,69 8240004672‍
400 140 350 140 QFS Galv 0,9mm 5,79 8240004673‍
400 140 400 140 QFS Galv 0,9mm 5,92 8240004674‍
400 150 150 150 QFS Galv 0,9mm 5,39 8240004675‍
400 150 160 150 QFS Galv 0,9mm 5,43 8240004676‍
400 150 180 150 QFS Galv 0,9mm 5,52 8240004677‍
400 150 200 150 QFS Galv 0,9mm 5,59 8240004678‍
400 150 224 150 QFS Galv 0,9mm 5,69 8240004679‍
400 150 250 150 QFS Galv 0,9mm 5,77 8240004680‍
400 150 300 150 QFS Galv 0,9mm 5,93 8240004681‍
400 150 315 150 QFS Galv 0,9mm 5,98 8240004682‍
400 150 350 150 QFS Galv 0,9mm 6,1 8240004683‍
400 150 400 150 QFS Galv 0,9mm 6,23 8240004684‍
400 160 160 160 QFS Galv 0,9mm 5,74 8240004685‍
400 160 180 160 QFS Galv 0,9mm 5,83 8240004686‍
400 160 200 160 QFS Galv 0,9mm 5,9 8240004687‍
400 160 224 160 QFS Galv 0,9mm 5,99 8240004688‍
400 160 250 160 QFS Galv 0,9mm 6,08 8240004689‍
400 160 300 160 QFS Galv 0,9mm 6,24 8240004690‍
400 160 315 160 QFS Galv 0,9mm 6,31 8240004691‍
400 160 350 160 QFS Galv 0,9mm 6,41 8240004692‍
400 160 400 160 QFS Galv 0,9mm 6,54 8240004693‍
400 180 180 180 QFS Galv 0,9mm 6,5 8240004694‍
400 180 200 180 QFS Galv 0,9mm 6,57 8240004695‍
400 180 224 180 QFS Galv 0,9mm 6,66 8240004696‍
400 180 250 180 QFS Galv 0,9mm 6,75 8240004697‍
400 180 300 180 QFS Galv 0,9mm 6,92 8240004698‍
400 180 315 180 QFS Galv 0,9mm 6,99 8240004699‍
400 180 350 180 QFS Galv 0,9mm 7,08 8240004700‍
400 180 400 180 QFS Galv 0,9mm 7,21 8240004701‍
400 200 200 200 QFS Galv 0,9mm 7,27 8240004702‍
400 200 224 200 QFS Galv 0,9mm 7,36 8240004703‍
400 200 250 200 QFS Galv 0,9mm 7,45 8240004704‍
400 200 300 200 QFS Galv 0,9mm 7,61 8240004705‍
400 200 315 200 QFS Galv 0,9mm 7,68 8240004706‍
400 200 350 200 QFS Galv 0,9mm 7,78 8240004707‍
400 200 400 200 QFS Galv 0,9mm 7,89 8240004708‍
400 224 224 224 QFS Galv 0,9mm 8,2 8240004709‍
400 224 250 224 QFS Galv 0,9mm 8,29 8240004710‍
400 224 300 224 QFS Galv 0,9mm 8,45 8240004711‍
400 224 315 224 QFS Galv 0,9mm 8,52 8240004712‍
400 224 350 224 QFS Galv 0,9mm 8,61 8240004713‍
400 224 400 224 QFS Galv 0,9mm 8,72 8240004714‍
400 250 250 250 QFS Galv 0,9mm 9,27 8240004715‍
400 250 300 250 QFS Galv 0,9mm 9,41 8240004716‍
400 250 315 250 QFS Galv 0,9mm 9,48 8240004717‍
400 250 350 250 QFS Galv 0,9mm 9,57 8240004718‍
400 250 400 250 QFS Galv 0,9mm 9,66 8240004719‍
400 300 300 300 QFS Galv 0,9mm 11,43 8240004720‍
400 300 315 300 QFS Galv 0,9mm 11,49 8240004721‍
400 300 350 300 QFS Galv 0,9mm 11,57 8240004722‍
400 300 400 300 QFS Galv 0,9mm 11,64 8240004723‍
400 315 315 315 QFS Galv 0,9mm 12,18 8240004724‍
400 315 350 315 QFS Galv 0,9mm 12,24 8240004725‍
400 315 400 315 QFS Galv 0,9mm 12,31 8240004726‍
400 350 350 350 QFS Galv 0,9mm 13,79 8240004727‍
400 350 400 350 QFS Galv 0,9mm 13,84 8240004728‍
400 400 400 400 QFS Galv 0,9mm 16,27 8240004729‍

Get in touch

+44 (0) 1132 739 400 - [email protected]
Contact Nordfab UK

It looks like you're coming from United States.

Would you like to go to the United States site?
