The solid welds on Nordfab's welded (W) Quick-Fit duct (Ø80-400 mm) prevent leakage, saving energy costs. Diameters above 400 mm are manufactured with a lockformed seam.
Quick-Fit Sealed (QFS) Ducting
When used for machining and any other operations which create oil mists, Nordfab Quick-Fit ducting can be used with added epoxy caulked and double sealing at connections. Nordfab Quick-Fit Sealed (QFS) significantly reduce risks of leakage from ducting.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install

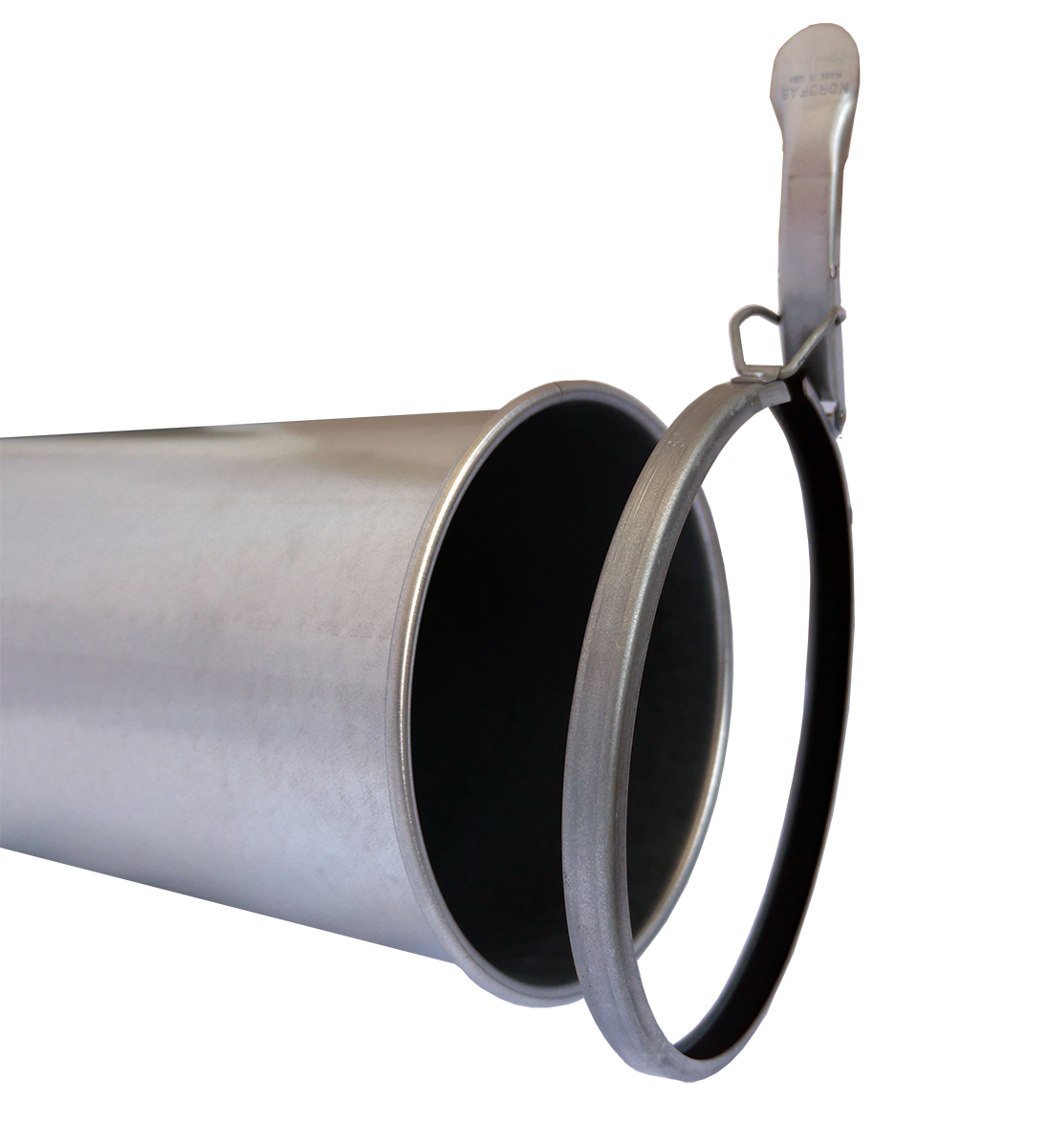

Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 0,7mm | 1000 | 1,38 | 8240020379 |
| 100 | Galv | 0,7mm | 1000 | 1,77 | 8240020382 |
| 125 | Galv | 0,7mm | 1000 | 2,23 | 8240020385 |
| 140 | Galv | 0,7mm | 1000 | 2,5 | 8240020388 |
| 150 | Galv | 0,7mm | 1000 | 2,68 | 8240020391 |
| 160 | Galv | 0,7mm | 1000 | 2,87 | 8240020394 |
| 180 | Galv | 0,7mm | 1000 | 3,31 | 8240020397 |
| 200 | Galv | 0,7mm | 1000 | 3,68 | 8240020400 |
| 224 | Galv | 0,7mm | 1000 | 4,14 | 8240020403 |
| 250 | Galv | 0,7mm | 1000 | 4,63 | 8240020406 |
| 300 | Galv | 0,7mm | 1000 | 5,74 | 8240020409 |
| 315 | Galv | 0,7mm | 1000 | 6,03 | 8240020412 |
| 350 | Galv | 0,7mm | 1000 | 6,73 | 8240020415 |
| 400 | Galv | 0,9mm | 1000 | 9,72 | 8240020418 |
| 450 | Galv | 0,9mm | 1000 | 10,99 | 8240020421 |
| 500 | Galv | 0,9mm | 1000 | 12,27 | 8240020424 |
| 560 | Galv | 0,9mm | 1000 | 13,82 | 8240020427 |
| 630 | Galv | 0,9mm | 1000 | 14,94 | 8240020430 |
| 710 | Galv | 0,9mm | 1000 | 17,77 | 8240020433 |
| 80 | 304SS | 0,7mm | 1000 | 1,41 | 8240020719 |
| 100 | 304SS | 0,7mm | 1000 | 1,77 | 8240020722 |
| 125 | 304SS | 0,7mm | 1000 | 2,22 | 8240020725 |
| 140 | 304SS | 0,7mm | 1000 | 2,49 | 8240020728 |
| 150 | 304SS | 0,7mm | 1000 | 2,67 | 8240020731 |
| 160 | 304SS | 0,7mm | 1000 | 2,85 | 8240020734 |
| 180 | 304SS | 0,7mm | 1000 | 3,29 | 8240020737 |
| 200 | 304SS | 0,7mm | 1000 | 3,67 | 8240020740 |
| 224 | 304SS | 0,7mm | 1000 | 4,12 | 8240020743 |
| 250 | 304SS | 0,7mm | 1000 | 4,61 | 8240020746 |
| 300 | 304SS | 0,7mm | 1000 | 5,57 | 8240020749 |
| 315 | 304SS | 0,7mm | 1000 | 6,01 | 8240020752 |
| 350 | 304SS | 0,7mm | 1000 | 6,7 | 8240020755 |
| 400 | 304SS | 0,7mm | 1000 | 7,71 | 8240020758 |
| 450 | 304SS | 0,7mm | 1000 | 8,72 | 8240020761 |
| 500 | 304SS | 0,7mm | 1000 | 9,75 | 8240020764 |
| 560 | 304SS | 0,7mm | 1000 | 11 | 8240020767 |
| 630 | 304SS | 0,7mm | 1000 | 11,76 | 8240020770 |
| 710 | 304SS | 0,7mm | 1000 | 14,2 | 8240020773 |
| 125 | 1 | 8240070203 | |||
| 140 | 1 | 8240070204 | |||
| 150 | 1 | 8240070205 | |||
| 160 | 1 | 8240070206 | |||
| 180 | 1 | 8240070207 | |||
| 200 | 1 | 8240070208 | |||
| 224 | 1 | 8240070209 | |||
| 250 | 1 | 8240070210 | |||
| 300 | 1 | 8240070211 | |||
| 315 | 1 | 8240070212 | |||
| 350 | 1 | 8240070213 | |||
| 400 | 1 | 8240070214 | |||
| 450 | 1 | 8240070215 | |||
| 500 | 1 | 8240070216 | |||
| 560 | 1 | 8240070217 | |||
| 630 | 1 | 8240070218 | |||
| 710 | 1 | 8240070219 |
