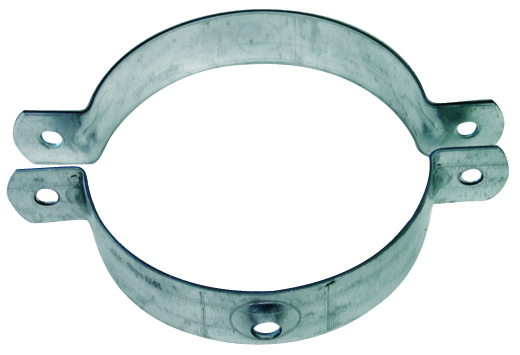

Nordfab Split Straps are designed for mounting Nordfab ductwork used in process ventilation, fume extraction, and dust collection systems. The suspension ring fits around the duct to enable hanging the duct using a rod.
• Available in galvanised steel, mild steel, or 304SS construction.
• Includes bolt and nut.
• Available in sizes Ø 080 mm -800 mm with 3,0 mm steel thickness.
• Please note, The 304SS and UK versions of the KVDA Split Strap are without the Ø 8 mm hole in one of the two halves.

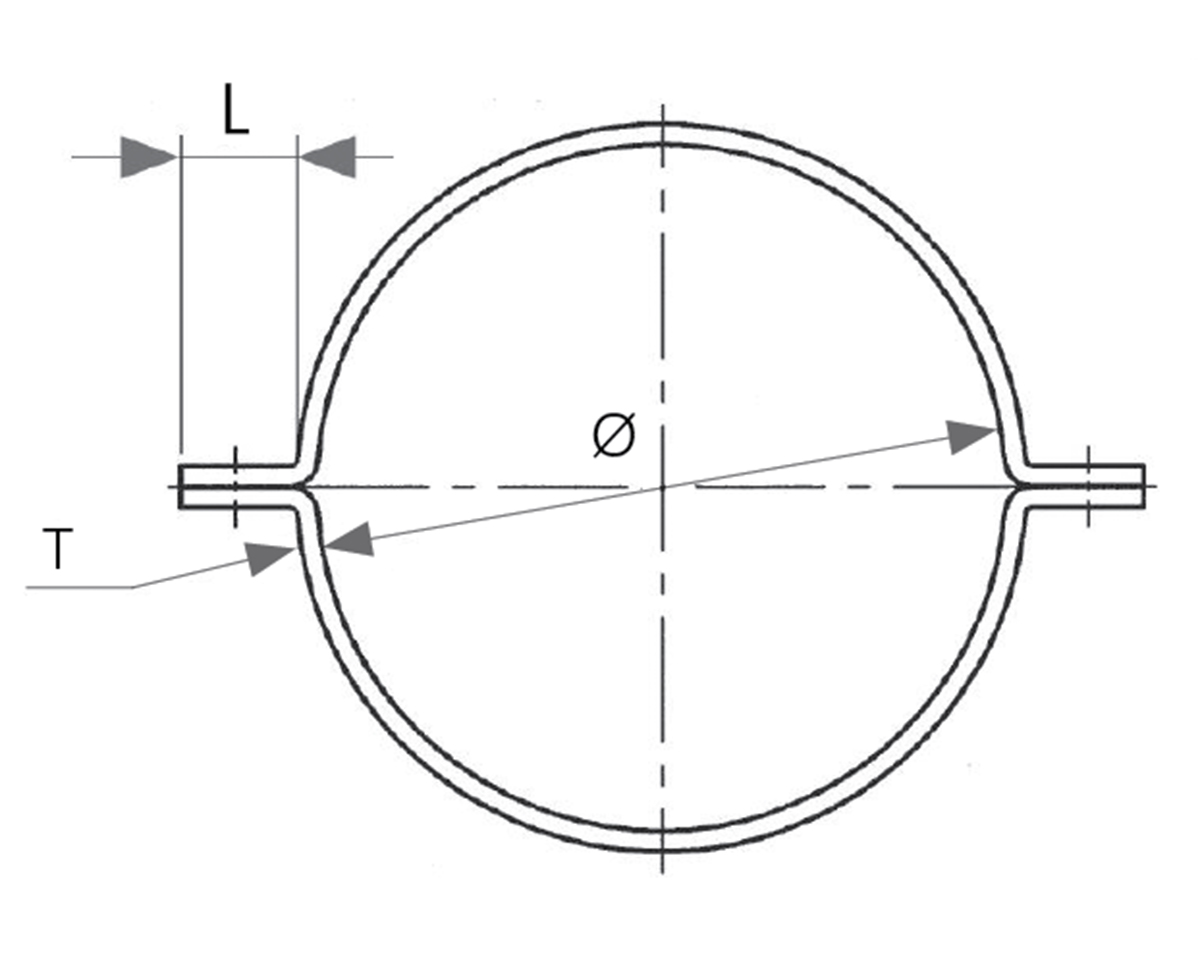

| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 3mm | 0,21 | 8210001108 | |
| 100 | Galv | 3mm | 0,25 | 8210001109 | |
| 120 | Galv | 3mm | 0,29 | 8210001110 | |
| 125 | Galv | 3mm | 0,3 | 8210001111 | |
| 140 | Galv | 3mm | 0,33 | 8210001112 | |
| 150 | Galv | 3mm | 0,35 | 8210001113 | |
| 160 | Galv | 3mm | 0,38 | 8210001114 | |
| 180 | Galv | 3mm | 0,41 | 8210001115 | |
| 200 | Galv | 3mm | 0,48 | 8210001116 | |
| 224 | Galv | 3mm | 0,52 | 8210001117 | |
| 225 | Galv | 3mm | 0,57 | 8210003376 | |
| 250 | Galv | 3mm | 0,57 | 8210001118 | |
| 280 | Galv | 3mm | 0,57 | 8210001119 | |
| 300 | Galv | 3mm | 0,72 | 8210001120 | |
| 315 | Galv | 3mm | 0,72 | 8210001121 | |
| 325 | Galv | 3mm | 0,72 | 8210001122 | |
| 350 | Galv | 3mm | 0,8 | 8210001123 | |
| 400 | Galv | 3mm | 1,92 | 8210001124 | |
| 450 | Galv | 3mm | 2,15 | 8210001125 | |
| 500 | Galv | 3mm | 2,38 | 8210001126 | |
| 550 | Galv | 3mm | 2,6 | 8210001127 | |
| 560 | Galv | 3mm | 3,44 | 8210001128 | |
| 600 | Galv | 3mm | 2,97 | 8210001129 | |
| 630 | Galv | 3mm | 2,97 | 8210001130 | |
| 650 | Galv | 3mm | 3,06 | 8210001131 | |
| 710 | Galv | 3mm | 4,19 | 8210001132 | |
| 800 | Galv | 3mm | 4,19 | 8210001133 | |
| 80 | 304SS | 3mm | 0,2 | 8210001276 | |
| 100 | 304SS | 3mm | 0,2 | 8210001277 | |
| 125 | 304SS | 3mm | 0,24 | 8210001278 | |
| 140 | 304SS | 3mm | 0,26 | 8210001279 | |
| 150 | 304SS | 3mm | 0,28 | 8210001280 | |
| 160 | 304SS | 3mm | 0,29 | 8210001281 | |
| 180 | 304SS | 3mm | 0,32 | 8210001282 | |
| 200 | 304SS | 3mm | 0,35 | 8210001283 | |
| 224 | 304SS | 3mm | 0 | 8210001284 | |
| 250 | 304SS | 3mm | 0,43 | 8210001285 | |
| 300 | 304SS | 3mm | 0,5 | 8210001286 | |
| 315 | 304SS | 3mm | 0,53 | 8210001287 | |
| 350 | 304SS | 3mm | 1,15 | 8210001288 | |
| 400 | 304SS | 3mm | 1,3 | 8210001289 | |
| 450 | 304SS | 3mm | 1,45 | 8210001290 | |
| 500 | 304SS | 3mm | 1,59 | 8210001291 | |
| 560 | 304SS | 3mm | 1,77 | 8210001292 | |
| 630 | 304SS | 3mm | 1,98 | 8210001293 | |
| 710 | 304SS | 3mm | 2,21 | 8210001294 |
