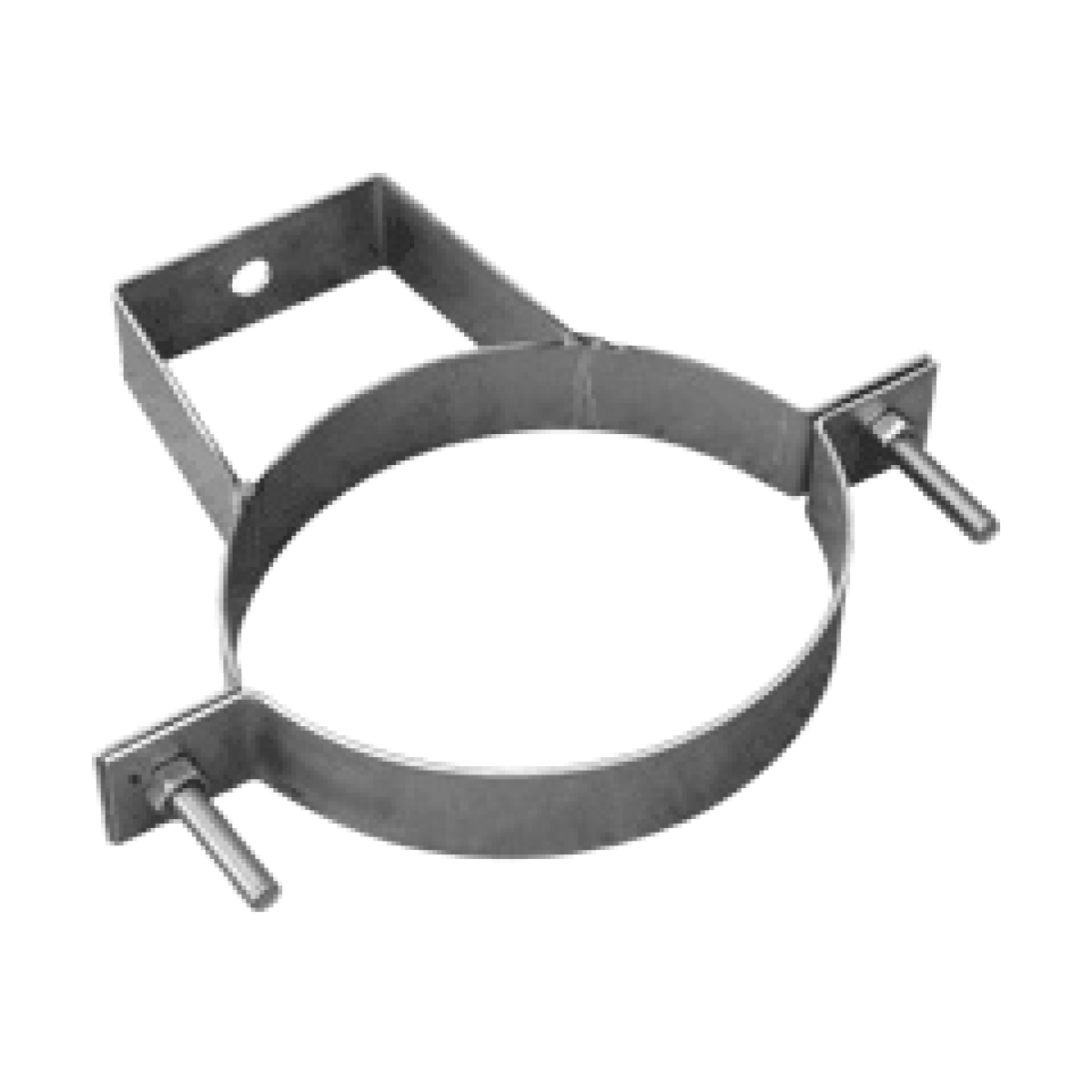

Nordfab Pipe Hangers are designed for mounting Nordfab ductwork used in process ventilation, fume extraction, and dust collection systems. The suspension ring fits around the duct to enable hanging the duct using a rod.
• Available in galvanised steel construction.
• Includes bolt and nut.
• Available in sizes Ø 080 mm -710 mm, with 3,0 or 4,0 mm steel thickness.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 3mm | 0.4 | 8210008392 | |
| 100 | Galv | 3mm | 0.4 | 8210008393 | |
| 125 | Galv | 3mm | 0.4 | 8210008395 | |
| 140 | Galv | 3mm | 0.5 | 8210008396 | |
| 150 | Galv | 3mm | 0.5 | 8210008397 | |
| 160 | Galv | 3mm | 0.5 | 8210008398 | |
| 180 | Galv | 3mm | 0.6 | 8210008399 | |
| 200 | Galv | 3mm | 0.6 | 8210008400 | |
| 224 | Galv | 3mm | 0.7 | 8210008401 | |
| 250 | Galv | 4mm | 1.2 | 8210008402 | |
| 280 | Galv | 4mm | 1.3 | 8210008403 | |
| 300 | Galv | 4mm | 1.4 | 8210008533 | |
| 315 | Galv | 4mm | 1.5 | 8210008404 | |
| 350 | Galv | 4mm | 1.7 | 8210008405 | |
| 400 | Galv | 4mm | 1.9 | 8210008406 | |
| 450 | Galv | 4mm | 2 | 8210008407 | |
| 500 | Galv | 4mm | 2.4 | 8210008408 | |
| 560 | Galv | 4mm | 2.7 | 8210008409 | |
| 630 | Galv | 4mm | 3 | 8210008410 | |
| 710 | Galv | 4mm | 3.3 | 8210008412 |
