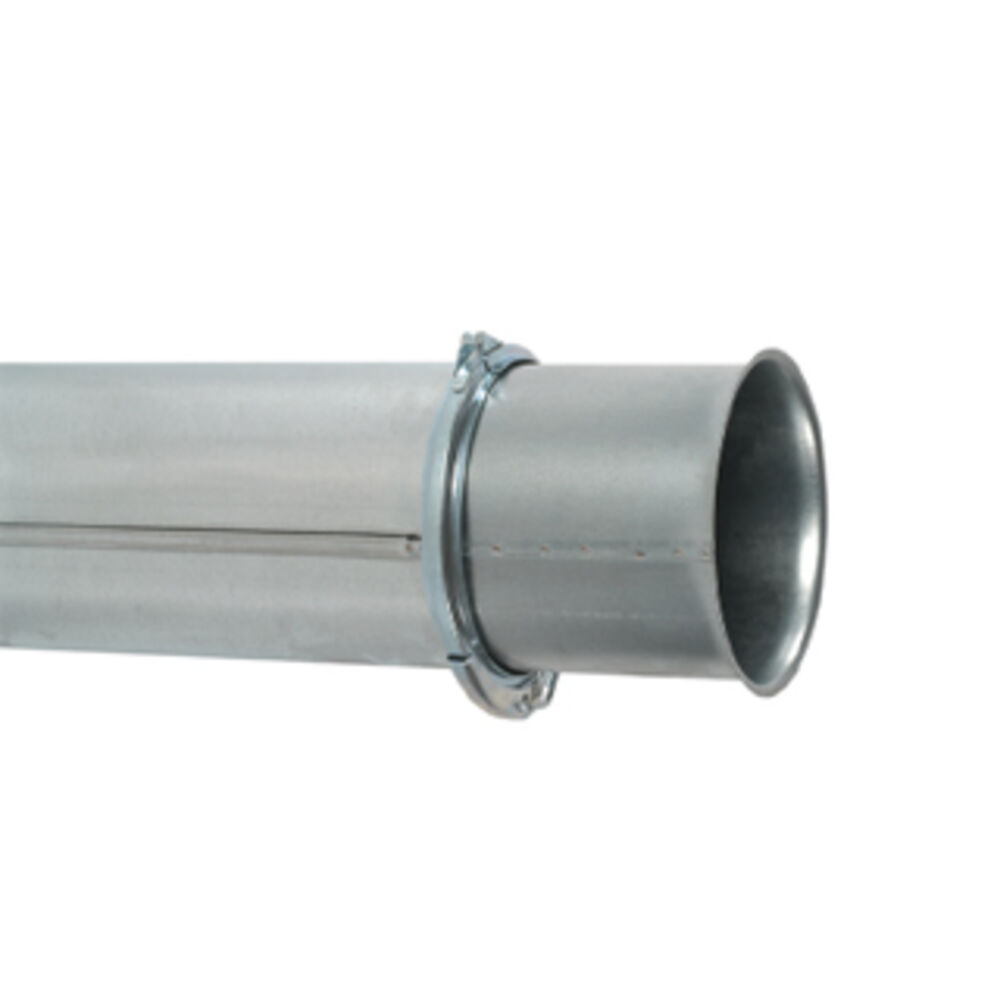

The FB Telescopic Duct is being used to provide variable length adjustment of a FB system by eliminating precise measurements. Its including quicklock is connected to other ducting components using FB Clips.
- Galvanised steel construction with laser welded seam
- Available in sizes Ø 80 mm - 350 mm with steel thickness 0,7 mm and Ø 400 mm with thickness 0,9 mm
- Length is 500 mm
The FB Duct System is used in dust collection, process ventilation, and fume extraction systems in a wide variety of industries. Nordfab FB Ducting features a flat edge on the connecting ends.
| ø A (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 80 | Galv | 0,7mm | 500 | 1,06 | 8210004363 |
| 100 | Galv | 0,7mm | 500 | 1,33 | 8210004364 |
| 120 | Galv | 0,7mm | 500 | 1,57 | 8210004365 |
| 125 | Galv | 0,7mm | 500 | 1,61 | 8210004366 |
| 140 | Galv | 0,7mm | 500 | 1,81 | 8210004367 |
| 150 | Galv | 0,7mm | 500 | 1,95 | 8210004368 |
| 160 | Galv | 0,7mm | 500 | 2,05 | 8210004369 |
| 180 | Galv | 0,7mm | 500 | 2,05 | 8210004370 |
| 200 | Galv | 0,7mm | 500 | 2,3 | 8210004371 |
| 225 | Galv | 0,7mm | 500 | 2,53 | 8210004372 |
| 250 | Galv | 0,7mm | 500 | 2,9 | 8210004373 |
| 300 | Galv | 0,7mm | 500 | 3,75 | 8210004374 |
| 315 | Galv | 0,7mm | 500 | 3,93 | 8210004375 |
| 350 | Galv | 0,7mm | 500 | 4,52 | 8210004376 |
| 400 | Galv | 0,9mm | 500 | 5,11 | 8210004377 |
