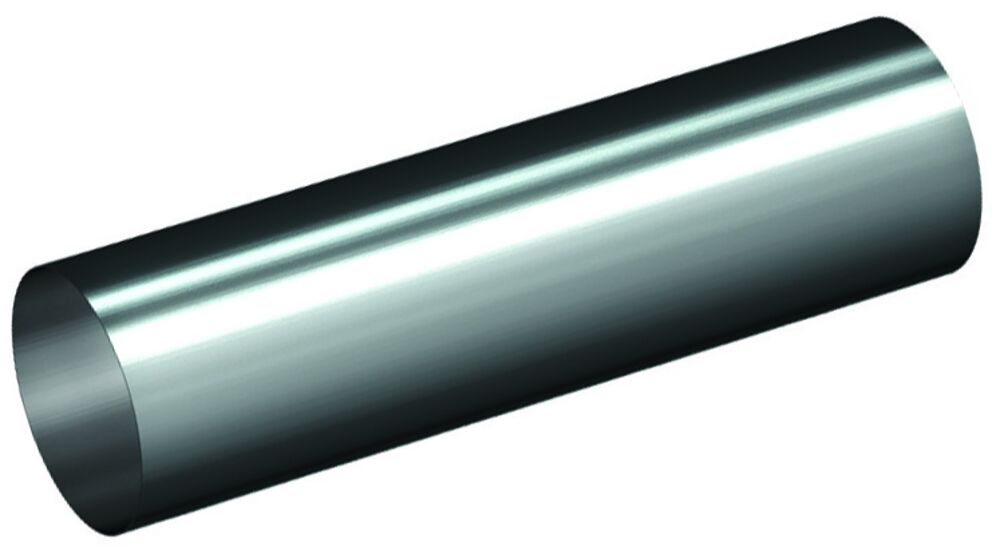

Used as main pipes in Nordfab High Vacuum Pipe System.
The term ‘high vacuum’ refers to the high vacuum and low airflow used to catch, transport and filter fumes, dust and other particles.
Our solutions include:
• Extraction of fumes from welding torches
• Extraction of grinding dust directly from the handheld grinding machine thanks to our range of manifolds that matches most hand-held machines on the market
• Cleaning of floors and machines etc. with our wide choice of accessories
• Transport of large volumes of material which may be both heavy and abrasive
Galvanised steel, 304SS, or 316L construction.
| ø A (mm) | L mm | Material | T mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|
| 50 | 3000 | Galv | 1,2mm | 5,5 | 40130440 |
| 50 | 6000 | Galv | 1,2mm | 8,66 | 40130450 |
| 63 | 3000 | Galv | 1,2mm | 5,7 | 40130420 |
| 63 | 6000 | Galv | 1,2mm | 11,3 | 40130430 |
| 76 | 3000 | Galv | 1,2mm | 5,55 | 40130400 |
| 76 | 6000 | Galv | 1,2mm | 11,1 | 40130410 |
| 102 | 3000 | Galv | 1,2mm | 8,8 | 40130380 |
| 102 | 6000 | Galv | 1,2mm | 17,7 | 40130390 |
| 127 | 3000 | Galv | 1,5mm | 14 | 40130360 |
| 127 | 6000 | Galv | 1,5mm | 27,96 | 40130361 |
| 152 | 3000 | Galv | 1,5mm | 16,5 | 40130340 |
| 152 | 6000 | Galv | 1,5mm | 32,96 | 40130350 |
| 203 | 3000 | Galv | 1,5mm | 22 | 40130320 |
| 203 | 6000 | Galv | 1,5mm | 44,06 | 40130330 |
| 50 | 3000 | 304SS | 1,2mm | 5,5 | 8210005128 |
| 50 | 6000 | 304SS | 1,2mm | 10,9 | 8210005129 |
| 63 | 3000 | 304SS | 1,2mm | 5,5 | 8210005130 |
| 63 | 6000 | 304SS | 1,2mm | 11 | 8210005131 |
| 76 | 3000 | 304SS | 1,2mm | 5,6 | 8210005132 |
| 76 | 6000 | 304SS | 1,2mm | 11,1 | 8210005133 |
| 102 | 3000 | 304SS | 1,5mm | 8,8 | 8210005134 |
| 102 | 6000 | 304SS | 1,5mm | 17,5 | 8210005135 |
| 127 | 3000 | 304SS | 1,5mm | 9,3 | 8210005136 |
| 127 | 6000 | 304SS | 1,5mm | 18,6 | 8210005137 |
| 50 | 3000 | 316SS | 1,2mm | 5,5 | 8210005000 |
| 50 | 6000 | 316SS | 1,2mm | 10,9 | 8210005001 |
| 63 | 3000 | 316SS | 1,6mm | 7,45 | 8210005002 |
| 63 | 6000 | 316SS | 1,6mm | 14,91 | 8210005003 |
| 76 | 3000 | 316SS | 1,6mm | 8,99 | 8210005004 |
| 76 | 6000 | 316SS | 1,6mm | 17,98 | 8210005005 |
| 102 | 3000 | 316SS | 2mm | 14,79 | 8210005006 |
| 102 | 6000 | 316SS | 2mm | 29,58 | 8210005007 |
| 129 | 3000 | 316SS | 2mm | 19,23 | 8210005008 |
| 129 | 6000 | 316SS | 2mm | 38,45 | 8210005009 |
| 154 | 3000 | 316SS | 2mm | 22,78 | 8210005010 |
| 154 | 6000 | 316SS | 2mm | 45,56 | 8210005011 |
