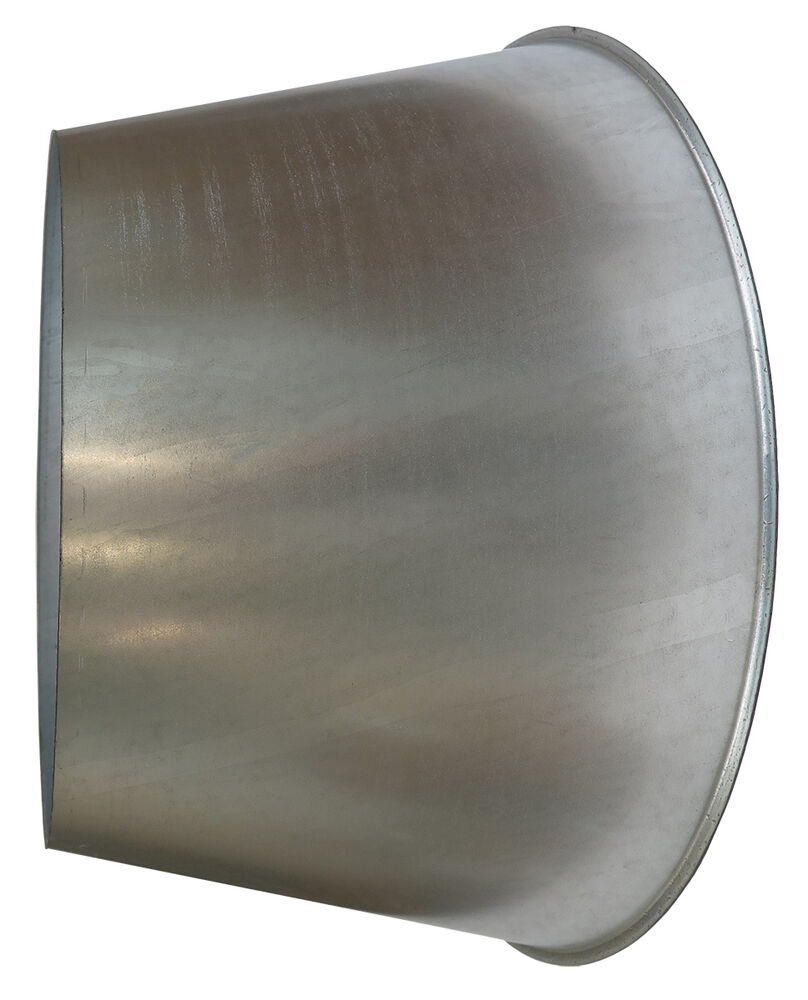

Quick-Fit (QF) Regulation cone is attached inside duct and designed to regulate or control the flow of air within the duct system. It is available in galvanised steel construction and ranges from 80 mm - 630 mm in diameter.
The world's fastest ducting
For most dust and fume collection requirements and applications, Nordfab Quick-Fit (QF) modular clip-together ducting is a crucial component of dust collection, fume extraction, and process ventilation systems. It has the capability to significantly reduce installation time by up to 50%, resulting in cost savings and reduced downtime.
Easy to install
Quick-Fit is easy and quick to install, designed for effortless cleaning, and can be reused when adjusting facility layouts, providing one of the lowest life-cycle costs of any ducting product. The Quick-Fit rolled edges allow quick and easy connections with the Quick-Fit Clip when installing, extending, or taking apart runs of duct.
| ø A (mm) | ø B (mm) | Material | T mm | L mm | Weight(kg) | Item No. |
|---|---|---|---|---|---|---|
| 80 | 50 | Galv | 0,7mm | 0,2 | 8210001837 | |
| 100 | 50 | Galv | 0,7mm | 0,2 | 8210001838 | |
| 125 | 75 | Galv | 0,7mm | 0,2 | 8210001839 | |
| 140 | 75 | Galv | 0,7mm | 0,3 | 8210001840 | |
| 150 | 75 | Galv | 0,7mm | 0,4 | 8210001841 | |
| 160 | 75 | Galv | 0,7mm | 0,4 | 8210001842 | |
| 180 | 75 | Galv | 0,7mm | 0,5 | 8210001843 | |
| 200 | 100 | Galv | 0,7mm | 0,88 | 8210001844 | |
| 224 | 150 | Galv | 0,7mm | 0,9 | 8210001845 | |
| 250 | 150 | Galv | 0,7mm | 0,9 | 8210001846 | |
| 300 | 215 | Galv | 0,7mm | 1,5 | 8210001847 | |
| 315 | 200 | Galv | 0,9mm | 2,4 | 8210001848 | |
| 400 | 250 | Galv | 0,9mm | 3,2 | 8210001849 | |
| 450 | 300 | Galv | 0,9mm | 4,1 | 8210001850 | |
| 500 | 350 | Galv | 0,9mm | 5,1 | 8210001851 | |
| 560 | 400 | Galv | 0,9mm | 6 | 8210001852 | |
| 600 | 400 | Galv | 0,9mm | 6 | 8210001853 | |
| 630 | 450 | Galv | 0,9mm | 6 | 8210001854 |
