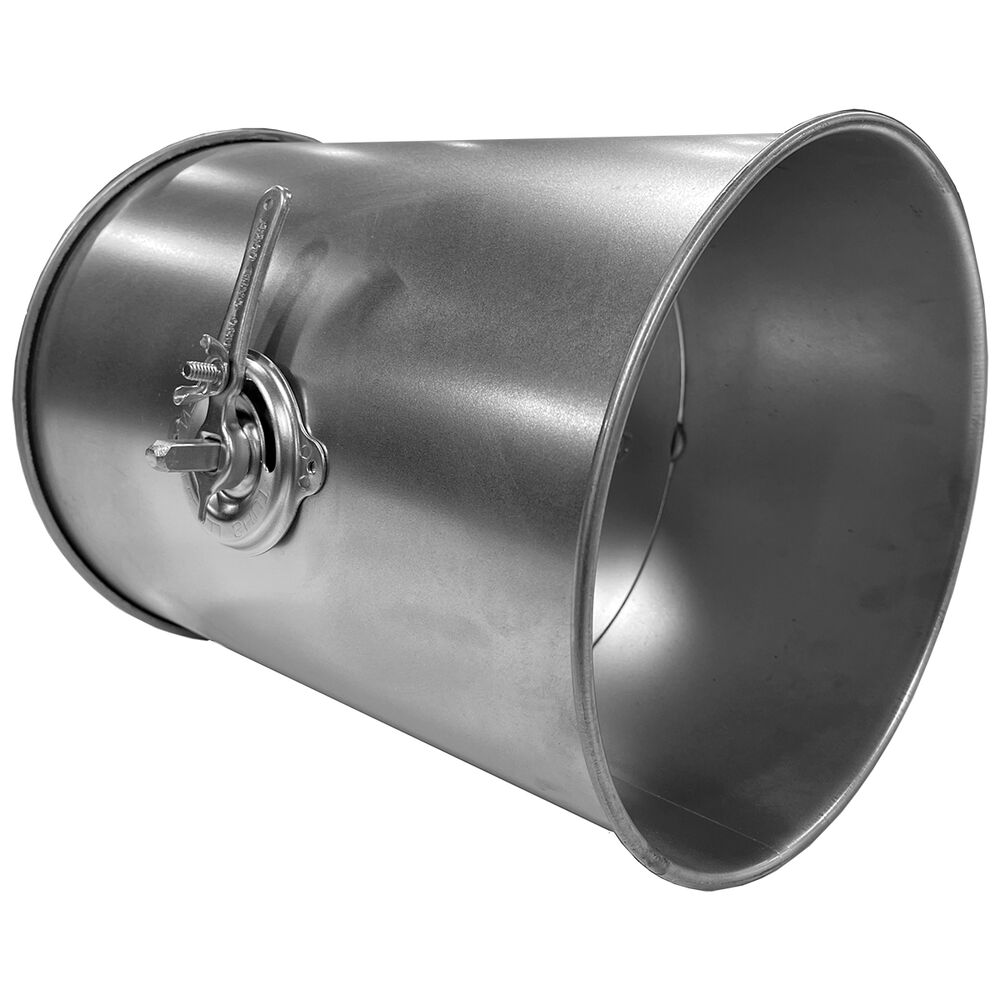

QF Butterfly Valve

The Quick-Fit® Butterfly Valve is constructed with a standard locking quadrant handle that enables users to regulate air volumes in clean air applications. For use only in clean air applications.

  • Available in galvanized steel and 304SS (as shown below) or optional 316SS
  • Available with flanged ends in diameters up to 24", and other end types
  • Optional material gauges 18 and 16
  • QF Butterfly Valves are a Nordfab Now® product so items in the most commonly used sizes and material are in stock and can typically be shipped the day after order placement. Let Nordfab or your authorized dealer know if your order is urgent.

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Quick-Fit ducting has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote



Download our Butterfly Valve Product Data sheet



ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 1.5 3208-0300-100000‍ 8010005257‍
4 Galv 22ga 1.65 3208-0400-100000‍ 8010005258‍
5 Galv 22ga 2 3208-0500-100000‍ 8010005259‍
6 Galv 22ga 2.4 3208-0600-100000‍ 8010005260‍
7 Galv 22ga 3.2 3208-0700-100000‍ 8010005261‍
8 Galv 22ga 4.1 3208-0800-100000‍ 8010005262‍
9 Galv 22ga 4.85 3208-0900-100000‍ 8010005263‍
10 Galv 22ga 5.45 3208-1000-100000‍ 8010005256‍
11 Galv 20ga 7 3208-1100-100000‍ 8010005242‍
12 Galv 20ga 8.4 3208-1200-100000‍ 8010005243‍
13 Galv 20ga 9.75 3208-1300-100000‍ 8010005244‍
14 Galv 20ga 11.85 3208-1400-100000‍ 8010005245‍
15 Galv 20ga 12.7 3208-1500-100000‍ 8010005246‍
16 Galv 20ga 14.2 3208-1600-100000‍ 8010005247‍
17 Galv 20ga 16.1 3208-1700-100000‍ 8010005248‍
18 Galv 20ga 18 3208-1800-100000‍ 8010005249‍
19 Galv 20ga 22.5 3208-1900-100000‍ 8010005250‍
20 Galv 20ga 27.75 3208-2000-100000‍ 8010005251‍
21 Galv 20ga 30 3208-2100-100000‍ 8010005252‍
22 Galv 20ga 32.4 3208-2200-100000‍ 8010005253‍
23 Galv 20ga 37.5 3208-2300-100000‍ 8010005254‍
24 Galv 20ga 37.9 3208-2400-100000‍ 8010005255‍
3 304SS 22ga 1.5 3208-0300-200000‍ 8010005235‍
4 304SS 22ga 1.65 3208-0400-200000‍ 8010005236‍
5 304SS 22ga 2 3208-0500-200000‍ 8010005237‍
6 304SS 22ga 2.4 3208-0600-200000‍ 8010005238‍
7 304SS 22ga 3.2 3208-0700-200000‍ 8010005239‍
8 304SS 22ga 4.1 3208-0800-200000‍ 8010005240‍
9 304SS 22ga 4.85 3208-0900-200000‍ 8010005241‍
10 304SS 22ga 5.45 3208-1000-200000‍ 8010005234‍
11 304SS 20ga 7 3208-1100-200000‍ 8010005220‍
12 304SS 20ga 8.4 3208-1200-200000‍ 8010005221‍
13 304SS 20ga 9.75 3208-1300-200000‍ 8010005222‍
14 304SS 20ga 11.85 3208-1400-200000‍ 8010005223‍
15 304SS 20ga 12.7 3208-1500-200000‍ 8010005224‍
16 304SS 20ga 14.2 3208-1600-200000‍ 8010005225‍
17 304SS 20ga 16.1 3208-1700-200000‍ 8010005226‍
18 304SS 20ga 18 3208-1800-200000‍ 8010005227‍
19 304SS 20ga 22.5 3208-1900-200000‍ 8010005228‍
20 304SS 20ga 27.75 3208-2000-200000‍ 8010005229‍
21 304SS 20ga 30 3208-2100-200000‍ 8010005230‍
22 304SS 20ga 32.4 3208-2200-200000‍ 8010005231‍
23 304SS 20ga 37.5 3208-2300-200000‍ 8010005232‍
24 304SS 20ga 37.9 3208-2400-200000‍ 8010005233‍
