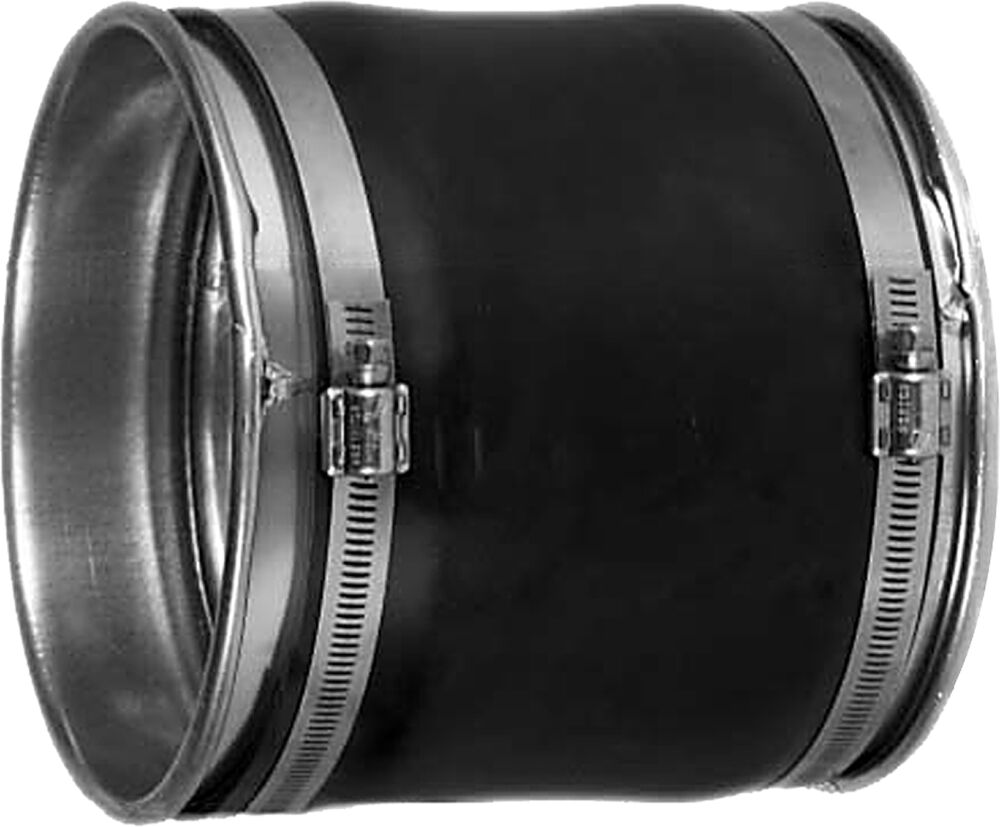

QF Vibration Isolator

Our Quick-Fit® Vibration Isolator reduces vibration from the fan to the dust collection duct system.

  • Available in galvanized steel and 304SS (as shown below) or optional 316SS
  • Available with flanged ends, in diameters up to 24", and other end types
  • Optional 16 gauge construction

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Quick-Fit ducting has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote



Download our Vibration Isolator Product Data sheet

If you need flanged connections or larger sizes than those shown below, please see our Flanged Vibration Isolator product page

ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 1.5 3206-0300-100000‍ 8010005319‍
4 Galv 22ga 2 3206-0400-100000‍ 8010005320‍
5 Galv 22ga 2.3 3206-0500-100000‍ 8010005321‍
6 Galv 22ga 2.9 3206-0600-100000‍ 8010005322‍
7 Galv 22ga 3.45 3206-0700-100000‍ 8010005323‍
8 Galv 22ga 3.8 3206-0800-100000‍ 8010005324‍
9 Galv 22ga 4.2 3206-0900-100000‍ 8010005325‍
10 Galv 22ga 4.8 3206-1000-100000‍ 8010005316‍
11 Galv 22ga 5.1 3206-1100-100000‍ 8010005317‍
12 Galv 22ga 5.6 3206-1200-100000‍ 8010005318‍
13 Galv 20ga 6 3206-1300-100000‍ 8010005304‍
14 Galv 20ga 7.6 3206-1400-100000‍ 8010005305‍
15 Galv 20ga 7.1 3206-1500-100000‍ 8010005306‍
16 Galv 20ga 8.6 3206-1600-100000‍ 8010005307‍
17 Galv 20ga 9.35 3206-1700-100000‍ 8010005308‍
18 Galv 20ga 10.15 3206-1800-100000‍ 8010005309‍
19 Galv 20ga 12.4 3206-1900-100000‍ 8010005310‍
20 Galv 20ga 12.4 3206-2000-100000‍ 8010005311‍
21 Galv 20ga 14.9 3206-2100-100000‍ 8010005312‍
22 Galv 20ga 14.9 3206-2200-100000‍ 8010005313‍
23 Galv 20ga 17.6 3206-2300-100000‍ 8010005314‍
24 Galv 20ga 17.6 3206-2400-100000‍ 8010005315‍
3 304SS 22ga 1.5 3206-0300-200000‍ 8010005279‍
4 304SS 22ga 2 3206-0400-200000‍ 8010005280‍
5 304SS 22ga 2.3 3206-0500-200000‍ 8010005281‍
6 304SS 22ga 2.9 3206-0600-200000‍ 8010005282‍
7 304SS 22ga 3.45 3206-0700-200000‍ 8010005283‍
8 304SS 22ga 3.8 3206-0800-200000‍ 8010005284‍
9 304SS 22ga 4.2 3206-0900-200000‍ 8010005285‍
10 304SS 22ga 4.8 3206-1000-200000‍ 8010005276‍
11 304SS 22ga 5.1 3206-1100-200000‍ 8010005277‍
12 304SS 22ga 5.6 3206-1200-200000‍ 8010005278‍
13 304SS 20ga 6 3206-1300-200000‍ 8010005264‍
14 304SS 20ga 7.6 3206-1400-200000‍ 8010005265‍
15 304SS 20ga 7.1 3206-1500-200000‍ 8010005266‍
16 304SS 20ga 8.6 3206-1600-200000‍ 8010005267‍
17 304SS 20ga 9.35 3206-1700-200000‍ 8010005268‍
18 304SS 20ga 10.15 3206-1800-200000‍ 8010005269‍
19 304SS 20ga 12.4 3206-1900-200000‍ 8010005270‍
20 304SS 20ga 12.4 3206-2000-200000‍ 8010005271‍
21 304SS 20ga 14.9 3206-2100-200000‍ 8010005272‍
22 304SS 20ga 14.9 3206-2200-200000‍ 8010005273‍
23 304SS 20ga 17.6 3206-2300-200000‍ 8010005274‍
24 304SS 20ga 17.6 3206-2400-200000‍ 8010005275‍
