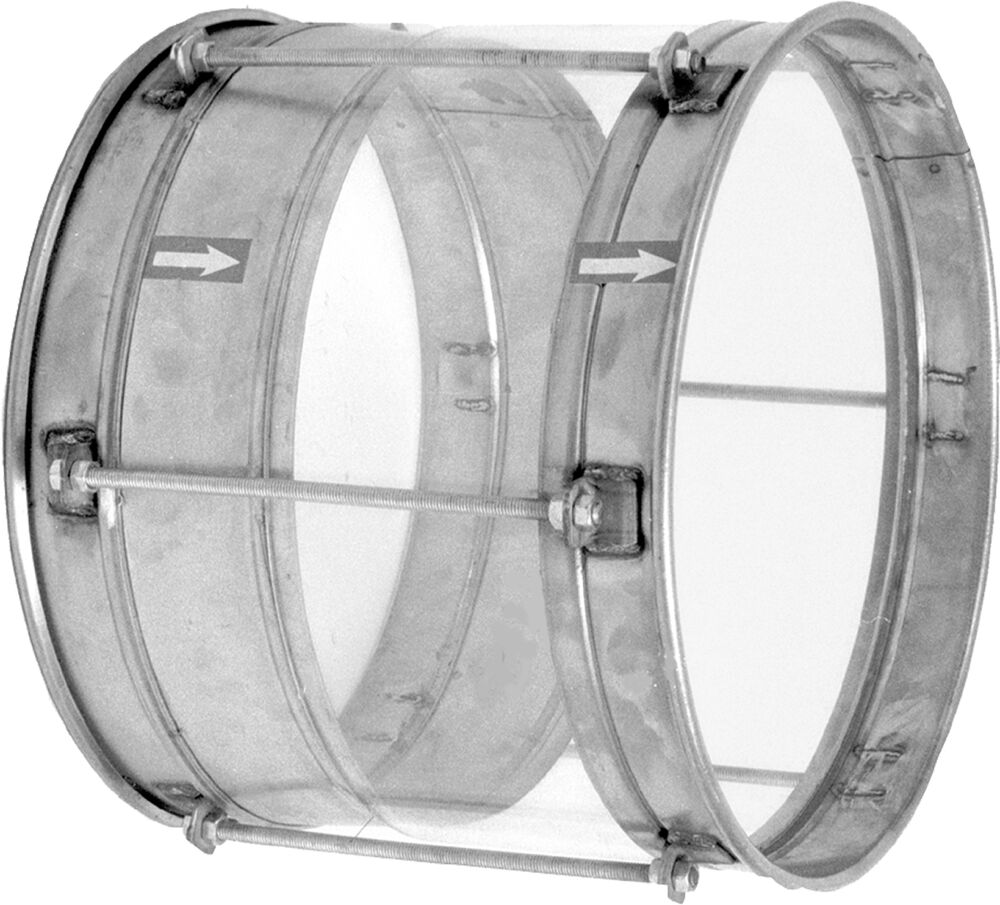

QF Viewing Spool

Our Quick-Fit® Viewing Spool is Quick-Fit duct with a section of acrylic glass to allow view of material flow.

  • Available in galvanized steel and 304SS (as shown below) or optional 316SS
  • Available with flanged ends in diameters up to 18", and other various end types
  • Optional gauges 18 and 16

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Quick-Fit ducting has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote



Download our Viewing Spool Product Data sheet



ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 2.5 3205-0300-100000‍ 8010005353‍
4 Galv 22ga 3 3205-0400-100000‍ 8010005354‍
5 Galv 22ga 3.5 3205-0500-100000‍ 8010005355‍
6 Galv 22ga 4.1 3205-0600-100000‍ 8010005356‍
7 Galv 22ga 4.6 3205-0700-100000‍ 8010005357‍
8 Galv 22ga 5 3205-0800-100000‍ 8010005358‍
9 Galv 22ga 5.45 3205-0900-100000‍ 8010005359‍
10 Galv 22ga 6.25 3205-1000-100000‍ 8010005349‍
11 Galv 22ga 7.1 3205-1100-100000‍ 8010005350‍
12 Galv 22ga 8.2 3205-1200-100000‍ 8010005351‍
13 Galv 20ga 11.25 3205-1300-100000‍ 8010005342‍
14 Galv 20ga 14.1 3205-1400-100000‍ 8010005343‍
15 Galv 20ga 18.25 3205-1500-100000‍ 8010005344‍
16 Galv 20ga 18.25 3205-1600-100000‍ 8010005345‍
18 Galv 20ga 22.6 3205-1800-100000‍ 8010005346‍
3 304SS 22ga 2.5 3205-0300-200000‍ 8010005352‍
4 304SS 22ga 3 3205-0400-200000‍ 8010005336‍
5 304SS 22ga 3.5 3205-0500-200000‍ 8010005337‍
6 304SS 22ga 4.1 3205-0600-200000‍ 8010005338‍
7 304SS 22ga 4.6 3205-0700-200000‍ 8010005339‍
8 304SS 22ga 5 3205-0800-200000‍ 8010005340‍
9 304SS 22ga 5.45 3205-0900-200000‍ 8010005341‍
10 304SS 22ga 6.25 3205-1000-200000‍ 8010005333‍
11 304SS 22ga 7.1 3205-1100-200000‍ 8010005334‍
12 304SS 22ga 8.2 3205-1200-200000‍ 8010005335‍
13 304SS 20ga 11.25 3205-1300-200000‍ 8010005326‍
14 304SS 20ga 14.1 3205-1400-200000‍ 8010005327‍
15 304SS 20ga 18.25 3205-1500-200000‍ 8010005328‍
16 304SS 20ga 18.25 3205-1600-200000‍ 8010005329‍
18 304SS 20ga 22.6 3205-1800-200000‍ 8010005330‍
