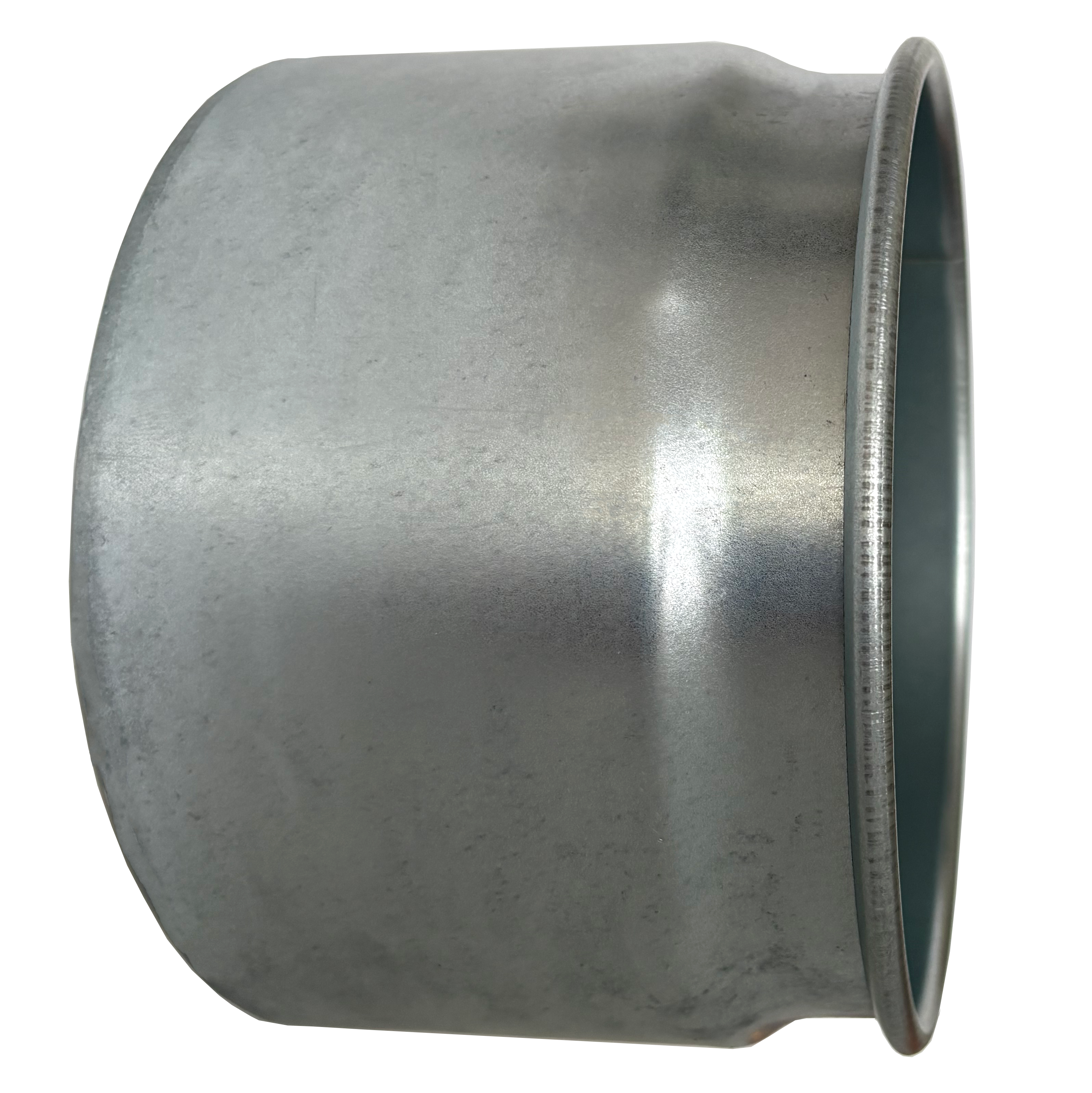

QF Machine Adapter

Nordfab QF® Machine Adapters allow easy connection of Quick-Fit (QF) ductwork to machines requiring dust or fume removal.

End types are QF (rolled edge) to NOFIT (plain edge). If expanded, specify desired ID or OD of NOFIT end. Expanded must be within maximum opened dimension (.3″), or product is a Reducer.

  • Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
  • Optional gauges 18, 16, 14, and 12
  • QF Machine Adapters are a Nordfab Now® product so items in the most commonly used sizes and material are in stock and can typically be shipped the day after order placement. Let Nordfab or your authorized dealer know if your order is urgent.

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote
Download our QF Machine Adapter Product Data sheet
Download our QF Machine Adapter Revit® families



ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 5.5 0.6 3249-0300-100000‍ 8040401685‍
4 Galv 22ga 4 0.75 3249-0400-100000‍ 8040401686‍
5 Galv 22ga 4 0.95 3249-0500-100000‍ 8040401687‍
6 Galv 22ga 4 1.1 3249-0600-100000‍ 8040401688‍
7 Galv 22ga 4 1.35 3249-0700-100000‍ 8040401689‍
8 Galv 22ga 4 1.5 3249-0800-100000‍ 8040401690‍
9 Galv 22ga 4 1.75 3249-0900-100000‍ 8040401691‍
10 Galv 22ga 4 1.95 3249-1000-100000‍ 8040401692‍
11 Galv 22ga 4 2.1 3249-1100-100000‍ 8040401693‍
12 Galv 22ga 4 2.3 3249-1200-100000‍ 8040401694‍
13 Galv 20ga 5.5 2.45 3249-1300-100000‍ 8040401695‍
14 Galv 20ga 5.5 2.7 3249-1400-100000‍ 8040401696‍
15 Galv 20ga 5.5 3.05 3249-1500-100000‍ 8040401697‍
16 Galv 20ga 5.5 3.2 3249-1600-100000‍ 8040401698‍
17 Galv 20ga 5.5 3.32 3249-1700-100000‍ 8040401699‍
18 Galv 20ga 5.5 3.45 3249-1800-100000‍ 8040401700‍
19 Galv 20ga 5.5 3.68 3249-1900-100000‍ 8040401701‍
20 Galv 20ga 5.5 3.9 3249-2000-100000‍ 8040401702‍
21 Galv 20ga 5.5 4.1 3249-2100-100000‍ 8040401703‍
22 Galv 20ga 5.5 4.3 3249-2200-100000‍ 8040401704‍
23 Galv 20ga 5.5 4.95 3249-2300-100000‍ 8040401705‍
24 Galv 20ga 5.5 5.6 3249-2400-100000‍ 8040401706‍
3 304SS 22ga 5.5 0.6 3249-0300-200000‍ 8040401707‍
4 304SS 22ga 4 0.75 3249-0400-200000‍ 8040401708‍
5 304SS 22ga 4 0.95 3249-0500-200000‍ 8040401709‍
6 304SS 22ga 4 1.1 3249-0600-200000‍ 8040401710‍
7 304SS 22ga 4 1.35 3249-0700-200000‍ 8040401711‍
8 304SS 22ga 4 1.5 3249-0800-200000‍ 8040401712‍
9 304SS 22ga 4 1.75 3249-0900-200000‍ 8040401713‍
10 304SS 22ga 4 1.95 3249-1000-200000‍ 8040401714‍
11 304SS 22ga 4 2.1 3249-1100-200000‍ 8040401715‍
12 304SS 22ga 4 2.3 3249-1200-200000‍ 8040401716‍
13 304SS 20ga 5.5 2.45 3249-1300-200000‍ 8040401717‍
14 304SS 20ga 5.5 2.7 3249-1400-200000‍ 8040401718‍
15 304SS 20ga 5.5 3.05 3249-1500-200000‍ 8040401719‍
16 304SS 20ga 5.5 3.2 3249-1600-200000‍ 8040401720‍
17 304SS 20ga 5.5 3.32 3249-1700-200000‍ 8040401721‍
18 304SS 20ga 5.5 3.45 3249-1800-200000‍ 8040401722‍
19 304SS 20ga 5.5 3.68 3249-1900-200000‍ 8040401723‍
20 304SS 20ga 5.5 3.9 3249-2000-200000‍ 8040401724‍
21 304SS 20ga 5.5 4.1 3249-2100-200000‍ 8040401725‍
22 304SS 20ga 5.5 4.3 3249-2200-200000‍ 8040401726‍
23 304SS 20ga 5.5 4.95 3249-2300-200000‍ 8040401727‍
24 304SS 20ga 5.5 5.6 3249-2400-200000‍ 8040401728‍
