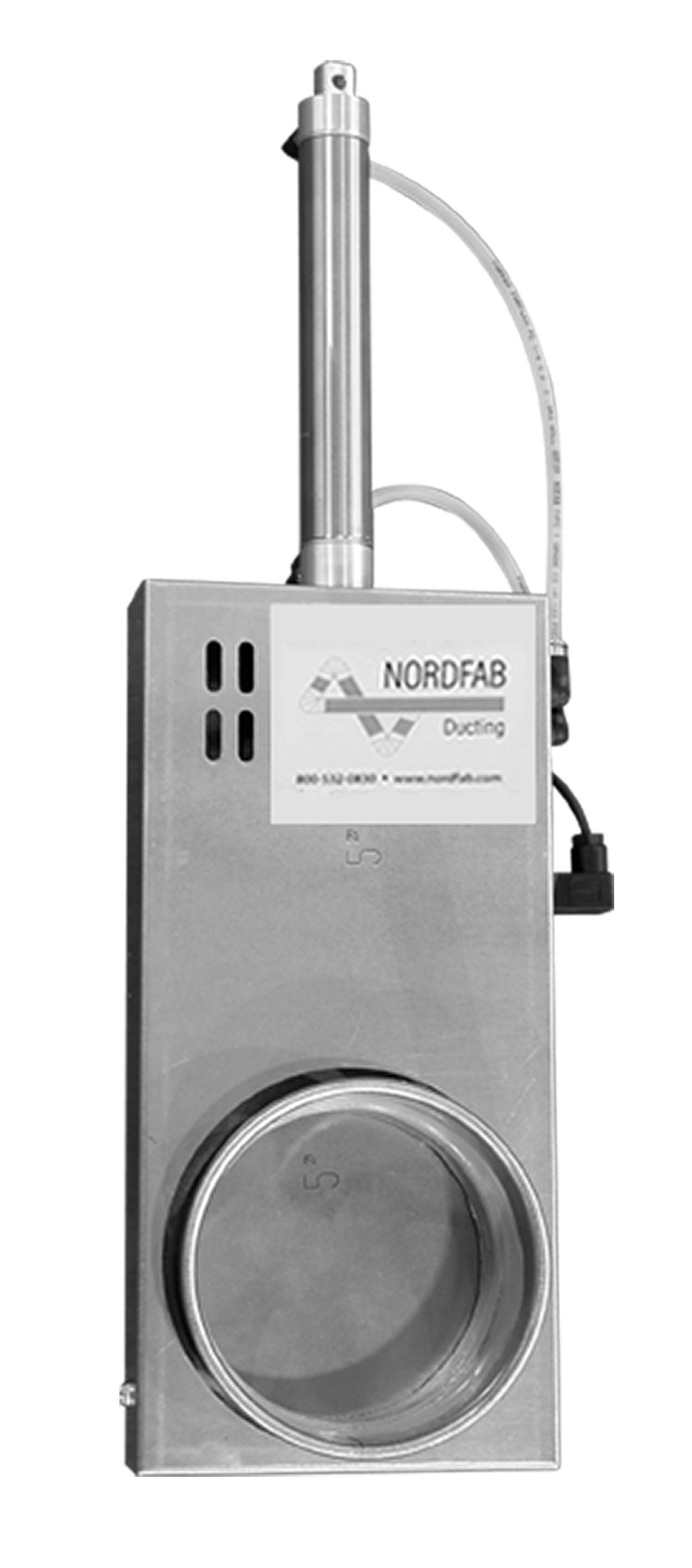

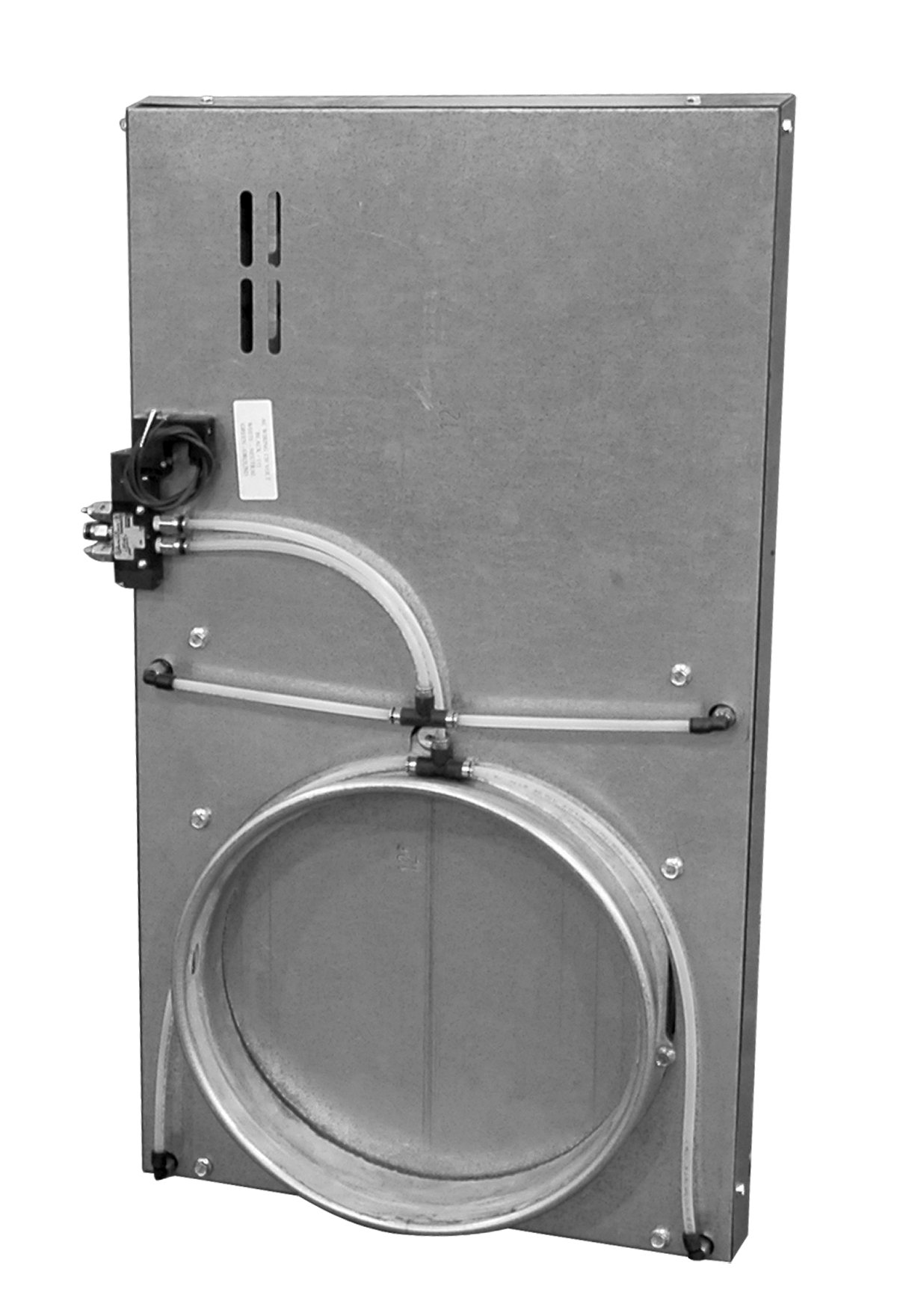

Nordfab SD Automatic Blast Gates are operated by compressed air cylinders, controlled by electrically connected solenoid. 120V control circuit and 75psi minimum air pressure.
Nordfab can assist customers in designing a blast-gated system, taking into account flow dynamics that will be affected by blast gates. While blast gates can be used to effectively utilize an undersized filtering system, they can also destroy the flow if not properly placed. Contact Nordfab or your local dealer to request assistance.
Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
ø A in | Material | Voltage/Control | T mm | Legacy Item No. | Item No. |
---|---|---|---|---|---|
3 | Galv | 120 VAC | 20ga | 3242-0300-100000 | 8010004951 |
3 | Galv | 120 VAC Reed Switch | 20ga | 3242-0300-1R0000 | 8010004952 |
3 | Galv | 24 VDC | 20ga | 3242-0300-1024DC | 8010004954 |
3 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0300-1R24AC | 8010002500 |
3 | Galv | 24 VDC Reed Switch | 20ga | 3242-0300-1R24DC | 8010004950 |
3 | Galv | 24 VAC | 20ga | 3242-0300-1024AC | 8010004953 |
4 | Galv | 120 VAC | 20ga | 3242-0400-100000 | 8010004956 |
4 | Galv | 120 VAC Reed Switch | 20ga | 3242-0400-1R0000 | 8010004957 |
4 | Galv | 24 VDC | 20ga | 3242-0400-1024DC | 8010004959 |
4 | Galv | 24 VDC Reed Switch | 20ga | 3242-0400-1R24DC | 8010004955 |
4 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0400-1R24AC | 8010002501 |
4 | Galv | 24 VAC | 20ga | 3242-0400-1024AC | 8010004958 |
5 | Galv | 120 VAC Reed Switch | 20ga | 3242-0500-1R0000 | 8010004961 |
5 | Galv | 120 VAC | 20ga | 3242-0500-100000 | 8010004960 |
5 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0500-1R24AC | 8010002502 |
5 | Galv | 24 VAC | 20ga | 3242-0500-1024AC | 8010004962 |
5 | Galv | 24 VDC | 20ga | 3242-0500-1024DC | 8010004963 |
5 | Galv | 24 VDC Sgl Actg RS | 22ga | 3242-0500-1R24DC | 8010002503 |
6 | Galv | 120 VAC | 20ga | 3242-0600-100000 | 8010004965 |
6 | Galv | 120 VAC Reed Switch | 20ga | 3242-0600-1R0000 | 8010004966 |
6 | Galv | 24 VDC Reed Switch | 20ga | 3242-0600-1R24DC | 8010004964 |
6 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0600-1R24AC | 8010002504 |
6 | Galv | 24 VAC | 20ga | 3242-0600-1024AC | 8010004967 |
6 | Galv | 24 VDC | 20ga | 3242-0600-1024DC | 8010004968 |
7 | Galv | 120 VAC | 20ga | 3242-0700-100000 | 8010004970 |
7 | Galv | 120 VAC Reed Switch | 20ga | 3242-0700-1R0000 | 8010004971 |
7 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0700-1R24AC | 8010002505 |
7 | Galv | 24 VDC Reed Switch | 20ga | 3242-0700-1R24DC | 8010004969 |
7 | Galv | 24 VAC | 20ga | 3242-0700-1024AC | 8010004972 |
7 | Galv | 24 VDC | 20ga | 3242-0700-1024DC | 8010004973 |
8 | Galv | 120 VAC | 20ga | 3242-0800-100000 | 8010004975 |
8 | Galv | 120 VAC Reed Switch | 20ga | 3242-0800-1R0000 | 8010004976 |
8 | Galv | 24 VDC Reed Switch | 20ga | 3242-0800-1R24DC | 8010004974 |
8 | Galv | 24 VAC | 20ga | 3242-0800-1024AC | 8010004977 |
8 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0800-1R24AC | 8010002506 |
8 | Galv | 24 VDC | 20ga | 3242-0800-1024DC | 8010004978 |
9 | Galv | 120 VAC Reed Switch | 20ga | 3242-0900-1R0000 | 8010004981 |
9 | Galv | 120 VAC | 20ga | 3242-0900-100000 | 8010004980 |
9 | Galv | 24 VAC | 20ga | 3242-0900-1024AC | 8010004982 |
9 | Galv | 24 VDC Reed Switch | 20ga | 3242-0900-1R24DC | 8010004979 |
9 | Galv | 24 VDC | 20ga | 3242-0900-1024DC | 8010004983 |
9 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-0900-1R24AC | 8010002507 |
10 | Galv | 120 VAC | 20ga | 3242-1000-100000 | 8010004942 |
10 | Galv | 120 VAC Reed Switch | 20ga | 3242-1000-1R0000 | 8010004943 |
10 | Galv | 24 VDC Sgl Actg RS | 22ga | 3242-1000-1R24DC | 8010002497 |
10 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-1000-1R24AC | 8010002496 |
10 | Galv | 24 VAC | 20ga | 3242-1000-1024AC | 8010004944 |
10 | Galv | 24 VDC | 20ga | 3242-1000-1024DC | 8010004945 |
12 | Galv | 120 VAC | 20ga | 3242-1200-100000 | 8010004946 |
12 | Galv | 120 VAC Reed Switch | 20ga | 3242-1200-1R0000 | 8010004947 |
12 | Galv | 24 VAC Sgl Actg RS | 22ga | 3242-1200-1R24AC | 8010002498 |
12 | Galv | 24 VDC Sgl Actg RS | 22ga | 3242-1200-1R24DC | 8010002499 |
12 | Galv | 24 VDC | 20ga | 3242-1200-1024DC | 8010004949 |
12 | Galv | 24 VAC | 20ga | 3242-1200-1024AC | 8010004948 |
14 | Galv | 120 VAC Reed Switch | 20ga | 3242-1400-1R0000 | 8010004916 |
14 | Galv | 120 VAC | 20ga | 3242-1400-100000 | 8010004915 |
14 | Galv | 24 VAC Sgl Actg RS | 20ga | 3242-1400-1R24AC | 8010002487 |
14 | Galv | 24 VAC | 20ga | 3242-1400-1024AC | 8010004917 |
14 | Galv | 24 VDC | 20ga | 3242-1400-1024DC | 8010004918 |
14 | Galv | 24 VDC Sgl Actg RS | 20ga | 3242-1400-1R24DC | 8010002488 |
16 | Galv | 120 VAC Reed Switch | 20ga | 3242-1600-1R0000 | 8010004920 |
16 | Galv | 120 VAC | 20ga | 3242-1600-100000 | 8010004919 |
16 | Galv | 24 VDC | 20ga | 3242-1600-1024DC | 8010004922 |
16 | Galv | 24 VAC Sgl Actg RS | 20ga | 3242-1600-1R24AC | 8010002489 |
16 | Galv | 24 VDC Sgl Actg RS | 20ga | 3242-1600-1R24DC | 8010002490 |
16 | Galv | 24 VAC | 20ga | 3242-1600-1024AC | 8010004921 |
18 | Galv | 120 VAC Reed Switch | 20ga | 3242-1800-1R0000 | 8010004924 |
18 | Galv | 120 VAC | 20ga | 3242-1800-100000 | 8010004923 |
18 | Galv | 24 VAC Sgl Actg RS | 20ga | 3242-1800-1R24AC | 8010002491 |
18 | Galv | 24 VAC | 20ga | 3242-1800-1024AC | 8010004925 |
18 | Galv | 24 VDC Sgl Actg RS | 20ga | 3242-1800-1R24DC | 8010002492 |
18 | Galv | 24 VDC | 20ga | 3242-1800-1024DC | 8010004926 |
20 | Galv | 120 VAC | 20ga | 3242-2000-100000 | 8010004928 |
20 | Galv | 120 VAC Reed Switch | 20ga | 3242-2000-1R0000 | 8010004929 |
20 | Galv | 24 VDC | 20ga | 3242-2000-1024DC | 8010004931 |
20 | Galv | 24 VAC | 20ga | 3242-2000-1024AC | 8010004930 |
20 | Galv | 24 VDC Reed Switch | 20ga | 3242-2000-1R24DC | 8010004927 |
20 | Galv | 24 VAC Sgl Actg RS | 20ga | 3242-2000-1R24AC | 8010002493 |
22 | Galv | 120 VAC | 20ga | 3242-2200-100000 | 8010004933 |
22 | Galv | 120 VAC Reed Switch | 20ga | 3242-2200-1R0000 | 8010004934 |
22 | Galv | 24 VDC | 20ga | 3242-2200-1024DC | 8010004936 |
22 | Galv | 24 VDC Reed Switch | 20ga | 3242-2200-1R24DC | 8010004932 |
22 | Galv | 24 VAC | 20ga | 3242-2200-1024AC | 8010004935 |
22 | Galv | 24 VAC Sgl Actg RS | 20ga | 3242-2200-1R24AC | 8010002494 |
24 | Galv | 120 VAC | 20ga | 3242-2400-100000 | 8010004938 |
24 | Galv | 120 VAC Reed Switch | 20ga | 3242-2400-1R0000 | 8010004939 |
24 | Galv | 24 VAC | 20ga | 3242-2400-1024AC | 8010004940 |
24 | Galv | 24 VDC Reed Switch | 20ga | 3242-2400-1R24DC | 8010004937 |
24 | Galv | 24 VAC Sgl Actg RS | 20ga | 3242-2400-1R24AC | 8010002495 |
24 | Galv | 24 VDC | 20ga | 3242-2400-1024DC | 8010004941 |
