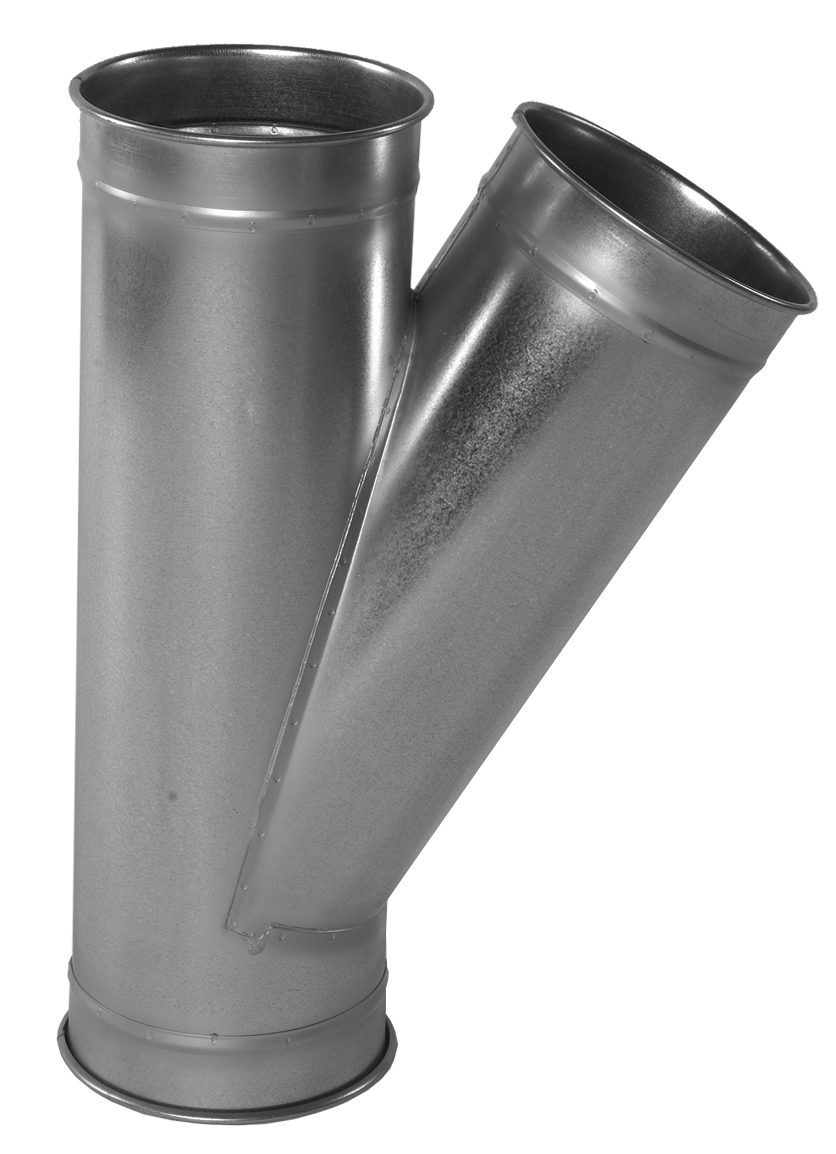

QF Branch 18 Gauge

QF Branches (sometimes called “wyes” or “laterals”) are standard with QF rolled ends, allowing quick connections with other QF ductwork. 18 gauge steel material adds extra durability.

• When ordering, specify material, gauge (if nonstandard), dimensions A, B, C, end styles if not all QF, and angle (standard 30°, optional 45°).
• A - C ≥ C-B.   Use formula to determine if a reducer is needed at C.
• Length = C X 2 + 9"
• Available with flanged ends in diameters up to 72", and other various end types
• Available with 30° or 45° angle
• Other gauges available include standard 22 and 20, 16, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with ordering 18 gauge QF Branches.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
