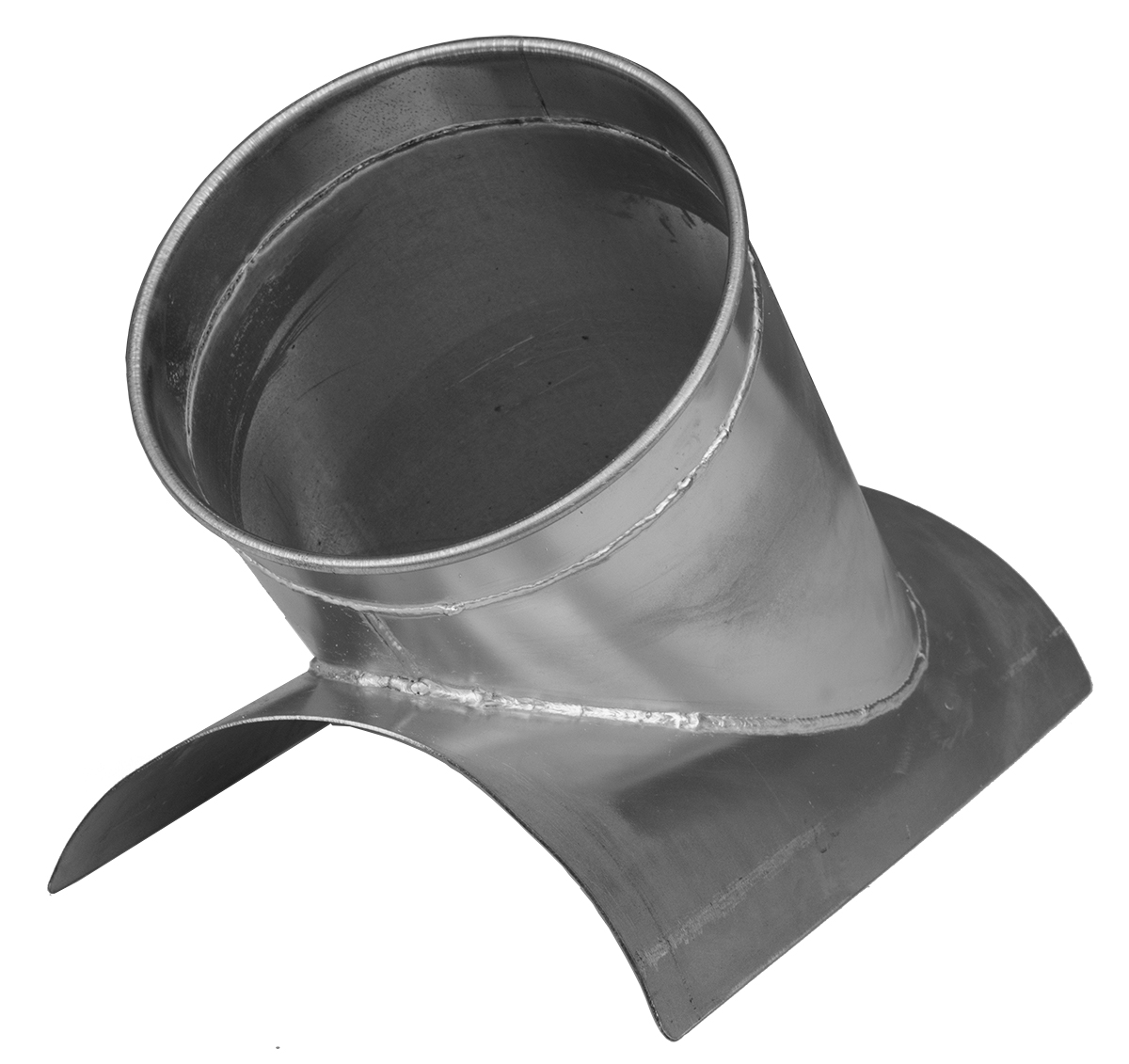

Quick-Fit® In Cuts, also known as Saddle Taps, are standard with QF rolled ends, allowing quick connections with other QF® ductwork. Used to cut into existing duct lines to begin a new Quick-Fit (QF) section.
14 gauge material construction adds extra durability and the solid welded seams eliminate leakage. Elimination of air leakage makes a dust collection system more efficient, providing savings on energy costs.
Contact Nordfab or your local Nordfab dealer for assistance with branch configurations not shown below, larger sizes, and material / gauge options.
Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.
Request a Quote |
---|
Download our In Cut Product Data sheet
Learn more about the benefits and availability of heavy gauge ducting from Nordfab
If you need flanged connections or larger sizes than those shown below, please see our Flanged In Cut product page

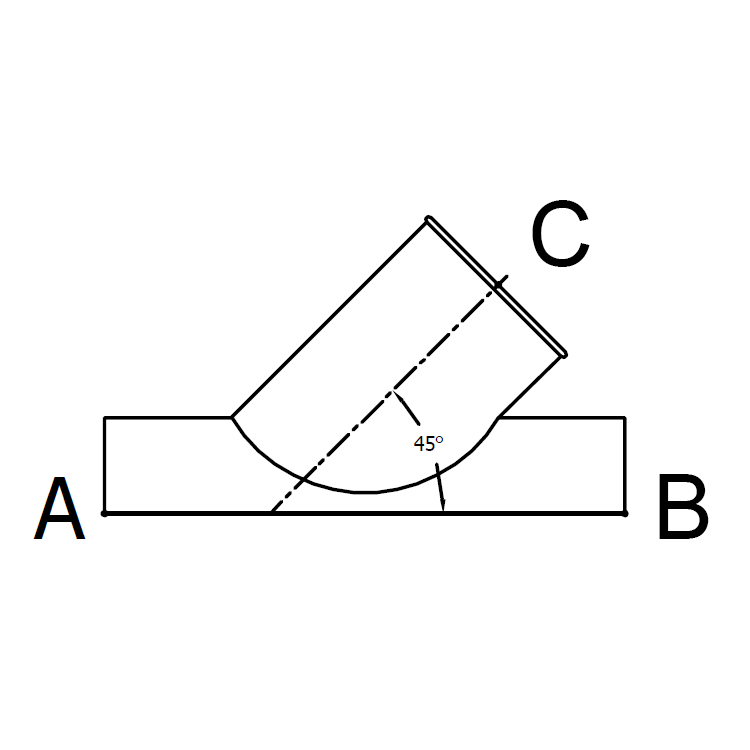

ø A in | ø B (in) | ø C (in) | Material | T mm | Weight (lbs) | Legacy Item No. | Item No. |
---|---|---|---|---|---|---|---|
8 | 8 | 6 | Galv | 14ga | 4223-0806-100005 | 8040302399 | |
8 | 8 | 7 | Galv | 14ga | 4223-0807-100005 | 8040302400 | |
8 | 8 | 8 | Galv | 14ga | 4223-0808-100005 | 8040302401 | |
9 | 9 | 6 | Galv | 14ga | 4223-0906-100005 | 8040302402 | |
9 | 9 | 7 | Galv | 14ga | 4223-0907-100005 | 8040302403 | |
9 | 9 | 8 | Galv | 14ga | 4223-0908-100005 | 8040302404 | |
9 | 9 | 9 | Galv | 14ga | 4223-0909-100005 | 8040302405 | |
10 | 10 | 6 | Galv | 14ga | 4223-1006-100005 | 8040302406 | |
10 | 10 | 7 | Galv | 14ga | 4223-1007-100005 | 8040302407 | |
10 | 10 | 8 | Galv | 14ga | 4223-1008-100005 | 8040302408 | |
10 | 10 | 9 | Galv | 14ga | 4223-1009-100005 | 8040302409 | |
10 | 10 | 10 | Galv | 14ga | 4223-1010-100005 | 8040302410 | |
11 | 11 | 6 | Galv | 14ga | 4223-1106-100005 | 8040302411 | |
11 | 11 | 7 | Galv | 14ga | 4223-1107-100005 | 8040302412 | |
11 | 11 | 8 | Galv | 14ga | 4223-1108-100005 | 8040302413 | |
11 | 11 | 9 | Galv | 14ga | 4223-1109-100005 | 8040302414 | |
11 | 11 | 10 | Galv | 14ga | 4223-1110-100005 | 8040302415 | |
11 | 11 | 11 | Galv | 14ga | 4223-1111-100005 | 8040302416 | |
12 | 12 | 6 | Galv | 14ga | 4223-1206-100005 | 8040302417 | |
12 | 12 | 7 | Galv | 14ga | 4223-1207-100005 | 8040302418 | |
12 | 12 | 8 | Galv | 14ga | 4223-1208-100005 | 8040302419 | |
12 | 12 | 9 | Galv | 14ga | 4223-1209-100005 | 8040302420 | |
12 | 12 | 10 | Galv | 14ga | 4223-1210-100005 | 8040302421 | |
12 | 12 | 11 | Galv | 14ga | 4223-1211-100005 | 8040302422 | |
12 | 12 | 12 | Galv | 14ga | 4223-1212-100005 | 8040302423 | |
13 | 13 | 6 | Galv | 14ga | 4223-1306-100005 | 8040302424 | |
13 | 13 | 7 | Galv | 14ga | 4223-1307-100005 | 8040302425 | |
13 | 13 | 8 | Galv | 14ga | 4223-1308-100005 | 8040302426 | |
13 | 13 | 9 | Galv | 14ga | 4223-1309-100005 | 8040302427 | |
13 | 13 | 10 | Galv | 14ga | 4223-1310-100005 | 8040302428 | |
13 | 13 | 11 | Galv | 14ga | 4223-1311-100005 | 8040302429 | |
13 | 13 | 12 | Galv | 14ga | 4223-1312-100005 | 8040302430 | |
13 | 13 | 13 | Galv | 14ga | 4223-1313-100005 | 8040302431 | |
14 | 14 | 6 | Galv | 14ga | 4223-1406-100005 | 8040302432 | |
14 | 14 | 7 | Galv | 14ga | 4223-1407-100005 | 8040302433 | |
14 | 14 | 8 | Galv | 14ga | 4223-1408-100005 | 8040302434 | |
14 | 14 | 9 | Galv | 14ga | 4223-1409-100005 | 8040302435 | |
14 | 14 | 10 | Galv | 14ga | 4223-1410-100005 | 8040302436 | |
14 | 14 | 11 | Galv | 14ga | 4223-1411-100005 | 8040302437 | |
14 | 14 | 12 | Galv | 14ga | 4223-1412-100005 | 8040302438 | |
14 | 14 | 13 | Galv | 14ga | 4223-1413-100005 | 8040302439 | |
14 | 14 | 14 | Galv | 14ga | 4223-1414-100005 | 8040302440 | |
15 | 15 | 6 | Galv | 14ga | 4223-1506-100005 | 8040302441 | |
15 | 15 | 7 | Galv | 14ga | 4223-1507-100005 | 8040302442 | |
15 | 15 | 8 | Galv | 14ga | 4223-1508-100005 | 8040302443 | |
15 | 15 | 9 | Galv | 14ga | 4223-1509-100005 | 8040302444 | |
15 | 15 | 10 | Galv | 14ga | 4223-1510-100005 | 8040302445 | |
15 | 15 | 11 | Galv | 14ga | 4223-1511-100005 | 8040302446 | |
15 | 15 | 12 | Galv | 14ga | 4223-1512-100005 | 8040302447 | |
15 | 15 | 13 | Galv | 14ga | 4223-1513-100005 | 8040302448 | |
15 | 15 | 14 | Galv | 14ga | 4223-1514-100005 | 8040302449 | |
15 | 15 | 15 | Galv | 14ga | 4223-1515-100005 | 8040302450 | |
16 | 16 | 6 | Galv | 14ga | 4223-1606-100005 | 8040302451 | |
16 | 16 | 7 | Galv | 14ga | 4223-1607-100005 | 8040302452 | |
16 | 16 | 8 | Galv | 14ga | 4223-1608-100005 | 8040302453 | |
16 | 16 | 9 | Galv | 14ga | 4223-1609-100005 | 8040302454 | |
16 | 16 | 10 | Galv | 14ga | 4223-1610-100005 | 8040302455 | |
16 | 16 | 11 | Galv | 14ga | 4223-1611-100005 | 8040302456 | |
16 | 16 | 12 | Galv | 14ga | 4223-1612-100005 | 8040302457 | |
16 | 16 | 13 | Galv | 14ga | 4223-1613-100005 | 8040302458 | |
16 | 16 | 14 | Galv | 14ga | 4223-1614-100005 | 8040302459 | |
16 | 16 | 15 | Galv | 14ga | 4223-1615-100005 | 8040302460 | |
16 | 16 | 16 | Galv | 14ga | 4223-1616-100005 | 8040302461 | |
17 | 17 | 6 | Galv | 14ga | 4223-1706-100005 | 8040302462 | |
17 | 17 | 7 | Galv | 14ga | 4223-1707-100005 | 8040302463 | |
17 | 17 | 8 | Galv | 14ga | 4223-1708-100005 | 8040302464 | |
17 | 17 | 9 | Galv | 14ga | 4223-1709-100005 | 8040302465 | |
17 | 17 | 10 | Galv | 14ga | 4223-1710-100005 | 8040302466 | |
17 | 17 | 11 | Galv | 14ga | 4223-1711-100005 | 8040302467 | |
17 | 17 | 12 | Galv | 14ga | 4223-1712-100005 | 8040302468 | |
17 | 17 | 13 | Galv | 14ga | 4223-1713-100005 | 8040302469 | |
17 | 17 | 14 | Galv | 14ga | 4223-1714-100005 | 8040302470 | |
17 | 17 | 15 | Galv | 14ga | 4223-1715-100005 | 8040302471 | |
17 | 17 | 16 | Galv | 14ga | 4223-1716-100005 | 8040302472 | |
17 | 17 | 17 | Galv | 14ga | 4223-1717-100005 | 8040302473 | |
18 | 18 | 6 | Galv | 14ga | 4223-1806-100005 | 8040302474 | |
18 | 18 | 7 | Galv | 14ga | 4223-1807-100005 | 8040302475 | |
18 | 18 | 8 | Galv | 14ga | 4223-1808-100005 | 8040302476 | |
18 | 18 | 9 | Galv | 14ga | 4223-1809-100005 | 8040302477 | |
18 | 18 | 10 | Galv | 14ga | 4223-1810-100005 | 8040302478 | |
18 | 18 | 11 | Galv | 14ga | 4223-1811-100005 | 8040302479 | |
18 | 18 | 12 | Galv | 14ga | 4223-1812-100005 | 8040302480 | |
18 | 18 | 13 | Galv | 14ga | 4223-1813-100005 | 8040302481 | |
18 | 18 | 14 | Galv | 14ga | 4223-1814-100005 | 8040302482 | |
18 | 18 | 15 | Galv | 14ga | 4223-1815-100005 | 8040302483 | |
18 | 18 | 16 | Galv | 14ga | 4223-1816-100005 | 8040302484 | |
18 | 18 | 17 | Galv | 14ga | 4223-1817-100005 | 8040302485 | |
18 | 18 | 18 | Galv | 14ga | 4223-1818-100005 | 8040302486 | |
19 | 19 | 6 | Galv | 14ga | 4223-1906-100005 | 8040302487 | |
19 | 19 | 7 | Galv | 14ga | 4223-1907-100005 | 8040302488 | |
19 | 19 | 8 | Galv | 14ga | 4223-1908-100005 | 8040302489 | |
19 | 19 | 9 | Galv | 14ga | 4223-1909-100005 | 8040302490 | |
19 | 19 | 10 | Galv | 14ga | 4223-1910-100005 | 8040302491 | |
19 | 19 | 11 | Galv | 14ga | 4223-1911-100005 | 8040302492 | |
19 | 19 | 12 | Galv | 14ga | 4223-1912-100005 | 8040302493 | |
19 | 19 | 13 | Galv | 14ga | 4223-1913-100005 | 8040302494 | |
19 | 19 | 14 | Galv | 14ga | 4223-1914-100005 | 8040302495 | |
19 | 19 | 15 | Galv | 14ga | 4223-1915-100005 | 8040302496 | |
19 | 19 | 16 | Galv | 14ga | 4223-1916-100005 | 8040302497 | |
19 | 19 | 17 | Galv | 14ga | 4223-1917-100005 | 8040302498 | |
19 | 19 | 18 | Galv | 14ga | 4223-1918-100005 | 8040302499 | |
19 | 19 | 19 | Galv | 14ga | 4223-1919-100005 | 8040302500 | |
20 | 20 | 6 | Galv | 14ga | 4223-2006-100005 | 8040302501 | |
20 | 20 | 7 | Galv | 14ga | 4223-2007-100005 | 8040302502 | |
20 | 20 | 8 | Galv | 14ga | 4223-2008-100005 | 8040302503 | |
20 | 20 | 9 | Galv | 14ga | 4223-2009-100005 | 8040302504 | |
20 | 20 | 10 | Galv | 14ga | 4223-2010-100005 | 8040302505 | |
20 | 20 | 11 | Galv | 14ga | 4223-2011-100005 | 8040302506 | |
20 | 20 | 12 | Galv | 14ga | 4223-2012-100005 | 8040302507 | |
20 | 20 | 13 | Galv | 14ga | 4223-2013-100005 | 8040302508 | |
20 | 20 | 14 | Galv | 14ga | 4223-2014-100005 | 8040302509 | |
20 | 20 | 15 | Galv | 14ga | 4223-2015-100005 | 8040302510 | |
20 | 20 | 16 | Galv | 14ga | 4223-2016-100005 | 8040302511 | |
20 | 20 | 17 | Galv | 14ga | 4223-2017-100005 | 8040302512 | |
20 | 20 | 18 | Galv | 14ga | 4223-2018-100005 | 8040302513 | |
20 | 20 | 19 | Galv | 14ga | 4223-2019-100005 | 8040302514 | |
20 | 20 | 20 | Galv | 14ga | 4223-2020-100005 | 8040302515 | |
21 | 21 | 6 | Galv | 14ga | 4223-2106-100005 | 8040302516 | |
21 | 21 | 7 | Galv | 14ga | 4223-2107-100005 | 8040302517 | |
21 | 21 | 8 | Galv | 14ga | 4223-2108-100005 | 8040302518 | |
21 | 21 | 9 | Galv | 14ga | 4223-2109-100005 | 8040302519 | |
21 | 21 | 10 | Galv | 14ga | 4223-2110-100005 | 8040302520 | |
21 | 21 | 11 | Galv | 14ga | 4223-2111-100005 | 8040302521 | |
21 | 21 | 12 | Galv | 14ga | 4223-2112-100005 | 8040302522 | |
21 | 21 | 13 | Galv | 14ga | 4223-2113-100005 | 8040302523 | |
21 | 21 | 14 | Galv | 14ga | 4223-2114-100005 | 8040302524 | |
21 | 21 | 15 | Galv | 14ga | 4223-2115-100005 | 8040302525 | |
21 | 21 | 16 | Galv | 14ga | 4223-2116-100005 | 8040302526 | |
21 | 21 | 17 | Galv | 14ga | 4223-2117-100005 | 8040302527 | |
21 | 21 | 18 | Galv | 14ga | 4223-2118-100005 | 8040302528 | |
21 | 21 | 19 | Galv | 14ga | 4223-2119-100005 | 8040302529 | |
21 | 21 | 20 | Galv | 14ga | 4223-2120-100005 | 8040302530 | |
21 | 21 | 21 | Galv | 14ga | 4223-2121-100005 | 8040302531 | |
22 | 22 | 6 | Galv | 14ga | 4223-2206-100005 | 8040302532 | |
22 | 22 | 7 | Galv | 14ga | 4223-2207-100005 | 8040302533 | |
22 | 22 | 8 | Galv | 14ga | 4223-2208-100005 | 8040302534 | |
22 | 22 | 9 | Galv | 14ga | 4223-2209-100005 | 8040302535 | |
22 | 22 | 10 | Galv | 14ga | 4223-2210-100005 | 8040302536 | |
22 | 22 | 11 | Galv | 14ga | 4223-2211-100005 | 8040302537 | |
22 | 22 | 12 | Galv | 14ga | 4223-2212-100005 | 8040302538 | |
22 | 22 | 13 | Galv | 14ga | 4223-2213-100005 | 8040302539 | |
22 | 22 | 14 | Galv | 14ga | 4223-2214-100005 | 8040302540 | |
22 | 22 | 15 | Galv | 14ga | 4223-2215-100005 | 8040302541 | |
22 | 22 | 16 | Galv | 14ga | 4223-2216-100005 | 8040302542 | |
22 | 22 | 17 | Galv | 14ga | 4223-2217-100005 | 8040302543 | |
22 | 22 | 18 | Galv | 14ga | 4223-2218-100005 | 8040302544 | |
22 | 22 | 19 | Galv | 14ga | 4223-2219-100005 | 8040302545 | |
22 | 22 | 20 | Galv | 14ga | 4223-2220-100005 | 8040302546 | |
22 | 22 | 21 | Galv | 14ga | 4223-2221-100005 | 8040302547 | |
22 | 22 | 22 | Galv | 14ga | 4223-2222-100005 | 8040302548 | |
23 | 23 | 6 | Galv | 14ga | 4223-2306-100005 | 8040302549 | |
23 | 23 | 7 | Galv | 14ga | 4223-2307-100005 | 8040302550 | |
23 | 23 | 8 | Galv | 14ga | 4223-2308-100005 | 8040302551 | |
23 | 23 | 9 | Galv | 14ga | 4223-2309-100005 | 8040302552 | |
23 | 23 | 10 | Galv | 14ga | 4223-2310-100005 | 8040302553 | |
23 | 23 | 11 | Galv | 14ga | 4223-2311-100005 | 8040302554 | |
23 | 23 | 12 | Galv | 14ga | 4223-2312-100005 | 8040302555 | |
23 | 23 | 13 | Galv | 14ga | 4223-2313-100005 | 8040302556 | |
23 | 23 | 14 | Galv | 14ga | 4223-2314-100005 | 8040302557 | |
23 | 23 | 15 | Galv | 14ga | 4223-2315-100005 | 8040302558 | |
23 | 23 | 16 | Galv | 14ga | 4223-2316-100005 | 8040302559 | |
23 | 23 | 17 | Galv | 14ga | 4223-2317-100005 | 8040302560 | |
23 | 23 | 18 | Galv | 14ga | 4223-2318-100005 | 8040302561 | |
23 | 23 | 19 | Galv | 14ga | 4223-2319-100005 | 8040302562 | |
23 | 23 | 20 | Galv | 14ga | 4223-2320-100005 | 8040302563 | |
23 | 23 | 21 | Galv | 14ga | 4223-2321-100005 | 8040302564 | |
23 | 23 | 22 | Galv | 14ga | 4223-2322-100005 | 8040302565 | |
23 | 23 | 23 | Galv | 14ga | 4223-2323-100005 | 8040302566 | |
24 | 24 | 6 | Galv | 14ga | 4223-2406-100005 | 8040302567 | |
24 | 24 | 7 | Galv | 14ga | 4223-2407-100005 | 8040302568 | |
24 | 24 | 8 | Galv | 14ga | 4223-2408-100005 | 8040302569 | |
24 | 24 | 9 | Galv | 14ga | 4223-2409-100005 | 8040302570 | |
24 | 24 | 10 | Galv | 14ga | 4223-2410-100005 | 8040302571 | |
24 | 24 | 11 | Galv | 14ga | 4223-2411-100005 | 8040302572 | |
24 | 24 | 12 | Galv | 14ga | 4223-2412-100005 | 8040302573 | |
24 | 24 | 13 | Galv | 14ga | 4223-2413-100005 | 8040302574 | |
24 | 24 | 14 | Galv | 14ga | 4223-2414-100005 | 8040302575 | |
24 | 24 | 15 | Galv | 14ga | 4223-2415-100005 | 8040302576 | |
24 | 24 | 16 | Galv | 14ga | 4223-2416-100005 | 8040302577 | |
24 | 24 | 17 | Galv | 14ga | 4223-2417-100005 | 8040302578 | |
24 | 24 | 18 | Galv | 14ga | 4223-2418-100005 | 8040302579 | |
24 | 24 | 19 | Galv | 14ga | 4223-2419-100005 | 8040302580 | |
24 | 24 | 20 | Galv | 14ga | 4223-2420-100005 | 8040302581 | |
24 | 24 | 21 | Galv | 14ga | 4223-2421-100005 | 8040302582 | |
24 | 24 | 22 | Galv | 14ga | 4223-2422-100005 | 8040302583 | |
24 | 24 | 23 | Galv | 14ga | 4223-2423-100005 | 8040302584 | |
24 | 24 | 24 | Galv | 14ga | 4223-2424-100005 | 8040302585 |
It looks like you're coming from United States.
Would you like to go to the United States site?
