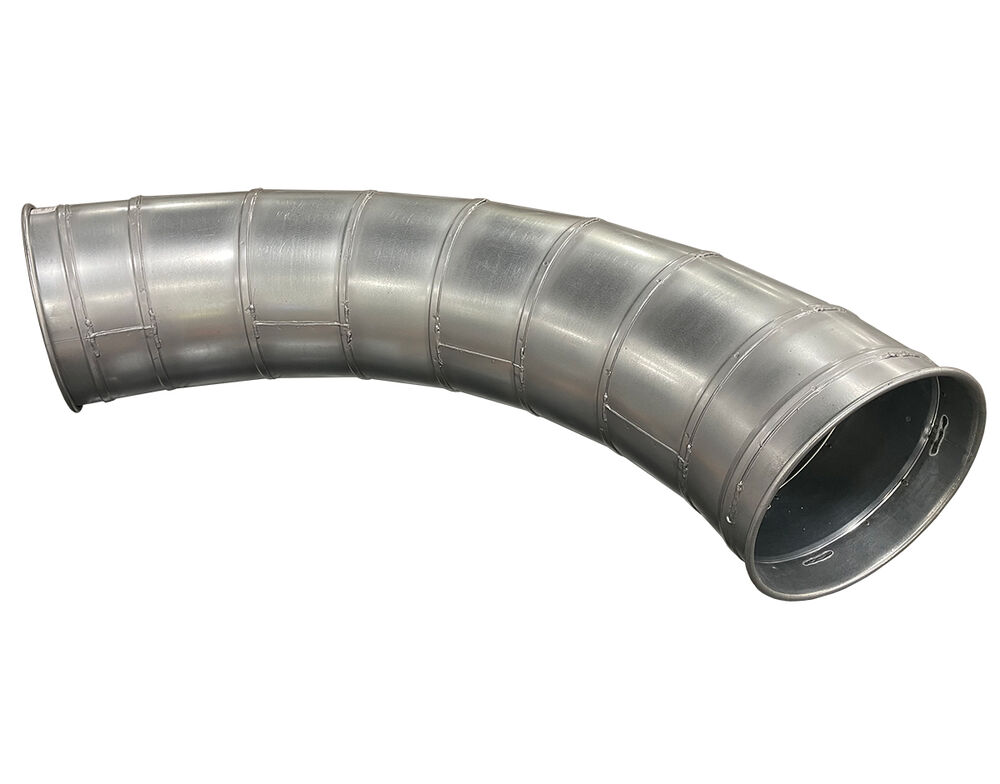

Quick-Fit® Long Radius 16 gauge Elbows have rolled ends for use with Quick-Fit Clamps, allowing quick assembly / disassembly and relocation. Learn more about the advantages of Quick-Fit ducting.
Available in 90°, 60°, 45°, and 30° with a radius of 2.5. Other CLRs available upon request. Standard 1.5 radius 16 gauge elbows are also available.
QF® Elbows in 16 gauge steel are constructed of gores lapped over one another and spot welded. Heavier gauge construction may be the solution to reduce the frequency and cost of replacing worn-through elbows in high wear applications.
This is a directional elbow supplied with an arrow to indicate the direction of flow.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options. Interior buffing available upon request for additional cost.
| Request a Quote |
|---|
| Download our Elbows Product Data sheet |
| Download our QF Elbow Revit® families |
Learn more about the benefits and availability of heavy gauge ducting from Nordfab
If you need flanged connections or larger sizes than those shown below, please see our flanged elbow options
| ø A in | Angle degree | Center line radius | Material | T mm | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 7 | 90 | 2.5 | Galv | 16ga | 16 | 3212-0790-117500 | 8010003615 |
| 7 | 60 | 2.5 | Galv | 16ga | 11 | 3212-0760-117500 | 8010003613 |
| 7 | 45 | 2.5 | Galv | 16ga | 9 | 3212-0745-117500 | 8010003611 |
| 7 | 30 | 2.5 | Galv | 16ga | 7 | 3212-0730-117500 | 8010003609 |
| 8 | 90 | 2.5 | Galv | 16ga | 20 | 3212-0890-120000 | 8010003625 |
| 8 | 60 | 2.5 | Galv | 16ga | 14 | 3212-0860-120000 | 8010003623 |
| 8 | 45 | 2.5 | Galv | 16ga | 11 | 3212-0845-120000 | 8010003621 |
| 8 | 30 | 2.5 | Galv | 16ga | 8 | 3212-0830-120000 | 8010003619 |
| 9 | 90 | 2.5 | Galv | 16ga | 25 | 3212-0990-122500 | 8010003635 |
| 9 | 60 | 2.5 | Galv | 16ga | 17 | 3212-0960-122500 | 8010003633 |
| 9 | 45 | 2.5 | Galv | 16ga | 14 | 3212-0945-122500 | 8010003631 |
| 9 | 30 | 2.5 | Galv | 16ga | 10 | 3212-0930-122500 | 8010003629 |
| 10 | 90 | 2.5 | Galv | 16ga | 30 | 3212-1090-125000 | 8010003465 |
| 10 | 60 | 2.5 | Galv | 16ga | 21 | 3212-1060-125000 | 8010003463 |
| 10 | 45 | 2.5 | Galv | 16ga | 16 | 3212-1045-125000 | 8010003461 |
| 10 | 30 | 2.5 | Galv | 16ga | 12 | 3212-1030-125000 | 8010003459 |
| 11 | 90 | 2.5 | Galv | 16ga | 36 | 3212-1190-127500 | 8010003475 |
| 11 | 60 | 2.5 | Galv | 16ga | 25 | 3212-1160-127500 | 8010003473 |
| 11 | 45 | 2.5 | Galv | 16ga | 20 | 3212-1145-127500 | 8010003471 |
| 11 | 30 | 2.5 | Galv | 16ga | 14 | 3212-1130-127500 | 8010003469 |
| 12 | 90 | 2.5 | Galv | 16ga | 43 | 3212-1290-130000 | 8010003485 |
| 12 | 60 | 2.5 | Galv | 16ga | 29 | 3212-1260-130000 | 8010003483 |
| 12 | 45 | 2.5 | Galv | 16ga | 23 | 3212-1245-130000 | 8010003481 |
| 12 | 30 | 2.5 | Galv | 16ga | 16 | 3212-1230-130000 | 8010003479 |
| 13 | 90 | 2.5 | Galv | 16ga | 50 | 3212-1390-132500 | 8010003495 |
| 13 | 60 | 2.5 | Galv | 16ga | 34 | 3212-1360-132500 | 8010003493 |
| 13 | 45 | 2.5 | Galv | 16ga | 27 | 3212-1345-132500 | 8010003491 |
| 13 | 30 | 2.5 | Galv | 16ga | 19 | 3212-1330-132500 | 8010003489 |
| 14 | 90 | 2.5 | Galv | 16ga | 57 | 3212-1490-135000 | 8010003505 |
| 14 | 60 | 2.5 | Galv | 16ga | 39 | 3212-1460-135000 | 8010003503 |
| 14 | 45 | 2.5 | Galv | 16ga | 31 | 3212-1445-135000 | 8010003501 |
| 14 | 30 | 2.5 | Galv | 16ga | 22 | 3212-1430-135000 | 8010003499 |
| 15 | 90 | 2.5 | Galv | 16ga | 65 | 3212-1590-137500 | 8010003515 |
| 15 | 60 | 2.5 | Galv | 16ga | 45 | 3212-1560-137500 | 8010003513 |
| 15 | 45 | 2.5 | Galv | 16ga | 35 | 3212-1545-137500 | 8010003511 |
| 15 | 30 | 2.5 | Galv | 16ga | 24 | 3212-1530-137500 | 8010003509 |
| 16 | 90 | 2.5 | Galv | 16ga | 74 | 3212-1690-140000 | 8010003525 |
| 16 | 60 | 2.5 | Galv | 16ga | 51 | 3212-1660-140000 | 8010003523 |
| 16 | 45 | 2.5 | Galv | 16ga | 39 | 3212-1645-140000 | 8010003521 |
| 16 | 30 | 2.5 | Galv | 16ga | 28 | 3212-1630-140000 | 8010003519 |
| 17 | 90 | 2.5 | Galv | 16ga | 83 | 3212-1790-142500 | 8010003535 |
| 17 | 60 | 2.5 | Galv | 16ga | 57 | 3212-1760-142500 | 8010003533 |
| 17 | 45 | 2.5 | Galv | 16ga | 44 | 3212-1745-142500 | 8010003531 |
| 17 | 30 | 2.5 | Galv | 16ga | 31 | 3212-1730-142500 | 8010003529 |
| 18 | 90 | 2.5 | Galv | 16ga | 93 | 3212-1890-145000 | 8010003545 |
| 18 | 60 | 2.5 | Galv | 16ga | 64 | 3212-1860-145000 | 8010003543 |
| 18 | 45 | 2.5 | Galv | 16ga | 49 | 3212-1845-145000 | 8010003541 |
| 18 | 30 | 2.5 | Galv | 16ga | 34 | 3212-1830-145000 | 8010003539 |
| 19 | 90 | 2.5 | Galv | 16ga | 103 | 3212-1990-147500 | 8010003555 |
| 19 | 60 | 2.5 | Galv | 16ga | 71 | 3212-1960-147500 | 8010003553 |
| 19 | 45 | 2.5 | Galv | 16ga | 54 | 3212-1945-147500 | 8010003551 |
| 19 | 30 | 2.5 | Galv | 16ga | 38 | 3212-1930-147500 | 8010003549 |
| 20 | 90 | 2.5 | Galv | 16ga | 114 | 3212-2090-150000 | 8010003565 |
| 20 | 60 | 2.5 | Galv | 16ga | 78 | 3212-2060-150000 | 8010003563 |
| 20 | 45 | 2.5 | Galv | 16ga | 60 | 3212-2045-150000 | 8010003561 |
| 20 | 30 | 2.5 | Galv | 16ga | 42 | 3212-2030-150000 | 8010003559 |
| 21 | 90 | 2.5 | Galv | 16ga | 126 | 3212-2190-152500 | 8010003575 |
| 21 | 60 | 2.5 | Galv | 16ga | 86 | 3212-2160-152500 | 8010003573 |
| 21 | 45 | 2.5 | Galv | 16ga | 66 | 3212-2145-152500 | 8010003571 |
| 21 | 30 | 2.5 | Galv | 16ga | 46 | 3212-2130-152500 | 8010003569 |
| 22 | 90 | 2.5 | Galv | 16ga | 138 | 3212-2290-155000 | 8010003585 |
| 22 | 60 | 2.5 | Galv | 16ga | 94 | 3212-2260-155000 | 8010003583 |
| 22 | 45 | 2.5 | Galv | 16ga | 72 | 3212-2245-155000 | 8010003581 |
| 22 | 30 | 2.5 | Galv | 16ga | 50 | 3212-2230-155000 | 8010003579 |
| 23 | 90 | 2.5 | Galv | 16ga | 150 | 3212-2390-157500 | 8010003595 |
| 23 | 60 | 2.5 | Galv | 16ga | 102 | 3212-2360-157500 | 8010003593 |
| 23 | 45 | 2.5 | Galv | 16ga | 78 | 3212-2345-157500 | 8010003591 |
| 23 | 30 | 2.5 | Galv | 16ga | 54 | 3212-2330-157500 | 8010003589 |
| 24 | 90 | 2.5 | Galv | 16ga | 163 | 3212-2490-160000 | 8010003605 |
| 24 | 60 | 2.5 | Galv | 16ga | 111 | 3212-2460-160000 | 8010003603 |
| 24 | 45 | 2.5 | Galv | 16ga | 85 | 3212-2445-160000 | 8010003601 |
| 24 | 30 | 2.5 | Galv | 16ga | 58 | 3212-2430-160000 | 8010003599 |
| 7 | 90 | 2.5 | 304SS | 16ga | 16 | 3212-0790-217500 | 8010003433 |
| 7 | 60 | 2.5 | 304SS | 16ga | 11 | 3212-0760-217500 | 8010003431 |
| 7 | 45 | 2.5 | 304SS | 16ga | 9 | 3212-0745-217500 | 8010003429 |
| 7 | 30 | 2.5 | 304SS | 16ga | 7 | 3212-0730-217500 | 8010003427 |
| 8 | 90 | 2.5 | 304SS | 16ga | 20 | 3212-0890-220000 | 8010003443 |
| 8 | 60 | 2.5 | 304SS | 16ga | 14 | 3212-0860-220000 | 8010003441 |
| 8 | 45 | 2.5 | 304SS | 16ga | 11 | 3212-0845-220000 | 8010003439 |
| 8 | 30 | 2.5 | 304SS | 16ga | 8 | 3212-0830-220000 | 8010003437 |
| 9 | 90 | 2.5 | 304SS | 16ga | 25 | 3212-0990-222500 | 8010003453 |
| 9 | 60 | 2.5 | 304SS | 16ga | 17 | 3212-0960-222500 | 8010003451 |
| 9 | 45 | 2.5 | 304SS | 16ga | 14 | 3212-0945-222500 | 8010003449 |
| 9 | 30 | 2.5 | 304SS | 16ga | 10 | 3212-0930-222500 | 8010003447 |
| 10 | 90 | 2.5 | 304SS | 16ga | 30 | 3212-1090-225000 | 8010003283 |
| 10 | 60 | 2.5 | 304SS | 16ga | 21 | 3212-1060-225000 | 8010003281 |
| 10 | 45 | 2.5 | 304SS | 16ga | 16 | 3212-1045-225000 | 8010003279 |
| 10 | 30 | 2.5 | 304SS | 16ga | 12 | 3212-1030-225000 | 8010003277 |
| 11 | 90 | 2.5 | 304SS | 16ga | 36 | 3212-1190-227500 | 8010003293 |
| 11 | 60 | 2.5 | 304SS | 16ga | 25 | 3212-1160-227500 | 8010003291 |
| 11 | 45 | 2.5 | 304SS | 16ga | 20 | 3212-1145-227500 | 8010003289 |
| 11 | 30 | 2.5 | 304SS | 16ga | 14 | 3212-1130-227500 | 8010003287 |
| 12 | 90 | 2.5 | 304SS | 16ga | 43 | 3212-1290-230000 | 8010003303 |
| 12 | 60 | 2.5 | 304SS | 16ga | 29 | 3212-1260-230000 | 8010003301 |
| 12 | 45 | 2.5 | 304SS | 16ga | 23 | 3212-1245-230000 | 8010003299 |
| 12 | 30 | 2.5 | 304SS | 16ga | 16 | 3212-1230-230000 | 8010003297 |
| 13 | 90 | 2.5 | 304SS | 16ga | 50 | 3212-1390-232500 | 8010003313 |
| 13 | 60 | 2.5 | 304SS | 16ga | 34 | 3212-1360-232500 | 8010003311 |
| 13 | 45 | 2.5 | 304SS | 16ga | 27 | 3212-1345-232500 | 8010003309 |
| 13 | 30 | 2.5 | 304SS | 16ga | 19 | 3212-1330-232500 | 8010003307 |
| 14 | 90 | 2.5 | 304SS | 16ga | 57 | 3212-1490-235000 | 8010003323 |
| 14 | 60 | 2.5 | 304SS | 16ga | 39 | 3212-1460-235000 | 8010003321 |
| 14 | 45 | 2.5 | 304SS | 16ga | 31 | 3212-1445-235000 | 8010003319 |
| 14 | 30 | 2.5 | 304SS | 16ga | 22 | 3212-1430-235000 | 8010003317 |
| 15 | 90 | 2.5 | 304SS | 16ga | 65 | 3212-1590-237500 | 8010003333 |
| 15 | 60 | 2.5 | 304SS | 16ga | 45 | 3212-1560-237500 | 8010003331 |
| 15 | 45 | 2.5 | 304SS | 16ga | 35 | 3212-1545-237500 | 8010003329 |
| 15 | 30 | 2.5 | 304SS | 16ga | 24 | 3212-1530-237500 | 8010003327 |
| 16 | 90 | 2.5 | 304SS | 16ga | 74 | 3212-1690-240000 | 8010003343 |
| 16 | 60 | 2.5 | 304SS | 16ga | 51 | 3212-1660-240000 | 8010003341 |
| 16 | 45 | 2.5 | 304SS | 16ga | 39 | 3212-1645-240000 | 8010003339 |
| 16 | 30 | 2.5 | 304SS | 16ga | 28 | 3212-1630-240000 | 8010003337 |
| 17 | 90 | 2.5 | 304SS | 16ga | 83 | 3212-1790-242500 | 8010003353 |
| 17 | 60 | 2.5 | 304SS | 16ga | 57 | 3212-1760-242500 | 8010003351 |
| 17 | 45 | 2.5 | 304SS | 16ga | 44 | 3212-1745-242500 | 8010003349 |
| 17 | 30 | 2.5 | 304SS | 16ga | 31 | 3212-1730-242500 | 8010003347 |
| 18 | 90 | 2.5 | 304SS | 16ga | 93 | 3212-1890-245000 | 8010003363 |
| 18 | 60 | 2.5 | 304SS | 16ga | 64 | 3212-1860-245000 | 8010003361 |
| 18 | 45 | 2.5 | 304SS | 16ga | 49 | 3212-1845-245000 | 8010003359 |
| 18 | 30 | 2.5 | 304SS | 16ga | 34 | 3212-1830-245000 | 8010003357 |
| 19 | 90 | 2.5 | 304SS | 16ga | 103 | 3212-1990-247500 | 8010003373 |
| 19 | 60 | 2.5 | 304SS | 16ga | 71 | 3212-1960-247500 | 8010003371 |
| 19 | 45 | 2.5 | 304SS | 16ga | 54 | 3212-1945-247500 | 8010003369 |
| 19 | 30 | 2.5 | 304SS | 16ga | 38 | 3212-1930-247500 | 8010003367 |
| 20 | 90 | 2.5 | 304SS | 16ga | 114 | 3212-2090-250000 | 8010003383 |
| 20 | 60 | 2.5 | 304SS | 16ga | 78 | 3212-2060-250000 | 8010003381 |
| 20 | 45 | 2.5 | 304SS | 16ga | 60 | 3212-2045-250000 | 8010003379 |
| 20 | 30 | 2.5 | 304SS | 16ga | 42 | 3212-2030-250000 | 8010003377 |
| 21 | 90 | 2.5 | 304SS | 16ga | 126 | 3212-2190-252500 | 8010003393 |
| 21 | 60 | 2.5 | 304SS | 16ga | 86 | 3212-2160-252500 | 8010003391 |
| 21 | 45 | 2.5 | 304SS | 16ga | 66 | 3212-2145-252500 | 8010003389 |
| 21 | 30 | 2.5 | 304SS | 16ga | 46 | 3212-2130-252500 | 8010003387 |
| 22 | 90 | 2.5 | 304SS | 16ga | 138 | 3212-2290-255000 | 8010003403 |
| 22 | 60 | 2.5 | 304SS | 16ga | 94 | 3212-2260-255000 | 8010003401 |
| 22 | 45 | 2.5 | 304SS | 16ga | 72 | 3212-2245-255000 | 8010003399 |
| 22 | 30 | 2.5 | 304SS | 16ga | 50 | 3212-2230-255000 | 8010003397 |
| 23 | 90 | 2.5 | 304SS | 16ga | 150 | 3212-2390-257500 | 8010003413 |
| 23 | 60 | 2.5 | 304SS | 16ga | 102 | 3212-2360-257500 | 8010003411 |
| 23 | 45 | 2.5 | 304SS | 16ga | 78 | 3212-2345-257500 | 8010003409 |
| 23 | 30 | 2.5 | 304SS | 16ga | 54 | 3212-2330-257500 | 8010003407 |
| 24 | 90 | 2.5 | 304SS | 16ga | 163 | 3212-2490-260000 | 8010003423 |
| 24 | 60 | 2.5 | 304SS | 16ga | 111 | 3212-2460-260000 | 8010003421 |
| 24 | 45 | 2.5 | 304SS | 16ga | 85 | 3212-2445-260000 | 8010003419 |
| 24 | 30 | 2.5 | 304SS | 16ga | 58 | 3212-2430-260000 | 8010003417 |
