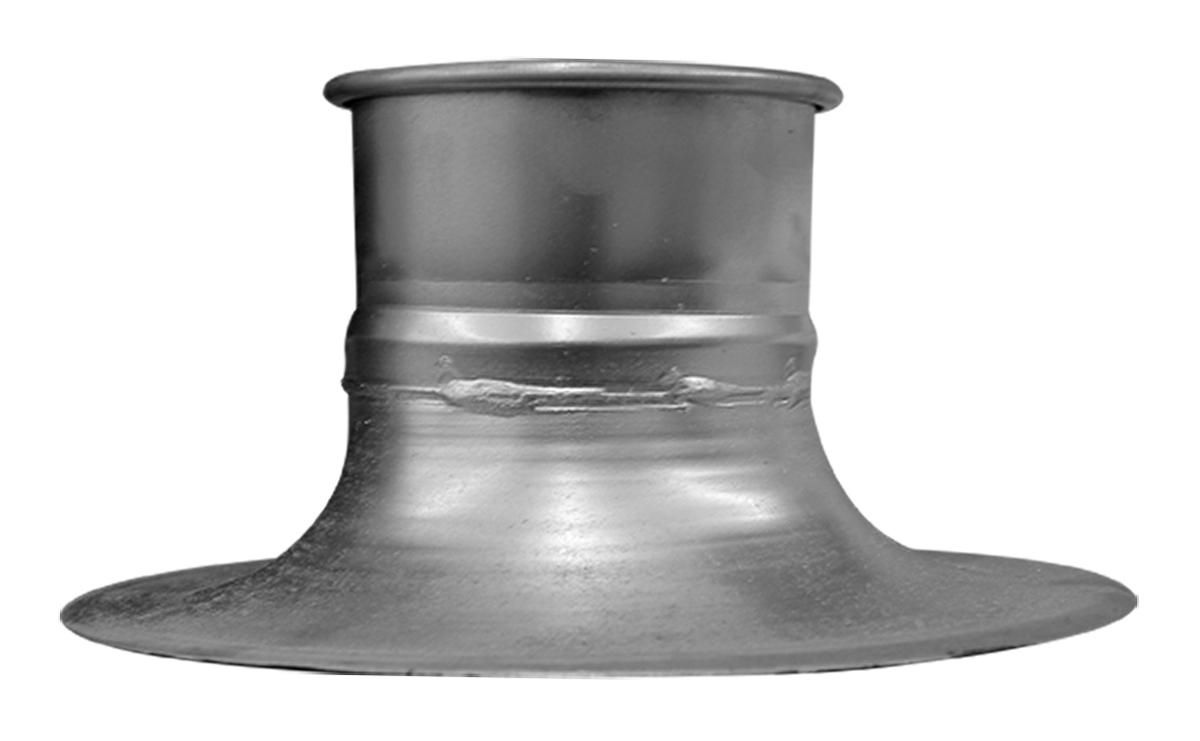

QF Bell Mouth Hood

Nordfab’s QF® Bell Mouth Hood has a flared end to increase the capture ratio of air, dust, and smoke as well as increase laminar air flow. The QF (rolled edge) end allows quick connection to Nordfab duct fittings.

  • Available in Galvanized and 304SS
  • Available with flanged ends in diameters up to 24", and other various end types
  • QF Bell Mouth Hoods are a Nordfab Now® product so items in the most commonly used sizes and material are in stock and can typically be shipped the day after order placement. Let Nordfab or your authorized dealer know if your order is urgent.

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes, end options, and material / gauge options.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote



Download our Bell Mouth Hood Product Data sheet

Learn more about the broad range and types of hoods available from Nordfab

ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 20ga 0.9 3251-0300-100000‍ 8010004355‍
4 Galv 20ga 1.05 3251-0400-100000‍ 8010004356‍
5 Galv 20ga 1.15 3251-0500-100000‍ 8010004357‍
6 Galv 20ga 1.85 3251-0600-100000‍ 8010004358‍
7 Galv 20ga 1.95 3251-0700-100000‍ 8010004359‍
8 Galv 20ga 2.1 3251-0800-100000‍ 8010004360‍
9 Galv 20ga 2.25 3251-0900-100000‍ 8010004361‍
10 Galv 20ga 3 3251-1000-100000‍ 8010004340‍
11 Galv 20ga 3.7 3251-1100-100000‍ 8010004341‍
12 Galv 20ga 4.1 3251-1200-100000‍ 8010004342‍
13 Galv 20ga 4.5 3251-1300-100000‍ 8010004343‍
14 Galv 20ga 5.75 3251-1400-100000‍ 8010004344‍
15 Galv 20ga 6.25 3251-1500-100000‍ 8010004345‍
16 Galv 20ga 7.5 3251-1600-100000‍ 8010004346‍
17 Galv 20ga 8.25 3251-1700-100000‍ 8010004347‍
18 Galv 20ga 9.5 3251-1800-100000‍ 8010004348‍
19 Galv 20ga 10.1 3251-1900-100000‍ 8010004349‍
20 Galv 20ga 10.75 3251-2000-100000‍ 8010004350‍
21 Galv 20ga 11.5 3251-2100-100000‍ 8010004351‍
22 Galv 20ga 12.25 3251-2200-100000‍ 8010004352‍
23 Galv 20ga 12.9 3251-2300-100000‍ 8010004353‍
24 Galv 20ga 14.5 3251-2400-100000‍ 8010004354‍
3 304SS 20ga 0.9 3251-0300-200000‍ 8010004333‍
4 304SS 20ga 1.05 3251-0400-200000‍ 8010004334‍
5 304SS 20ga 1.15 3251-0500-200000‍ 8010004335‍
6 304SS 20ga 1.85 3251-0600-200000‍ 8010004336‍
7 304SS 20ga 1.95 3251-0700-200000‍ 8010004337‍
8 304SS 20ga 2.1 3251-0800-200000‍ 8010004338‍
9 304SS 20ga 2.25 3251-0900-200000‍ 8010004339‍
10 304SS 20ga 3 3251-1000-200000‍ 8010004318‍
11 304SS 20ga 3.7 3251-1100-200000‍ 8010004319‍
12 304SS 20ga 4.1 3251-1200-200000‍ 8010004320‍
13 304SS 20ga 4.5 3251-1300-200000‍ 8010004321‍
14 304SS 20ga 5.75 3251-1400-200000‍ 8010004322‍
15 304SS 20ga 6.25 3251-1500-200000‍ 8010004323‍
16 304SS 20ga 7.5 3251-1600-200000‍ 8010004324‍
17 304SS 20ga 8.25 3251-1700-200000‍ 8010004325‍
18 304SS 20ga 9.5 3251-1800-200000‍ 8010004326‍
19 304SS 20ga 10.1 3251-1900-200000‍ 8010004327‍
20 304SS 20ga 10.75 3251-2000-200000‍ 8010004328‍
21 304SS 20ga 11.5 3251-2100-200000‍ 8010004329‍
22 304SS 20ga 12.25 3251-2200-200000‍ 8010004330‍
23 304SS 20ga 12.9 3251-2300-200000‍ 8010004331‍
24 304SS 20ga 14.5 3251-2400-200000‍ 8010004332‍
