QFS Oil Mist Recycler

Our Quick-Fit® Oil Mist Recycler can extend filter media life, reduce maintenance costs, and decrease issues caused by capturing and transporting large volumes of liquids to the collector.

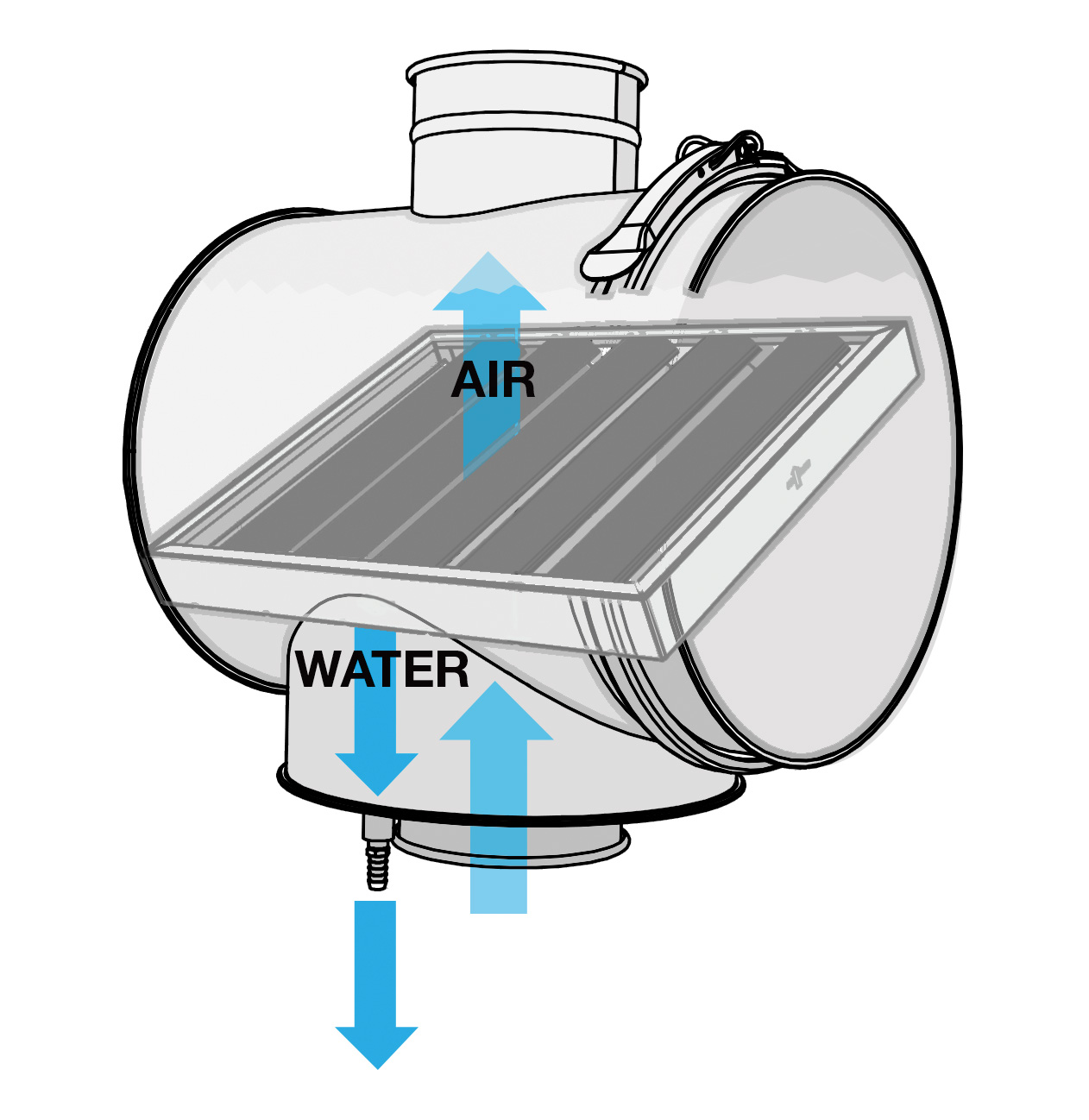

The idea for the Oil Mist Recycler is simple - capture most of the mist near the pick-up point and return it to the machine.

  • Can be installed in vertical or horizontal applications
  • Consists of recycler unit, molded gasket, clamp and end cap. 5 foot clear hose and hose clamp provided for drain tap.

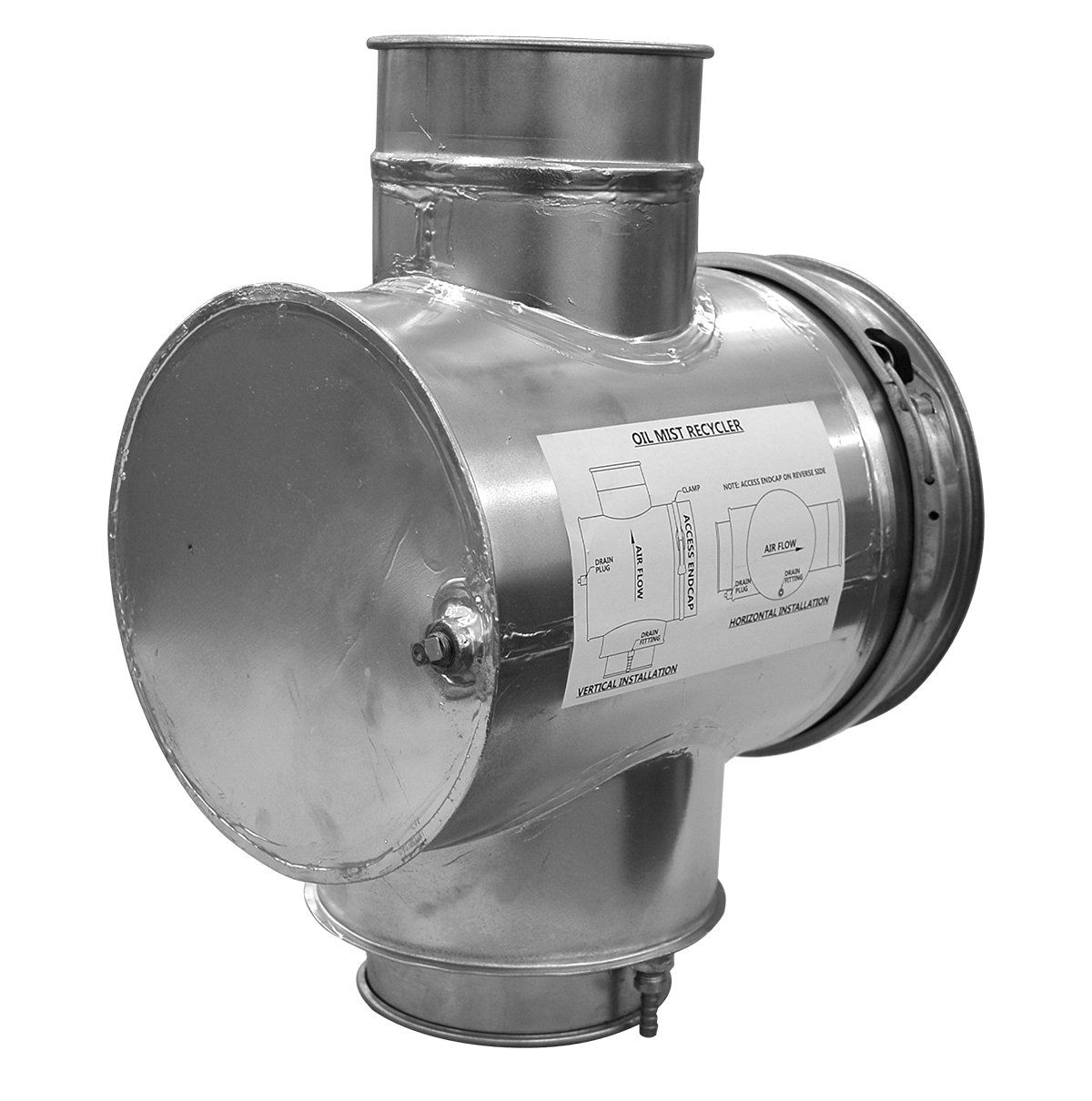

  • Available in galvanized steel and 304SS (as shown below)
  • Available with flanged ends in diameters up to 12", and other various end types
  • Optional material gauges 18 and 16

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Request a Quote



Download our Quick-Fit Sealed Ducting brochure, including Oil Mist Recycler description on page 4

Learn more about our Quick-Fit Sealed (QFS) Ducting for oil mist applications



Quick-Fit ducting has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

ø A in Material T mm Length (in) Weight (lbs) Legacy Item No. Item No.
3 Galv 22ga 11.1 3192-0300-100000‍ 8010004742‍
4 Galv 22ga 11.25 3192-0400-100000‍ 8010004743‍
5 Galv 22ga 11.45 3192-0500-100000‍ 8010004744‍
6 Galv 22ga 11.6 3192-0600-100000‍ 8010004745‍
7 Galv 22ga 22.7 3192-0700-100000‍ 8010004746‍
8 Galv 22ga 22.85 3192-0800-100000‍ 8010004747‍
9 Galv 22ga 23.1 3192-0900-100000‍ 8010004748‍
10 Galv 22ga 23.3 3192-1000-100000‍ 8010004739‍
11 Galv 22ga 32.85 3192-1100-100000‍ 8010004740‍
12 Galv 22ga 32.85 3192-1200-100000‍ 8010004741‍
3 304SS 22ga 11.1 3192-0300-200000‍ 8010004732‍
4 304SS 22ga 11.25 3192-0400-200000‍ 8010004733‍
5 304SS 22ga 11.45 3192-0500-200000‍ 8010004734‍
6 304SS 22ga 11.6 3192-0600-200000‍ 8010004735‍
7 304SS 22ga 22.7 3192-0700-200000‍ 8010004736‍
8 304SS 22ga 22.85 3192-0800-200000‍ 8010004737‍
9 304SS 22ga 23.1 3192-0900-200000‍ 8010004738‍
10 304SS 22ga 23.3 3192-1000-200000‍ 8010004729‍
11 304SS 22ga 32.85 3192-1100-200000‍ 8010004730‍
12 304SS 22ga 32.85 3192-1200-200000‍ 8010004731‍
