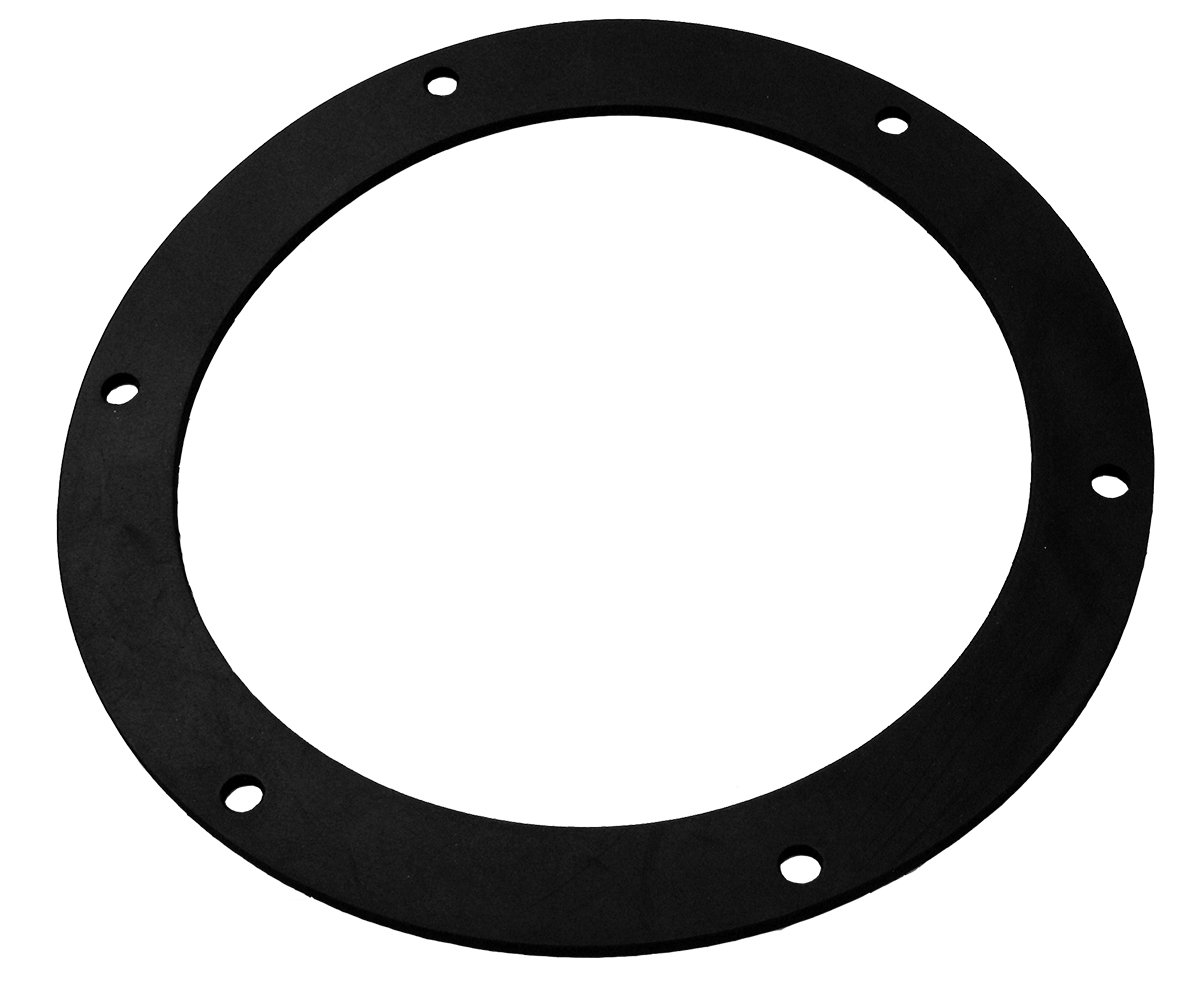

Angle Flange Gasket

For use with Nordfab flanged ductwork, Nordfab Angle Flanges, or Angle Flange Adapters. Gasket dimensions match our industry-standard Angle Flange dimensions.

  • Standard gasket is constructed of black nitrile, 60 durometer, a conductive material
  • Red Silicone Flange Gasket available for higher temperature applications
  • Nitrile temperature range -20°F to 170°F
  • One gasket should be used per joint.

Request a Quote



Download our Angle Flange Gasket Product Data sheet

ø A in Material Thickness Length (in) Weight (lbs) Legacy Item No. Item No.
3 Nitrile 0.19 3263-0300-000000‍ 8010003920‍
4 Nitrile 0.19 3263-0400-000000‍ 8010003922‍
5 Nitrile 0.19 3263-0500-000000‍ 8010003923‍
6 Nitrile 0.19 3263-0600-000000‍ 8010003924‍
7 Nitrile 0.19 3263-0700-000000‍ 8010003925‍
8 Nitrile 0.19 3263-0800-000000‍ 8010003926‍
9 Nitrile 0.19 3263-0900-000000‍ 8010003927‍
10 Nitrile 0.19 3263-1000-000000‍ 8010003890‍
11 Nitrile 0.19 3263-1100-000000‍ 8010003891‍
12 Nitrile 0.19 3263-1200-000000‍ 8010003892‍
13 Nitrile 0.19 3263-1300-000000‍ 8010003893‍
14 Nitrile 0.19 3263-1400-000000‍ 8010003894‍
15 Nitrile 0.19 3263-1500-000000‍ 8010003895‍
16 Nitrile 0.19 3263-1600-000000‍ 8010003896‍
17 Nitrile 0.19 3263-1700-000000‍ 8010003897‍
18 Nitrile 0.19 3263-1800-000000‍ 8010003898‍
19 Nitrile 0.19 3263-1900-000000‍ 8010003899‍
20 Nitrile 0.19 3263-2000-000000‍ 8010003900‍
21 Nitrile 0.19 3263-2100-000000‍ 8010003901‍
22 Nitrile 0.19 3263-2200-000000‍ 8010003902‍
23 Nitrile 0.19 3263-2300-000000‍ 8010003903‍
24 Nitrile 0.19 3263-2400-000000‍ 8010003904‍
25 Nitrile 0.19 3263-2500-000000‍ 8010003905‍
26 Nitrile 0.19 3263-2600-000000‍ 8010003906‍
27 Nitrile 0.19 3263-2700-000000‍ 8010003907‍
28 Nitrile 0.19 3263-2800-000000‍ 8010003908‍
29 Nitrile 0.19 3263-2900-000000‍ 8010003909‍
30 Nitrile 0.19 3263-3000-000000‍ 8010003910‍
31 Nitrile 0.19 3263-3100-000000‍ 8010003911‍
32 Nitrile 0.19 3263-3200-000000‍ 8010003912‍
33 Nitrile 0.19 3263-3300-000000‍ 8010003913‍
34 Nitrile 0.19 3263-3400-000000‍ 8010003914‍
35 Nitrile 0.19 3263-3500-000000‍ 8010003915‍
36 Nitrile 0.19 3263-3600-000000‍ 8010003916‍
37 Nitrile 0.19 3263-3700-000000‍ 8010003917‍
38 Nitrile 0.19 3263-3800-000000‍ 8010003918‍
39 Nitrile 0.19 3263-3900-000000‍ 8010003919‍
40 Nitrile 0.19 3263-4000-000000‍ 8010003921‍
