Angle Flange Adapter 14ga

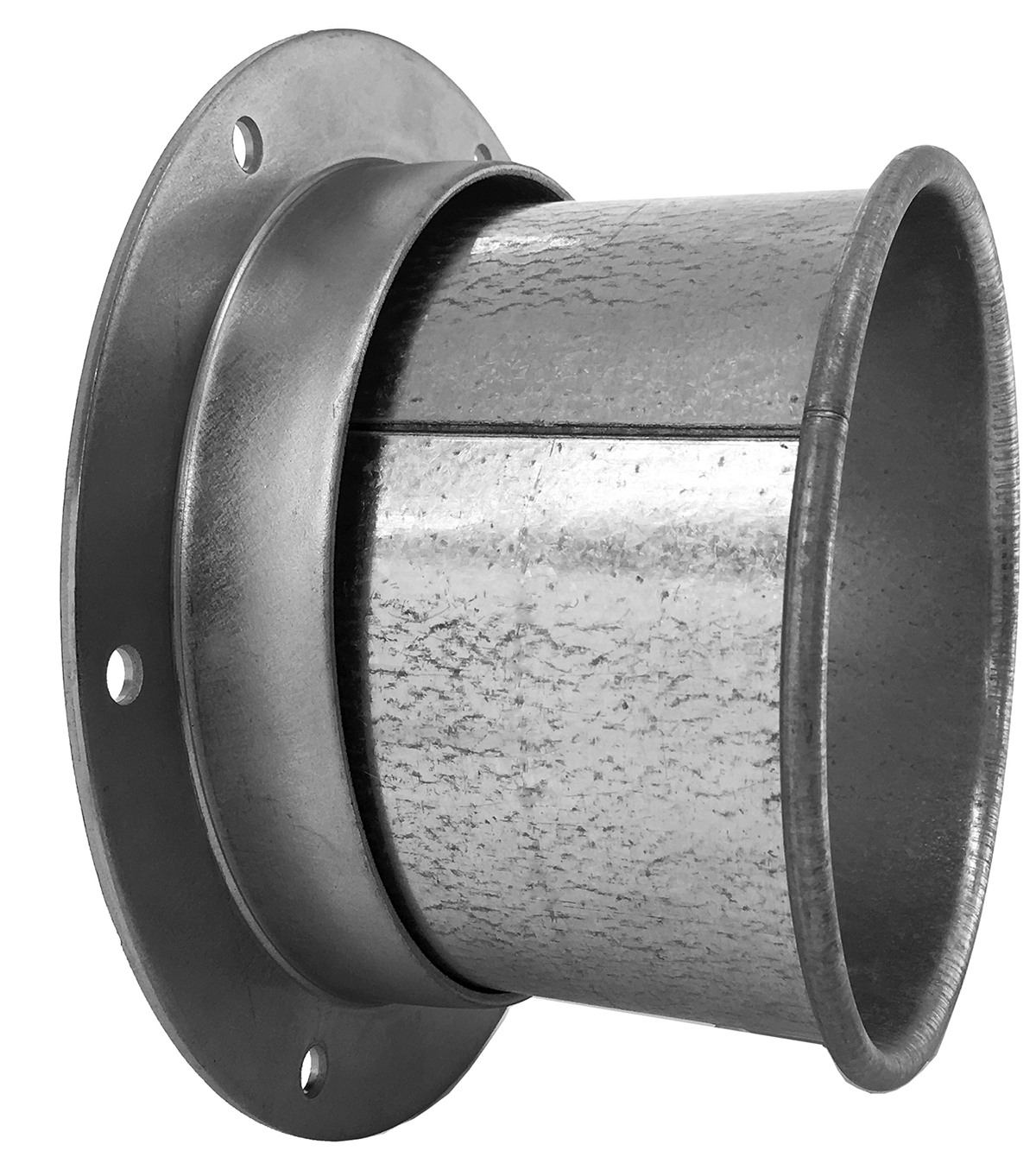

Nordfab’s QF® Angle Flange Adapter is fitted with an industry standard Angle Flange on one end and a Quick-Fit (QF) rolled edge at the other, allowing quick connection of QF duct pipe or fittings to flanged pipes or fittings.

14 gauge material construction adds extra durability for abrasive material or high wear application.

If a custom bolt hole pattern is required, specify a Flat Flange (FFL) instead of an Angle Flange (ANGFL) and provide the hole pattern. If no hole pattern drawing is provided, flat flange will be blank. Flanges are retained with a Van Stone lip allowing easy rotation and alignment during installation.

  • Available in galvanized steel and 304SS (as shown below) or optional 316SS or carbon steel
  • Available with flanged ends in diameters up to 72", and other various end types
  • Optional gauges 18, 16, 14, 12 and 10

Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Quick-Fit saves time and money on installation, is easy to clean out, is adaptable to existing ductwork, and is easily re-used during shop floor reconfigurations. Learn more about why Quick-Fit may be the best solution for you.

Request a Quote
Download our Angle Flange Adapter Product Data sheet
Download our QF Angle Flange Adapter Revit® families



Learn more about the benefits and availability of heavy gauge ducting from Nordfab

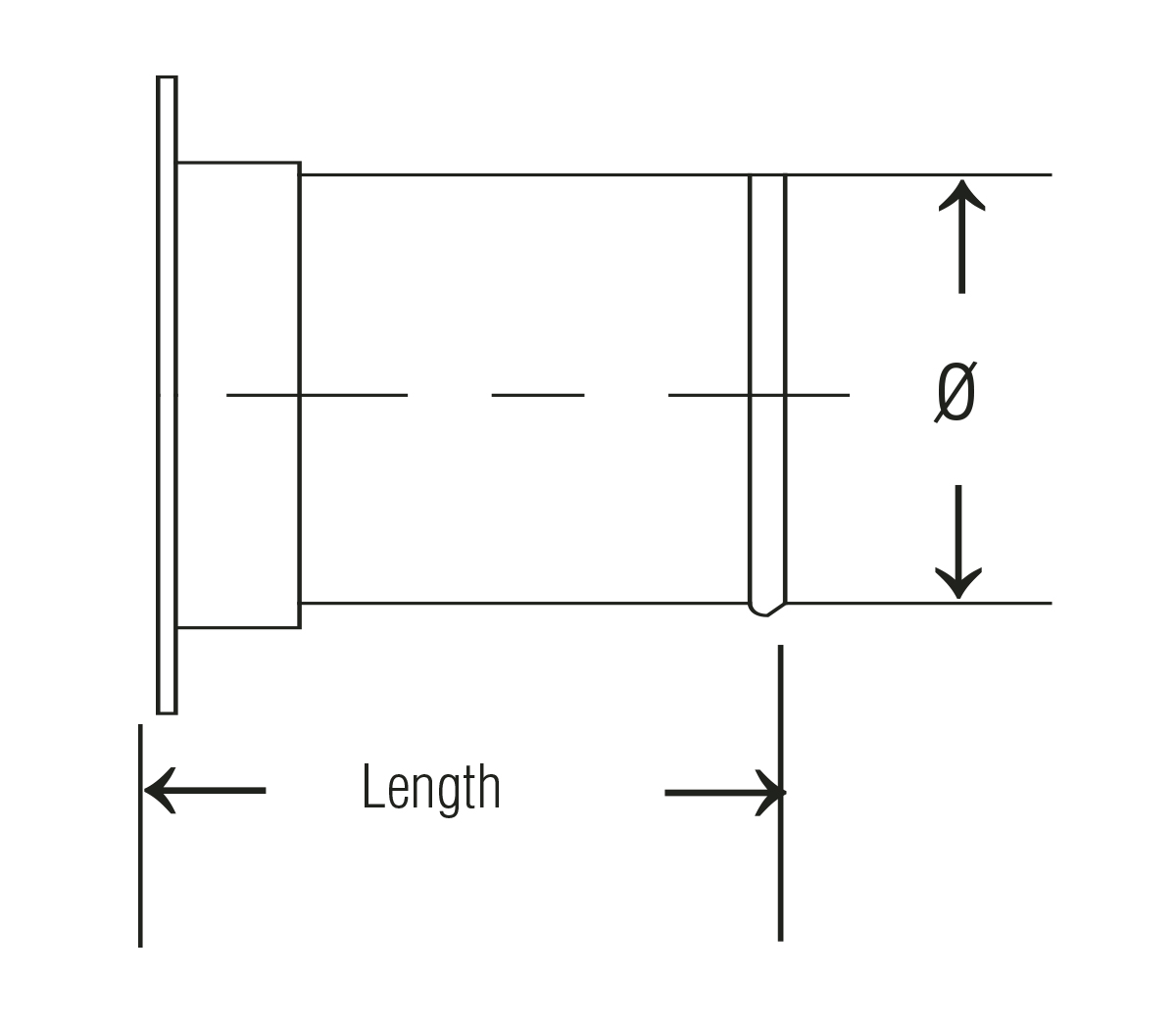

ø A in Material Thickness Length (in) Weight (lbs) Legacy Item No. Item No.
8 Galv 14ga 3.5 4 4250-0800-100000‍ 8040401936‍
9 Galv 14ga 3.5 5 4250-0900-100000‍ 8040401937‍
10 Galv 14ga 3.5 6 4250-1000-100000‍ 8040401938‍
11 Galv 14ga 3.5 6 4250-1100-100000‍ 8040401939‍
12 Galv 14ga 3.5 7 4250-1200-100000‍ 8040401940‍
13 Galv 14ga 5 9 4250-1300-100000‍ 8040401941‍
14 Galv 14ga 5 10 4250-1400-100000‍ 8040401942‍
15 Galv 14ga 5 13 4250-1500-100000‍ 8040401943‍
16 Galv 14ga 5 14 4250-1600-100000‍ 8040401944‍
17 Galv 14ga 5 14 4250-1700-100000‍ 8040401945‍
18 Galv 14ga 5 15 4250-1800-100000‍ 8040401946‍
19 Galv 14ga 5 16 4250-1900-100000‍ 8040401947‍
20 Galv 14ga 5 16 4250-2000-100000‍ 8040401948‍
21 Galv 14ga 5 18 4250-2100-100000‍ 8040401949‍
22 Galv 14ga 5 18 4250-2200-100000‍ 8040401950‍
23 Galv 14ga 5 20 4250-2300-100000‍ 8040401951‍
24 Galv 14ga 5 20 4250-2400-100000‍ 8040401952‍
