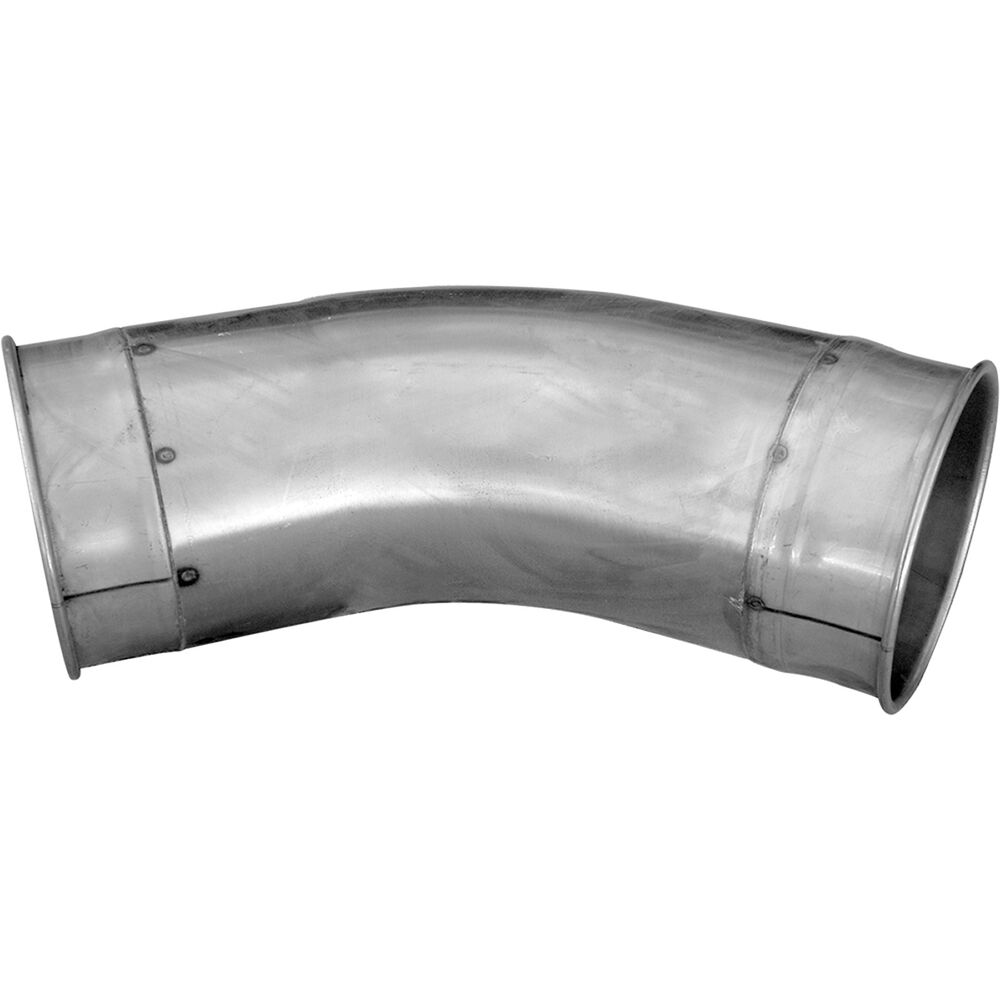

Quick-Fit® Tubed Elbows have rolled ends for use with Quick-Fit Clamps, allowing quick assembly / disassembly and relocation. Learn more about the advantages of Quick-Fit ducting.
Tubed elbows are air flow directional (collar on outside of tube for outlet and collar on inside of tube for inlet).
Tubed Elbows, also referred to as tubed bends, are available in 90°, 60°, 45°, and 30° with a radius of 1.5.
Contact Nordfab or your local Nordfab dealer for assistance with larger sizes and material / gauge options.
| ø A in | Angle degree | Center line radius | Material | Thickness | Weight (lbs) | Legacy Item No. | Item No. |
|---|---|---|---|---|---|---|---|
| 3 | 90 | 1.5 | Galv | 16ga | 3.5 | 3214-0390-104500 | 8010003706 |
| 3 | 60 | 1.5 | Galv | 16ga | 2.31 | 3214-0360-104500 | 8010003704 |
| 3 | 45 | 1.5 | Galv | 16ga | 1.75 | 3214-0345-104500 | 8010003702 |
| 3 | 30 | 1.5 | Galv | 16ga | 1.15 | 3214-0330-104500 | 8010003700 |
| 4 | 90 | 1.5 | Galv | 16ga | 5 | 3214-0490-106000 | 8010003714 |
| 4 | 60 | 1.5 | Galv | 16ga | 3.33 | 3214-0460-106000 | 8010003712 |
| 4 | 45 | 1.5 | Galv | 16ga | 2.5 | 3214-0445-106000 | 8010003710 |
| 4 | 30 | 1.5 | Galv | 16ga | 1.65 | 3214-0430-106000 | 8010003708 |
| 5 | 90 | 1.5 | Galv | 14ga | 7.4 | 3214-0590-107500 | 8010003682 |
| 5 | 60 | 1.5 | Galv | 14ga | 4.95 | 3214-0560-107500 | 8010003680 |
| 5 | 45 | 1.5 | Galv | 14ga | 3.75 | 3214-0545-107500 | 8010003678 |
| 5 | 30 | 1.5 | Galv | 14ga | 2.48 | 3214-0530-107500 | 8010003676 |
| 6 | 90 | 1.5 | Galv | 14ga | 10.25 | 3214-0690-109000 | 8010003690 |
| 6 | 60 | 1.5 | Galv | 14ga | 6.67 | 3214-0660-109000 | 8010003688 |
| 6 | 45 | 1.5 | Galv | 14ga | 5 | 3214-0645-109000 | 8010003686 |
| 6 | 30 | 1.5 | Galv | 14ga | 3.33 | 3214-0630-109000 | 8010003684 |
| 8 | 90 | 1.5 | Galv | 14ga | 15 | 3214-0890-112000 | 8010003698 |
| 8 | 60 | 1.5 | Galv | 14ga | 9.98 | 3214-0860-112000 | 8010003696 |
| 8 | 45 | 1.5 | Galv | 14ga | 7.5 | 3214-0845-112000 | 8010003694 |
| 8 | 30 | 1.5 | Galv | 14ga | 4.95 | 3214-0830-112000 | 8010003692 |
| 3 | 90 | 1.5 | 304SS | 14ga | 3.5 | 3214-0390-204500 | 8010003642 |
| 3 | 60 | 1.5 | 304SS | 14ga | 2.31 | 3214-0360-204500 | 8010003640 |
| 3 | 45 | 1.5 | 304SS | 14ga | 1.75 | 3214-0345-204500 | 8010003638 |
| 3 | 30 | 1.5 | 304SS | 14ga | 1.15 | 3214-0330-204500 | 8010003636 |
| 4 | 90 | 1.5 | 304SS | 14ga | 5 | 3214-0490-206000 | 8010003650 |
| 4 | 60 | 1.5 | 304SS | 14ga | 3.33 | 3214-0460-206000 | 8010003648 |
| 4 | 45 | 1.5 | 304SS | 14ga | 2.5 | 3214-0445-206000 | 8010003646 |
| 4 | 30 | 1.5 | 304SS | 14ga | 1.65 | 3214-0430-206000 | 8010003644 |
| 5 | 90 | 1.5 | 304SS | 14ga | 7.4 | 3214-0590-207500 | 8010003658 |
| 5 | 60 | 1.5 | 304SS | 14ga | 4.95 | 3214-0560-207500 | 8010003656 |
| 5 | 45 | 1.5 | 304SS | 14ga | 3.75 | 3214-0545-207500 | 8010003654 |
| 5 | 30 | 1.5 | 304SS | 14ga | 2.48 | 3214-0530-207500 | 8010003652 |
| 6 | 90 | 1.5 | 304SS | 14ga | 10.25 | 3214-0690-209000 | 8010003666 |
| 6 | 60 | 1.5 | 304SS | 14ga | 6.67 | 3214-0660-209000 | 8010003664 |
| 6 | 45 | 1.5 | 304SS | 14ga | 5 | 3214-0645-209000 | 8010003662 |
| 6 | 30 | 1.5 | 304SS | 14ga | 3.33 | 3214-0630-209000 | 8010003660 |
| 8 | 90 | 1.5 | 304SS | 14ga | 15 | 3214-0890-212000 | 8010003674 |
| 8 | 60 | 1.5 | 304SS | 14ga | 9.98 | 3214-0860-212000 | 8010003672 |
| 8 | 45 | 1.5 | 304SS | 14ga | 7.5 | 3214-0845-212000 | 8010003670 |
| 8 | 30 | 1.5 | 304SS | 14ga | 4.95 | 3214-0830-212000 | 8010003668 |
